Champion’s Portable Winch Kit has a 3000-lb. rated line pull and a 1.3-hp DC motor. This mobile winch may be temporarily mounted to your vehicle or secure object, and offers accessories including a storage bag, winch mount, remote control, snatch block pulley, straps and more.
Features
Portable
This mobile winch may be mounted to your ATV, snowmobile or to any secure object with no need for permanent mounting, which makes it easy to take with you, use, pack up and store
Efficient
Line speed of 3.9 feet per minute with a full load, and 11.2 feet per minute with no load, featuring a 3000-lb. rated line pull powered by a 1.3-horsepower (12-volt) DC motor
Convenient
Complete kit includes all you need to start winching: storage bag, winch mount, remote control, roller fairlead, straps, snatch block pulley and D-shackles, quick-connect battery cables,
Hassle-Free
The roller fairlead creates a safe and smooth pull with the dependable 45.9-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

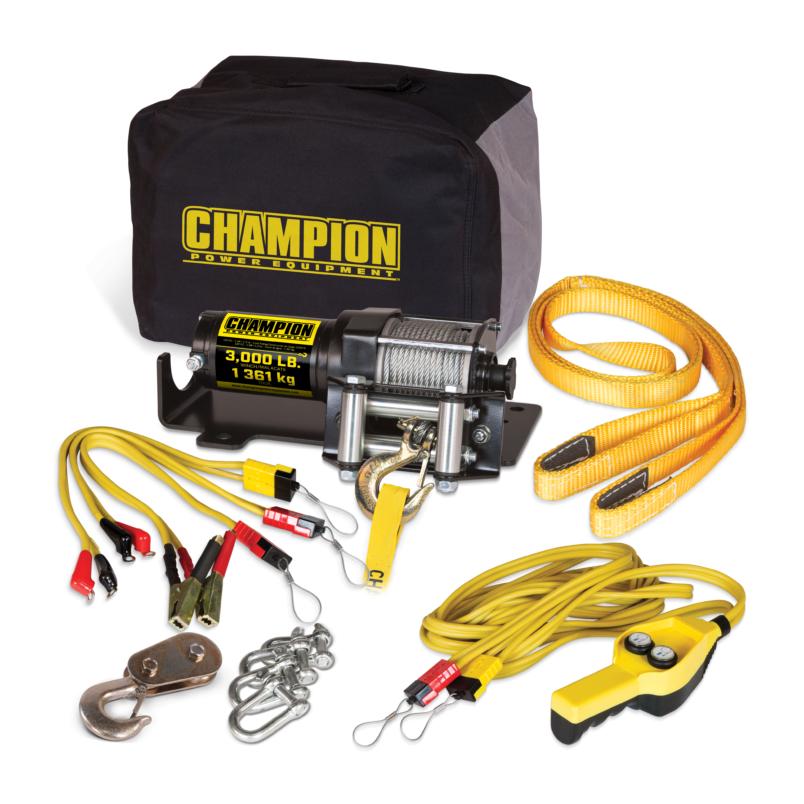

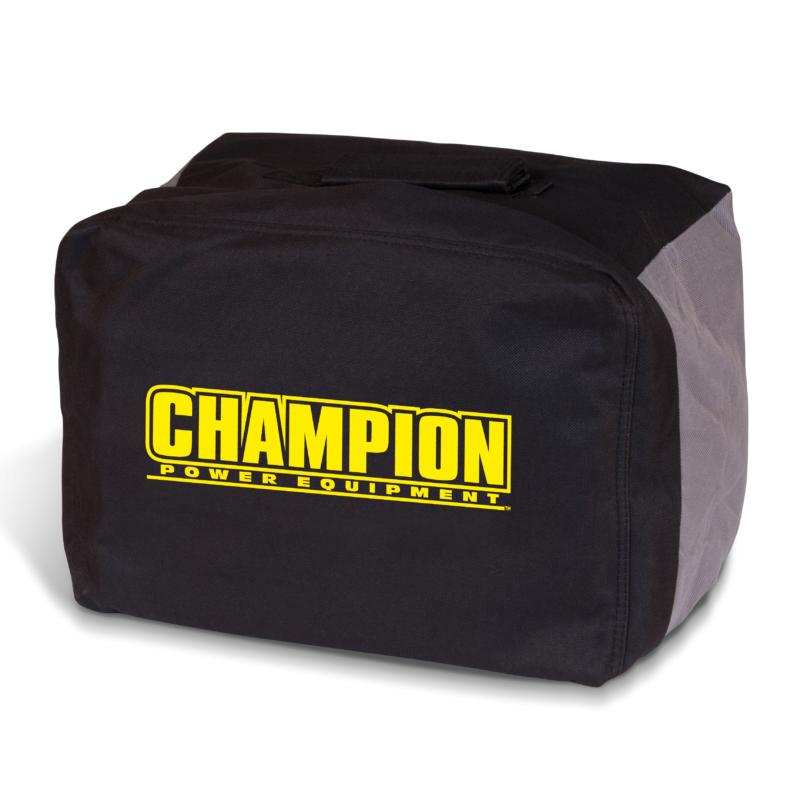

The Champion Power Equipment 100124 3000-lb. Portable Winch Kit includes all you need to start winching, including a portable winch mount, a roller fairlead and a remote control. Champion also includes a weather-resistant storage bag that makes it easy to safely store your winch or take it with you.

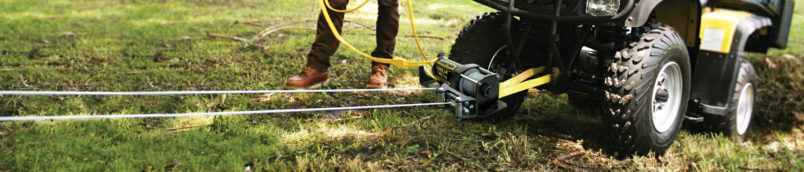

With a rated line pull of 3000 pounds, secure this winch on your ATV, side by side, snowmobile or other vehicle with the winch mount and straps to harness the strength of its 1.3-horsepower (12-volt) DC permanent magnet motor. Offering mid-span applications, this portable winch can use your vehicle frame or receiver hitch as an anchor point- no need for permanent mounting. You also have the option to mount the winch to a secure object while only relying on the vehicle as the power source.
The 45.9-foot by 3/16-inch galvanized, super-duty aircraft cable is less prone to fraying, and this incredibly strong cable is guided onto the 1.2 by 2.9-inch drum through the roller fairlead to maximize the life of the cable.
The single-stage planetary gear system along with the free-spooling clutch and handheld remote offer excellent control. This winch features dynamic braking of the winch drum so you’ll have the stopping power you need.
With a gear reduction ratio of 153:1, the winch boasts a line speed of 3.9 feet per minute with a full load and 11.2 feet per minute with no load.

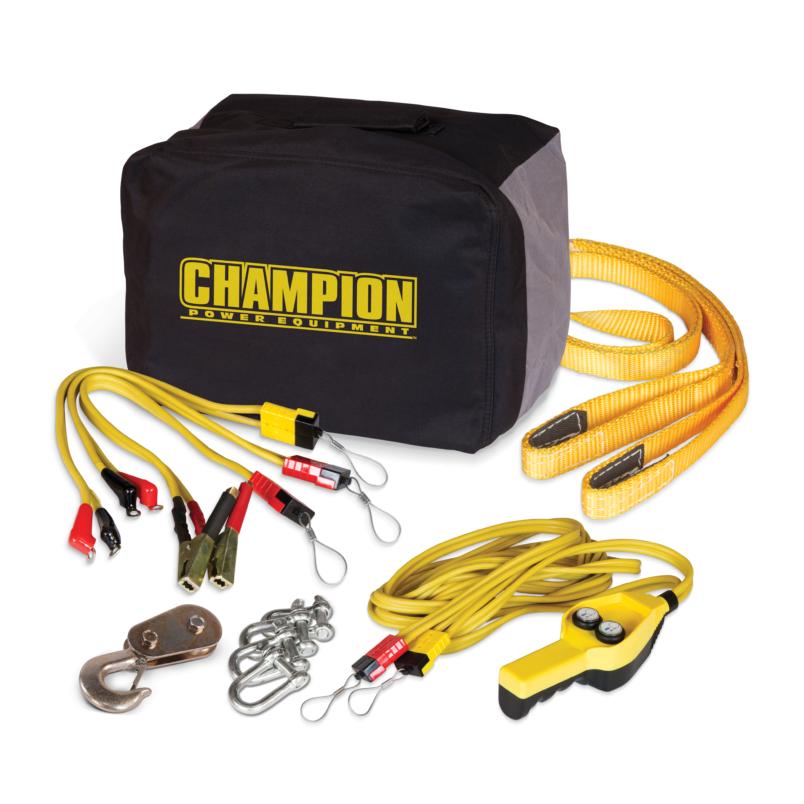

You also receive three quick-connect battery cables, two 96-inch anchor straps and four D-shackles. The included snatch block pulley can be used to increase winching power or to aid in angled pulls.
Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 3000-lb. Winch Kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Clevis Hook
- Hook Strap
- Mounting Channel
- Roller Fairlead
- Remote Control
- Snatch Block Pulley
- Battery Leads
- Carrying Bag
- D-Shackles (4)
- Anchor Straps (2)
Specifications
| Line Pull | 3000 lb. |
|---|---|
| Remote Length | 8 ft. |
| Gear Ratio | 153:1 |
| Gear System | Single-Stage Planetary |
| Full Load Line Speed | 3.9 ft/min |
| No-Load Line Speed | 11.2 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 45.9 ft. |
| Rope Diameter | 3/16 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 1.2 x 2.9 in. |
| Bolt Pattern | 3.1 in. |
| Mounting Channel | Portable |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1.3 hp |
| Max Current at Full Load | 150A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 12 in. |
|---|---|
| Width | 4.3 in. |
| Height | 4.3 in. |
| Weight | 30.2 lb. |
