Champion Power Equipment

Model #100250

37-Ton Log Splitter

Champion’s towable 37-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.

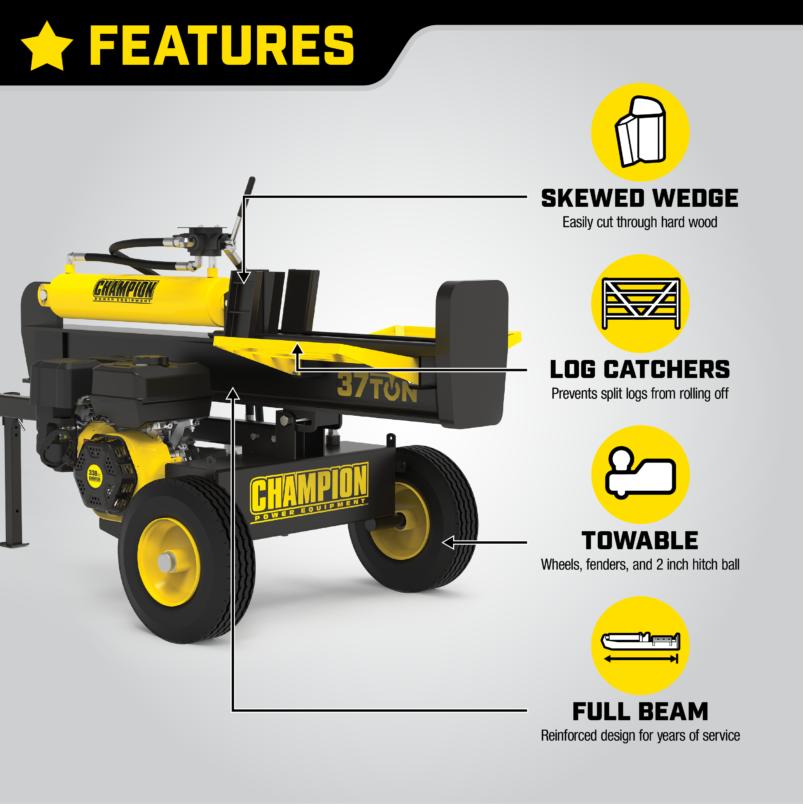

Features

Powerful

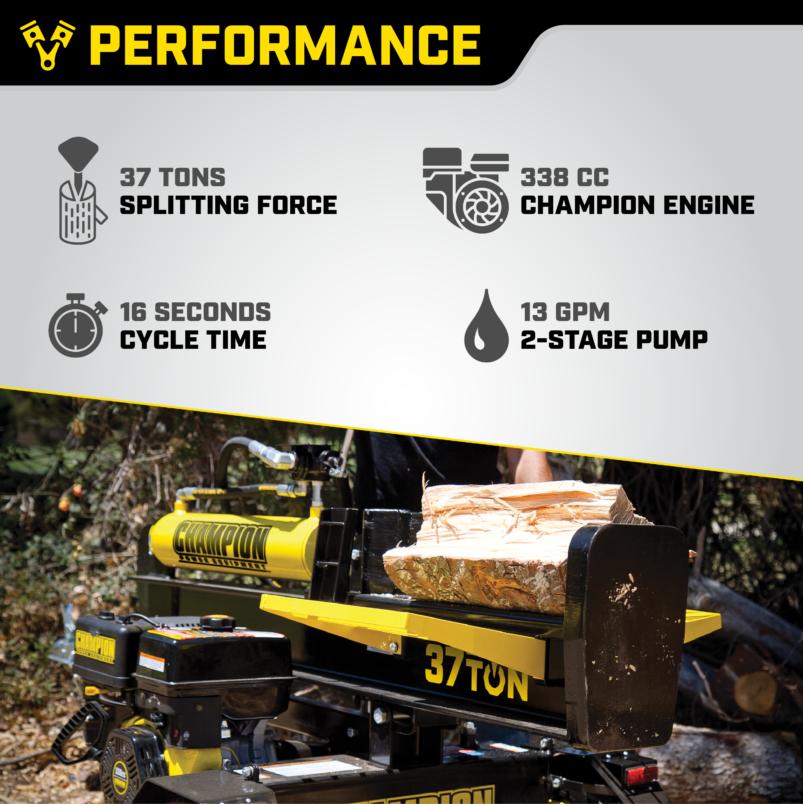

37 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine

Versatile

Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease

Efficient

16-second cycle time, expanded operator area and dependable auto-return valve capable of over 200 cycles per hour

Portable

Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 100250 37-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.

Depend on the reliable recoil start to start up the powerful Champion 338cc single-cylinder OHV engine, which features a cast-iron sleeve, a 1.6-gallon fuel tank, 1.2-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

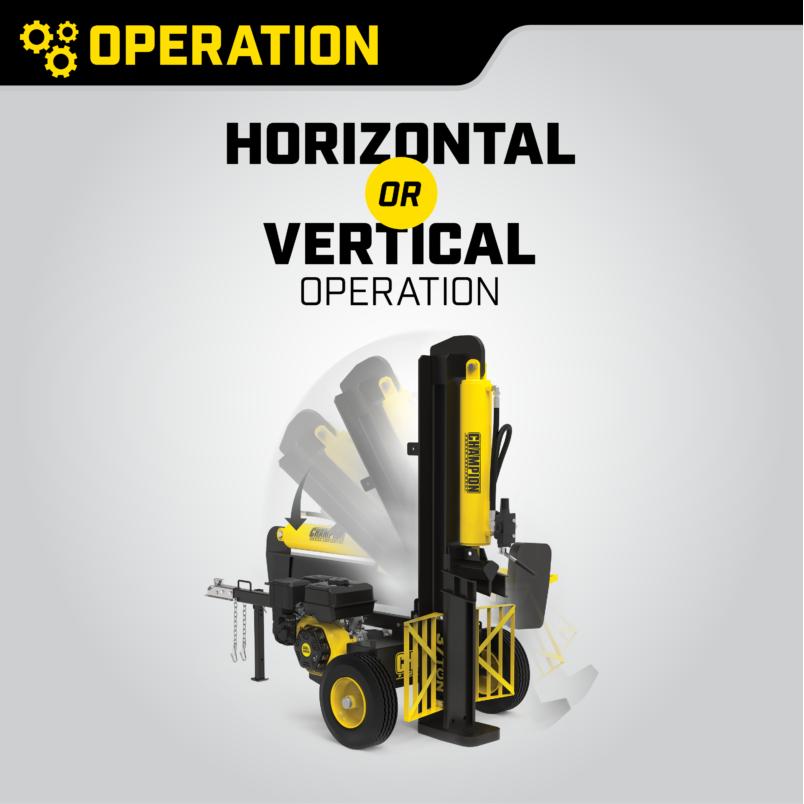

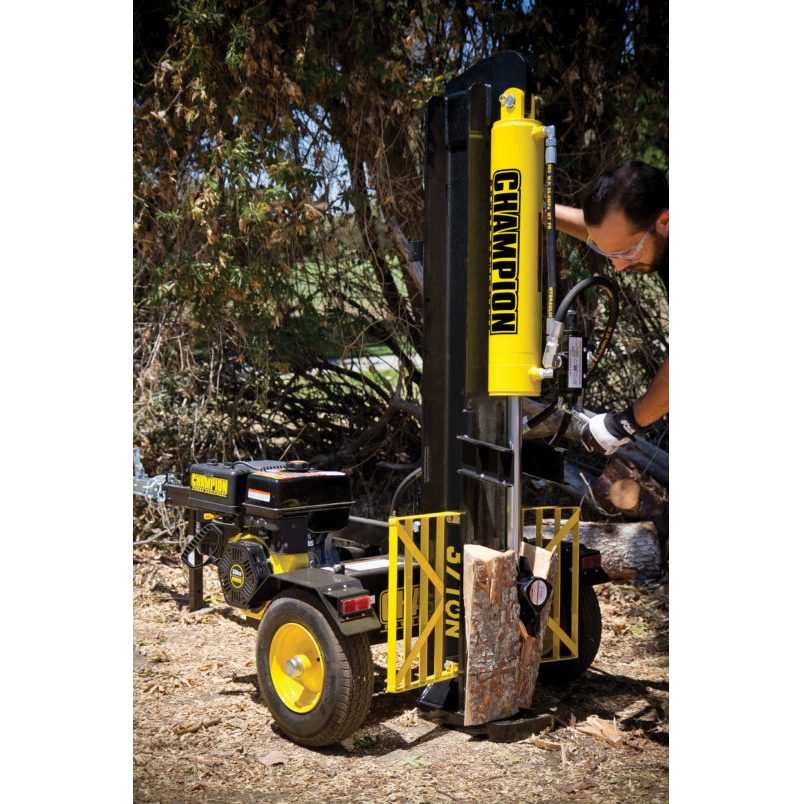

Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds.

Thirty-four tons of splitting capacity deliver the power you need. The hydraulic oil system has a 6.8-gallon oil capacity and operates at 13 gpm to power through tough logs.

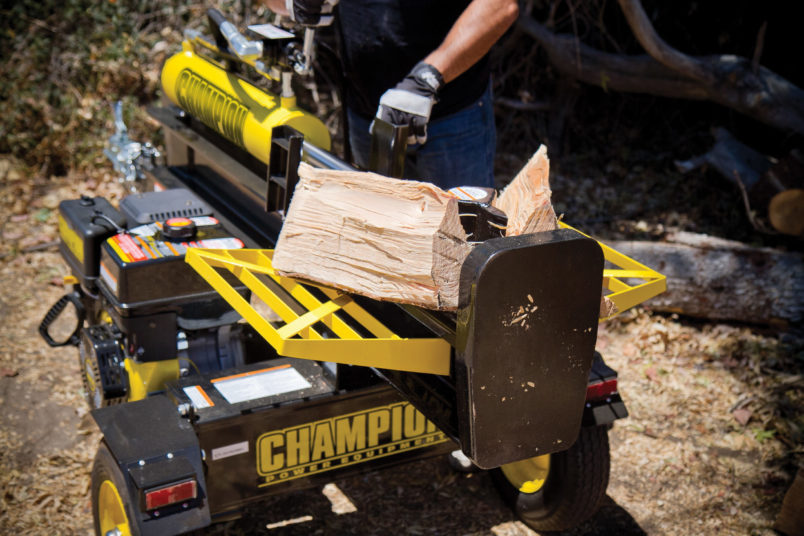

Champion’s efficient design has a fast 16-second cycle time and dependable auto-return valve, which is capable of over 200 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.

The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

This log splitter will fit in most truck beds, plus it’s easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications.

This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

What’s included

  • Oil Funnel
  • Log Catchers

Specifications

Ram Force 37T
Operating Position Horizontal, Vertical
Cycle Time 16 s.
Max Log Length 24.0 in.
Max Log Weight 100.0 lb.
Log Cradles Yes
Log Catchers Yes
Auto Return Yes
Wedge Type Single
Wedge Material Hardened Steel
Cylinder Diameter 5.0 in.
Cylinder Rod Size 1.8 in.
Hydraulic Pump 2-Stage
Hydraulic Flow Rate 13.0 gal/min
Hydraulic Pressure 3600 PSI
Hydraulic Oil System Capacity 6.8 gal.
Hydraulic Oil Tank Capacity 5.0 gal.
Hydraulic Oil Type AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid
Hydraulic Filter Internal/External
Hydraulic Oil Included No
Power Type Gasoline
Start Type Recoil
Engine Brand Champion
Engine Size 338cc
Engine Type 4-stroke
Gasoline Capacity 1.6 gal.
Engine Oil Type 10W-30
Engine Oil Capacity 1.2 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Pneumatic
Wheel Diameter 16.0 in.
Towable Yes
Hitch Type 2 in. Ball Hitch
Fenders Yes
Max Tow Speed 45 mph
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 92.4 in.
Width 40.8 in.
Height 46.1 in.
Weight 566.6 lb.
