Champion Power Equipment

Model #100416

8000W Electric Start Tri Fuel Generator with CO Shield®

Champion’s 8000-watt natural gas ready generator features CO Shield® carbon monoxide auto shutoff system. Also operating on Tri-Fuel technology, allowing it to run on natural gas, gasoline, or propane. This unit meets ANSI/PGMA G300-2018 requirements and includes a 25-foot natural gas hose kit.

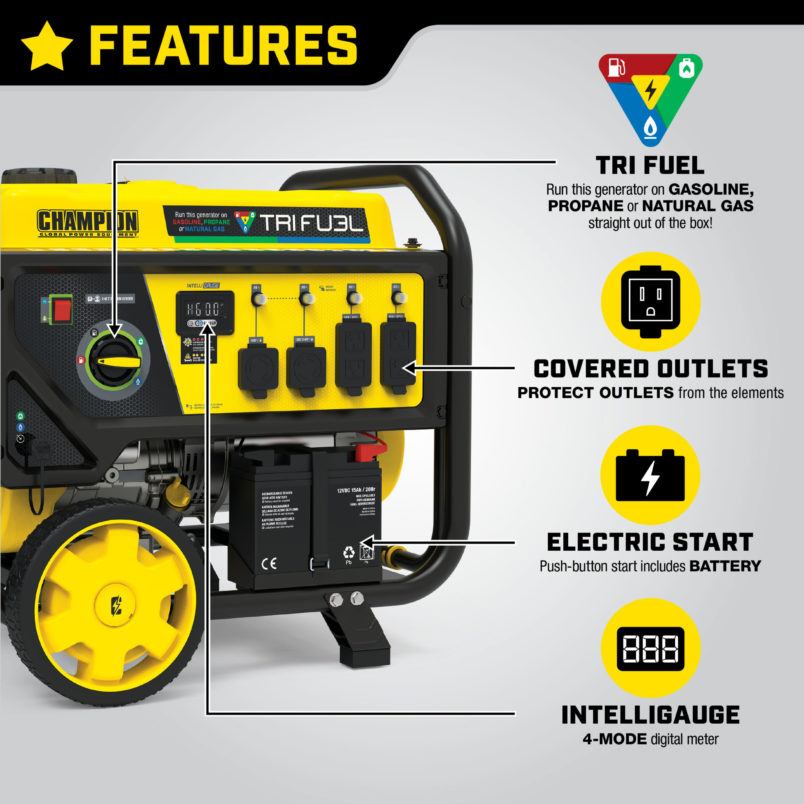

Features

Tri-Fuel Technology

Your 8000-watt portable generator operates on natural gas, propane, or gasoline, plus natural gas and propane hoses are included so the unit is ready to run on any fuel right out of the box

Electric Start

Power up the 459cc Champion engine with the handy rocker switch, battery included

Intelligauge with CO Shield®

Track voltage, frequency, session run time, and total run time to monitor output and track maintenance intervals, plus the UL-recognized sensor uses an LED to indicate CO shutoff or fault

Powerful

Gasoline: 10,000 starting watts and 8000 running watts, propane: 9000 starting watts and 7200 running watts, natural gas: 8750 starting watts and 7000 running watts and engine oil is included

Champion Support

Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 100416 8000-Watt Tri-Fuel Portable Natural Gas Ready Generator with CO Shield® is a reliable source of power with the flexibility you need. When you are not running your generator on natural gas, you also have the option of operating it on gasoline or propane. The ability to operate your generator on three types of fuel out of the box makes this one of the most versatile generators on the market.

The Fuel Select dial allows you to safely select gasoline, propane (LPG), or natural gas (NG) as your fuel source, plus a propane/natural gas selector is located on the side panel.

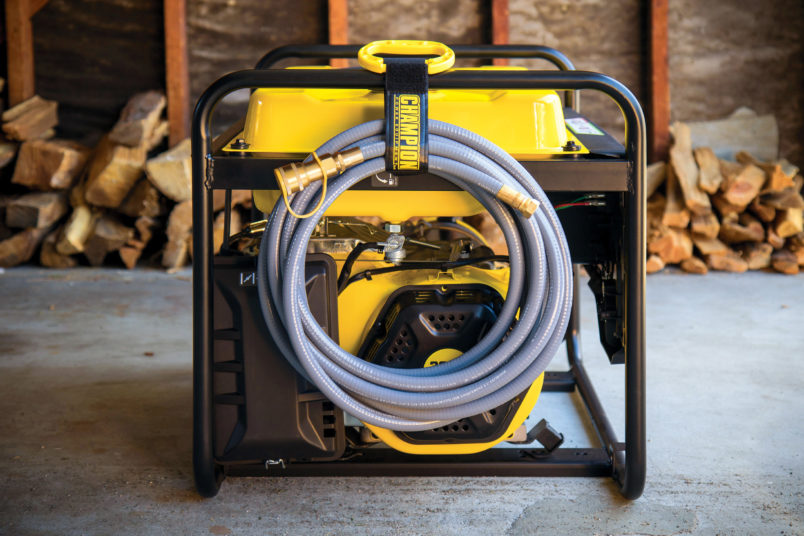

Using natural gas, the engine produces 8750 starting watts and 7000 running watts. A 6-foot propane hose with a built-in regulator is included. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.

Using gasoline, the 459cc Champion engine produces 10,000 starting watts and 8000 running watts, and will run for 12.5 hours at 50% load when the 8.5-gallon fuel tank is full. When using a 20-pound propane tank, it produces 9000 starting watts and 7200 running watts, and will run for 5 hours at 50% load.

The electric start includes a battery, plus Cold Start Technology ensures quick cold-weather starts. With a 1.2-quart oil capacity, this unit has a low oil shut-off sensor and includes engine oil – all you need is fuel!

Easily monitor power output and track maintenance intervals with Intelligauge, which allows you to keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals.

This generator has a noise level of 74 dBA from 23 feet, which is a bit louder than a vacuum.

The covered outlets include a 120V 30A locking outlet (L5-30R), a 120/240V 30A locking outlet (L14-30R) and four 120V 20A GFCI protected household outlets (5-20R).

Buy this EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

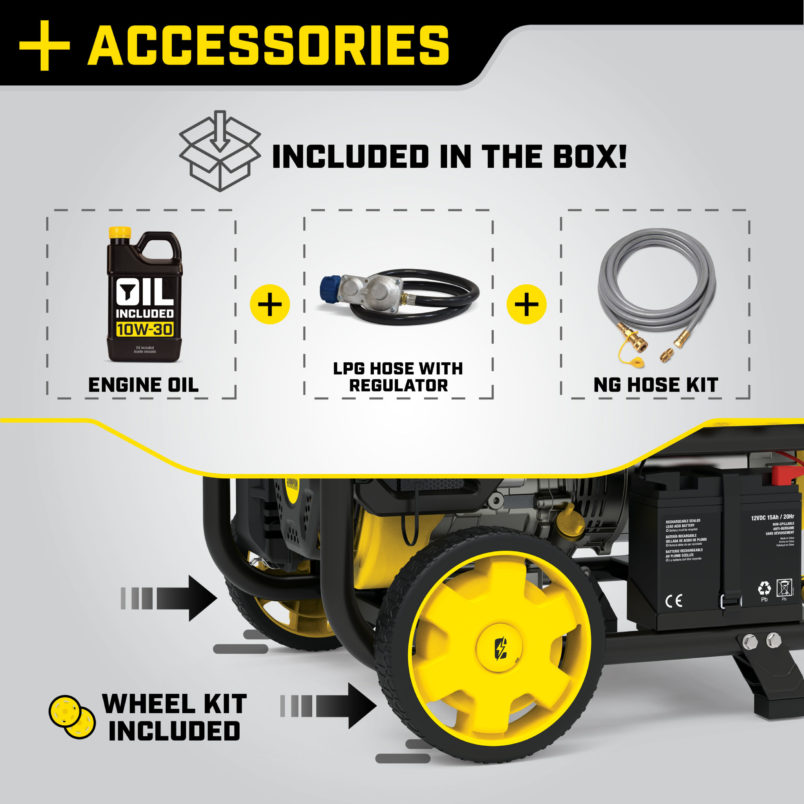

What’s included

  • Engine Oil
  • Oil Funnel
  • Natural Gas Hose with NPT Adapter
  • Propane (LPG) Hose
  • Wheel Kit

Specifications

Portable Generator Technology Tri Fuel, CO Shield®
Gasoline Starting Watts 10000W
Gasoline Running Watts 8000W
Propane Starting Watts 9000W
Propane Running Watts 7200W
Natural Gas Starting Watts 8750W
Natural Gas Running Watts 7000W
Gasoline Starting Amps at 120V 83.3A
Gasoline Starting Amps at 240V 41.7A
Gasoline Running Amps at 120V 66.7A
Gasoline Running Amps at 240V 33.3A
Propane Starting Amps at 120V 75A
Propane Starting Amps at 240V 37.5A
Propane Running Amps at 120V 60A
Propane Running Amps at 240V 30A
Natural Gas Starting Amps at 120V 72.9A
Natural Gas Starting Amps at 240V 36.5A
Natural Gas Running Amps at 120V 58.3A
Natural Gas Running Amps at 240V 29.2A
Volts 120/240
Frequency 60Hz
Outlets GFCI 120V 20A Duplex (5-20R) (2), 120V 30A Locking (L5-30R), 120/240V 30A (L14-30R)
GFCI Outlets Yes
Covered Outlets Yes
Gasoline Run Time at 1/2 Load 12.5 h.
Propane Run Time at 1/2 Load 5 h.
Noise Level 74 dBA
Parallel Capability No
DC Operation No
Voltmeter Intelligauge
Automatic Voltage Regulation No
Battery Yes
Start Type Recoil, Electric
Engine Brand Champion
Engine Size 459cc
Engine Type 4-stroke
Engine Speed 3600
Fuel Type Gasoline, Propane (LPG), Natural Gas (NG)
Fuel Gauge Yes
Gasoline Capacity 8.5 gal.
Gasoline Tank Material Steel
Engine Oil Type 10W-30
Engine Oil Capacity 1.1 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Solid
Wheel Diameter 10 in.
PGMA G300-2018 Compliant Yes
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 27.6 in.
Width 28.2 in.
Height 26 in.
Weight 207 lb.
