Champion’s ATV/UTV synthetic rope winch kit has a 2000-lb. rated line pull, a gear reduction ratio of 153:1, plus a remote control and free-spooling clutch to make your experience with this winch even easier. With a tough 1-horsepower (12-volt) DC motor, this winch is your perfect heavy-duty tool.
Features
Powerful
2000-lb. rated line pull powered by a 1-horsepower (12-volt) DC motor
Efficient
Line speed of 3.3 feet per minute with a full load, and 10.5 feet per minute with no load
Convenient
Included remote control and free-spooling clutch create an easier than ever winching experience
Hassle-Free
The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

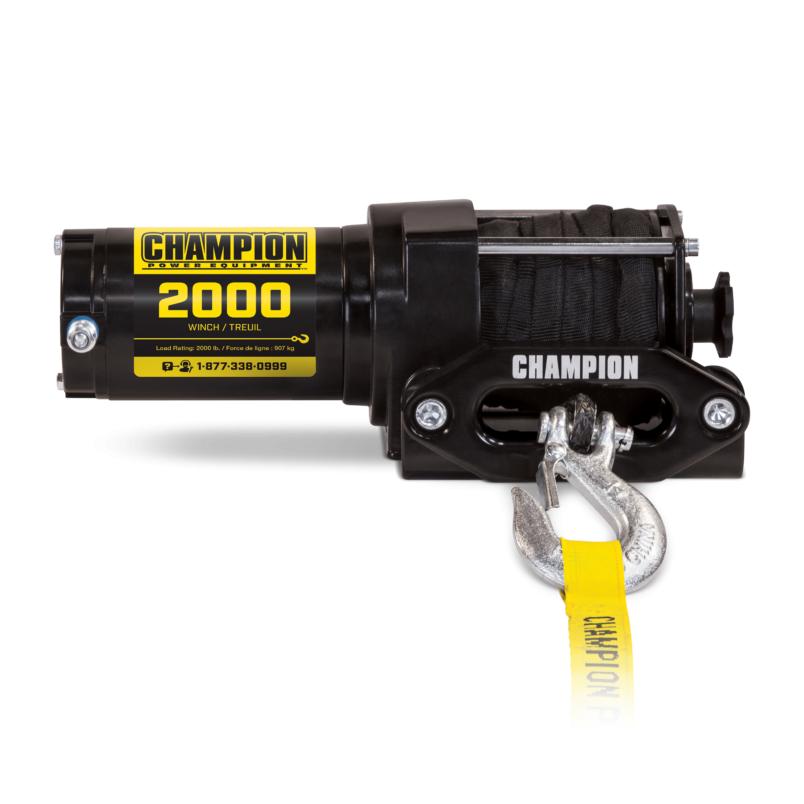

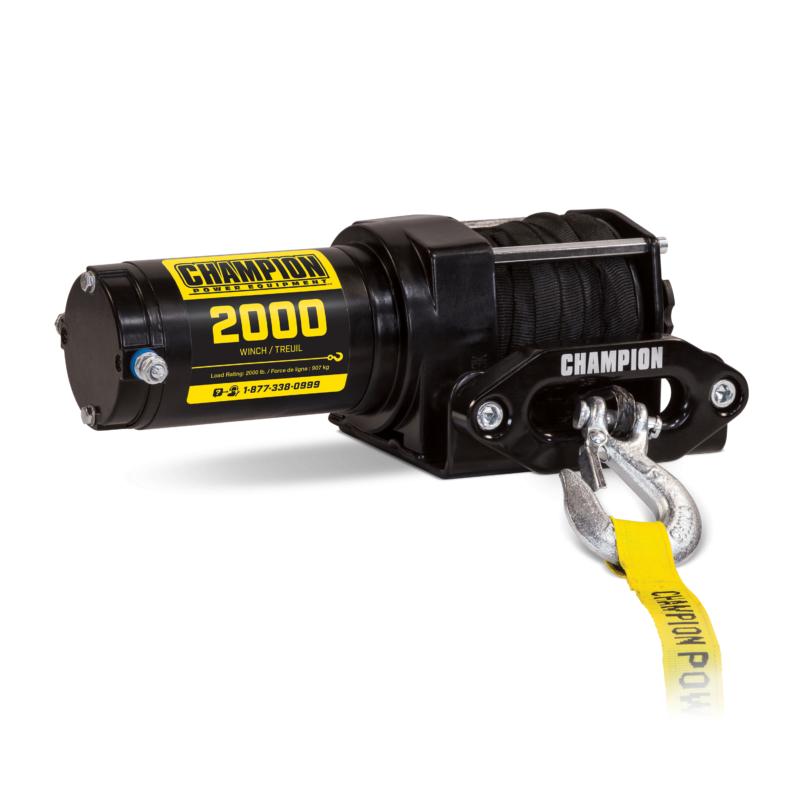

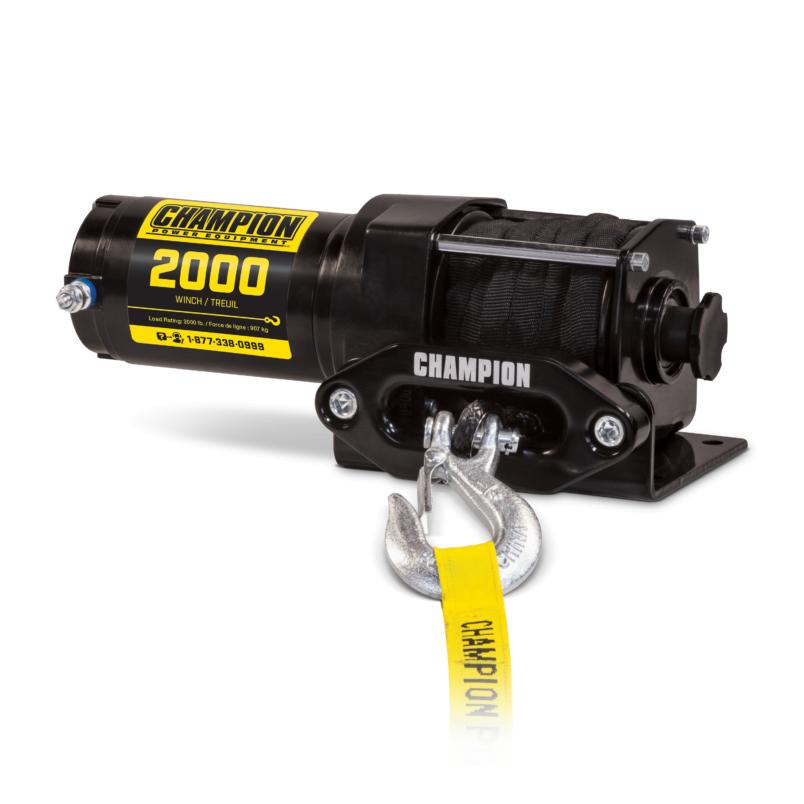

The Champion Power Equipment 100600 2000-lb. ATV/UTV Synthetic Rope Winch Kit includes everything you need to start winching.
With a rated line pull of 2000 pounds, mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1-horsepower (12-volt) DC permanent magnet motor.
Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl.
Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it’s free of wire splinters or burrs often found in steel rope, there’s less chance of injury.
Designed with a protective sleeve, the 34.4-feet by 3/16-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope.
The single-stage planetary gear system along with the handlebar-mounted remote control and free-spooling clutch offer excellent control while winching.
With a gear reduction ratio of 153:1, the winch boasts a line speed of 3.3 feet per minute with a full load, and 10.5 feet per minute with no load.
The drum measures 1.2 by 3 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power.
Offering much more than a motor and a spool of rope, the Champion 2000-lb. winch kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

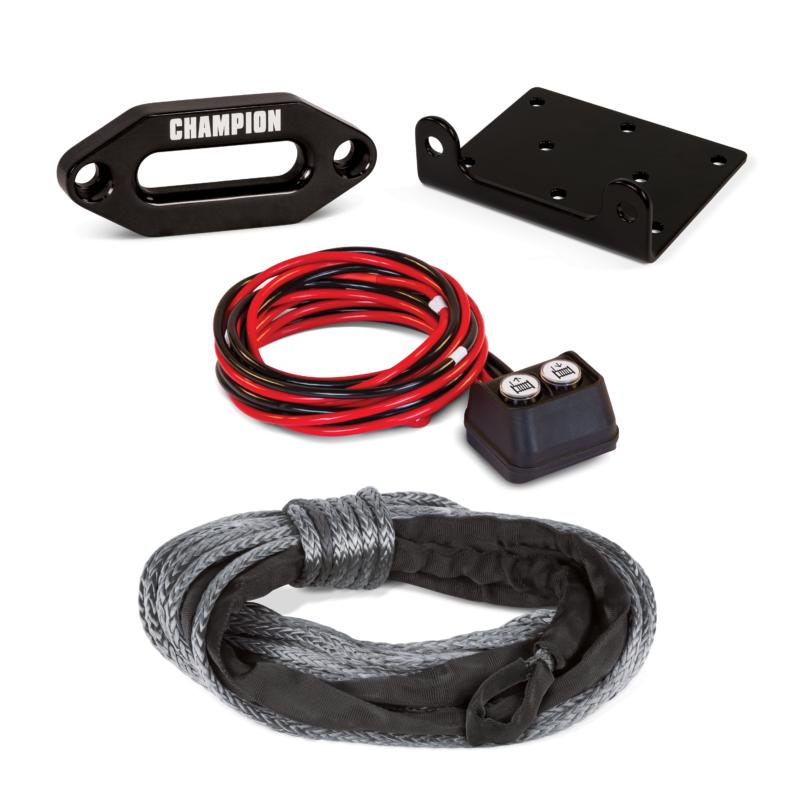

What’s included
- Mounting Channel
- Hawse Fairlead
- Clevis Hook
- Hook Strap
- Remote Control
- Synthetic Rope
Specifications
| Line Pull | 2000 lb. |
|---|---|
| Remote Length | 10.3 ft. |
| Gear Ratio | 153:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 3.3 ft/min |
| No-Load Line Speed | 10.5 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Synthetic Rope |
| Rope Length | 34.4 ft. |
| Rope Diameter | 3/16 in. |
| Fairlead Type | Hawse |
| Drum Size | 1.2 x 3 in. |
| Bolt Pattern | 3.1 x 4.9 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1 hp |
| Max Current at Full Load | 120A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 11.4 in. |
|---|---|
| Width | 3.9 in. |
| Height | 4.3 in. |
| Weight | 15 lb. |
