Champion Power Equipment

Model #100631

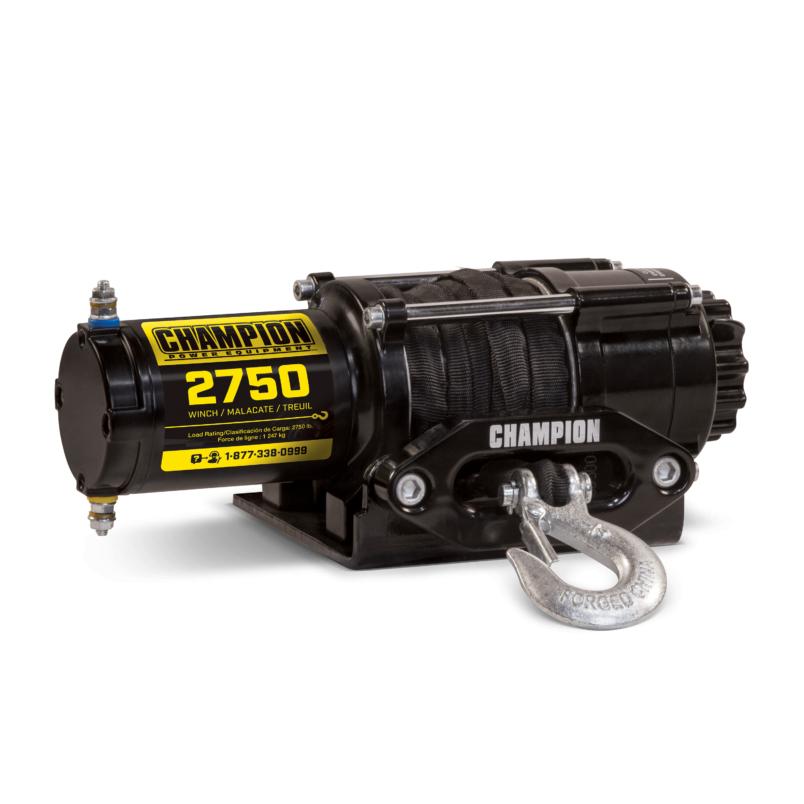

2750-lb. Synthetic Winch Kit

Champion’s ATV/UTV synthetic rope winch kit has a 2750-lb. rated line pull, a gear reduction ratio of 171:1, plus a remote control and free-spooling clutch to make your experience with this winch even easier. With a tough 1.2-horsepower (12-volt) DC motor, this winch is your perfect heavy-duty tool.

Features

Powerful

2750-lb. rated line pull powered by a 1.2-horsepower (12-volt) DC motor

Efficient

Line speed of 2.7 feet per minute with a full load, and 8.9 feet per minute with no load

Convenient

Includes a Speed Mount™ Hitch Adapter, a 1.25-2-inch hitch adapter, plus a wiring kit with contactor and mini-rocker handlebar switch to create an easier than ever winching experience

Hassle-Free

The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

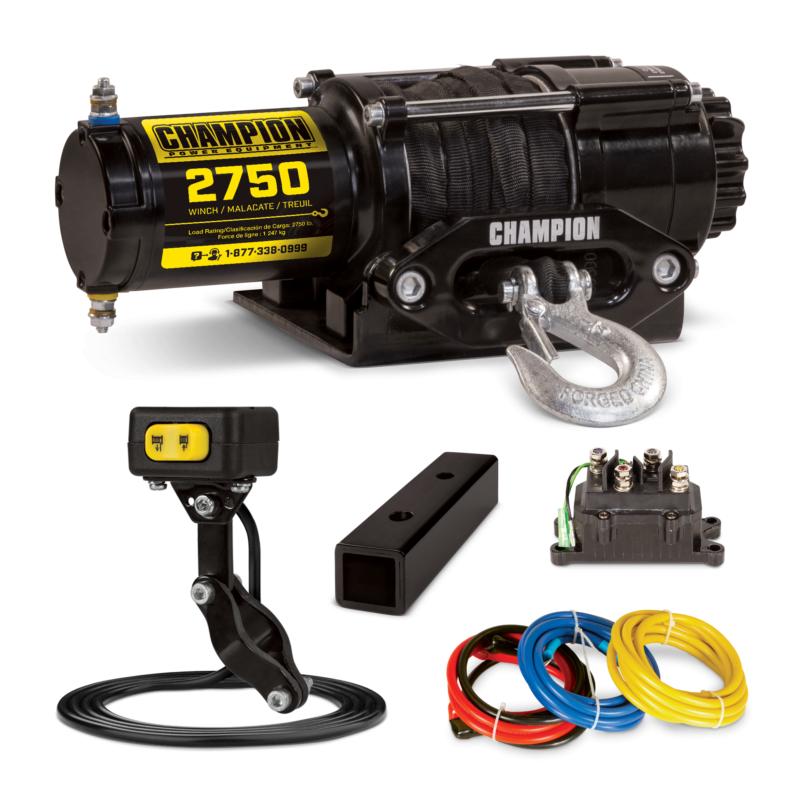

The Champion Power Equipment 100631 2750-lb. ATV/UTV Synthetic Rope Winch Kit is the ideal solution for convenient, portable winching and includes everything you need to get started.

Mount this winch on your ATV or side by side with the Speed Mount™ Hitch Adapter, which includes a flatbed mounting channel and a hitch bar with pin and lock. Also included is a 1-¼ to 2-inch hitch adapter.

The 1.2-horsepower (12-volt) DC permanent magnet motor delivers a rated line pull of 2750 pounds. With a gear reduction ratio of 171:1, the winch boasts a line speed of 2.7 feet per minute with a full load, and 8.9 feet per minute with no load.

Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl.

Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it’s free of wire splinters or burrs often found in steel rope, there’s less chance of injury.

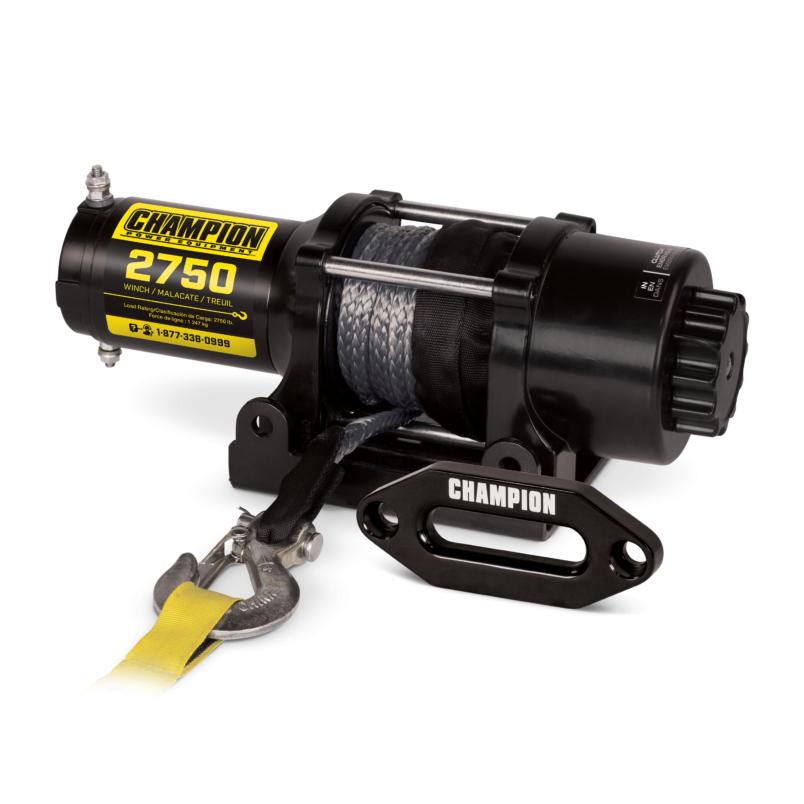

Designed with a stainless steel thimble and protective sleeve, the 50-feet by 3/16-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope.

Included with the ergonomic mini-rocker handlebar switch is a wiring kit with contactor. These features along with the three-stage planetary gear system and free-spooling clutch offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.

With a gear reduction ratio of 171:1, the winch boasts a line speed of 2.7 feet per minute with a full load, and 8.9 feet per minute with no load.

The drum measures 1.5 by 3.2 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power.

Offering much more than a motor and a spool of rope, the Champion 2750-lb. winch kit is a necessary tool for any situation you might encounter.

Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

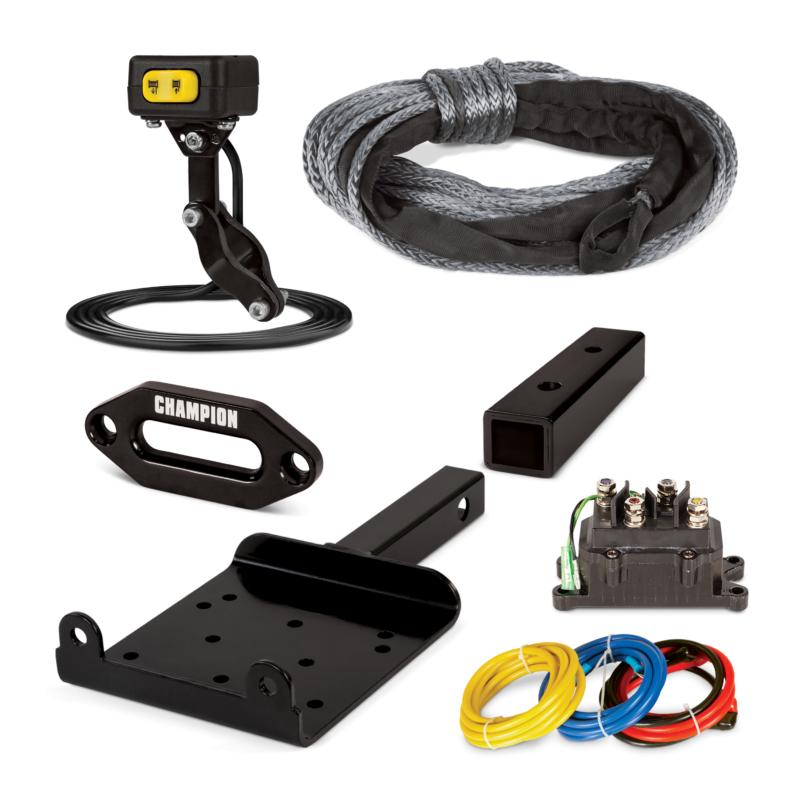

What’s included

  • Clevis Hook
  • Hook Strap
  • Speed Mount Hitch Adapter (1.25 in.)
  • 2 in. to 1.25 in. Hitch Adapter
  • Hawse Fairlead
  • Mini-Rocker Switch
  • Contactor
  • Battery Leads

Specifications

Line Pull 2750 lb.
Remote Length 10 ft.
Gear Ratio 171:1
Gear System Three-Stage Planetary
Full Load Line Speed 2.7 ft/min
No-Load Line Speed 8.9 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Synthetic Rope
Rope Length 50.0 ft.
Rope Diameter 3/16 in.
Fairlead Type Hawse
Drum Size 1.5 x 3.2 in.
Bolt Pattern 4.9 x 3 in.
Mounting Channel Speed Mount
Hitch Adapter Size 1.25 in., 2 in.
Motor Type 12V DC (Permanent Magnet)
Horsepower 1.2 hp
Max Current at Full Load 230.0A
Duty Cycle Intermittent

Dimensions

Length 12.7 in.
Width 4.1 in.
Height 4.2 in.
Weight 25.1 lb.
