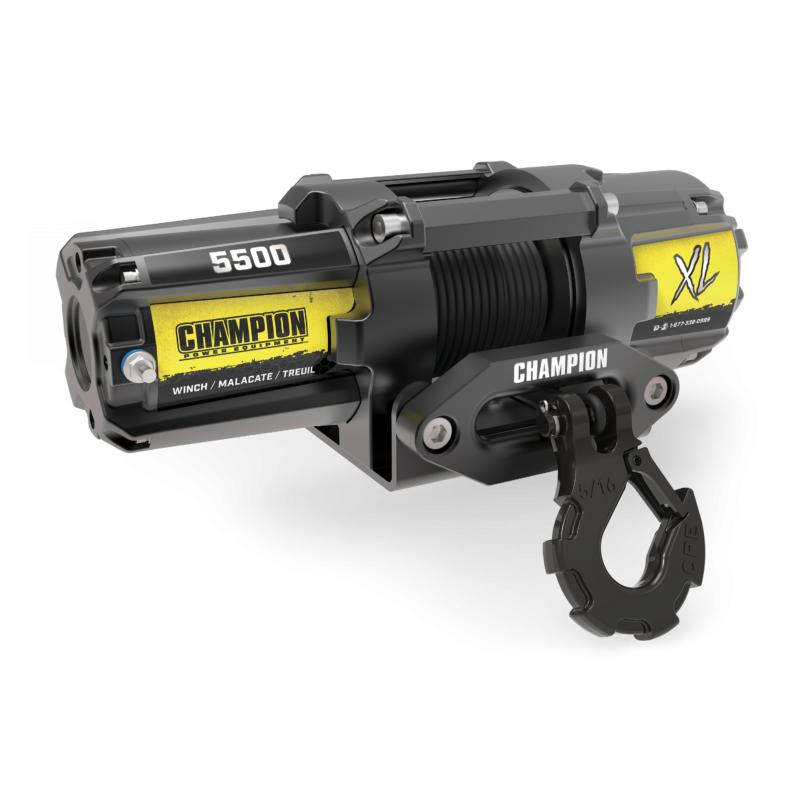

The Champion XL ATV/UTV winch has a 5500-lb. rated line pull, a gear reduction ratio of 166:1, plus a rocker switch and free-spooling clutch to make your experience with this winch even easier. With a tough 1.7-horsepower (12-volt) DC motor, this winch is your perfect heavy-duty tool.
Features
Powerful
5500-lb. rated line pull powered by a 1.7-horsepower (12-volt) DC motor
Efficient
Line speed of 2.0 feet per minute with a full load, and 12.8 feet per minute with no load
Convenient
Included remote control and free-spooling clutch create an easier than ever winching experience
Hassle-Free
The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats. The circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull.
Reliable
IP68 Water and Dust Proof Rated, Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 100723 5500-lb. ATV/UTV Winch includes everything you need to start winching.
With a rated line pull of 5500 pounds, mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1.7-horsepower (12-volt) DC permanent magnet motor.

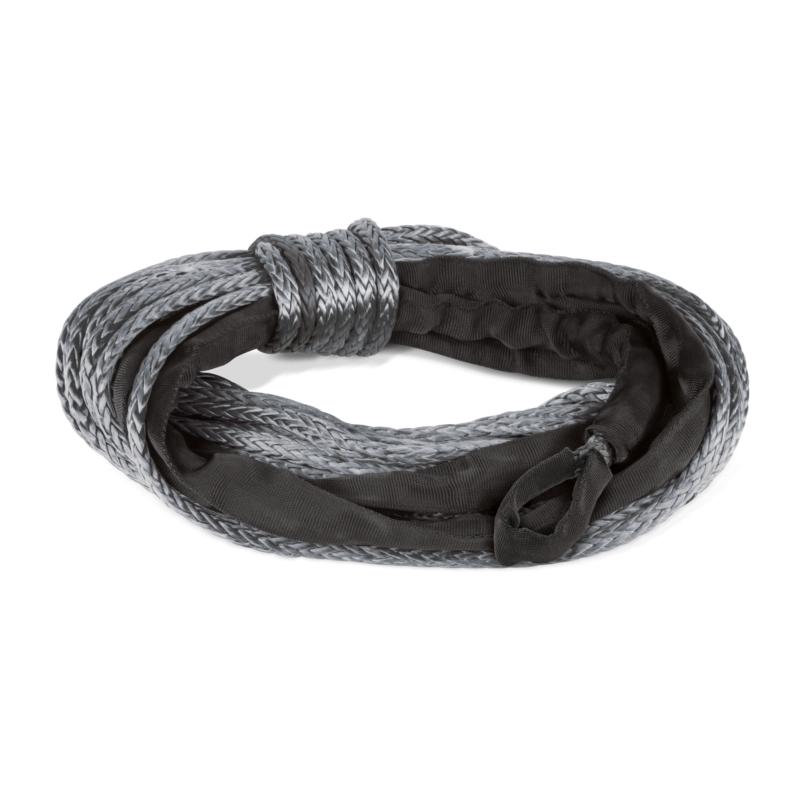

Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl.
Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it’s free of wire splinters or burrs often found in steel rope, there’s less chance of injury.

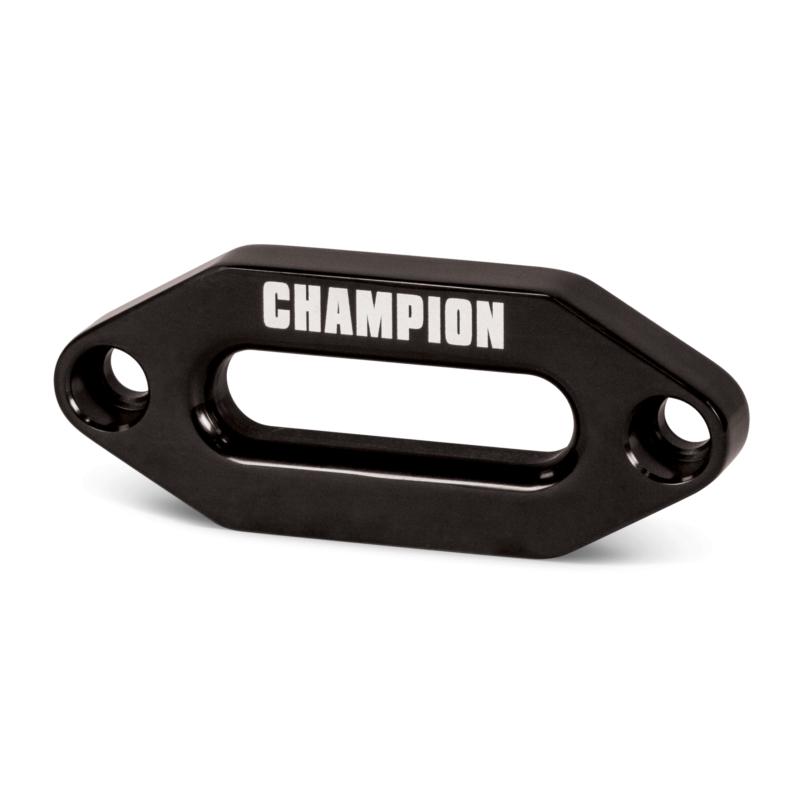

Designed with a stainless steel thimble and protective sleeve, the 50-feet by 3/16-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope.
Features a positive battery cable with a built-in, self-resetting circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull failures.
The three-stage planetary gear system along with the handlebar-mounted remote control and free-spooling clutch offer excellent control while winching.
With a gear reduction ratio of 166:1, the winch boasts a line speed of 2.0 feet per minute with a full load, and 12.8 feet per minute with no load.
The drum measures 2.0 by 3.2 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power.
Offering much more than a motor and a spool of rope, the Champion 5500-lb. winch kit is a necessary tool for any situation you might encounter.
IP68 Water and Dust Proof Rated, Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

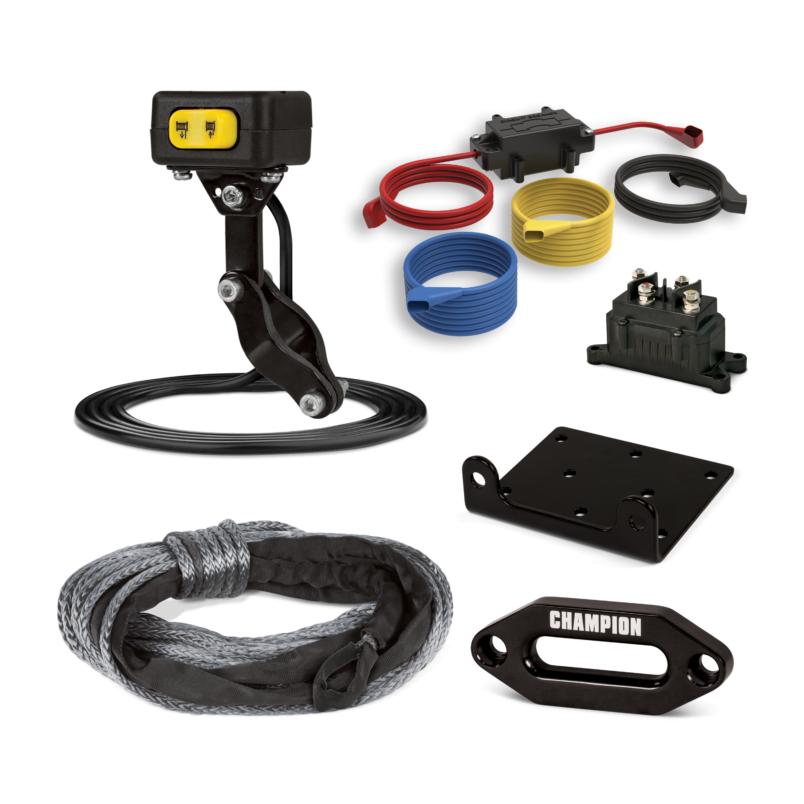

What’s included
- Synthetic Rope
- Hawse Fairlead
- Mounting Plate

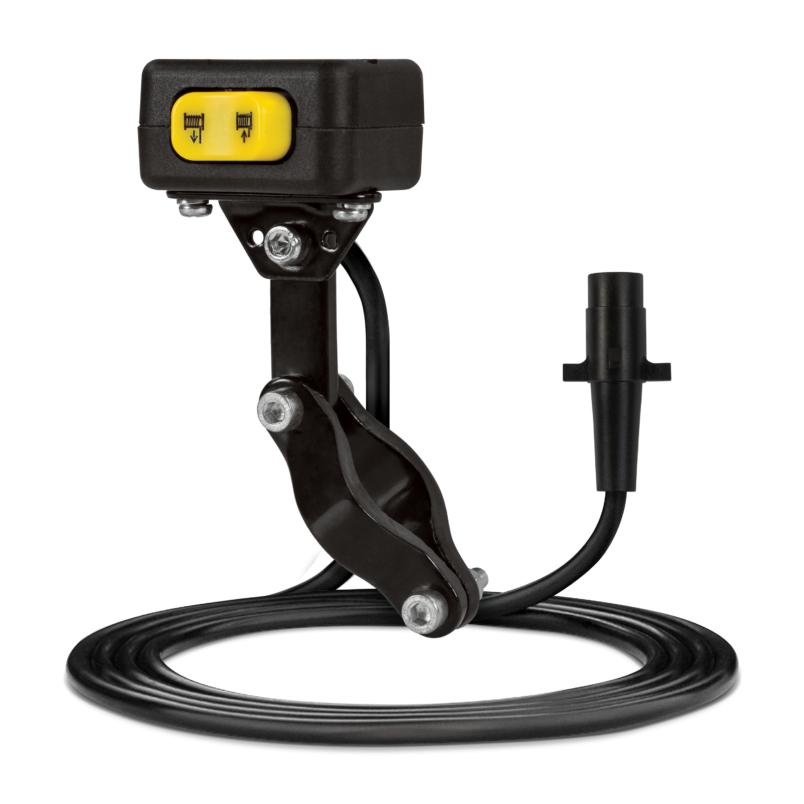

- Mini-Rocker Switch

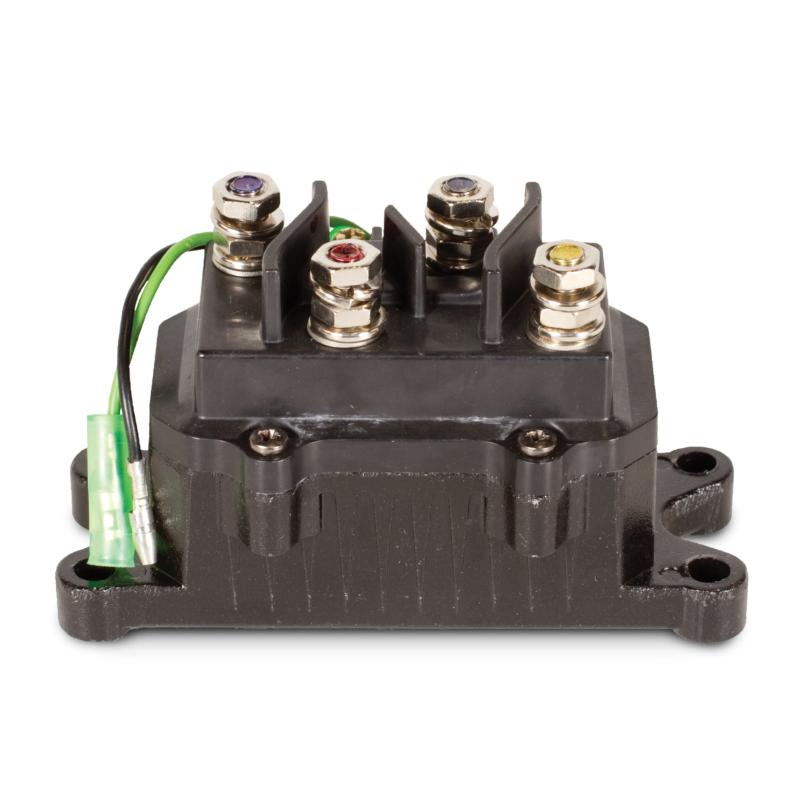

- Contactor

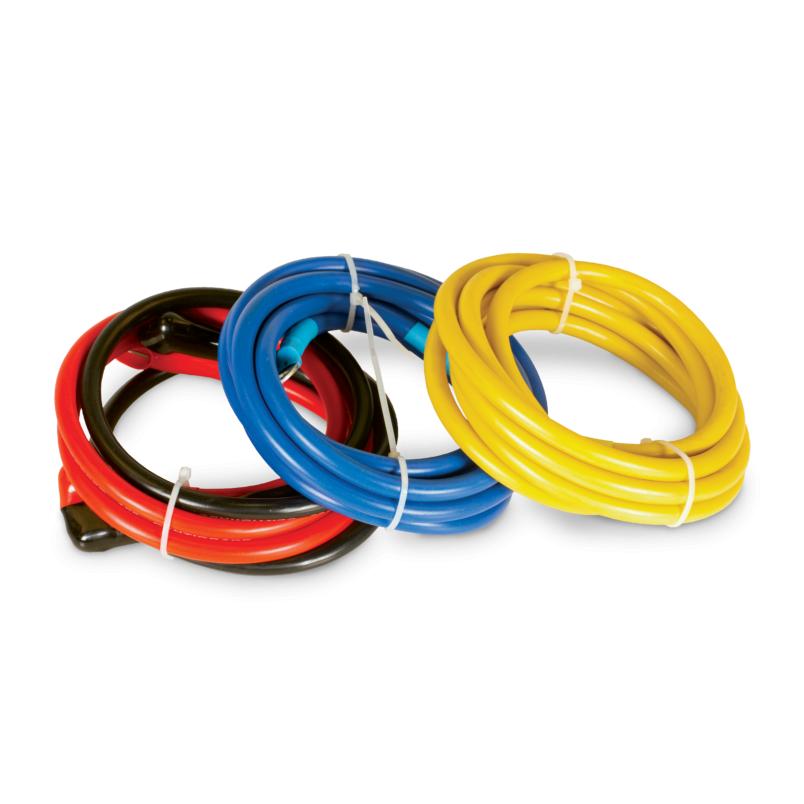

- Battery Cables & Hardware
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Winch Type | Powersports |
|---|---|
| Line Pull | 5500 lb. |
| Remote Length | 10 ft. |
| Gear Ratio | 166:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 2 ft/min |
| No-Load Line Speed | 12.8 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Synthetic Rope |
| Rope Length | 38 ft. |
| Rope Diameter | 15/64 in. |
| Fairlead Type | Hawse |
| Drum Size | 2.0 x 3.2 in. |
| Bolt Pattern | 3.0 x 4.9 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1.7 hp |
| Max Current at Full Load | 240A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 14.8 in. |
|---|---|
| Width | 5 in. |
| Height | 5.1 in. |
| Weight | 29.8 lb. |
