Champion Power Equipment

Model #13050

3000-lb. Winch Kit

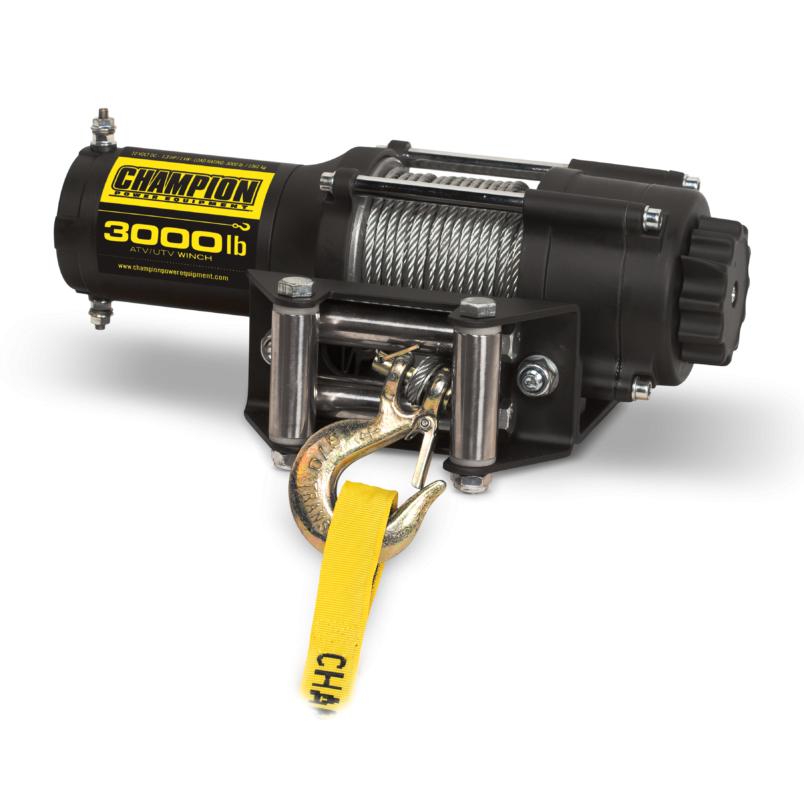

Champion’s ATV/UTV Winch Kit has a 3000-lb. rated line pull powered by a 1.3-horsepower (12-volt) DC motor. With a gear reduction ratio of 171:1, this kit includes a mounting channel, a roller fairlead and a wiring kit with contactor and mini-rocker handlebar switch - everything you need to start winching.

Features

Convenient

3000-lb. rated line pull powered by a 1.3-horsepower (12-volt) DC motor

Efficient

Line speed of 4.3 feet per minute with a full load, and 8.9 feet per minute with no load

Complete Setup

Included mounting channel, roller fairlead and wiring kit with contactor and mini-rocker handlebar switch create an easier than ever winching experience

Hassle-Free

The roller fairlead creates a safe and smooth pull with the dependable 46-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

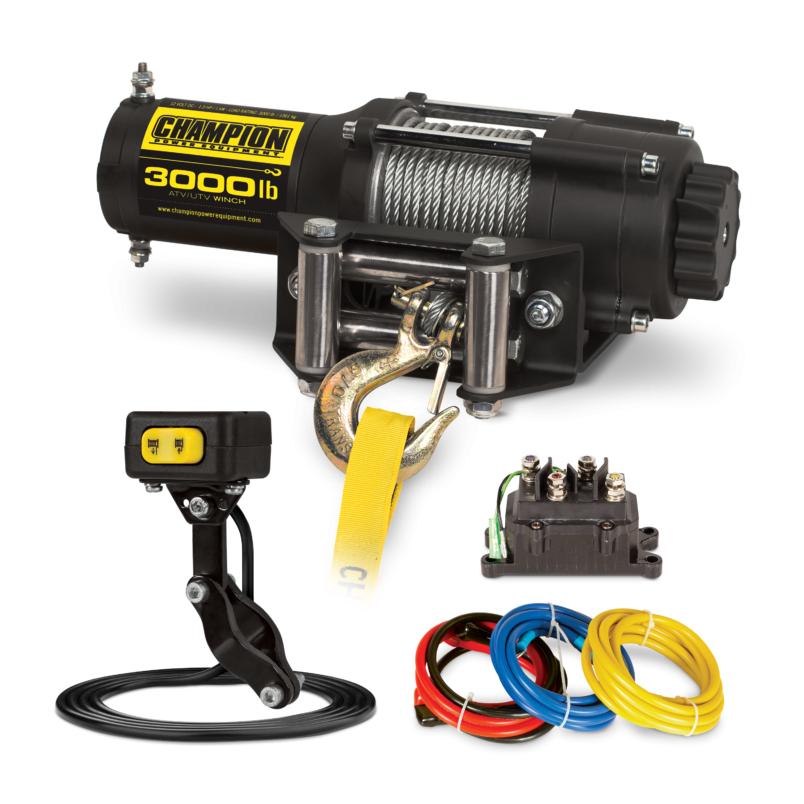

The Champion Power Equipment 13050 3000-lb. ATV/UTV Winch Kit includes everything you need to start winching, including cables and contactor, a mounting channel, roller fairlead and a wiring kit with contactor and mini-rocker handlebar switch. This winch kit is the perfect combination of power and performance to use with your ATV, trailer, boat or snowmobile.

With a rated line pull of 3000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.3-horsepower (12-volt) DC permanent magnet motor.

The 46-foot by 3/16-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.5 by 3.2-inch drum through the reliable roller fairlead to maximize the life of the cable.

The three-stage planetary gear system along with the free-spooling clutch and ergonomic mini-rocker handlebar switch offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.

With a gear reduction ratio of 171:1, the winch boasts a line speed of 4.3 feet per minute with a full load, and 8.9 feet per minute with no load.

Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 3000-lb. Winch Kit is a necessary tool for any situation you might encounter.

Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

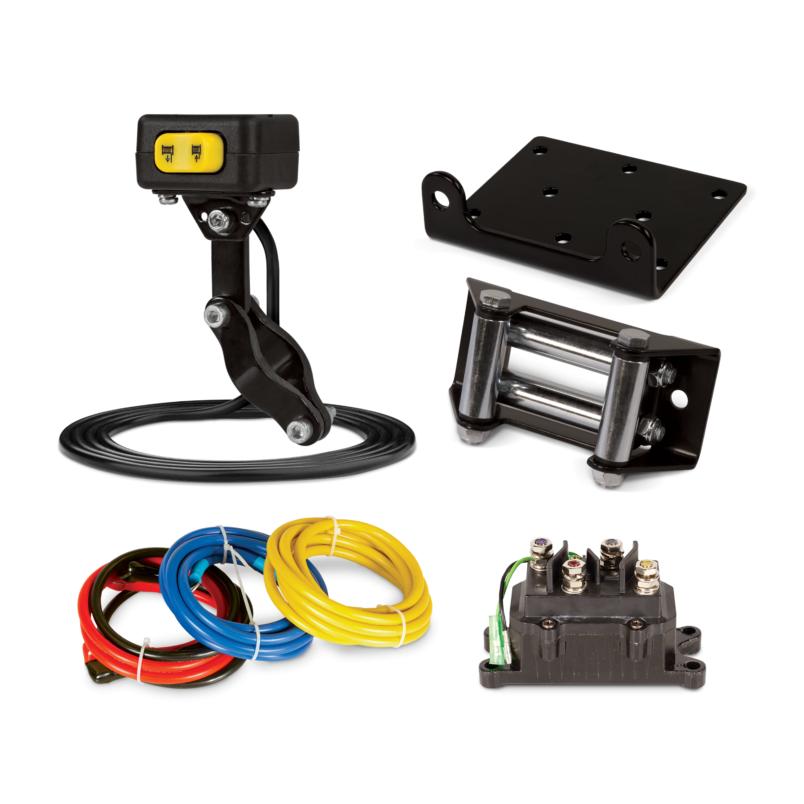

What’s included

  • Clevis Hook
  • Hook Strap
  • Mounting Channel
  • Roller Fairlead
  • Remote Control

Specifications

Line Pull 3000 lb.
Remote Length 13.8 ft.
Gear Ratio 171:2
Gear System Three-Stage Planetary
Full Load Line Speed 4.3 ft/min
No-Load Line Speed 8.9 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Galvanized Steel
Rope Length 45.9 ft.
Rope Diameter 3/16 in.
Fairlead Type 4-Way Roller
Drum Size 1.5 x 3.2 in.
Bolt Pattern 4.9 x 3 in.
Mounting Channel Standard
Motor Type 12V DC (Permanent Magnet)
Horsepower 1.3 hp
Max Current at Full Load 170.0A
Duty Cycle Intermittent

Dimensions

Length 12.7 in.
Width 4.1 in.
Height 4.2 in.
Weight 21.2 lb.
