Champion Power Equipment

Model #92050-1

20-Ton Log Splitter

Champion’s towable 20-ton log splitter with its 196cc engine and integrated log cradle safely powers through the toughest logs. The fast 17-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.

Features

Powerful

20 tons of splitting capacity with a large 196cc Champion single-cylinder OHV engine

Versatile

Converts from horizontal to vertical in seconds, allowing you to handle large logs with ease, plus the integrated log cradle and log catchers keep the wood in position and within reach

Efficient

17-second cycle time and dependable auto-return valve, making this log splitter capable of over 200 cycles per hour, plus the log strippers help remove the log from the wedge

Portable

Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

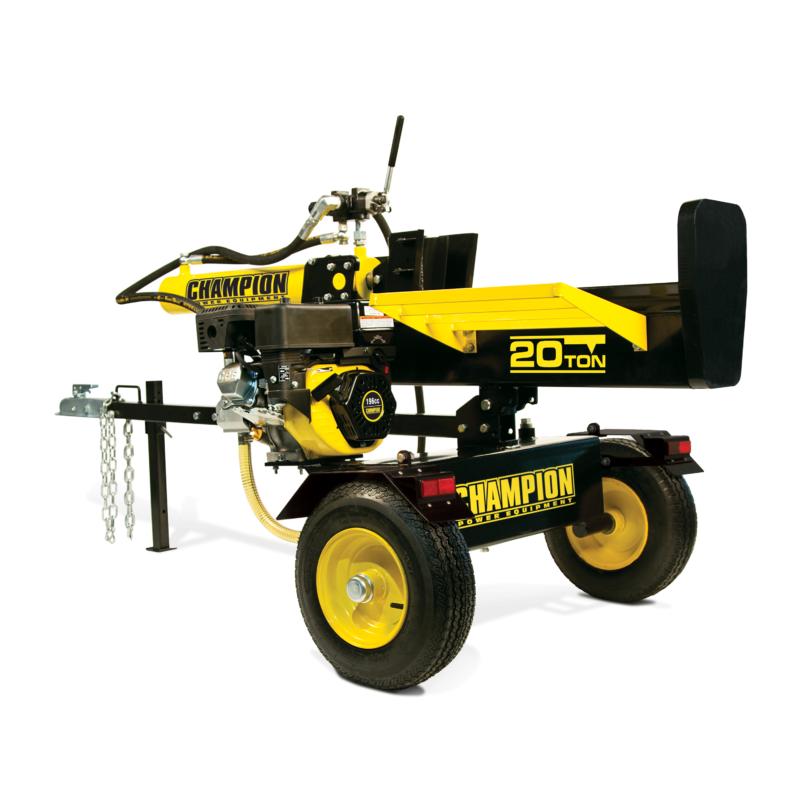

The Champion Power Equipment 92050-1 20-Ton Horizontal/Vertical Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.

Depend on the reliable recoil start to power up the large 196cc Champion single-cylinder OHV engine, which features a cast-iron sleeve, a 0.9-gallon fuel tank, 0.6-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

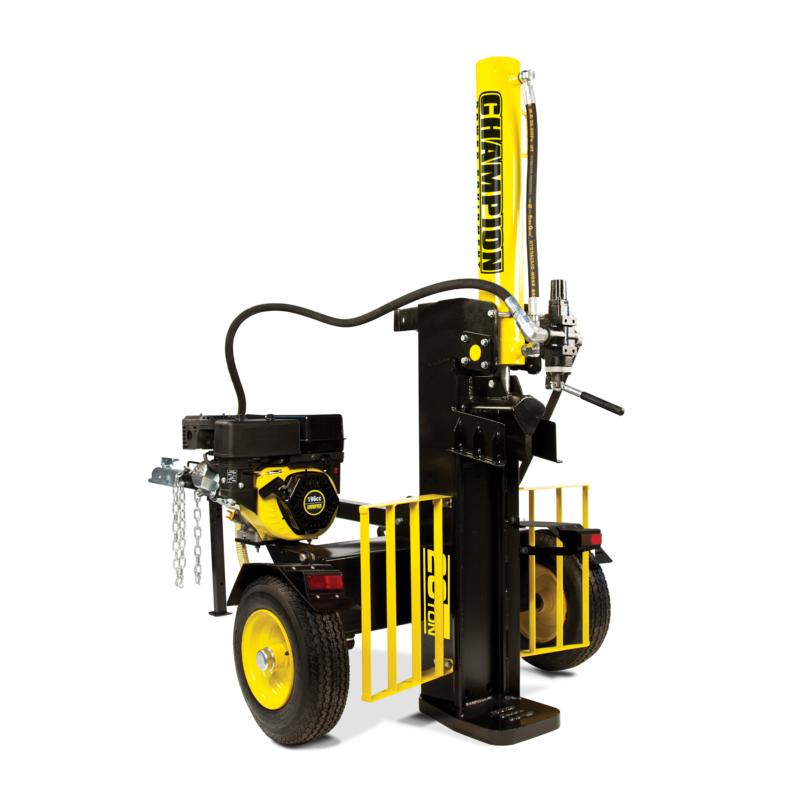

Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds.

Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 5-gallon oil capacity with a 4-gallon tank and operates at 8 gpm to power through tough logs.

Champion designed this log splitter for efficiency with the fast 17-second cycle time and dependable auto-return valve, which is capable of over 200 cycles per hour. The integrated log cradle keeps each log safely in position, the log strippers help remove the log from the wedge upon the return stroke and the handy log catchers save your back by keeping your freshly-split wood within easy reach.

The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

This log splitter is easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications.

Assembly and setup are hassle free with Champion’s clear directions and thoughtful packaging.

This log splitter is EPA certified. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

What’s included

  • Oil Funnel
  • Log Catchers

Specifications

Ram Force 20T
Operating Position Horizontal, Vertical
Cycle Time 17 s.
Max Log Length 24.0 in.
Max Log Weight 100.0 lb.
Log Cradles Yes
Log Catchers Yes
Auto Return Yes
Wedge Type Single
Wedge Material Hardened Steel
Cylinder Diameter 3.9 in.
Cylinder Rod Size 1.6 in.
Hydraulic Pump 2-Stage
Hydraulic Flow Rate 8.0 gal/min
Hydraulic Pressure 3600 PSI
Hydraulic Oil System Capacity 5.0 gal.
Hydraulic Oil Tank Capacity 4.0 gal.
Hydraulic Oil Type AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid
Hydraulic Filter Internal
Hydraulic Oil Included No
Power Type Gasoline
Start Type Recoil
Engine Brand Champion
Engine Size 196cc
Engine Type 4-stroke
Gasoline Capacity 0.9 gal.
Engine Oil Type 10W-30
Engine Oil Capacity 0.6 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Pneumatic
Wheel Diameter 16.0 in.
Towable Yes
Hitch Type 2 in. Ball Hitch
Fenders Yes
Max Tow Speed 45 mph
EPA Certified Yes
CARB Compliant No

Dimensions

Length 85.8 in.
Width 40.7 in.
Height 45.9 in.
Weight 396.8 lb.
