Champion’s 8.5-kW Home Standby Generator system provides 24/7 power for your home and peace of mind for you. This fully automatic unit is the quietest-in-class and never needs refueling. Designed to operate in sub-zero temperatures, this unit has a 10-year limited warranty.
Features
Totally Automatic
The 50A Select Circuit Automatic Transfer Switch has 12 available circuits available and provides seamless power to your home during an outage
Quietest-in-Class
Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 59.5 dBA noise level
Reliable
24-volt starting system operates in sub-zero temperatures down to -22 °F with no warming kit necessary, plus the generator performs weekly self-diagnostic tests
Powerful
The 8.5-kilowatt generator provides 8500 watts of continuous power on propane and 7500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
Champion Support
Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts
Description

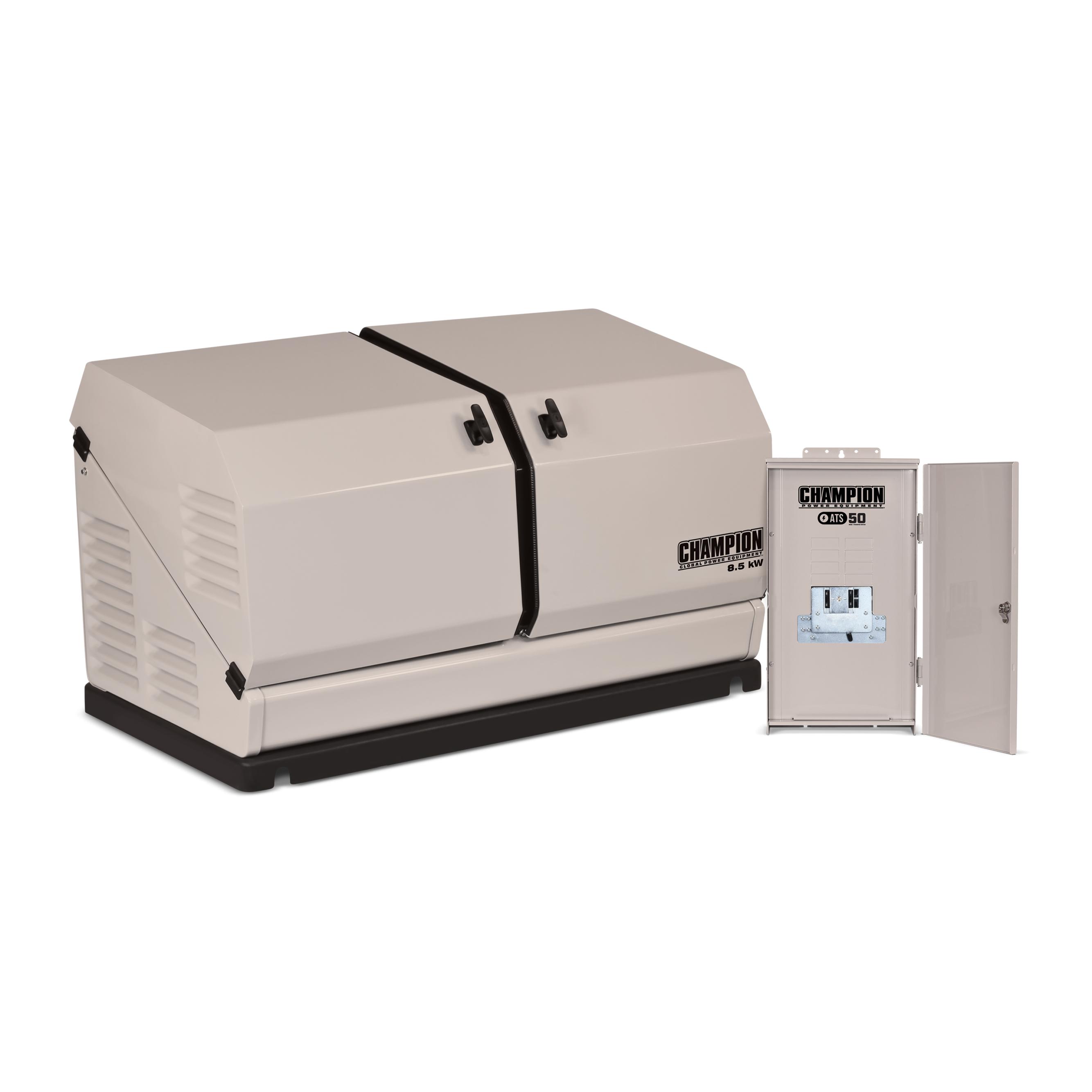

The Champion Power Equipment 100177 8.5-kW Home Standby Generator with a 50A Select Circuit Outdoor-Rated Automatic Transfer Switch is The Simple Solution™ to a power outage. Enjoy peace of mind while ensuring security and convenience for your family during an emergency.
The generator starts automatically when the power goes out and returns to standby when power is restored. The sub-zero 24V starting system is designed to operate in extreme temperatures down to -22 °F with no warming kit necessary.
You’ll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling. This unit also performs weekly self-diagnostic tests.

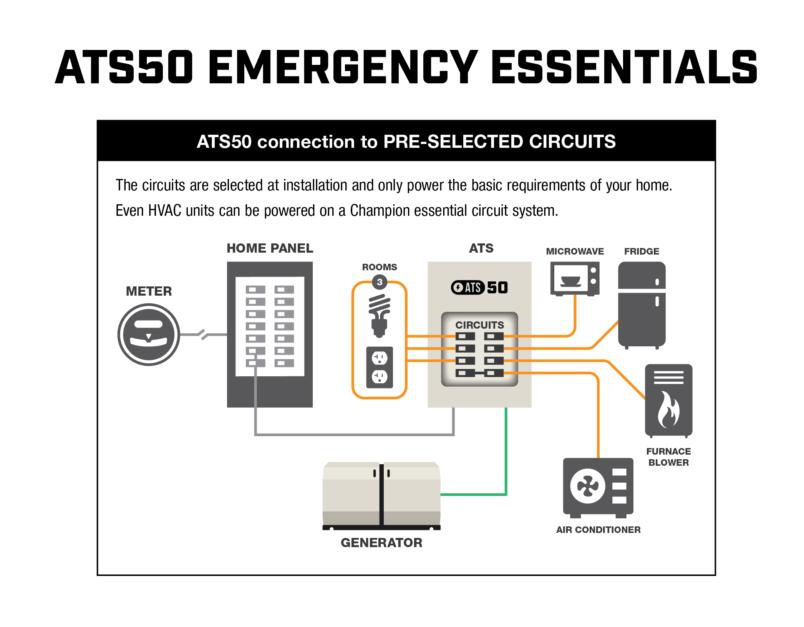

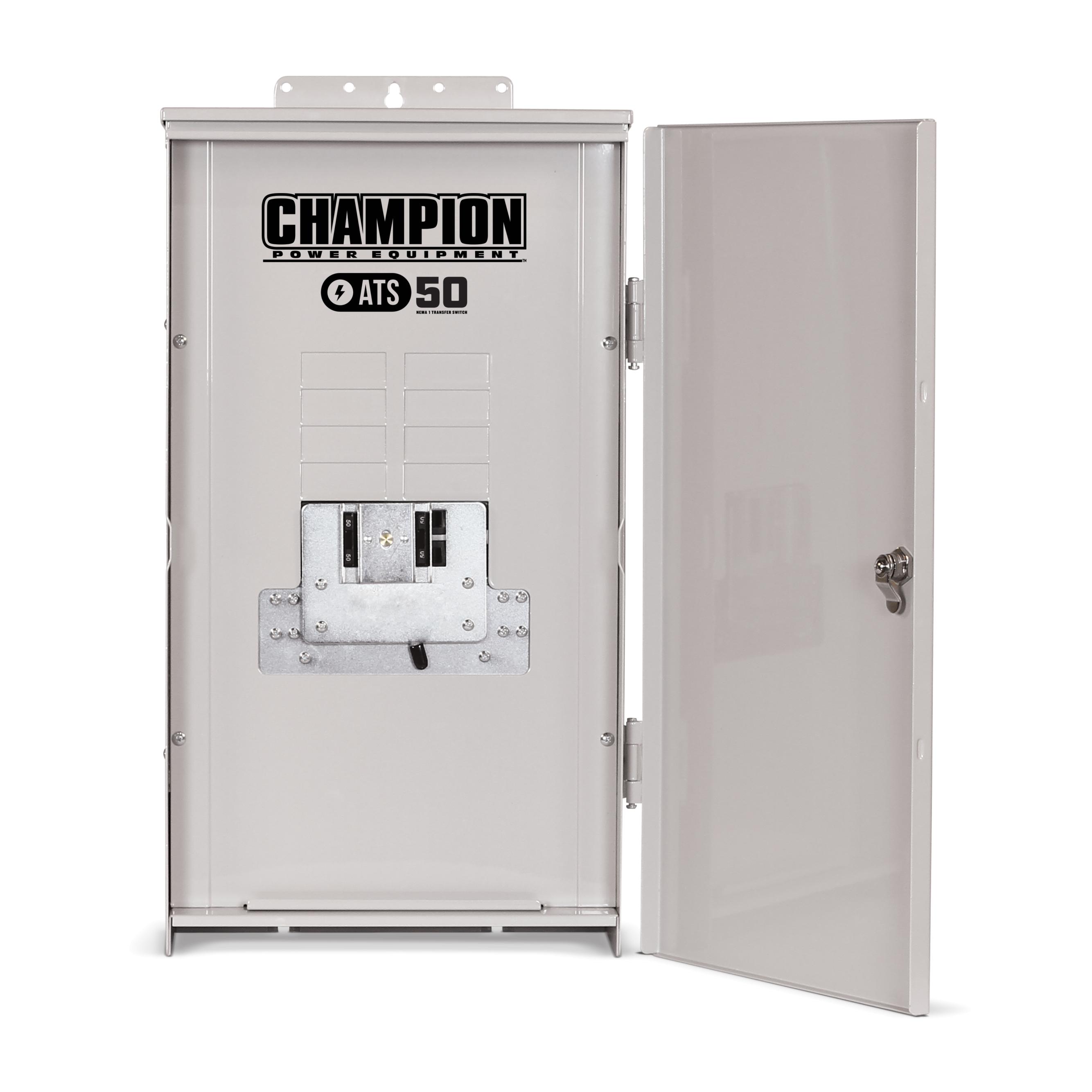

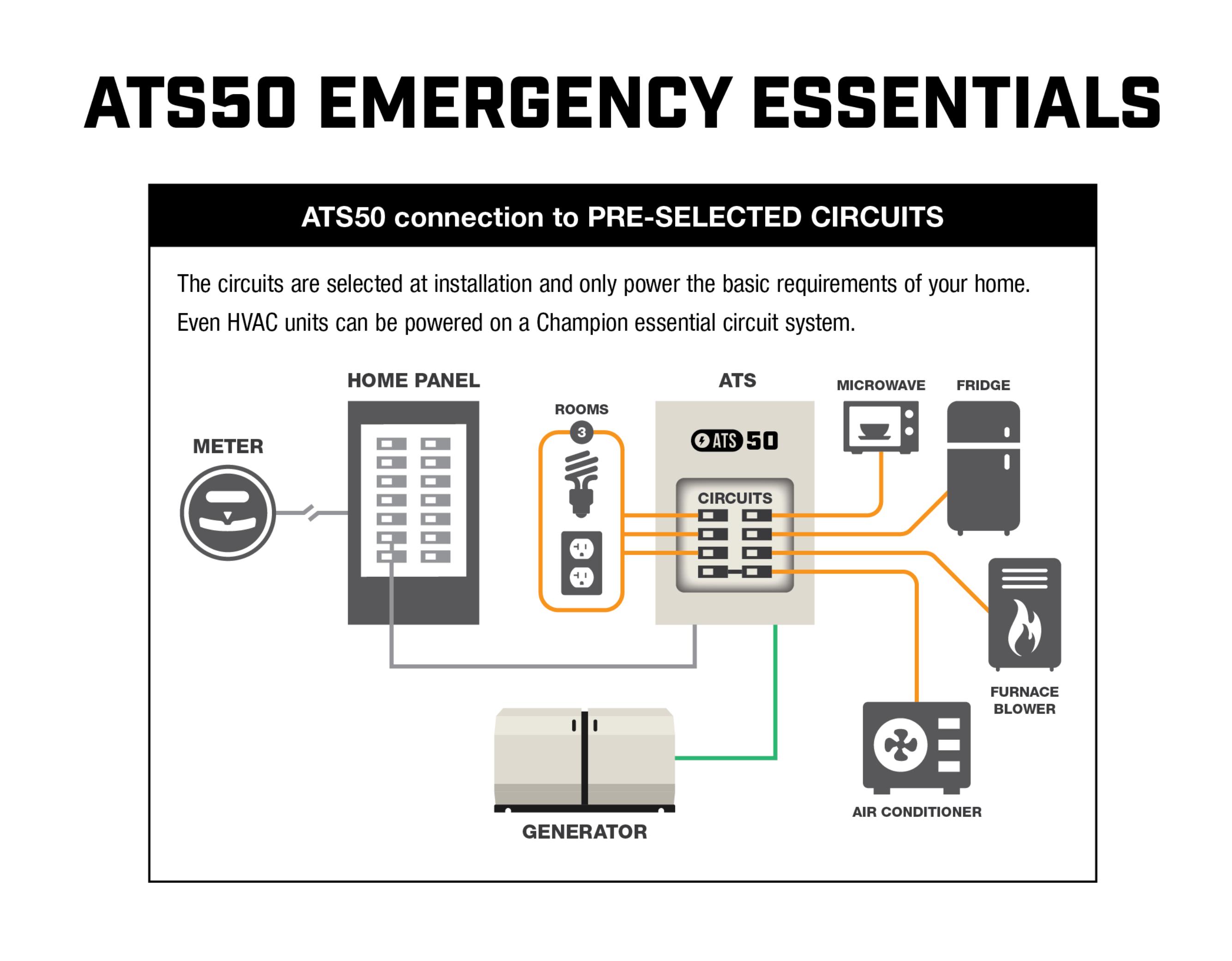

An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements. The Select Circuit automatic transfer switch operates a 50 amp, 12 circuit load (8 space sub panel allows up to 4 tandem breakers). It is ideal for homeowners who want to power select circuit during a power outage as opposed to the whole house. It is housed in a NEMA 3R rated enclosure for outdoor use.

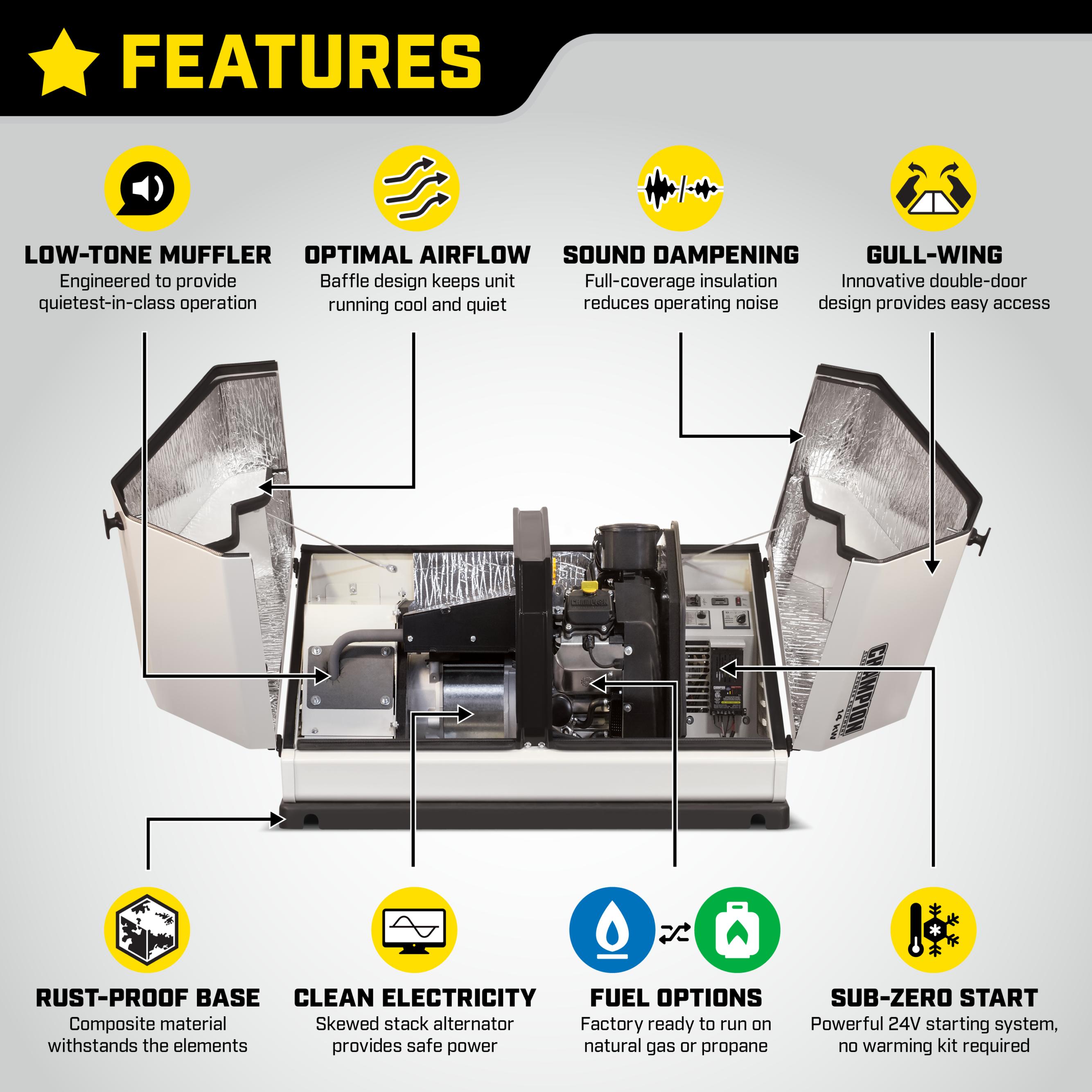

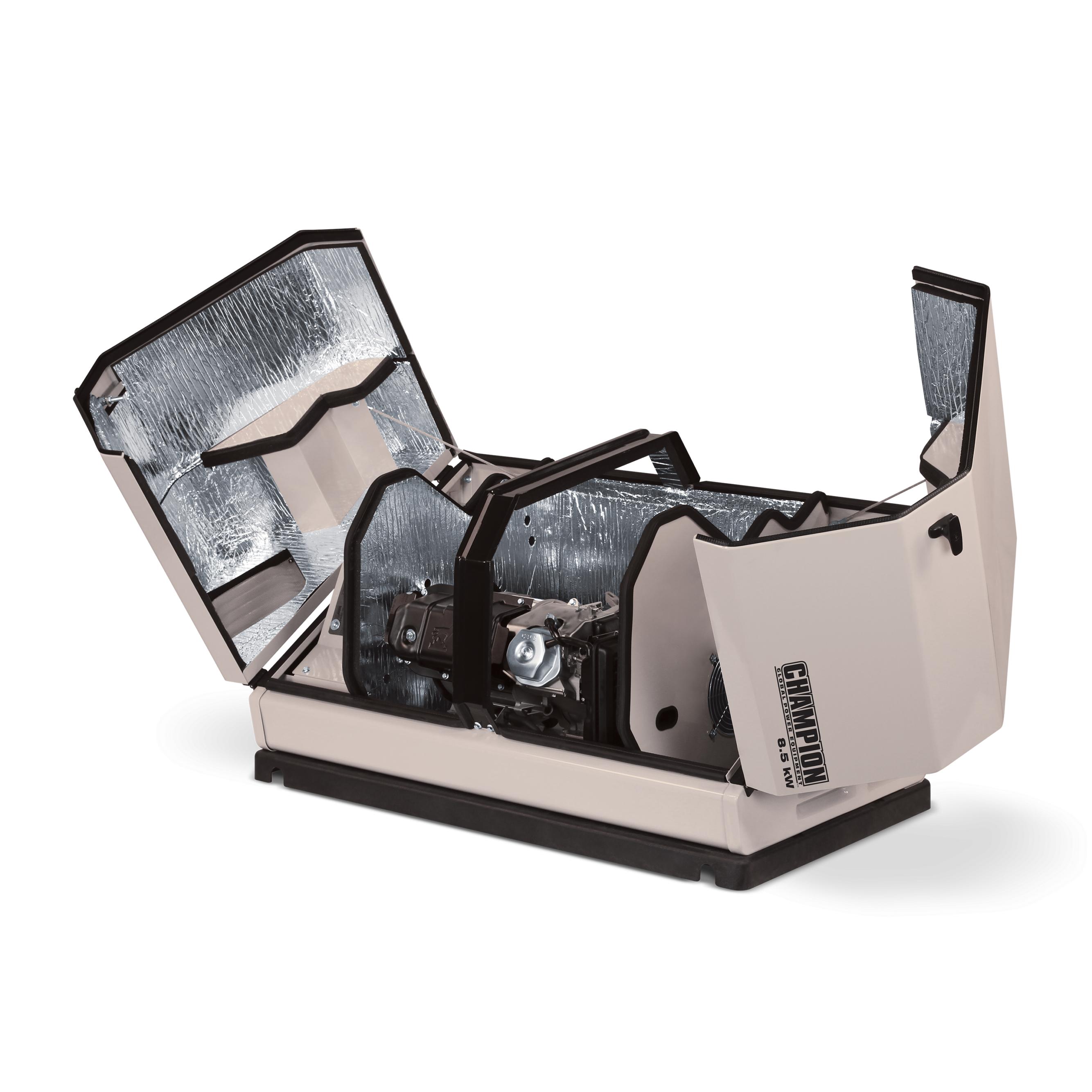

Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.
The Champion 439cc OHV engine provides 8.5-kilowatts of continuous power on propane and 7.5-kilowatts on natural gas. This 8.5-kW-rated unit produces 35.4 amps at 240 volts on propane and 31.3 amps at 240 volts on natural gas.
The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class. The residential-friendly 59.5 dB[A]* has about the same noise level as normal conversation.
The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.
This generator is available for all 50 states, and the switch is UL and cUL listed in the US and Canada. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 10-year limited warranty and FREE lifetime technical support.
*Measurement is approximate and for reference purposes only. Sound measured at 23 ft. (7 m) and does not account for your installation site.
What’s included
- Enclosure Keys
- Gas Inlet Flex Hose
- LPG Idling Metering Jet
- LPG Main Metering Jet
- Oil Drain Tray
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Propane Rated Watts | 8500W |
|---|---|
| Natural Gas Rated Watts | 7500W |
| Propane Rated Amps at 120V | 70.8A |
| Propane Rated Amps at 240V | 35.4A |
| Natural Gas Rated Amps at 120V | 62.5A |
| Natural Gas Rated Amps at 240V | 31.3A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1gal/h |
| Propane Fuel Consumption at Full load | 1.5 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 97.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 139.8 ft3/h |
| Main Line Circuit Breaker | 35.5A |
| Starting System | Automatic 24V |
| Operational Volume | 59.5 dBA |
| Cooling System | Air Cooled |
| AC Ton Rating | 3T |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 439cc |
| Engine Speed | 3600 |
| Engine Type | 4-stroke |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | 5W-30 Full Synthetic |
| Engine Oil Capacity | 1 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| UL Listing | cULus |
| EPA Certified | Yes |
| Switch Type | Select Circuit |
| Switch Amps | 50A |
| Switch Volts | 120/240 |
| Switch Circuits | 12 |
| Switch Poles | 2 |
| Response Time | Adjustable (0.5-30 sec.) |
| Load Management | No |
| Service Entry Rated | No |
| Switch Enclosure | NEMA 3R |
Dimensions
| Length | 49 in. |
|---|---|
| Width | 28 in. |
| Height | 28 in. |
| Weight | 365.1 lb. |
Downloads
Installation Manual
| Product | Download |
|---|---|
| Generator (Models 100199, 100136, 100237) | |
| Generator Transfer Switch Selector (50-100A Models) | |
| Generator Installation Rough-In (Select Circuit Systems) | |
| Select Circuit Transfer Switch (50-100A Models) - Back Fuse Version | |
| Select Circuit Transfer Switch (50-100A Models) - Front Fuse Version |
