Model #100179

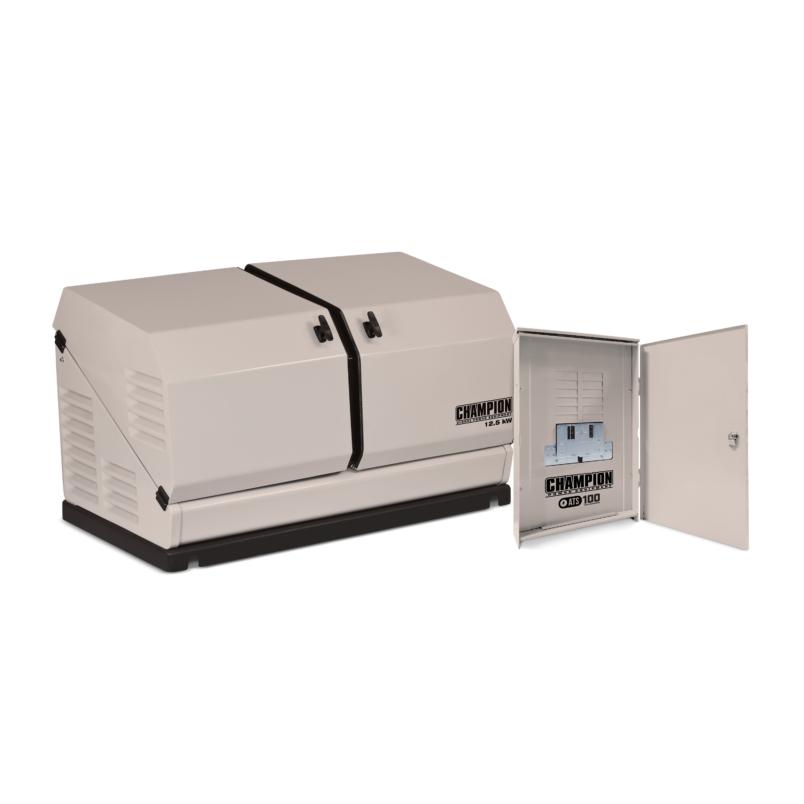

12.5 kW Select Circuit Home Standby Generator and 100A Switch

Champion’s 12.5-kW Home Standby Generator system provides 24/7 power for your home and peace of mind for you. This fully automatic unit is the quietest-in-class and never needs refueling. Designed to operate in sub-zero temperatures, this unit has a 10-year limited warranty.

Features

Totally Automatic

The 100A Select Circuit Automatic Transfer Switch has 16 available circuits and provides seamless power to your home during an outage

Quietest-in-Class

Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 63 dB[A] noise level

Reliable

24-volt starting system operates in sub-zero temperatures down to -22 °F with no warming kit necessary, plus the generator performs weekly self-diagnostic tests

Powerful

The 12.5-kilowatt generator provides 12,500 watts of continuous power on propane and 11,000 watts on natural gas, with no refueling, no manual operation and no extension cords needed

Champion Support

Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts

Description

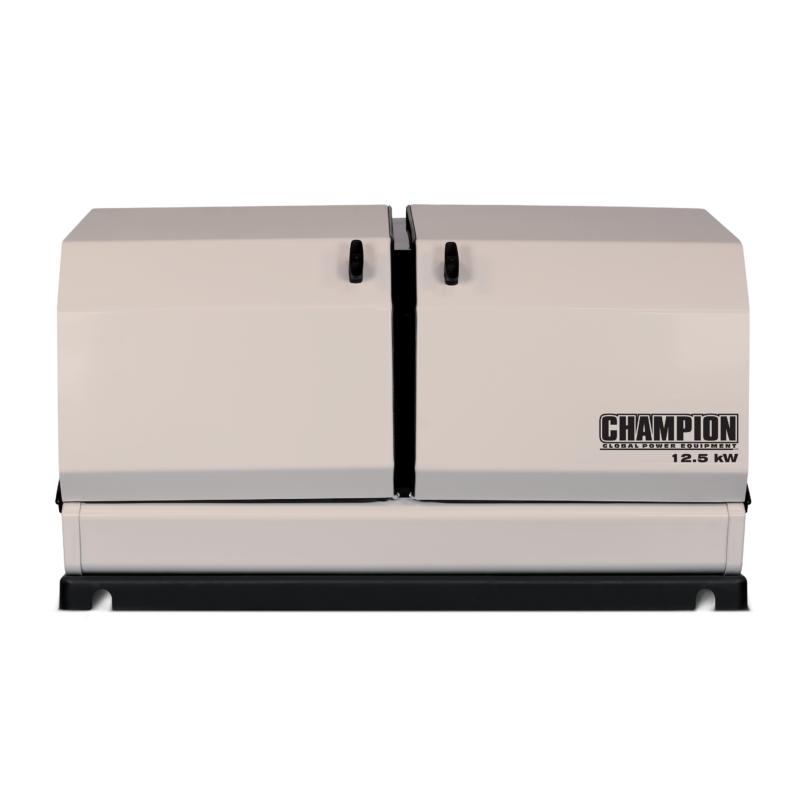

The Champion Power Equipment 100179 12.5-kW Home Standby Generator with a 100A Select Circuit Outdoor-Rated Automatic Transfer Switch is The Simple Solution™ to a power outage. Enjoy peace of mind while ensuring security and convenience for your family during an emergency.

The generator starts automatically when the power goes out and returns to standby when power is restored. The sub-zero 24V starting system is designed to operate in extreme temperatures down to -22 °F with no warming kit necessary.

You’ll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling. This unit also performs weekly self-diagnostic tests.

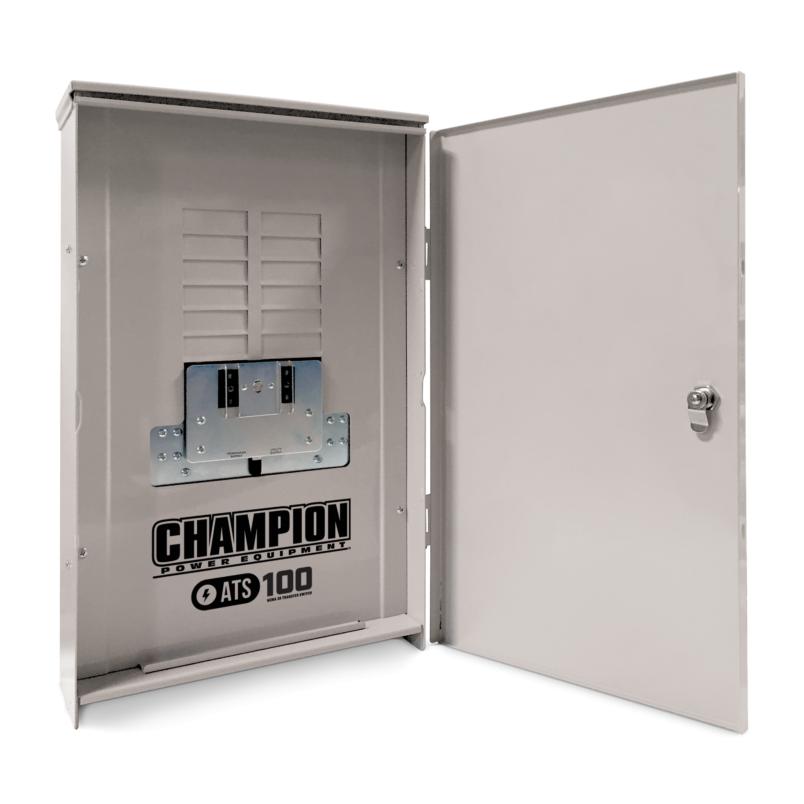

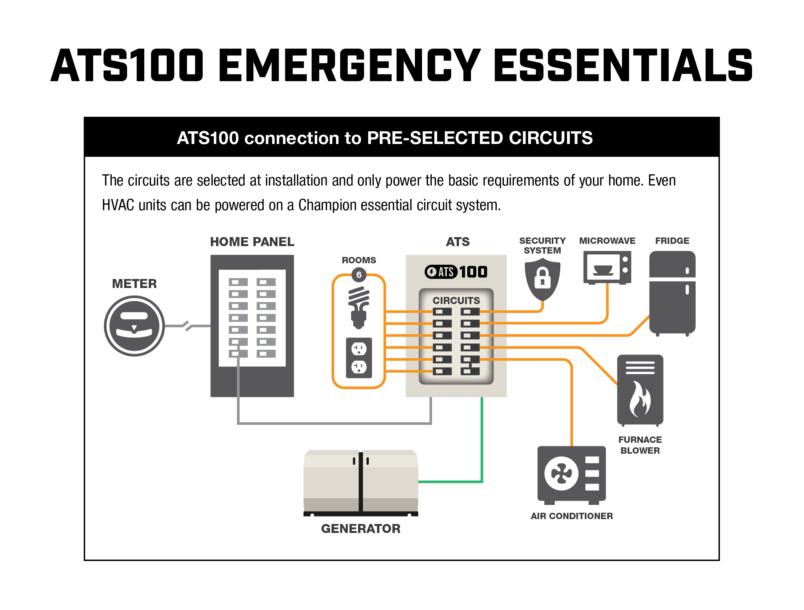

An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements. The Select Circuit automatic transfer switch operates a 100 amp, 16 circuit load (12 space sub panel allows up to 4 tandem breakers). It is ideal for homeowners who want to power select circuit during a power outage as opposed to the whole house. It is housed in a NEMA 3R rated enclosure for outdoor use.

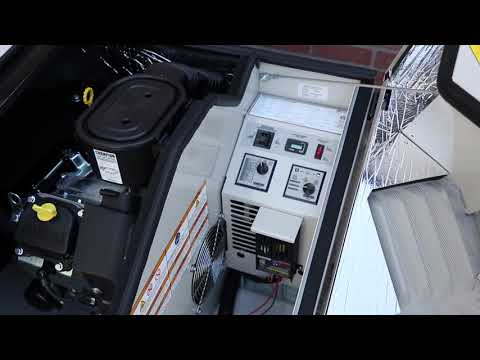

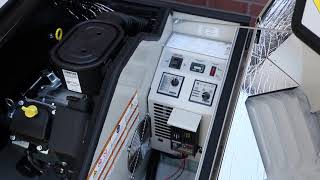

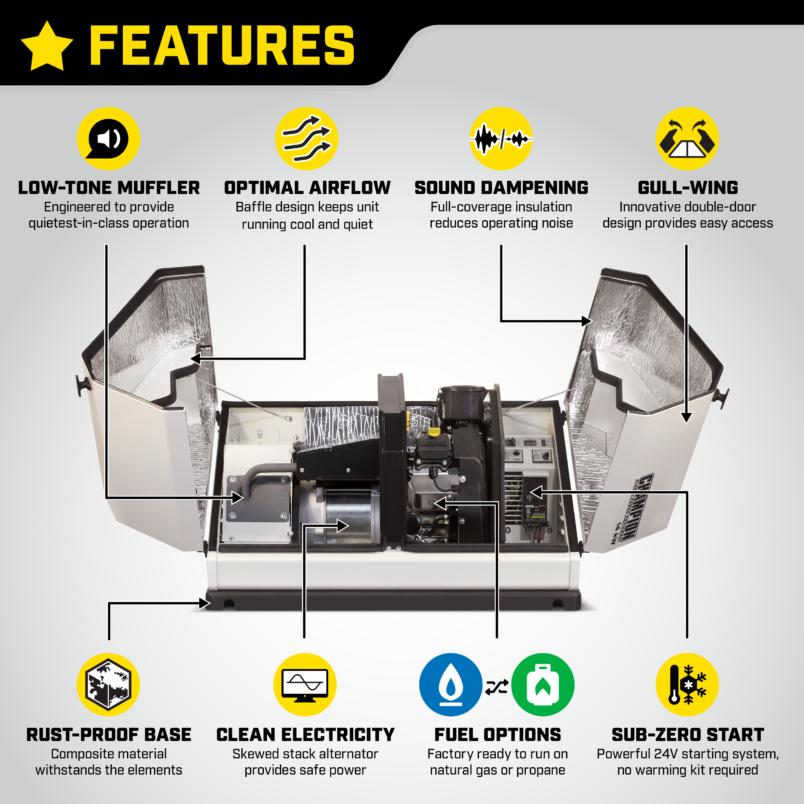

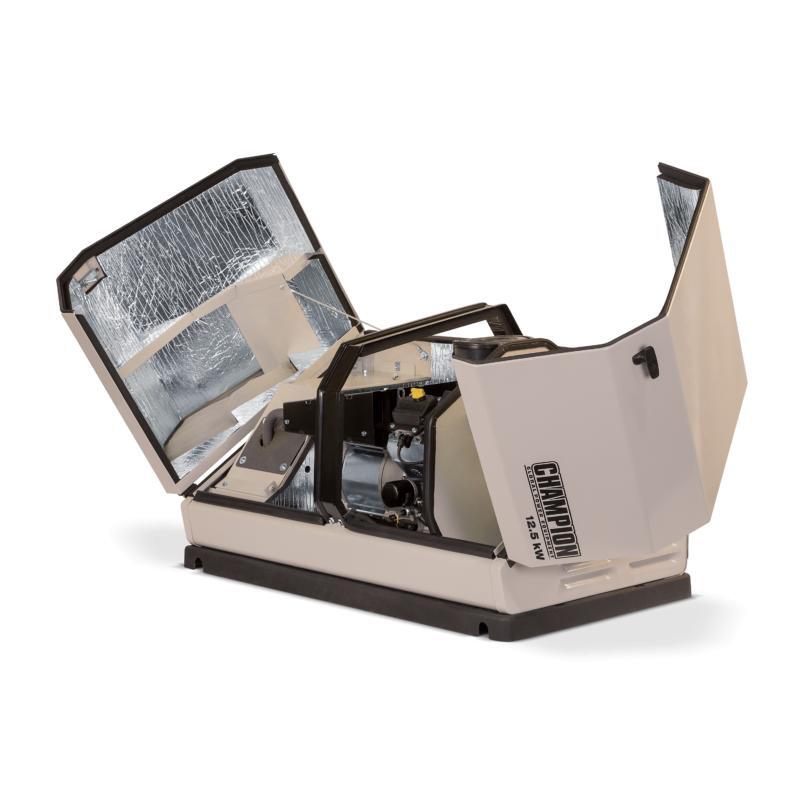

Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.

The Champion 717cc OHV engine provides 12.5-kilowatts of continuous power on propane and 11-kilowatts on natural gas. This 12.5-kW-rated unit produces 52.1 amps at 240 volts on propane and 45.8 amps at 240 volts on natural gas.

The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class. The residential-friendly 63 dB[A]* has about the same noise level as normal conversation.

The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.

This generator is available for all 50 states, and the switch is UL and cUL listed in the US and Canada. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 10-year limited warranty and FREE lifetime technical support.

What’s included

  • Battery Jumper Cable
  • Enclosure Keys
  • Gas Inlet Flex Hose
  • Jet Removal Tool
  • LPG Idling Metering Jet 120
  • LPG Idling Metering Jet 130
  • LPG Main Metering Jet 390
  • LPG Main Metering Jet 410
  • Oil Dray Tray
  • Pipe with 3/4 Nut Connector

Specifications

Propane Rated Watts 12500W
Natural Gas Rated Watts 11000W
Propane Rated Amps at 120V 104.2A
Propane Rated Amps at 240V 52.1A
Natural Gas Rated Amps at 120V 91.7A
Natural Gas Rated Amps at 240V 45.8A
Rated Volts 120/240
Rated Frequency 60Hz
Phase Single
Propane Fuel Consumption at 1/2 Load 1.6gal/h
Propane Fuel Consumption at Full load 2.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load 122.2 ft3/h
Natural Gas Fuel Consumption at Full Load 198.1 ft3/h
Main Line Circuit Breaker 52A
Starting System Automatic 24V
Operational Volume 63 dBA
Cooling System Air Cooled
AC Ton Rating 4T
Generator Enclosure Steel
Generator Mounting Pad Composite
Engine Brand Champion
Engine Size 717cc
Engine Speed 3600
Engine Type 4-stroke V-Twin
Fuel Type Propane (LPG), Natural Gas (NG)
Engine Oil Type 5W-30 Full Synthetic
Engine Oil Capacity 1 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
UL Listing cULus
EPA Certified Yes
Switch Type Select Circuit
Switch Amps 100A
Switch Volts 120/240
Switch Circuits 16
Switch Poles 2
Response Time Adjustable (0.5-30 sec.)
Load Management No
Service Entry Rated No
Switch Enclosure NEMA 3R

Dimensions

Length 49 in.
Width 28 in.
Height 28 in.
Weight 425.5 lb.
