Champion Power Equipment

Model #100274

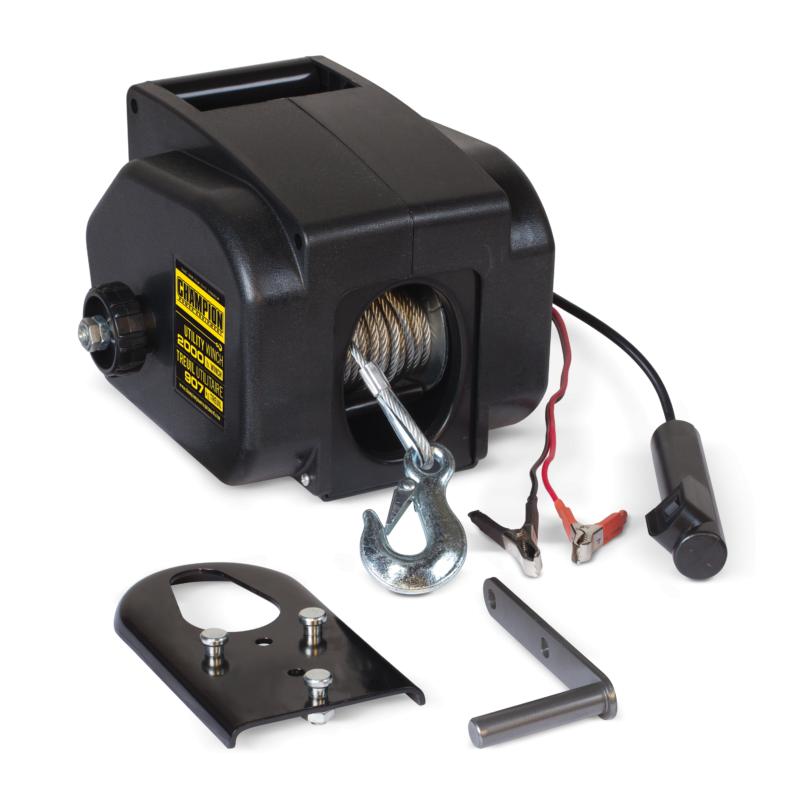

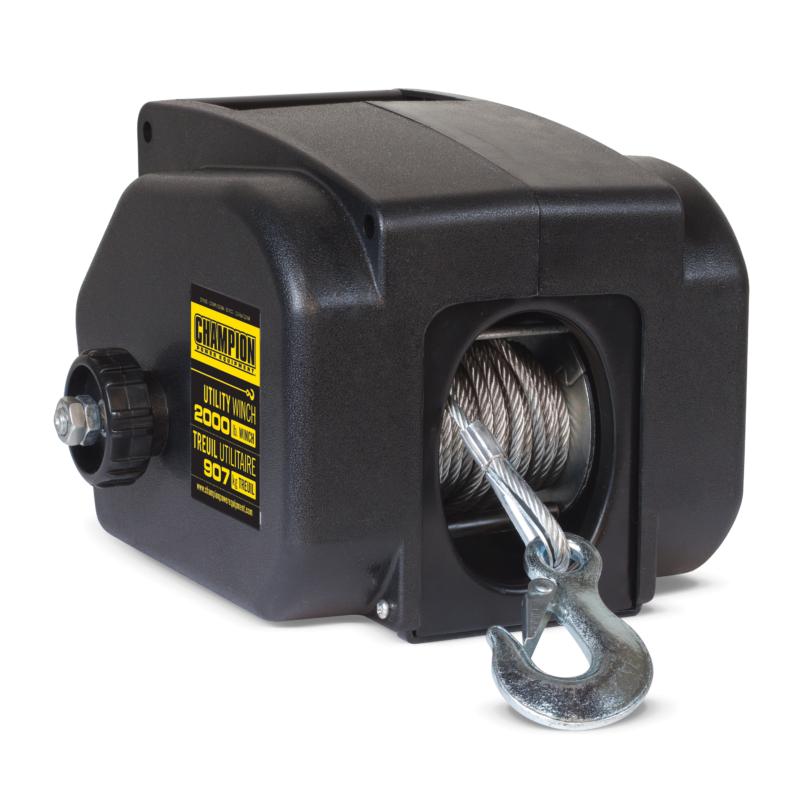

2000-lb. Utility Winch Kit

Champion’s 2000-lb. Utility Winch Kit includes everything you need for powerful winching with your boat or trailer. With 20-foot battery cables, a slide-on adapter plate, remote control and hand crank, this winch has a 0.3-horsepower (12-volt) DC motor and is the perfect hassle-free portable winch.



Powered by a 0.3-horsepower (12-volt) DC motor, this winch has a 2000-lb. rated line pull, a 5000- lb. marine rated line pull and a 6000-lb. rolling rated line pull (power in only)


Tool-free, slide-on 2-inch hitch adapter plate for easy mounting to any 2-inch ball hitch receiver


Remote control switch with 10-foot cord, extended reach 20-foot battery cables, hand crank for optional manual operation and carry handle for portability (power in via remote control only)


Provides heavy duty winching power for boats, trailers and other loading jobs, plus the 3-stage straight gear drive system can handle boats up to 18 feet in length


Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts


The Champion Power Equipment 100274 2000-lb. Marine/Trailer Utility Winch Kit is designed for portable, reliable winching with your boat or trailer. Whether you need to load or unload your boat or ATV onto a trailer or if you’re just looking for a portable solution to getting unstuck, this winch kit provides powerful performance along with all the accessories you need for an easy winching experience.

Featuring a rated line pull of 2000 pounds, a marine rated line pull of 5000 pounds and a rolling rated line pull of 6000 pounds, this versatile winch is powered by a 0.3-horsepower (12-volt) DC motor. If you need the option of operating your winch manually, Champion’s got you covered with the included hand crank. Note: Power in via remote control is one way only – there is no power out function for releasing/pushing cable.

With a line speed of 1.7 feet per minute with a full load, and 4.5 feet per minute with no load, this winch’s 3-stage straight gear drive system is equipped to handle boats up to 18 feet in length.

Temporarily mount your winch to your boat trailer, truck bed or trailer ball hitch with the slide-on 2-inch hitch adapter plate - no tools necessary. Use your winch, then easily remove it and store it without any complicated procedures. The included carry handle makes transporting this winch even more convenient.

Connecting the winch to your vehicle is easy with the extended reach 20-foot battery cables, plus you can use the handheld remote control switch to operate your winch from a safe distance of up to 10 feet.

The durable 30-foot by 1/5-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand.

Buy with confidence - Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

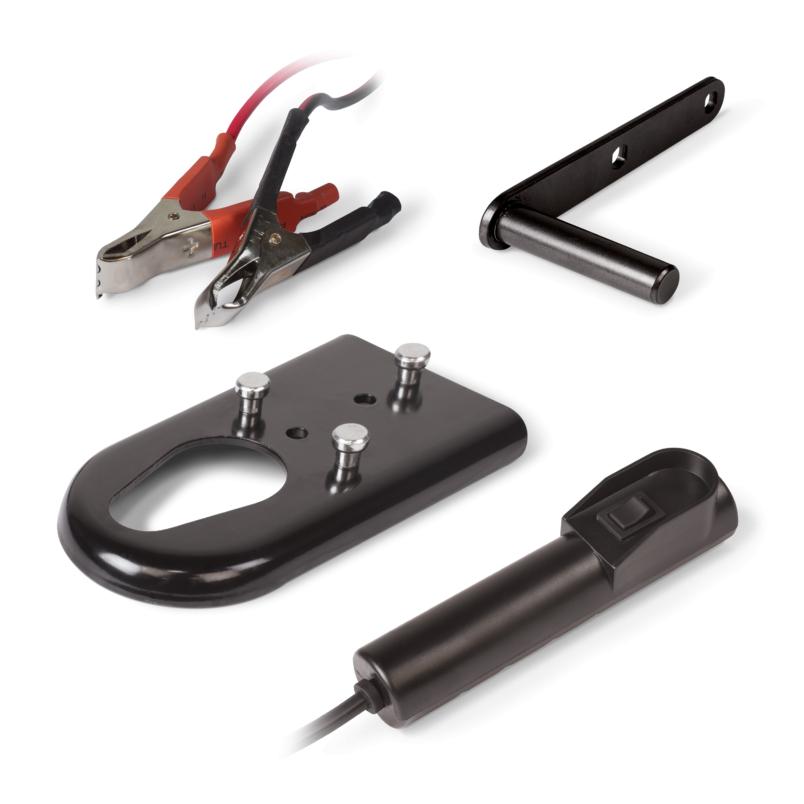

What’s included

  • Mounting Plate
  • Remote Control
  • Hand Crank
  • Battery Leads


Line Pull 2000 lb.
Remote Length 9.8 ft.
Full Load Line Speed 1.7 ft/min
No-Load Line Speed 4.5 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Galvanized Steel
Rope Length 30 ft.
Rope Diameter 1/5 in.
Mounting Channel Portable
Motor Type 12V DC
Horsepower 0.3 hp
Max Current at Full Load 21A
Duty Cycle Intermittent


Length 9.5 in.
Width 7.5 in.
Height 10 in.
Weight 22 lb.
