Champion Power Equipment

Model #100624

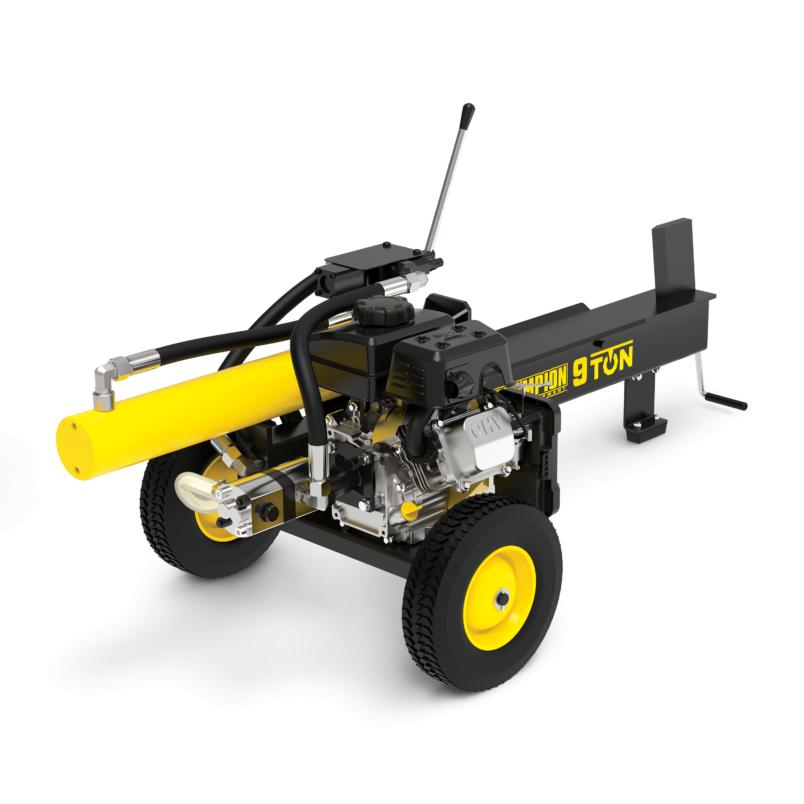

9-Ton Log Splitter

Champion’s 9-ton log splitter features an integrated log cradle and low profile for easy loading. The 79cc engine easily powers through logs up to 19 inches in length and 50 lb. in weight. The 20-second cycle time and auto-return valve reduce work time, while the skewed wedge improves efficiency.

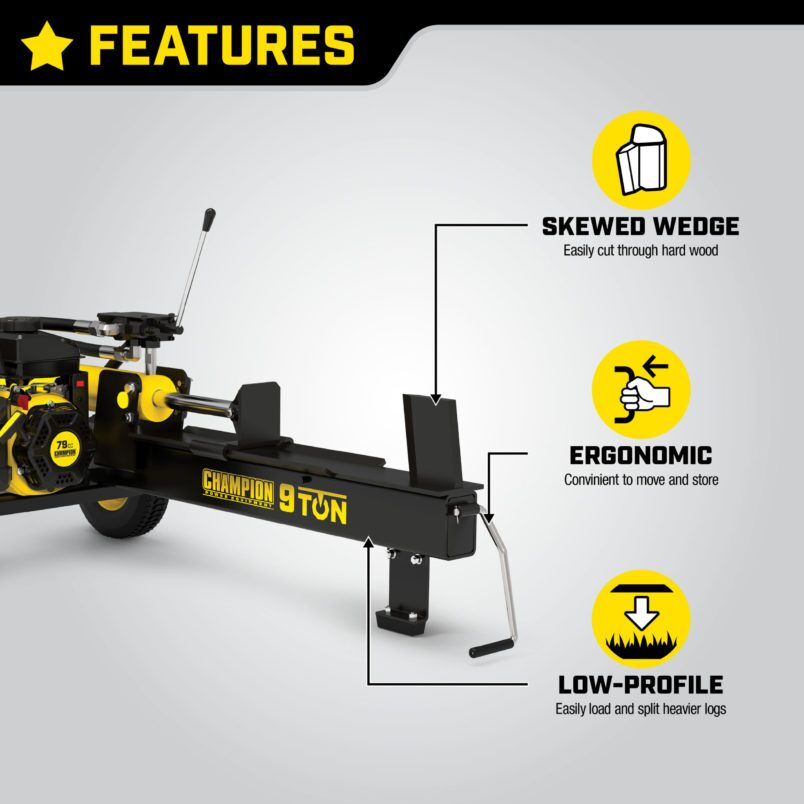

Features

Dependable

The 79cc engine powers a 20-second cycle time and dependable auto-return valve, making this log splitter capable of 180 cycles per hour

Low-Profile

Smart low-profile design makes it easier to load heavier logs, while the integrated log cradle keeps them in place

Efficient

The skewed wedge improves splitting efficiency

Portable

The compact design, comfortable handle and never-flat tires make this log splitter easy to move and easy to store

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

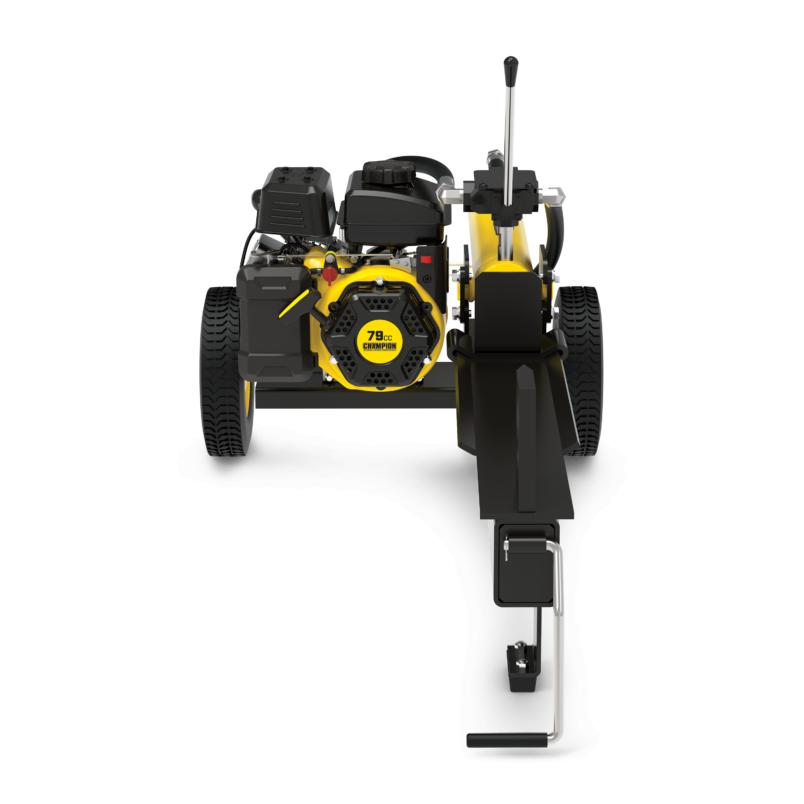

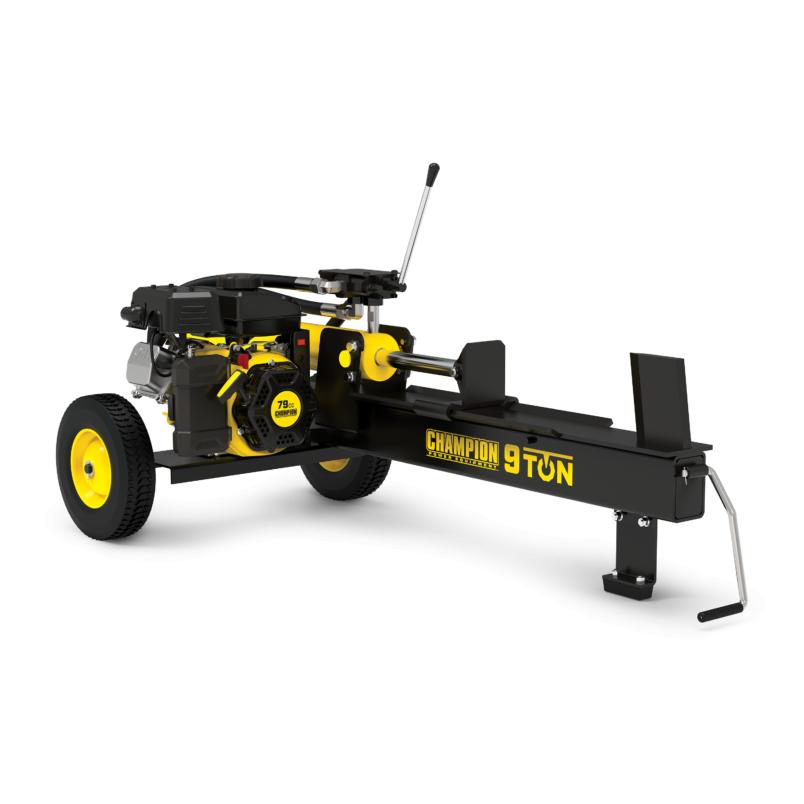

The Champion Power Equipment 100624 9-Ton Horizontal Gas Log Splitter is small on size but big on power. If you’re looking for a quick, dependable and portable solution for log splitting, this is the unit for you.

Depend on the reliable recoil start to start up the powerful Champion 79cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.3-gallon fuel tank, 0.4-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

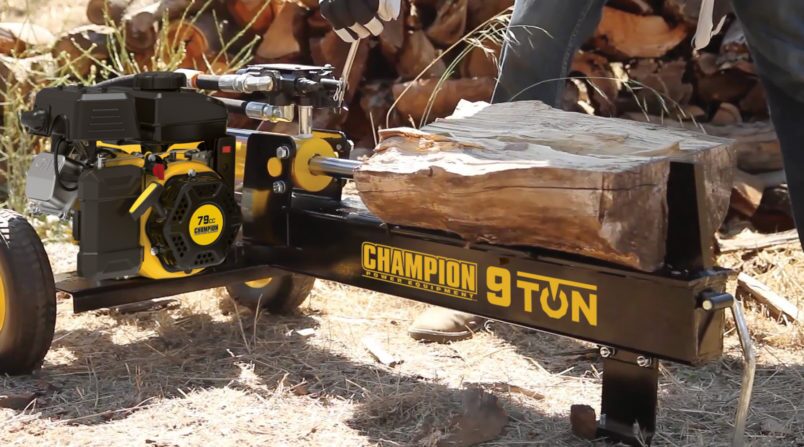

Never struggle to lift a large, heavy log onto your log splitter again. The low-profile design makes it much easier to load a large log onto the splitting beam, and the integrated log cradle keeps the log safely in position. This small but mighty machine handles logs up to 19 inches long, weighing up to 50 pounds.

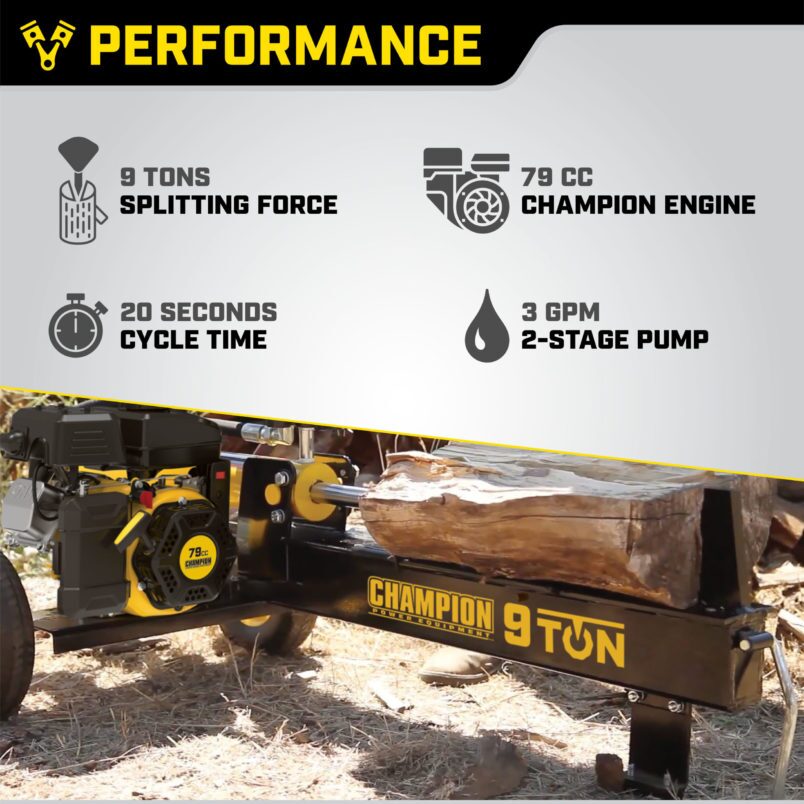

Nine tons of splitting capacity deliver the power you need for the job at hand. The hydraulic oil system has a 1.5-gallon oil capacity and operates at 3 gpm to power through tough logs.

Champion designed this log splitter with a skewed wedge to increase splitting efficiency, plus it has a 20-second cycle time and dependable auto-return valve, which is capable of 180 cycles per hour.

The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

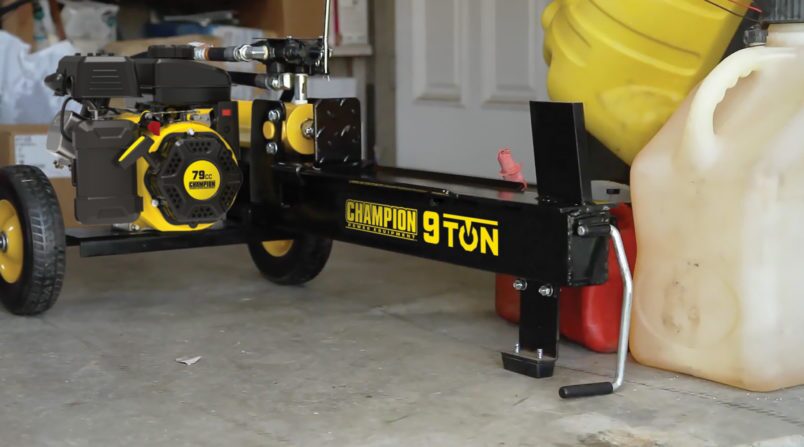

This log splitter will fit easily in any truck bed, plus it’s easy to move from one job to the next with the comfortable handle and 10-inch never-flat tires.

Assembly and setup are hassle free with Champion’s clear directions and thoughtful packaging.

This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

What’s included

  • Oil Funnel

Specifications

Ram Force 9T
Operating Position Horizontal
Cycle Time 20 s.
Max Log Length 19.3 in.
Max Log Weight 50 lb.
Log Cradles Yes
Log Catchers No
Auto Return Yes
Wedge Type Single
Wedge Material Hardened Steel
Cylinder Diameter 3 in.
Cylinder Rod Size 1.2 in.
Hydraulic Pump 2-Stage
Hydraulic Flow Rate 3 gal/min
Hydraulic Oil System Capacity 1.5 gal.
Hydraulic Oil Tank Capacity 1 gal.
Hydraulic Oil Type AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid
Hydraulic Filter No
Hydraulic Oil Included No
Power Type Gasoline
Start Type Recoil
Engine Brand Champion
Engine Size 79cc
Engine Type 4-stroke
Gasoline Capacity 0.3 gal.
Engine Oil Type 10W-30
Engine Oil Capacity 0.4 qt.
Engine Oil Included No
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Solid
Wheel Diameter 10 in.
Towable No
Fenders No
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 53.1 in.
Width 23.6 in.
Height 18.1 in.
Weight 148 lb.
