Convenience, versatility, and a unique camouflage design are yours with the Champion 3650-watt portable generator. Rely on the Champion 224cc engine and enjoy up to 14 hours of run time at 50% load with a noise level of 68 dBA. Featuring CO Shield® - the carbon monoxide auto shutoff system, this unit meets ANSI/PGMA G300-2018 requirements.

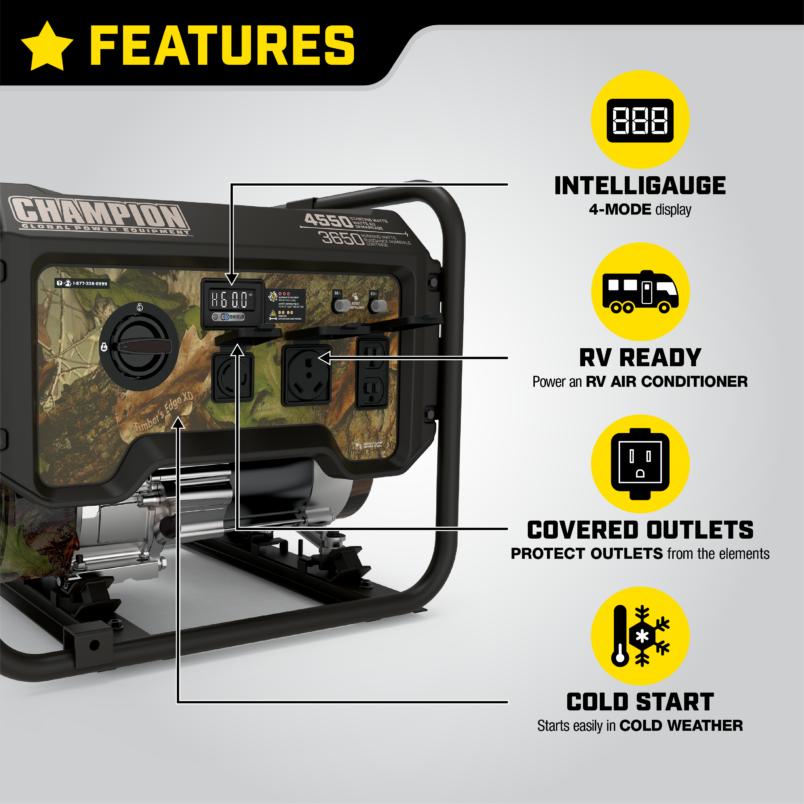

Features
Designed for Safety
CO Shield® monitors the accumulation of poisonous CO gas produced by the engine exhaust and automatically shuts the engine off when elevated levels are detected
Reliable and Powerful
At 4550 starting watts and 3650 running watts, enjoy up to 14 hours of run time on a full tank of gasoline with a noise level of 68 dBA from 23 feet
Convenient
Cold Start Technology ensures a quick start in cold weather
Intelligauge
Monitor voltage, frequency, runtime, and total runtime with ease, while the UL-recognized sensor uses an LED to indicate CO shutoff or fault
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

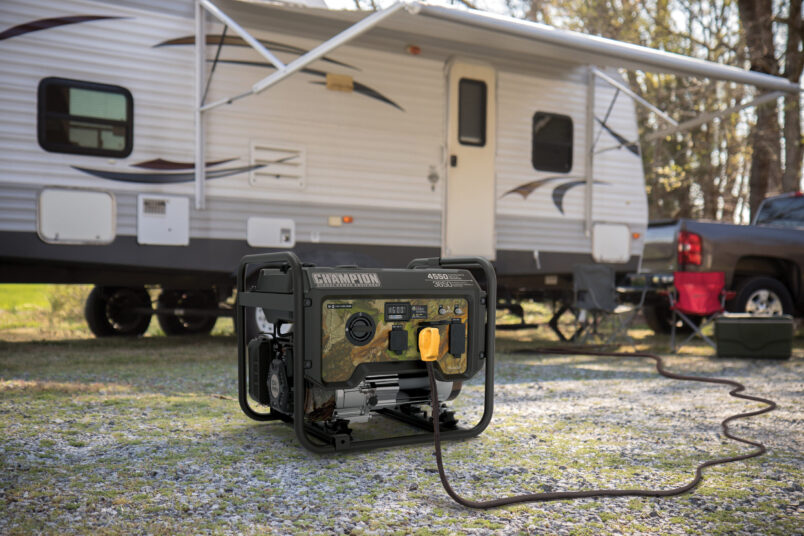

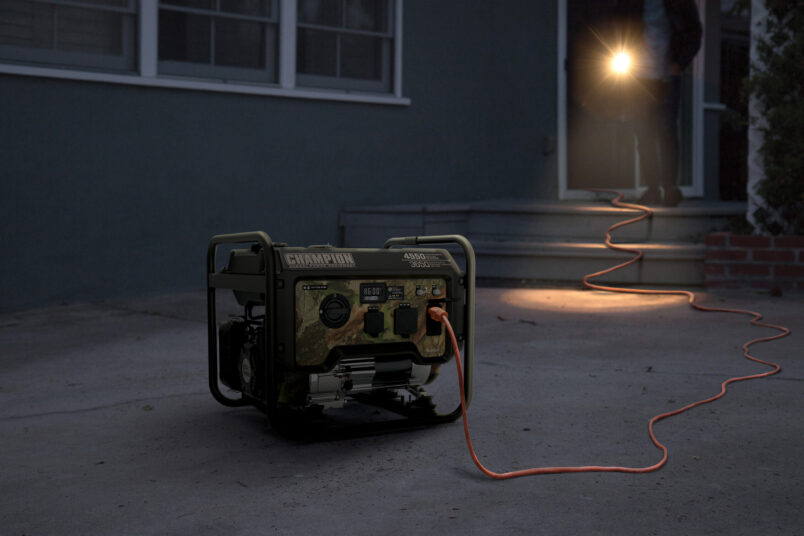

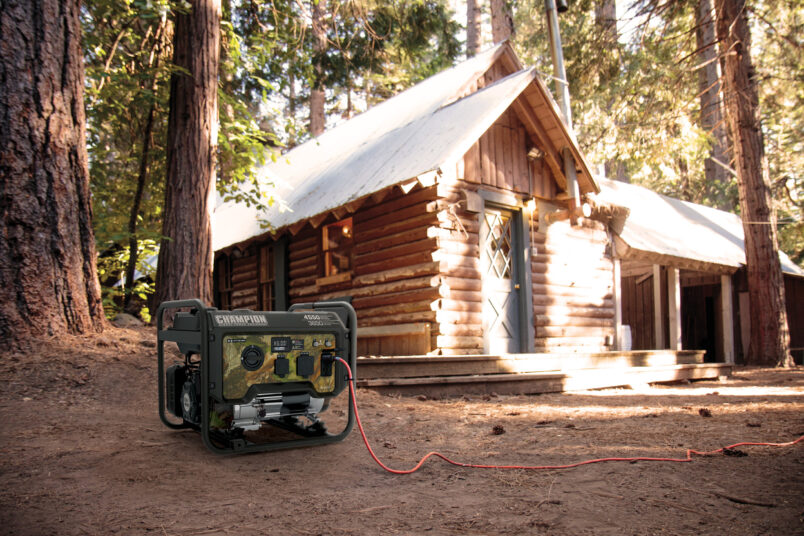

The Champion Power Equipment 201071 3650-Watt Portable Generator is the perfect combination of versatility and convenience. The unique camouflage design and rugged steel frame make this portable generator a powerful companion for your next camping trip or weekend project, plus it can provide plenty of backup power for your essentials during an outage.

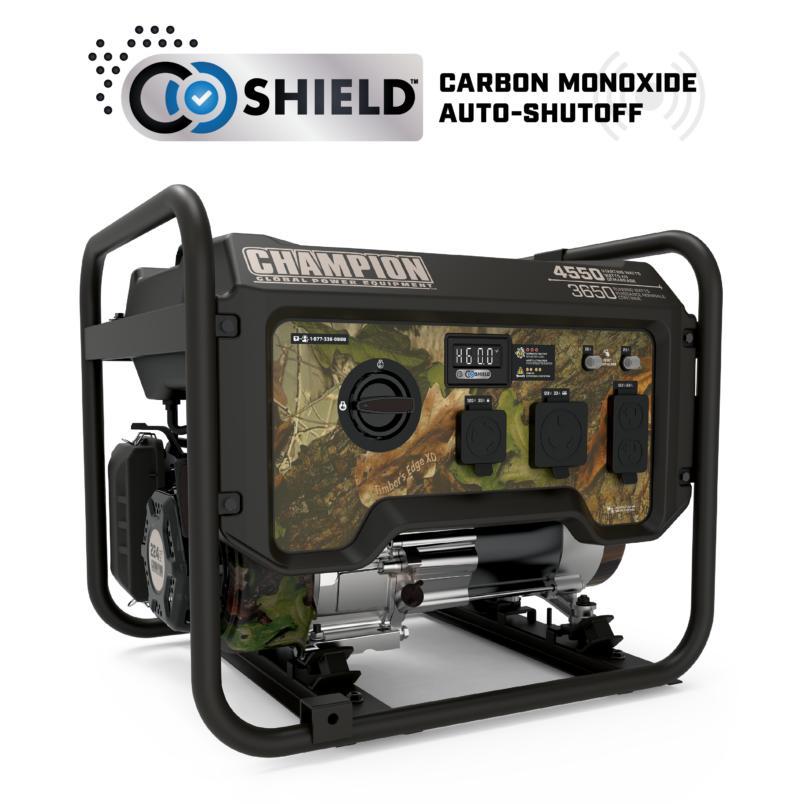

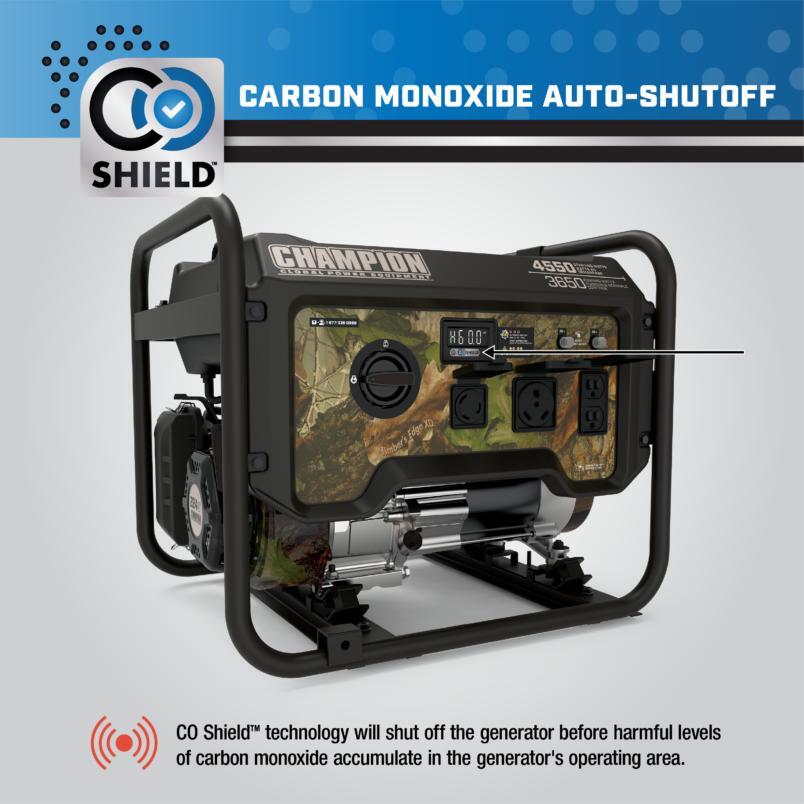

Thanks to CO Shield® technology, you can be sure that you and your family are protected from the dangers of carbon monoxide. Our CO Shield® sensor tests itself automatically and lasts up to a decade. If operated in inappropriate locations, the UL-recognized sensor will alert and shut off the generator automatically before dangerous levels of carbon monoxide accumulate. This indicates the unit should be moved to an open-air environment with plenty of circulation. This unit meets the ANSI/PGMA G300-2018 requirements to ensure the highest level of safety and performance.
Power up with Champion’s reliable recoil start, plus Cold Start Technology ensures a quick start in cold weather. Champion also makes it easy to monitor voltage, frequency, runtime, and total runtime hours with Intelligauge.
Designed for safety with convenient resettable circuit breakers, a low oil shut-off sensor plus an included oil funnel for easy changes, this unit has a 0.6-quart oil capacity (recommended 5W-30).
The reliable 224cc single-cylinder OHV Champion engine produces 4550 starting watts and 3650 running watts, and will run for up to 14 hours at 50% load when the 4.7-gallon tank of gasoline is full.
With a noise level of 68 dBA from 23 feet, which is about as loud as a vacuum cleaner, this machine can handle most essentials in a power outage, plus the Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe from spikes in voltage.

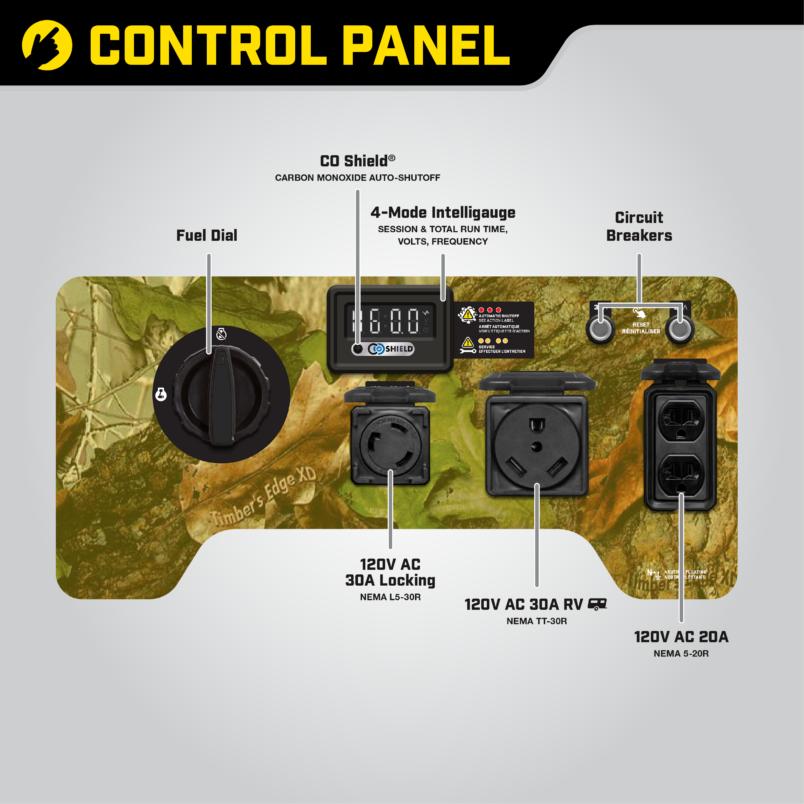

All the outlets have covers for protection and include a 120V 30A locking outlet (L5-30R), a 120V 30A (TT-30R) RV outlet and two 120V 20A household outlets (5-20R).
Champion’s thoughtful packaging and clear directions make setup hassle free.
This generator is EPA certified. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 3-year limited warranty and FREE lifetime technical support.
What’s included
- Engine Oil
- Oil Funnel
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 4550W |
| Gasoline Running Watts | 3650W |
| Gasoline Starting Amps at 120V | 37.9A |
| Gasoline Running Amps at 120V | 30.4A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 120V 30A (TT-30R), 120V 30A Locking (L5-30R), 120V 20A Duplex (5-20R) |
| DC Operation | No |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/2 Load | 14 h. |
| Noise Level | 68 dBA |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA G300-2018 Compliant | No |
| ETL Listing | cETL |
| EPA Certified | Yes |
Dimensions
| Length | 23.2 in. |
|---|---|
| Width | 19.4 in. |
| Height | 20 in. |
| Weight | 102 lb. |
