Champion Power Equipment

Model #201154

4650W Inverter with CO Shield®

Champion's 4650-watt inverter generator features CO Shield® carbon monoxide auto shutoff system. The advanced technology and design will improve the way you power your life. Our feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power, plus you can easily increase your power with the optional Parallel Kit.

Features

Quiet Technology and Extended Run Time

61 dBA is great for RVs, tailgating, or camping with 4650 starting watts and 3650 running watts and up to 14 hours run time on only 2.3 gallons of gasoline

Parallel Ready

The optional parallel kit (sold separately) enables this inverter to connect with another 2800-watt or higher Champion inverter to double your output power

Intelligauge with Power Meter

Monitor voltage, frequency, and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system, and the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real time

Clean Power for Sensitive Electronics

120V 30A RV outlet, a 120V 20A household duplex outlet with clean power (less than 3% THD) and a 12V automotive-style outlet

Champion Support

Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 4650-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.

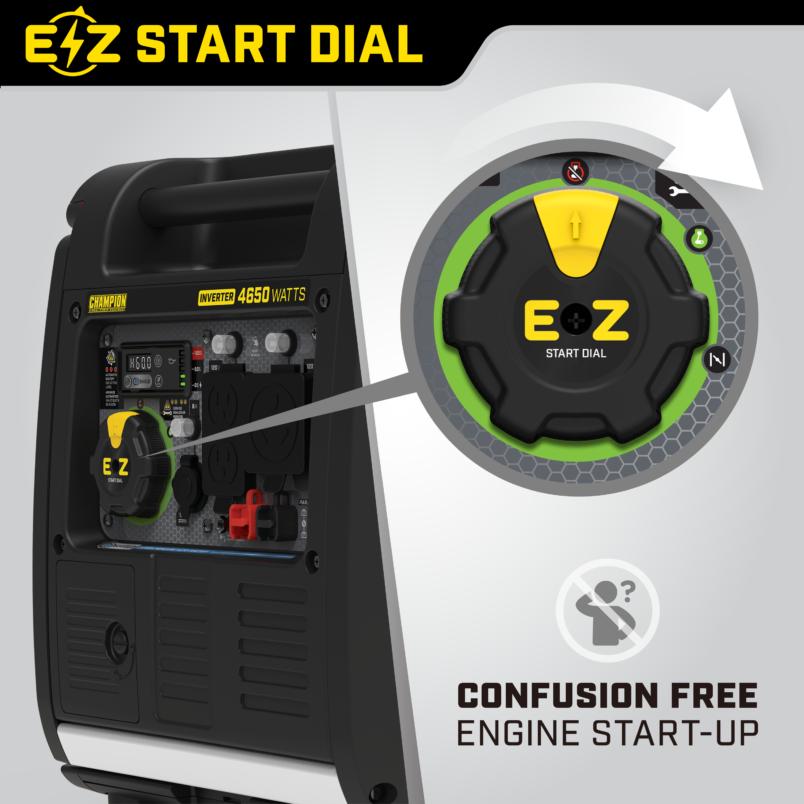

Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, Extended Run Time, and an easy-to-read fuel gauge, the reliable 212cc Champion engine produces 4650 starting watts and 3650 running watts, and runs for 14 hours at 25% load when the 2.3-gallon fuel tank is full.

With a 0.5-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61 dBA from 23 feet, which is about as loud as normal speech.

The no tool access panel and oil drain tube allow for easy maintenance.

Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

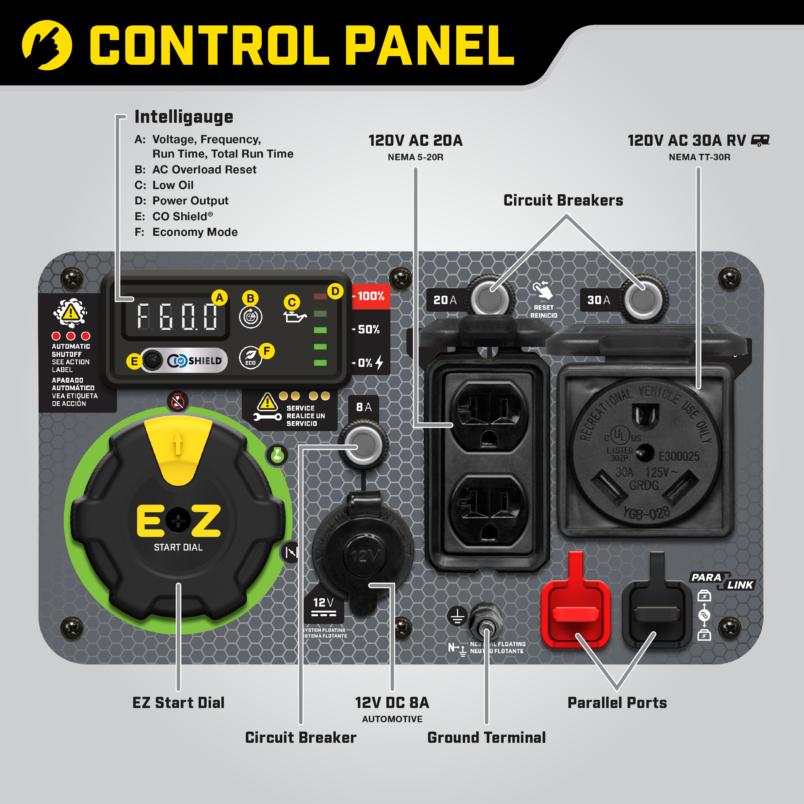

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear and tear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.

The covered outlets included are a 120V 30A RV outlet (TT-30R), a 120V 20A household duplex outlet (5-20R), a 12V automotive-style outlet, and a handy dual port USB adapter.

The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, allows you to increase output by connecting up to two 2800-watt or higher inverters. The never flat tires and fold-down handle make transport a cinch.

Buy this EPA certified and CARB compliant inverter generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

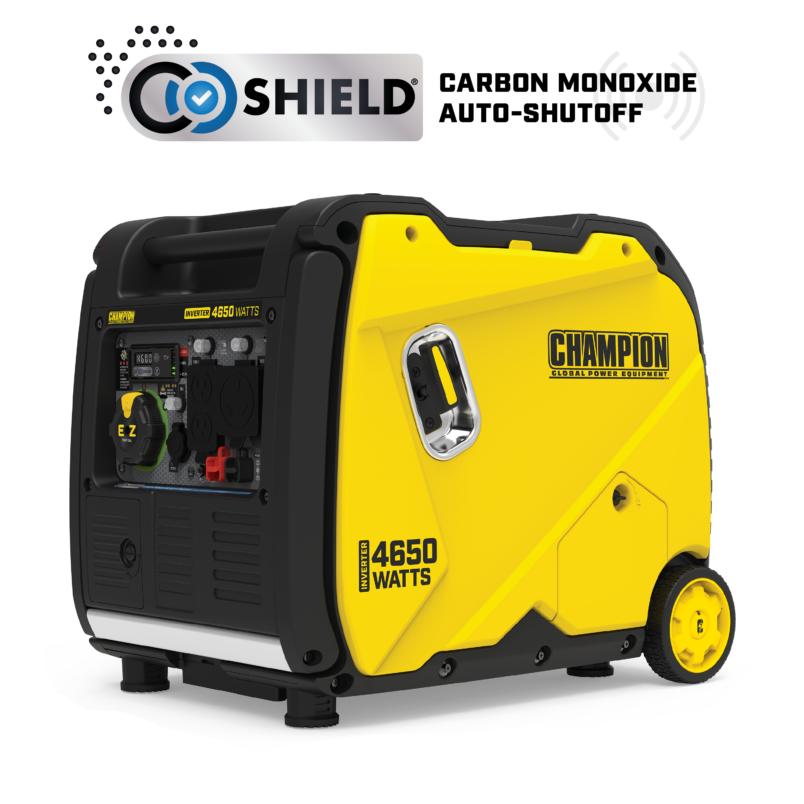

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

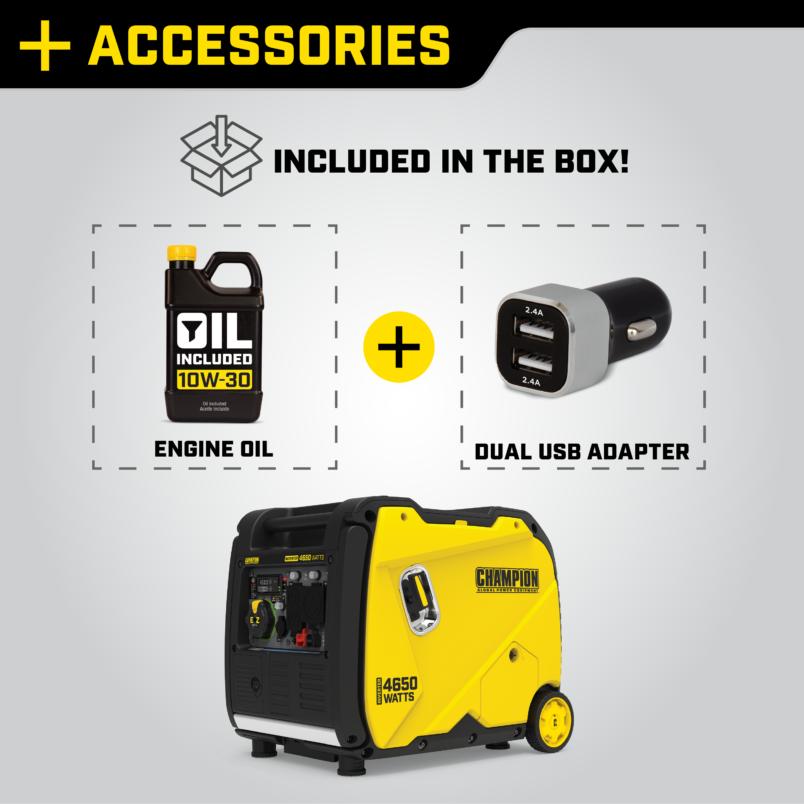

What’s included

  • USB Adapter
  • 8/10mm Wrench
  • Spark Plug Wrench
  • Engine Oil
  • Oil Funnel

Specifications

Portable Generator Technology CO Shield®
Gasoline Starting Watts 4650W
Gasoline Running Watts 3650W
Gasoline Starting Amps at 120V 38.8A
Gasoline Running Amps at 120V 30.4A
Volts 120
Frequency 60Hz
Outlets 120V 20A Duplex (5-20R), 120V 30A (TT-30R), 12V DC Automotive, Parallel
GFCI Outlets No
Covered Outlets Yes
Gasoline Run Time at 1/4 Load 14 h.
Noise Level 61 dBA
Inverter Traditional
Parallel Capability Yes
DC Operation Yes
Voltmeter Intelligauge with Power Meter
Automatic Voltage Regulation No
Battery No
Start Type Recoil
Engine Brand Champion
Engine Size 212cc
Engine Type 4-stroke
Engine Speed Variable
Fuel Type Gasoline
Fuel Gauge Yes
Gasoline Capacity 2.3 gal.
Gasoline Tank Material Steel
Engine Oil Type 10W-30
Engine Oil Capacity 0.5 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Solid
Wheel Diameter 5 in.
PGMA G300-2018 Compliant Yes
EPA Certified Yes
CARB Compliant Yes

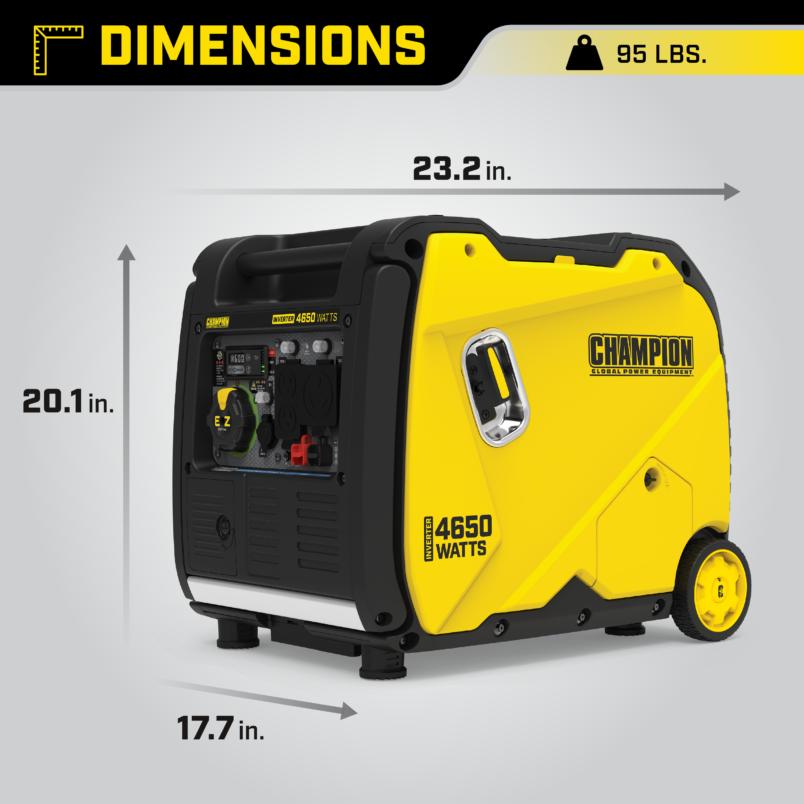

Dimensions

Length 23.2 in.
Width 17.7 in.
Height 20.1 in.
Weight 95 lb.
