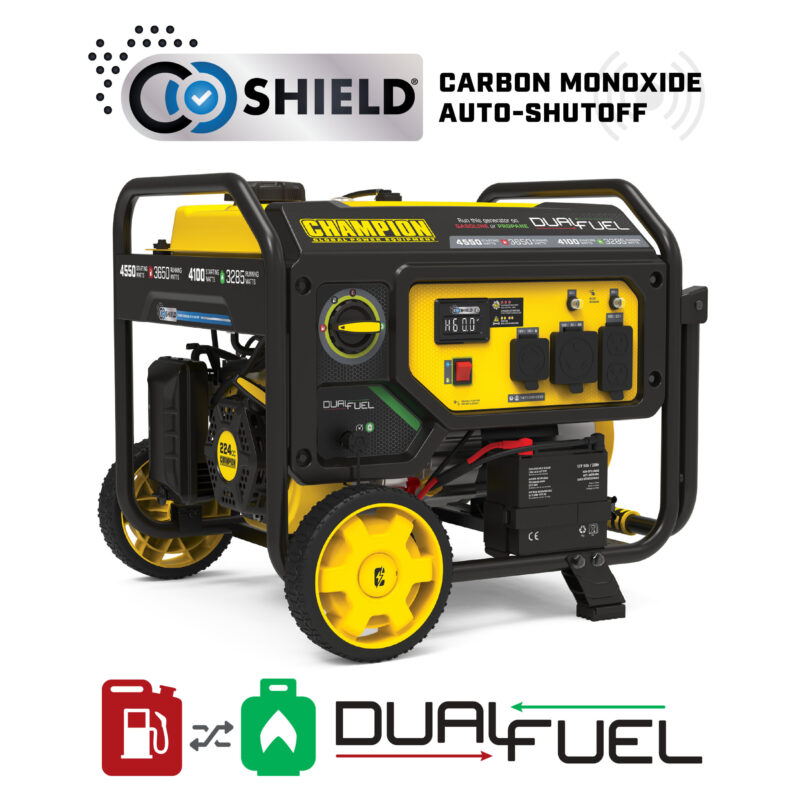

Champion’s 3650-watt generator features CO Shield® carbon monoxide auto shutoff system. Featuring Dual Fuel, allowing the 224cc engine to run on either gasoline or propane, it provides up to 14 hours of run time on gasoline or 10.5 hours on propane.
Features
Dual Fuel
Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system

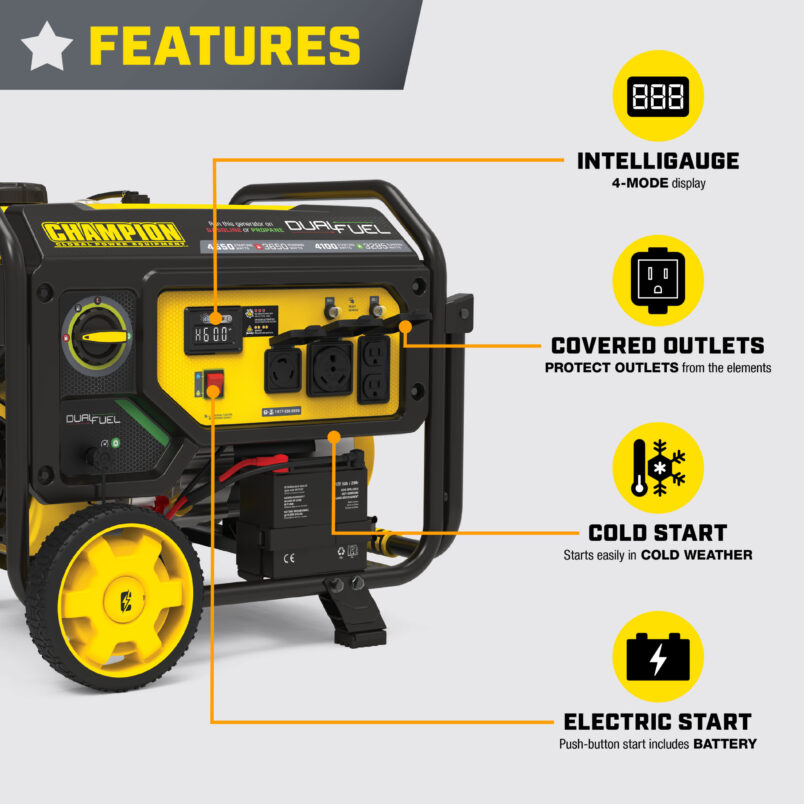

Electric Start
Power up the 224cc Champion engine with the handy rocker switch, battery included
Intelligauge
Keep track of voltage, frequency and run-time hours to easily monitor output and track maintenance intervals while the UL-recognized sensor uses an LED to indicate CO shutoff or fault
Powerful
At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard to protect your appliances from electrical voltage spikes
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts.
Description

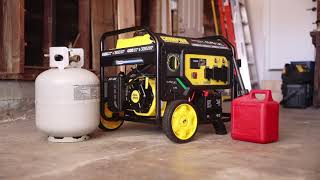

The Champion Power Equipment 201504 3650-Watt Dual Fuel Portable Generator with CO Shield® is the perfect combination of versatility and convenience. Whether you need power for your home or next project, Champion Power Equipment makes powering your life more convenient than ever.
The convenient electric start includes a battery, plus Cold Start Technology ensures a quick start in cold weather.
Easily monitor power output and track maintenance intervals with Intelligauge, which allows you to keep track of voltage, frequency and run-time hours. Designed with a low oil shut-off switch, this unit includes 0.6-quarts of 10W-30 oil.
Operate your Dual-Fuel generator right out of the box on gasoline or propane, and easily switch fuels with our patent pending fuel select dial that allows for safe switching between fuel sources.
Using gasoline, the 224cc Champion engine produces 4550 starting watts and 3650 running watts, and will run for 14 hours at 50% load when the 4.7-gallon fuel tank is full. It produces 4100 starting watts and 3285 running watts, and will run for 10.5 hours at 50% load when using a 20-pound propane tank. Also included is a 6.5-foot propane hose with a built-in regulator.
With a noise level of 68 dBA from 23 feet, which is a bit louder than a vacuum, this machine can provide home backup in an outage, plus the Volt Guard protects your appliances from electrical voltage spikes.

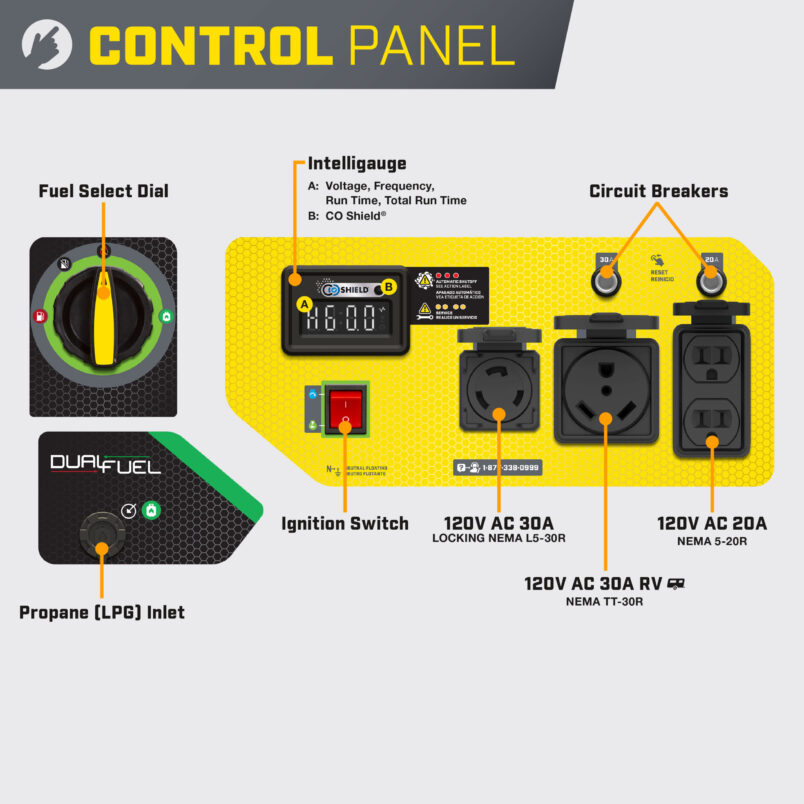

All the outlets have covers for protection and include 120V 30A locking outlet (L5-30R), a 120V RV outlet (TT-30) and a a 120V 20A household duplex outlet (5-20R).
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

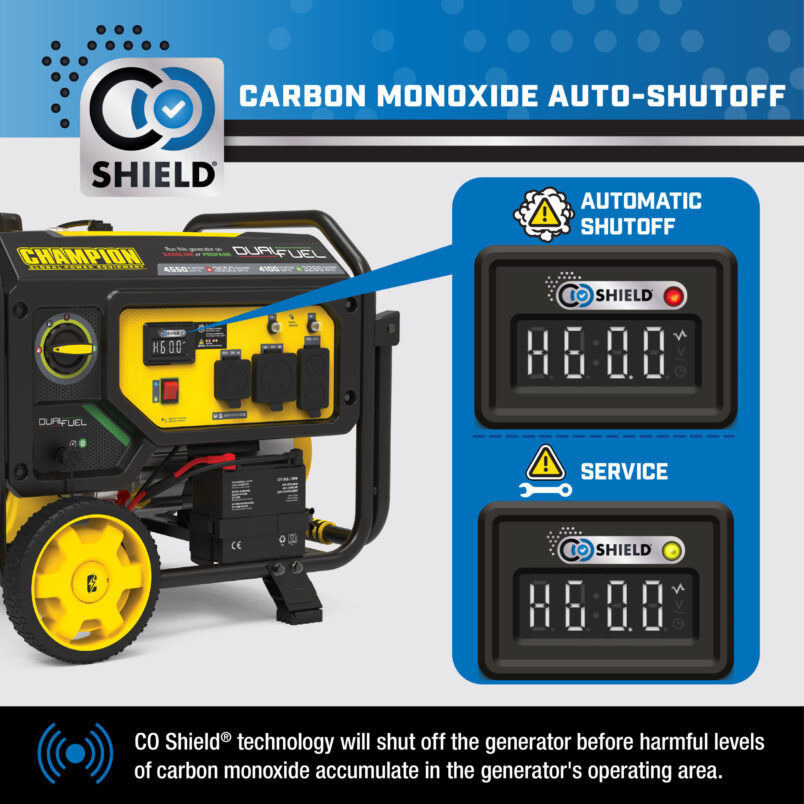

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300.
What’s included
- Engine Oil
- Oil Funnel
- Propane (LPG) Hose
- Battery
- Wheel Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 4550W |
| Gasoline Running Watts | 3650W |
| Propane Starting Watts | 4100W |
| Propane Running Watts | 3825W |
| Gasoline Starting Amps at 120V | 37.9A |
| Gasoline Running Amps at 120V | 30.4A |
| Propane Starting Amps at 120V | 34.2A |
| Propane Running Amps at 120V | 27.4A |
| Volts | 120 |
| Frequency | 60Hz |
| AC Receptacles | (1) 120V 30A Locking (L5-30R), (1) 120V 30A (TT-30R), (1) 120V 20A Duplex (5-20R) |
| DC Operation | No |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/2 Load | 10.5 h. |
| Noise Level | 68 dB(A) |
| Inverter | No |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | Mechanical |
| Gasoline Capacity | 4.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA Compliant | G300-2023 |
| EPA Certified | Yes |
Dimensions
| Length | 24.7 in. |
|---|---|
| Width | 25 in. |
| Height | 22.2 in. |
| Weight | 127 lb. |
