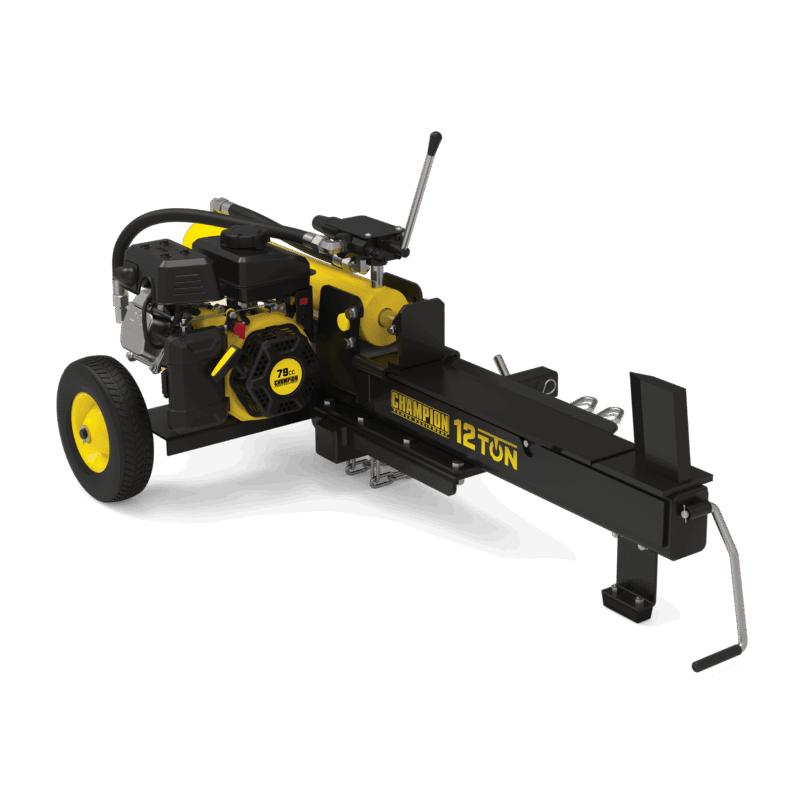

Champion’s 12-ton log splitter mounts to a 2 in. vehicle hitch for easy transport. With a 79 cc engine, 18 sec cycle time, 19 in. log capacity, and auto-return valve, it’s built to make preparing firewood faster and simpler.

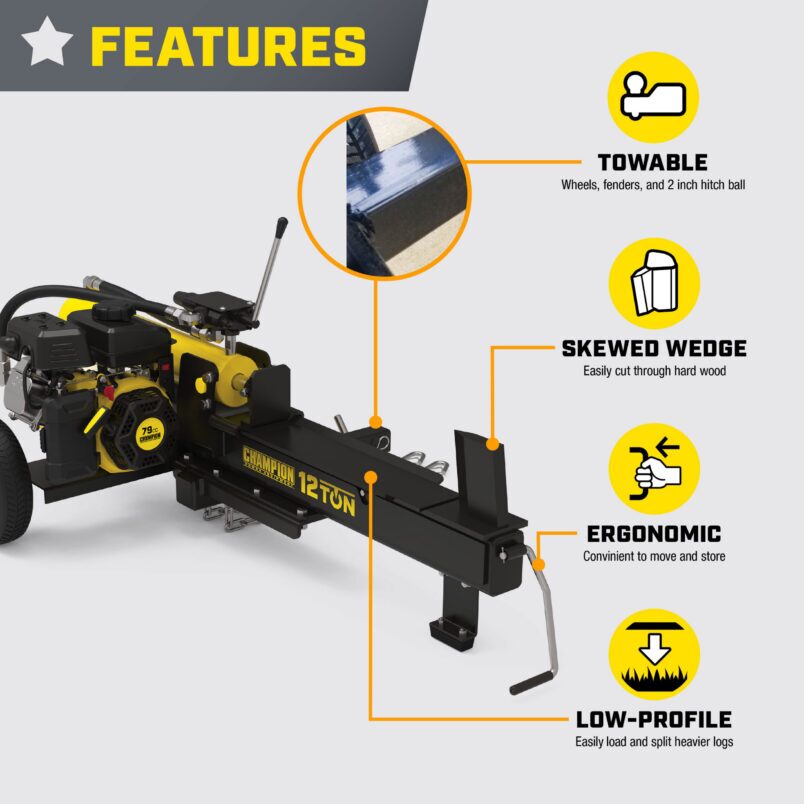

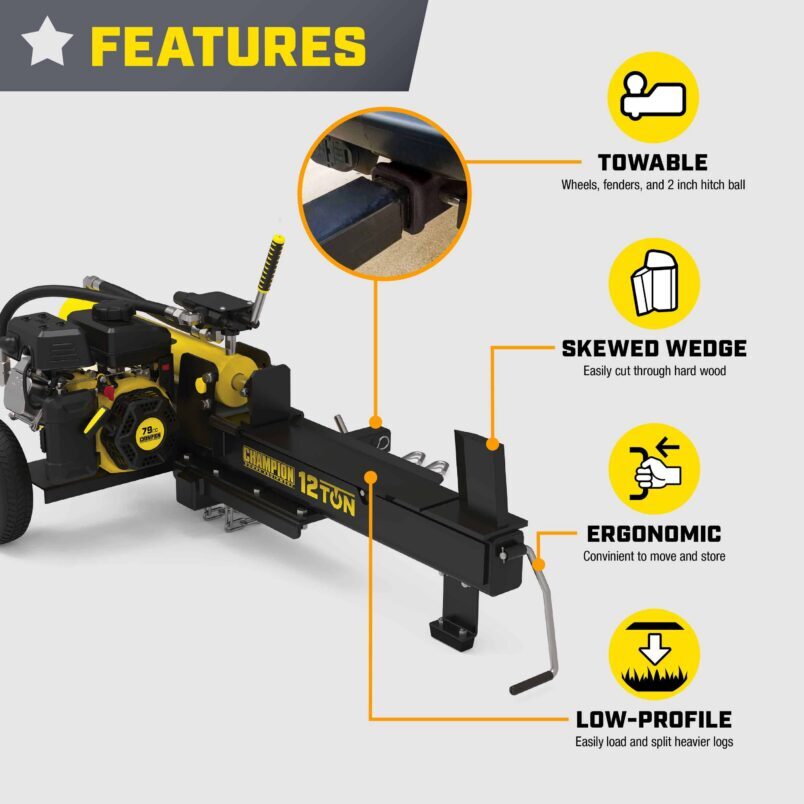

Features
12-Ton Splitting Power
Equipped with 12-tons of splitting force, this log splitter efficiently handles tough logs, allowing you to split firewood with minimal effort and maximum speed.
2 in. Hitch Adapter
The included 2 in. hitch adapter makes transport a cinch, while the compact design and 10 in. never-flat tires make this log splitter easy to move and easy to store.
18 sec. Cycle Time
The quick 18 sec. cycle reduces downtime, enabling you to split firewood consistently and handle larger jobs more efficiently.
79 cc Reliable Engine
Powered by a durable 79 cc OHV engine, this log splitter combines efficiency and strength, offering dependable performance for all your firewood needs.
Champion Support
Backed by a 2-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country.
Description
The Champion Power Equipment 12-Ton Compact Gas-Powered Log Splitter with 2 in. Hitch adapter is designed to make your firewood preparation efficient and straightforward.

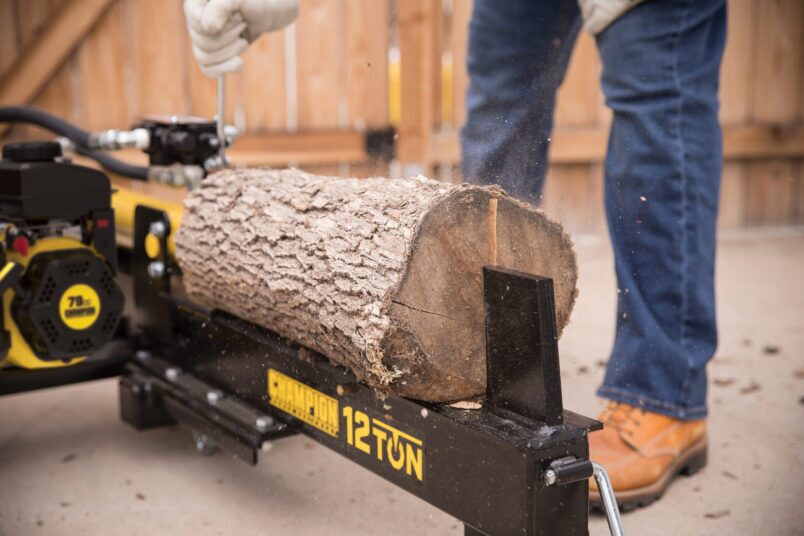

With a powerful 12-ton splitting force, this log splitter can tackle logs up to 19 in. long and 50 lb. in weight, allowing you to process larger pieces of wood quickly. The low-profile design makes it much easier to load a large log onto the splitting beam, and the integrated log cradle keeps the log safely in position.

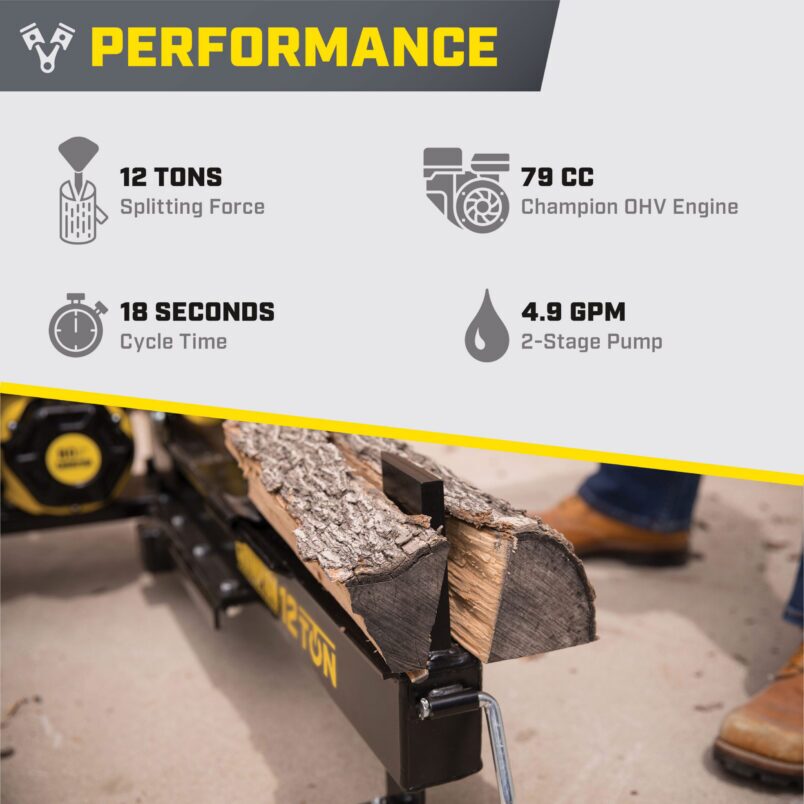

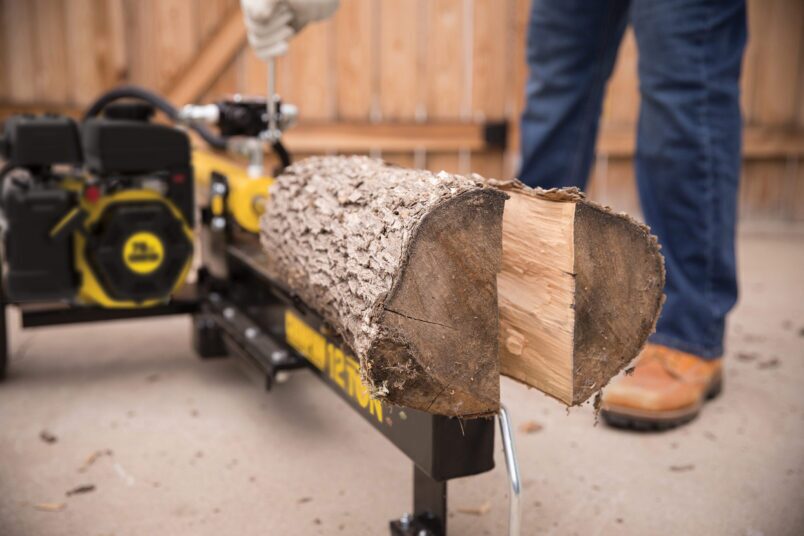

The 18-second cycle time and skewed wedge to increase splitting efficiency means you spend less time waiting and more time splitting, capable of handling up to 200 cycles per hour. Ease of operation is another highlight, thanks to the detent control valve that allows for automatic return after each split.

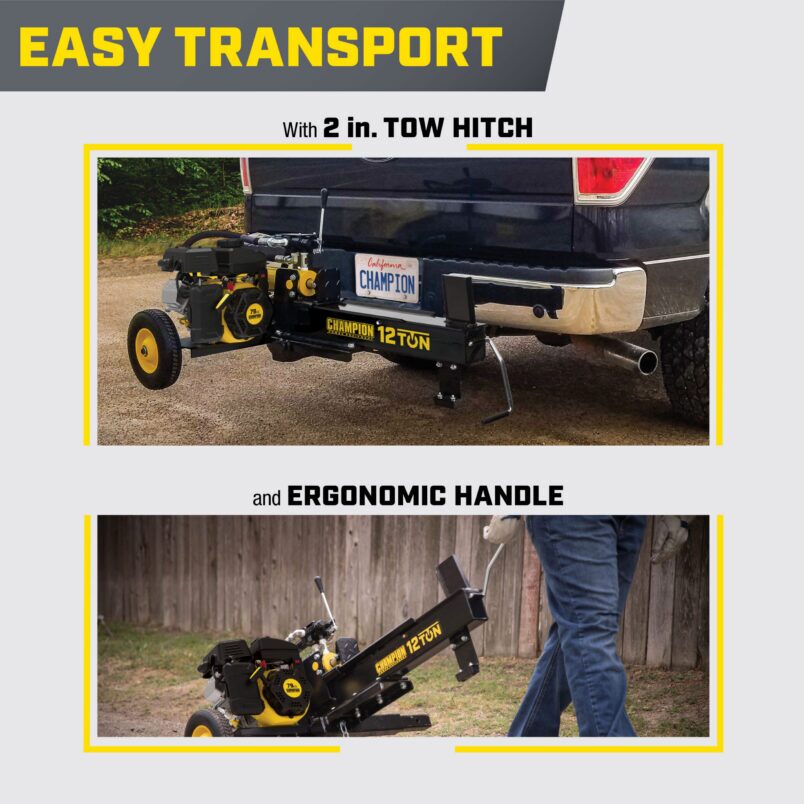

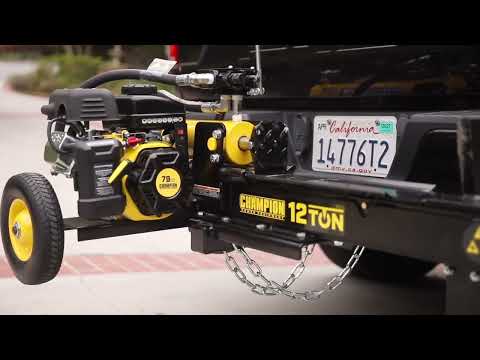

Transporting this compact splitter is simple—just secure it to your vehicle’s 2 in. hitch adapter, similar to a hitch-mounted cargo carrier. Equipped with 10 in. tires, it’s easy to move and store.
The reliable Champion 79 cc OHV engine delivers reliable power, ensuring consistent performance whether you're splitting for a cozy fire or for heating your home. Plus, the 0.3 gal. gasoline capacity means you can work longer without frequent refueling. The hydraulic oil system has a 1.7 gal. oil capacity and operates at 4.9 GPM to power through tough logs.
EPA-certified, this model comes with a 2-year limited warranty, FREE lifetime technical support, and access to nationwide service centers—giving you peace of mind with your purchase.
What’s included
- Oil Funnel
- Spark Plug Socket/Wrench
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Ram Force | 12-ton |
|---|---|
| Operating Position | Horizontal |
| Cycle Time | 18 s. |
| Max Log Length | 19 in. |
| Max Log Diameter | 14 in. |
| Max Log Weight | 50 lb. |
| Log Cradles | Yes |
| Log Catchers | No |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 3.6 in. |
| Cylinder Rod Diameter | 1.2 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 4.9 GPM |
| Hydraulic Oil System Capacity | 1.7 gal. |
| Hydraulic Oil Tank Capacity | 1 gal. |
| Hydraulic Oil Type | ISO 32 |
| Hydraulic Filter | No |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 79cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 0.3 gal. |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.4 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 10 in. |
| Towable | No |
| Hitch Type | 2 in. Receiver Hitch |
| Fenders | No |
| EPA Certified | Yes |

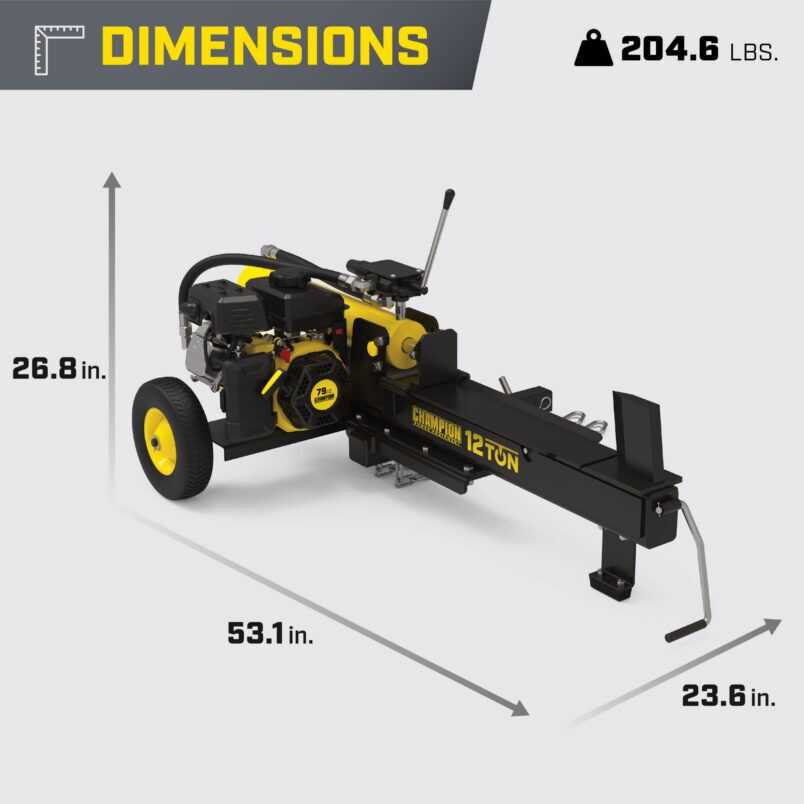

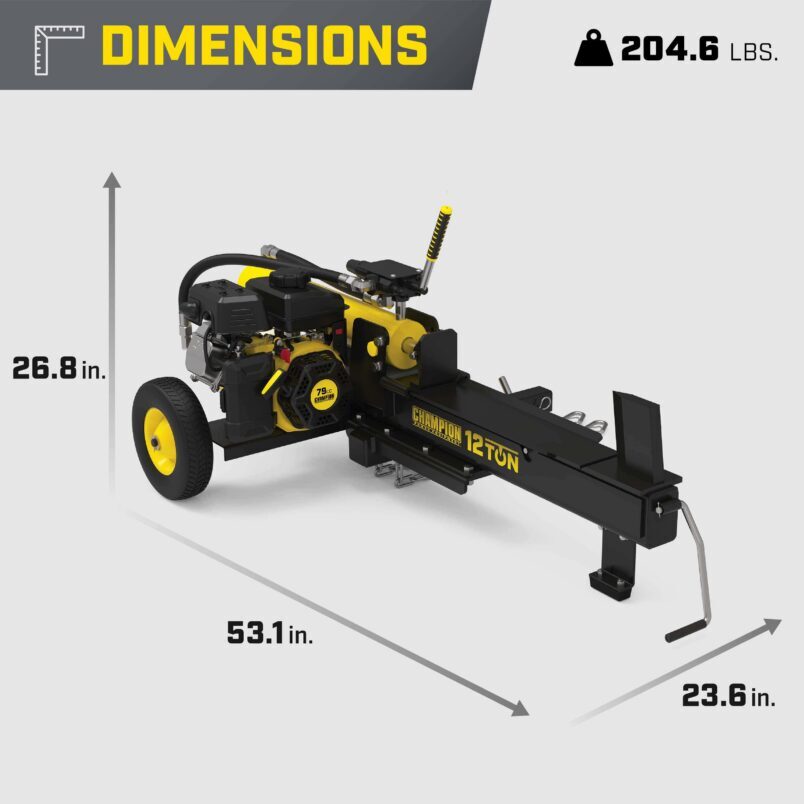

Measurements
| Length | 53.1 in. |
|---|---|
| Width | 23.6 in. |
| Height | 26.8 in. |
| Weight | 204.6 lb. |
