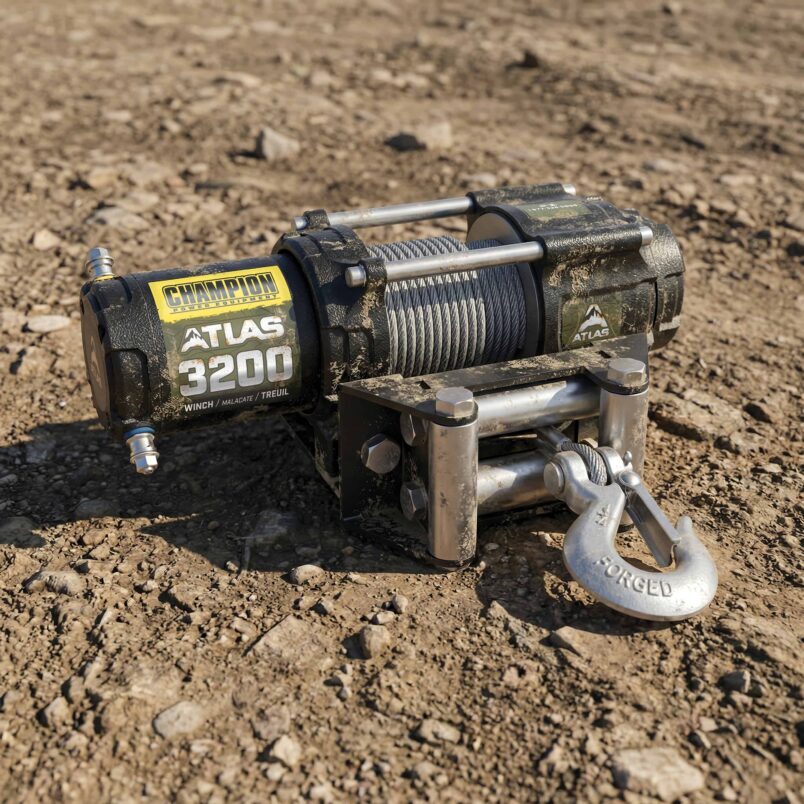

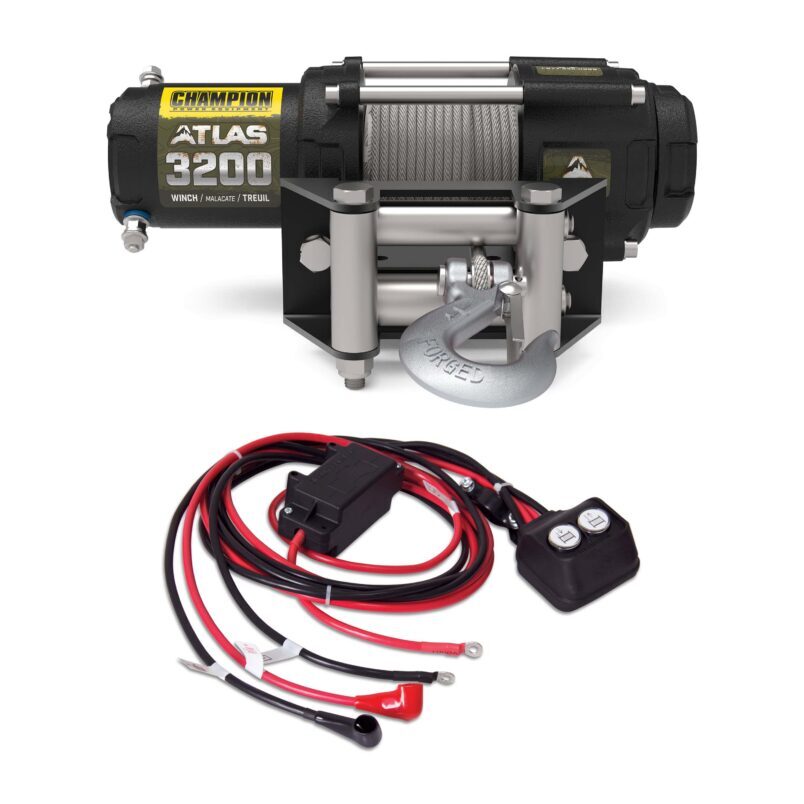

Champion's ATLAS 3200 winch kit pulls your ATV out of the deep stuff with 3200 lb. of recovery capacity and a 1.3 HP permanent magnet motor. IP67 sealed, with 39.3 ft. of 3/16 in. steel cable, roller fairlead, mounting plate, rocker remote, and circuit-protected battery cables.
Features
Trail-Ready Recovery
3200 lb. pulling capacity sized for ATV self-recovery on the trail, in the field, and anywhere help isn't coming
Complete Kit
39.3 ft. of 3/16 in. steel cable, roller fairlead, mounting plate, rocker remote, and 40A fuse-protected battery cables in one box
Strong Pulling Force
1.3 HP permanent magnet motor and 171:1 gear reduction give you controlled pulling force when your tires are buried
All-Weather Sealed

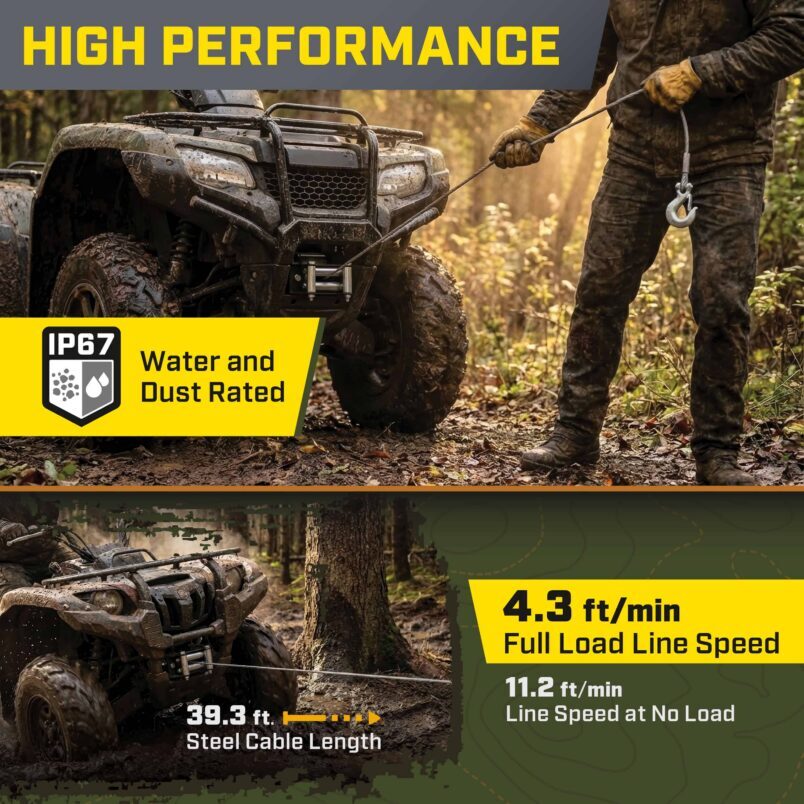

IP67 rating and salt-fog-tested finish keep mud, water, and corrosion out across a broad operating temperature range
Champion Support
Backed by a 2 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country
Description
The Champion Power Equipment ATLAS 3200 winch kit is built for the ride that goes a little too far off the trail. When your tires sink in the mud, drop into a rut, or bury themselves in fresh snow, 3200 lb. of pulling capacity gives your ATV a way back to solid ground – without waiting on a tow or another rider to come find you.

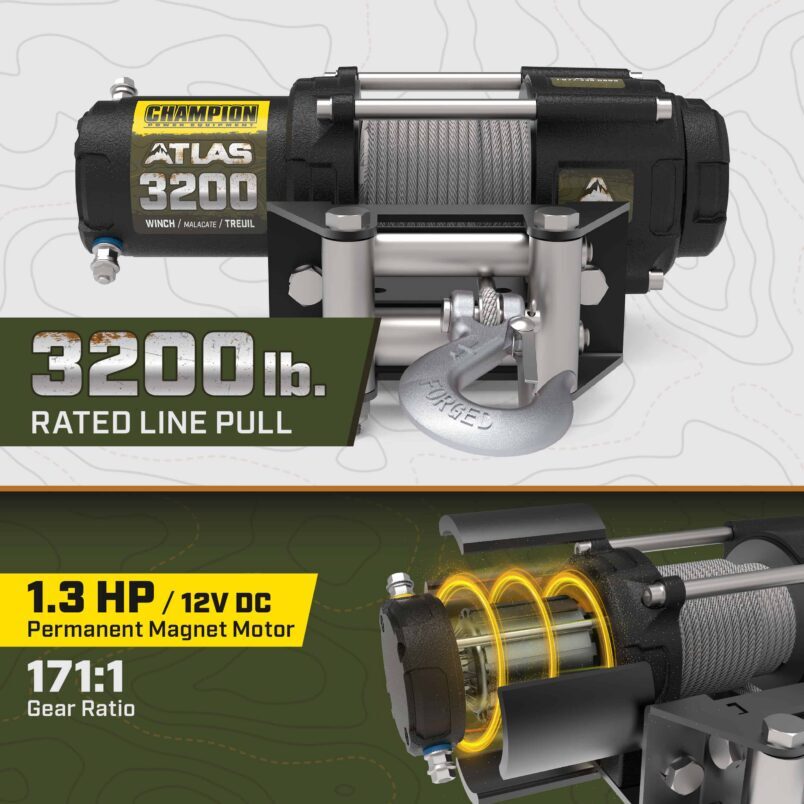

A 1.3 HP permanent magnet motor pairs with a 171:1 planetary gear reduction to convert 12V battery power into controlled pulling force under load. The 3/16 in. steel cable spools 39.3 ft. off the drum, giving you the reach to anchor against a tree, rock, or post well beyond your bumper, with a brake strength of 4500 lb. to hold under load.
Operate the winch from a safe distance with the included corded rocker remote, which keeps you clear of the cable while you manage tension and direction. Two 40A fuse protectors are wired into the battery cables to guard the circuit against the current draw that builds during repeated pulls.
An IP67 rating means the housing is sealed against dust ingress and water immersion, and a salt-fog-tested finish stands up to the corrosion that follows mud, snow, and wet trail riding. The winch is rated for operation across a broad temperature range, whether you're recovering on a frozen morning or during summer heat.

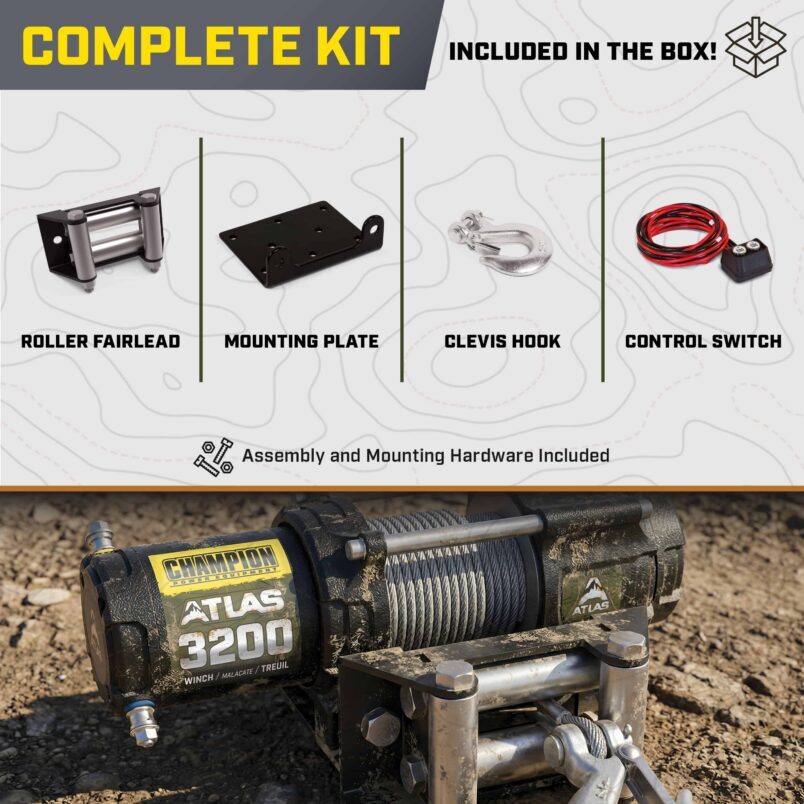

Everything you need to mount up comes in the box – winch body, mounting plate, roller fairlead, rocker remote, fuse-protected battery cables, clevis hook, and the hardware to wire it all together.
This model comes with a 2-year limited warranty, FREE lifetime technical support, and access to nationwide service centers–giving you peace of mind with your purchase.
What’s included
- Mini-Rocker Switch
- Roller Fairlead
- Mounting Plate
- Clevis Hook
- Hook Strap
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Winch Type | ATV |
|---|---|
| Line Pull | 3200 lb. |
| Remote Length | 4.3 ft. |
| Gear Ratio | 171:1 |
| Gear System | Single-Stage Planetary |
| Full Load Line Speed | 4.3 ft/min |
| No-Load Line Speed | 11.2 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Automatic |
| Rope Material | Galvanized Steel |
| Rope Length | 39.3 ft. |
| Rope Diameter | 3/16 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 1.5x3.1 in. |
| Bolt Pattern | 3x4.9 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1.3 hp |
| Max Current at Full Load | 165A |
| Duty Cycle | Intermittent |

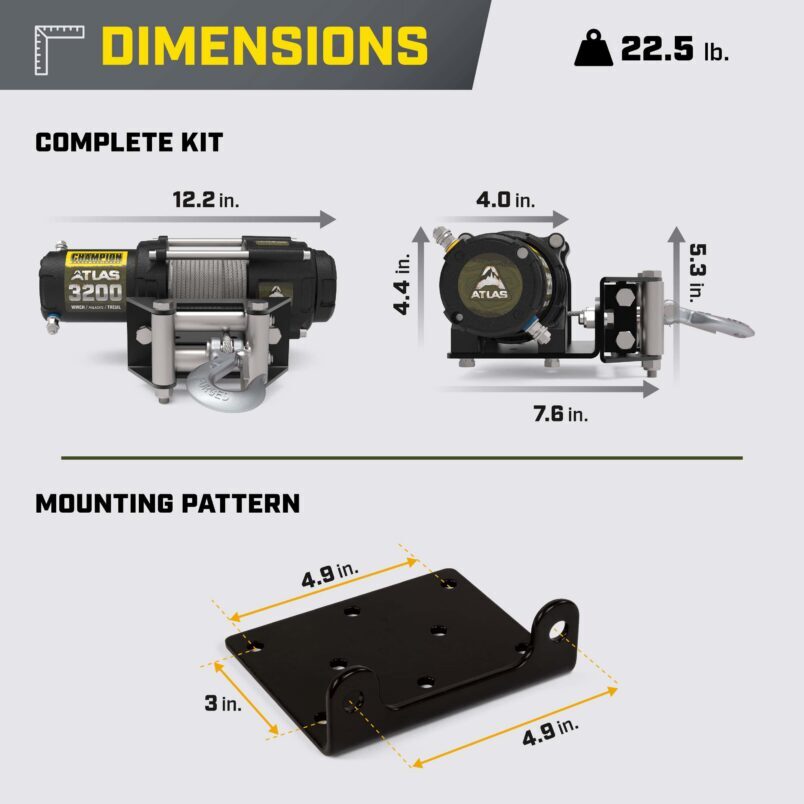

Measurements
| Length | 12.2 in. |
|---|---|
| Width | 4 in. |
| Height | 4.4 in. |
| Weight | 22.5 lb. |
