Model #100166

1-in. Water Pump with Hose Kit

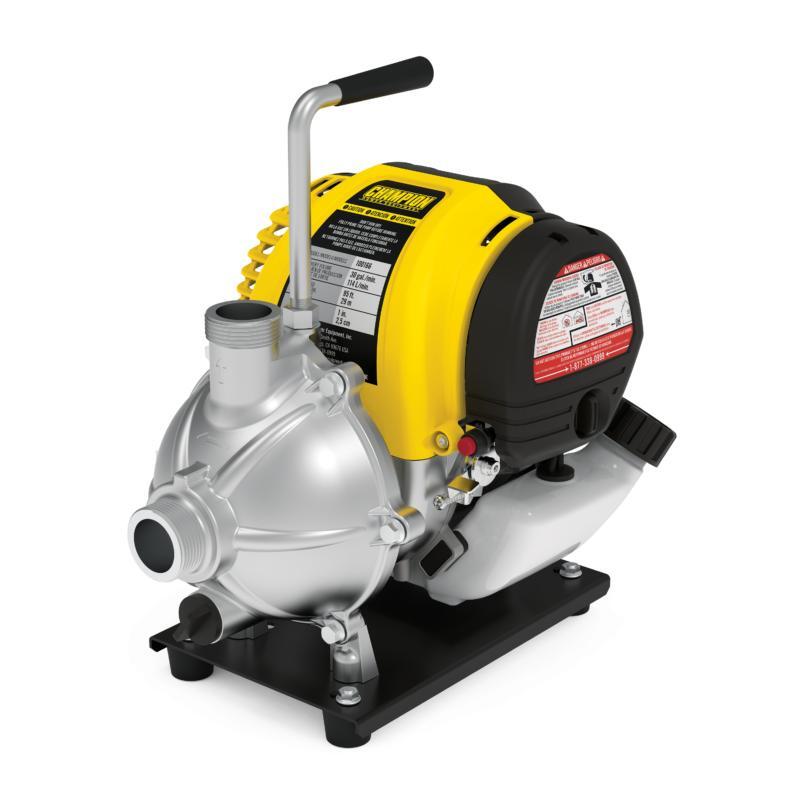

Champion’s 1-Inch Gas-Powered Water Transfer Pump includes everything you need except oil and gas to start pumping. Pump 30 gallons of water per minute, powered by the 31cc Champion engine. The included hoses and other accessories make this lightweight unit the perfect portable pumping solution.

Features

Dependable

With a 0.1-gallon fuel tank, and a 0.7-quart oil capacity, the 31cc Champion engine is small but powerful

Efficient

30 gallons per minute maximum delivery volume, just right for pumping small volumes of water quickly, plus this unit has a total head of 95 feet and a suction head of 16 feet

Lightweight and Portable

Weighing in at just under 21 lbs, this pump has a 1-inch inlet, a 1-inch outlet and comes with a convenient handle making it easy to move from one job to the next

Complete Kit

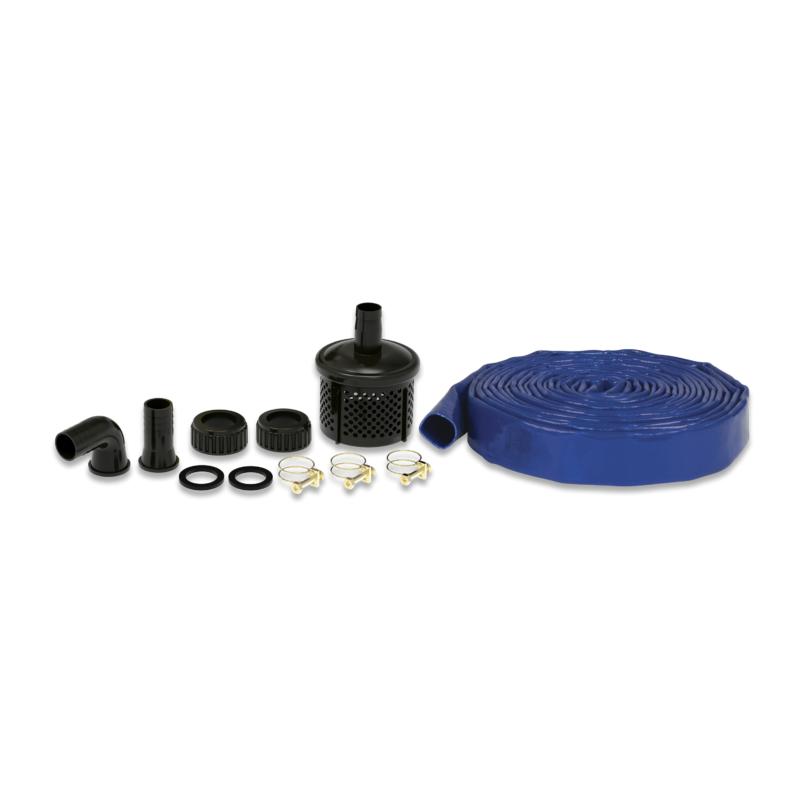

Includes a 16-foot intake hose, 26-foot discharge hose, intake strainer, straight and 90° hose connectors and hose clamps

Champion Support

Includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

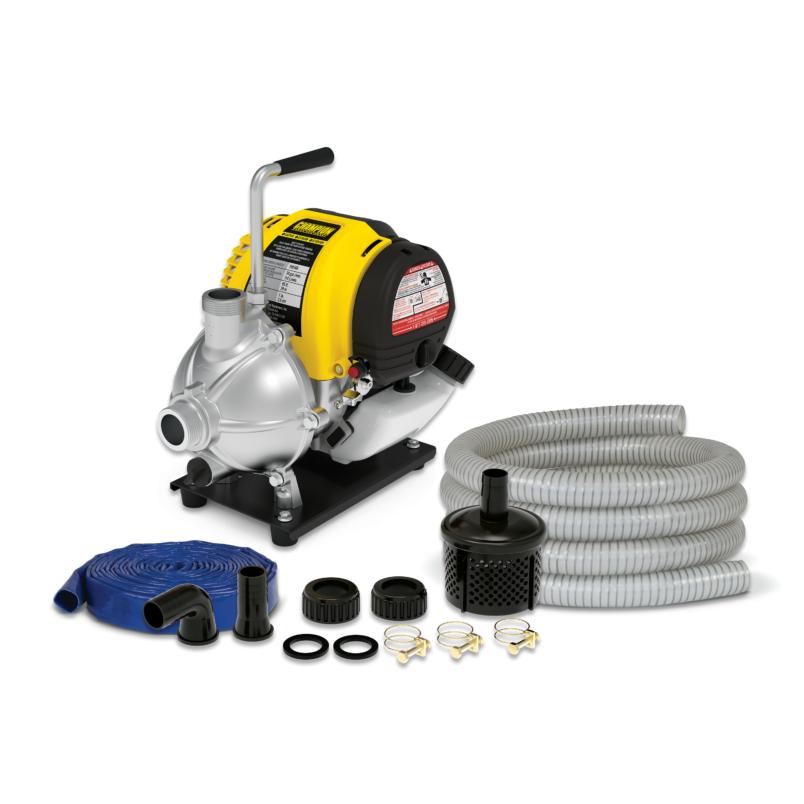

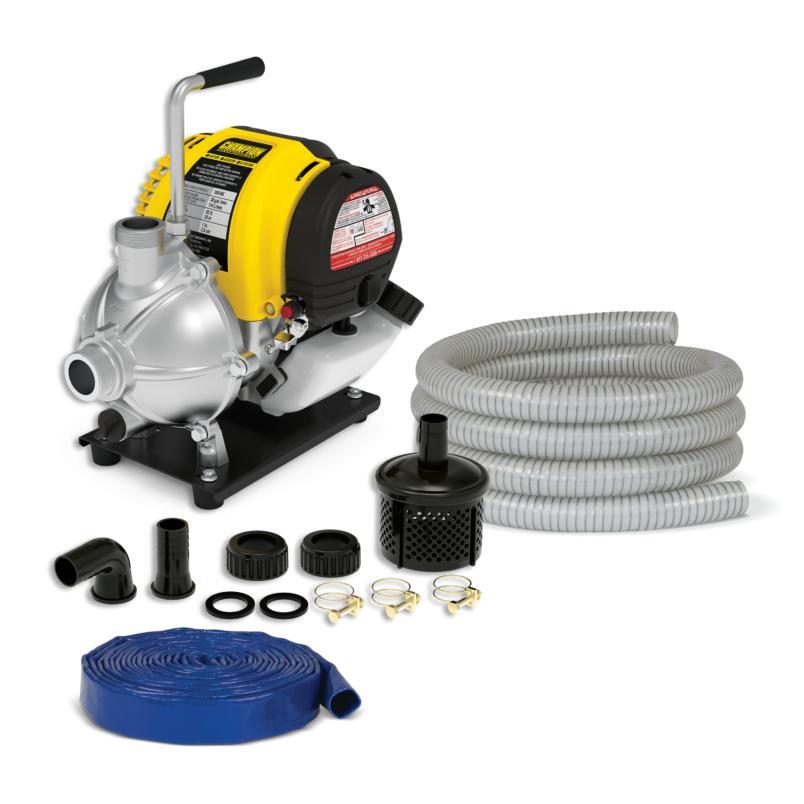

The Champion Power Equipment 100166 1-Inch Gas-Powered Water Transfer Pump with Hose Kit comes with everything you need to start pumping (just add oil and gas).

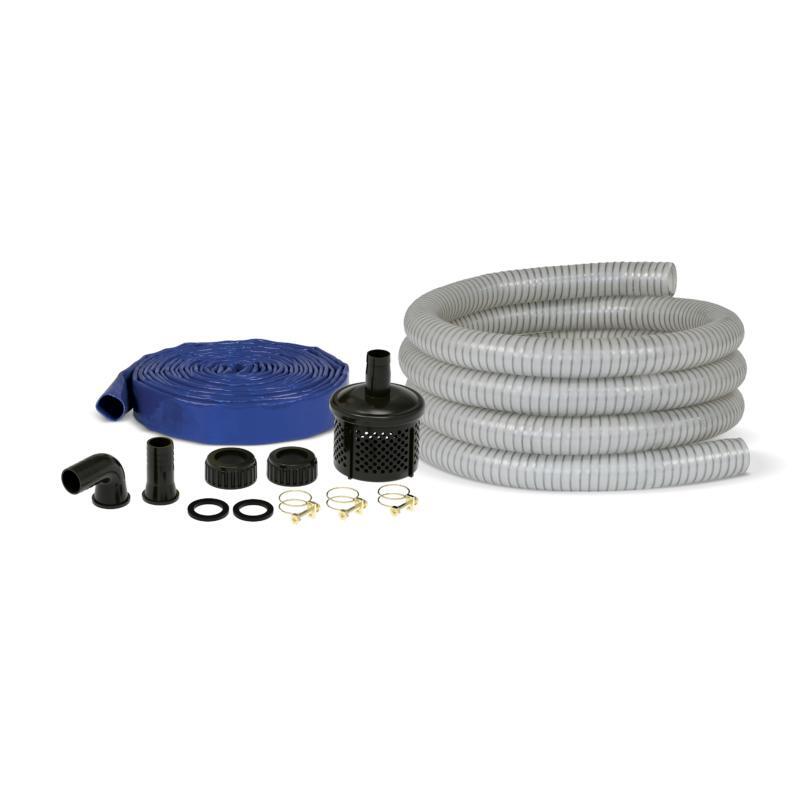

Your complete hose kit includes a 16-foot intake hose, a 26-foot discharge hose, an intake strainer, straight and 90° hose connectors and hose clamps. All you need to do is add oil and gas to get your pump up and running.

Whether you are draining or refilling your swimming pool or hot tub, removing water from your basement or draining shallow flooded areas, this unit features a self-priming design that holds prime even when it’s not running (requires initial priming to operate).

Powered by Champion’s reliable 31cc single-cylinder OHV engine, this lightweight and portable transfer pump has a maximum delivery volume of 30 gallons per minute. With a 1-inch inlet and 1-inch outlet, this unit has a total head of 95 feet and a suction head of 16 feet.

Designed with a 0.1-gallon fuel tank and a 0.7-quart oil capacity (recommended 10W-30), will provide the power you need to move water with confidence and efficiency.

The lightweight and durable aluminum frame, convenient handle, and compact design of this unit make it convenient to store your pump until the next time you need it.

This water transfer pump is EPA certified and CARB compliant. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

What’s included

  • Oil Funnel
  • Hose Kit

Specifications

Water Pump Type Clear Water
Port Diameter 1 in.
Port Connection Type BSPT
Discharge Rate 30 gal/min
Total Head 95 ft.
Suction Head 16 ft.
Solids Handling No in.
Impeller Material Aluminum
Volute Material Aluminum
Self Priming Yes
Water Pump Hose Kit Included Yes
Discharge Hose Length 26.2 ft.
Suction Hose Length 16.4 ft.
Power Type Gasoline
Start Type Recoil
Engine Brand Champion
Engine Size 31cc
Engine Type 4-stroke
Gasoline Capacity 0.1 gal.
Engine Oil Type 10W-30
Engine Oil Capacity 0.08 qt.
Engine Oil Included No
Low Oil Shut-Off No
Wheels No
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 12.8 in.
Width 9.7 in.
Height 13.9 in.
Weight 20.9 lb.
