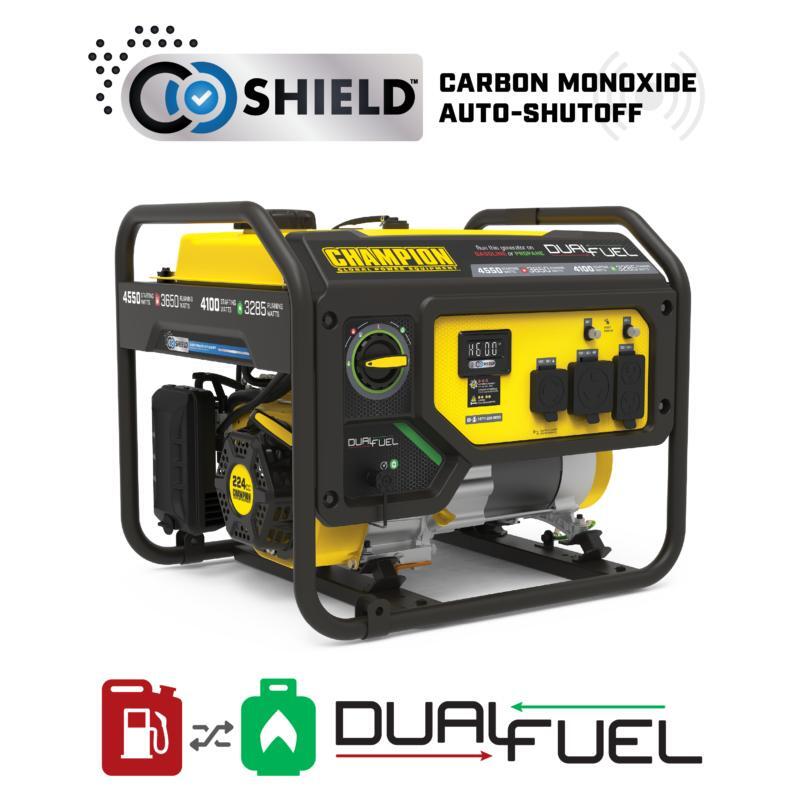

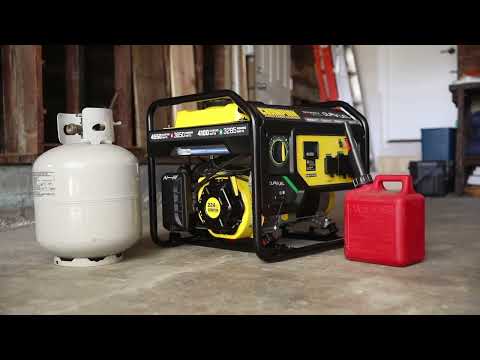

Champion’s powerful 3650-watt generator meets ANSI/PGMA G300-2018 requirements and features CO Shield®, the carbon monoxide auto shutoff system. Featuring Dual Fuel, allowing the 224cc engine to run on either gasoline or propane, it provides up to 14 hours of run time on gasoline or 10.5 hours on propane.

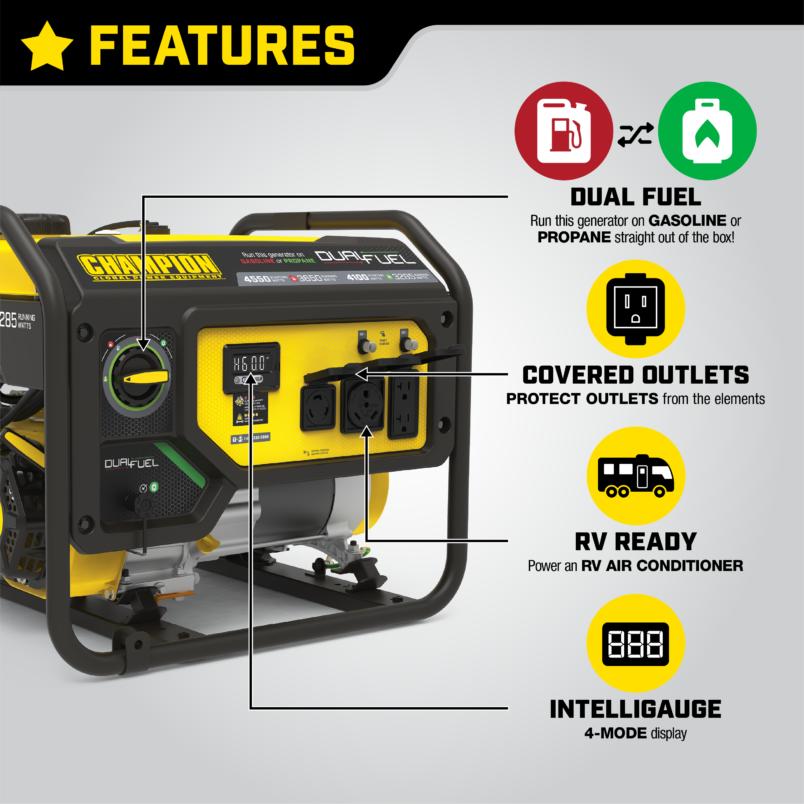

Features
Dual Fuel
Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus the unit holds 0.6-quarts of oil (included) and has a low oil shut-off switch
Covered outlets

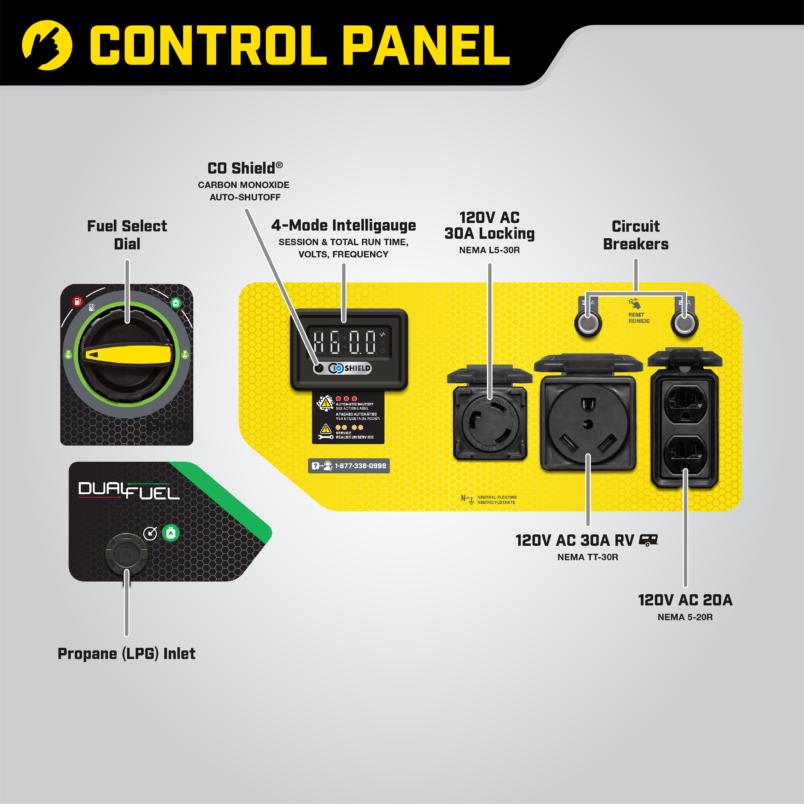

120V 30A (TT-30R) RV outlet, a 120V 30A outlet (L5-30R), and a 120V 20A household duplex outlet (5-20R).
Intelligauge
Keep track of voltage, frequency, session run time, and total runtime hours to easily monitor output and track maintenance intervals, plus features CO Shield® carbon monoxide auto shutoff system
Powerful
At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe.
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 4650-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. This unit features Cold Start Technology, Extended Run Time, and an easy to read fuel gauge.
With a 0.5-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).
Operate your Dual Fuel generator right out of the box on gasoline or propane, and easily switch fuels with the EZ Start dial. When the 2.3-gallon tank of gasoline is full, the 212cc Champion engine produces 4650 starting watts and 3650 running watts and will run for up to 14 hours at 25% load. When using a 20-pound propane tank, it produces 4650 starting watts and 3285 running watts and will run for up to 21 hours at 25% load.
The covered outlets in this RV Ready inverter include a 120V 30A RV (TT-30R), a 120V 20A household duplex outlet (5-20R), and a 12V automotive-style outlet.
The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, allows you to increase output by connecting up to two inverters. The never flat tires and fold-down handle make transport a cinch.
Buy this EPA certified and CARB compliant generator with confidence –Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

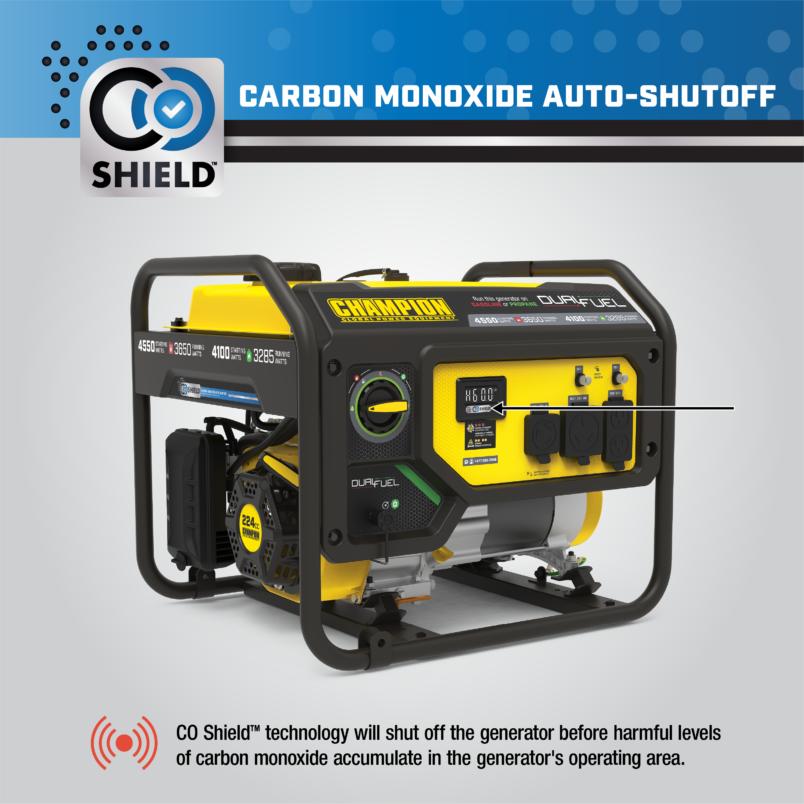

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Propane (LPG) Hose
- Engine Oil
- Oil Funnel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 4550W |
| Gasoline Running Watts | 3650W |
| Propane Starting Watts | 4100W |
| Propane Running Watts | 3285W |
| Gasoline Starting Amps at 120V | 37.9A |
| Gasoline Running Amps at 120V | 30.4A |
| Propane Starting Amps at 120V | 34.2A |
| Propane Running Amps at 120V | 27.4A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 120V 20A Duplex (5-20R), 120V 30A (TT-30R), 120V 30A Locking (L5-30R) |
| DC Operation | No |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/2 Load | 14 h. |
| Propane Run Time at 1/2 Load | 10.5 h. |
| Noise Level | 68 dBA |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 23.4 in. |
|---|---|
| Width | 19.7 in. |
| Height | 19.8 in. |
| Weight | 110 lb. |
