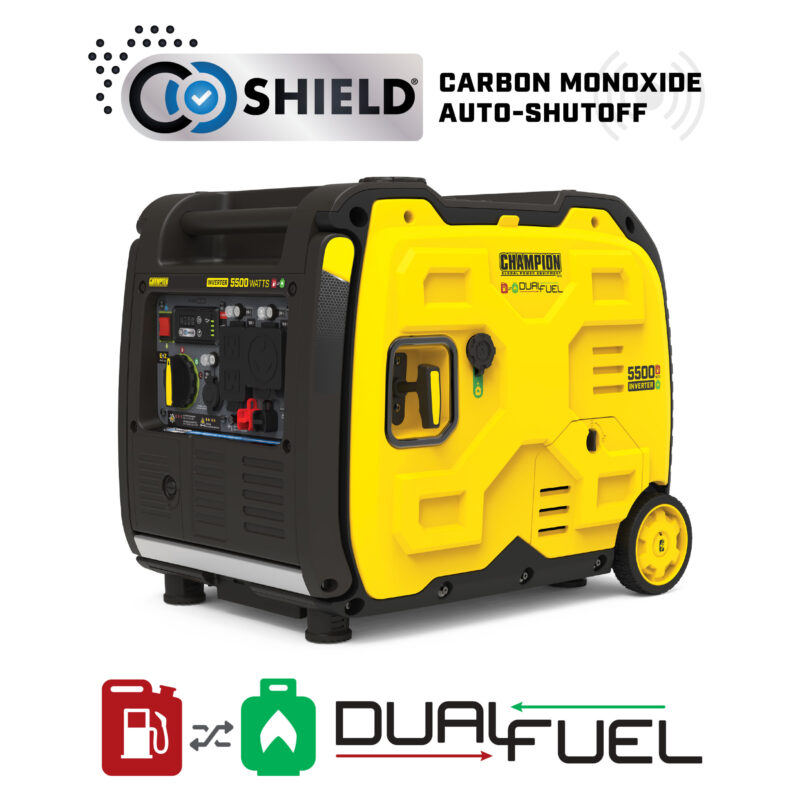

Our 5500-watt dual fuel inverter generator features CO Shield®, the Carbon Monoxide auto shutoff system. The 224cc engine runs for up to 11 hours on gasoline or up to 21 hours with a 20-lb propane tank plus you can increase your power with the optional Parallel Kit.

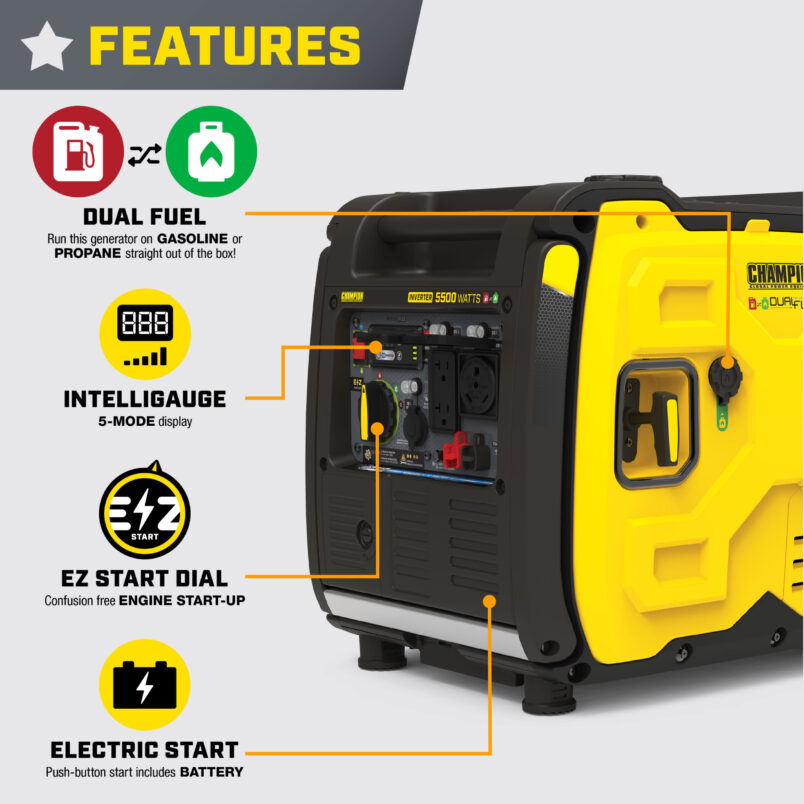

Features
Dual Fuel
Operate your 5500-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system
Quiet Technology and Extended Run Time
61 dBA is great for RVs, tailgating, or camping with 5500 starting watts, 4000 running watts and up to 11 hours run time on gasoline, and 3600 running watts and up to 21 hours on propane
Parallel Ready
The optional parallel kit (sold separately) enables this inverter to connect with another Champion inverter to increase your power output
Intelligauge with Power Meter
Monitor voltage, frequency and operating hours with ease, plus the EZ Start Dial simplifies startup
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

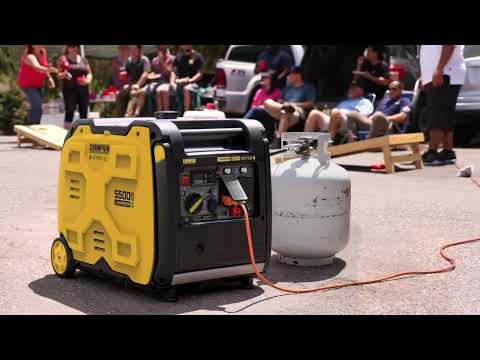

The Champion Power Equipment 5500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. This unit features Cold Start Technology, Extended Run Time, and an easy to read fuel gauge.
With a 0.5-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).
Operate your Dual Fuel inverter right out of the box on gasoline or propane, and easily switch fuels with the EZ Start dial. When the 2.25-gallon tank of gasoline is full, the 224cc Champion engine produces 5500 starting watts and 4000 running watts and will run for up to 11 hours at 25% load. When using a 20-pound propane tank, it produces 5500 starting watts and 3600 running watts and will run for up to 21 hours at 25% load.

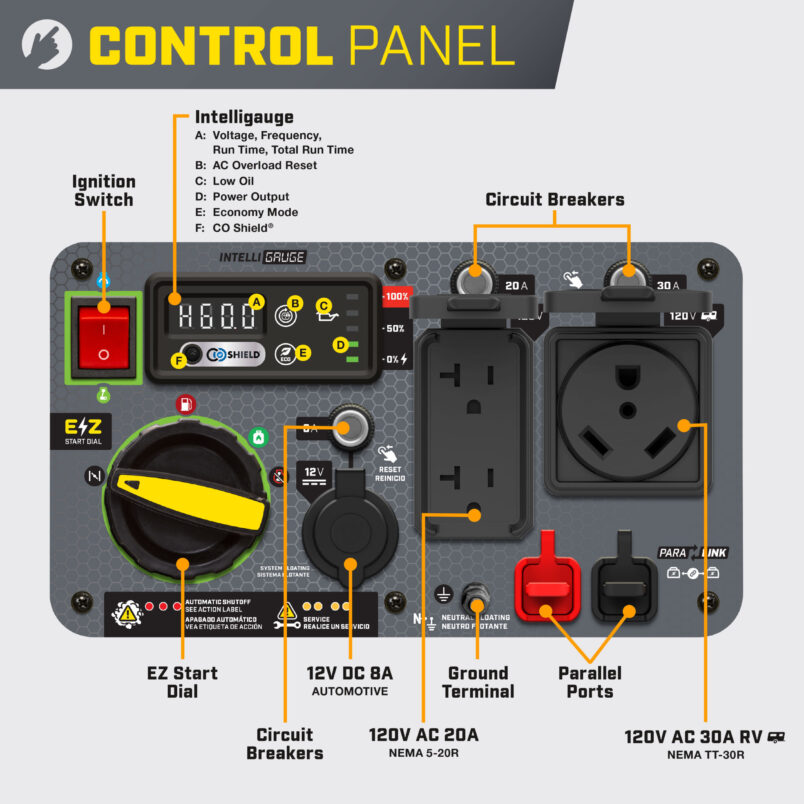

The covered outlets in this RV Ready inverter include a 120V 30A RV (TT-30R), a 120V 20A household duplex outlet (5-20R), and a 12V regulated automotive outlet.

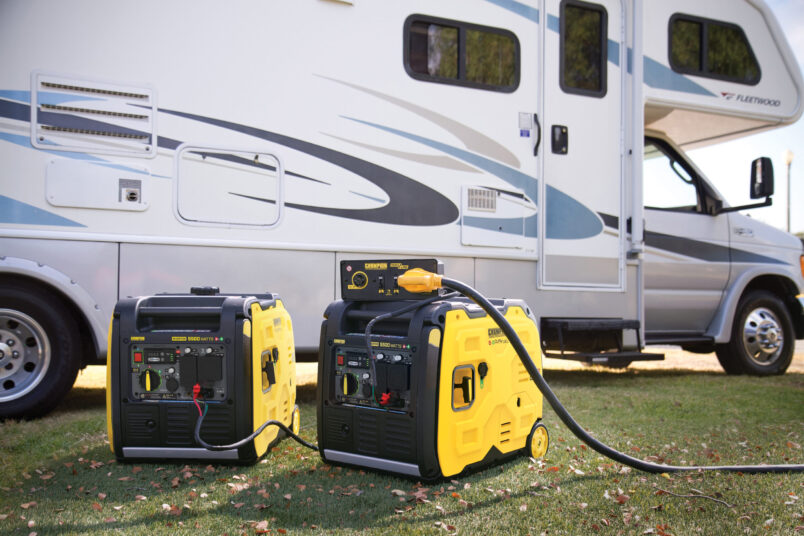

The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, allows you to increase output by connecting up to two inverters. The never flat tires and fold-down handle make transport a cinch.
Buy this EPA certified generator with confidence –Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

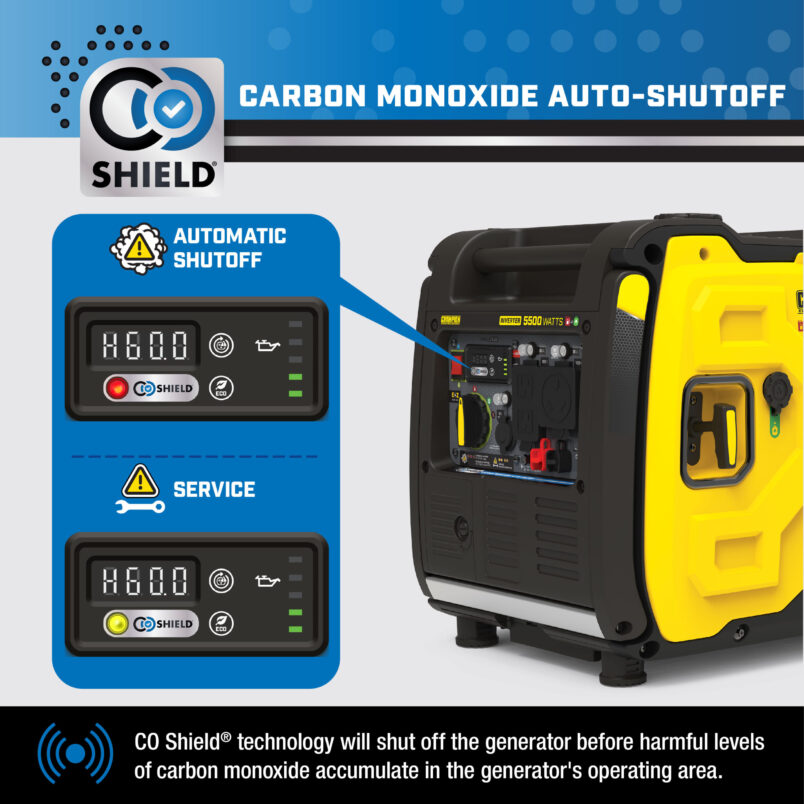

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300.
What’s included
- Engine Oil
- Propane (LPG) Hose
- Oil Funnel
- 8/10 mm Wrench
- Spark Plug Wrench
- Reversible Phillips/Flathead Screwdriver
- Battery
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 5500W |
| Gasoline Running Watts | 4000W |
| Propane Starting Watts | 5500W |
| Propane Running Watts | 3600W |
| Gasoline Starting Amps at 120V | 45.8A |
| Gasoline Running Amps at 120V | 33.3A |
| Propane Starting Amps at 120V | 45.8A |
| Propane Running Amps at 120V | 30A |
| Volts | 120 |
| Frequency | 60Hz |
| AC Receptacles | (2) 120V 20A (5-20R), (1) 120V 30A (TT-30R), Parallel |
| DC Operation | Yes |
| DC Receptacles | (1) 12V 8A Automotive (Regulated) |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 11 h. |
| Propane Run Time at 1/4 Load | 21 h. |
| Noise Level | 61 dBA |
| Inverter | Traditional |
| Parallel Capability | Yes |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | Analog |
| Gasoline Capacity | 2.25 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 5 in. |
| PGMA G300-2018 Compliant | No |
| PGMA Compliant | G300-2023 |
| EPA Certified | Yes |
Dimensions
| Length | 23.5 in. |
|---|---|
| Width | 18 in. |
| Height | 20.1 in. |
| Weight | 102.8 lb. |
