Model #100335

5000-lb. Winch Kit

Champion’s ATV/UTV Winch Kit has a 5000-lb. rated line pull, a gear reduction ratio of 166:1, plus a mounting channel, remote control and 1.25-inch hitch adapter to make your experience with this winch even easier. With a tough 1.6-horsepower (12-volt) DC motor, this winch provides efficient pulling power whenever and wherever you need it.

Features

Powerful

5000-lb. rated line pull powered by a 1.6-horsepower (12-volt) DC motor

Efficient

Line speed of 3.3 feet per minute with a full load, and 12.8 feet per minute with no load

Convenient

Included mounting channel with 1.25-inch hitch adapter, remote control and roller fairlead create an easier than ever winching experience

Hassle-Free

The roller fairlead creates a safe and smooth pull with the dependable 38-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

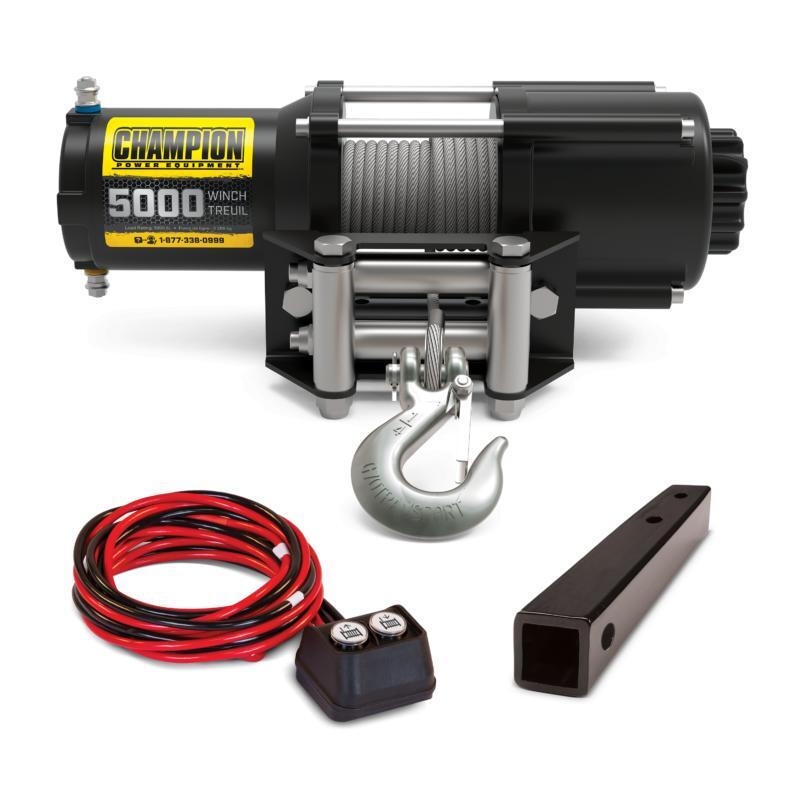

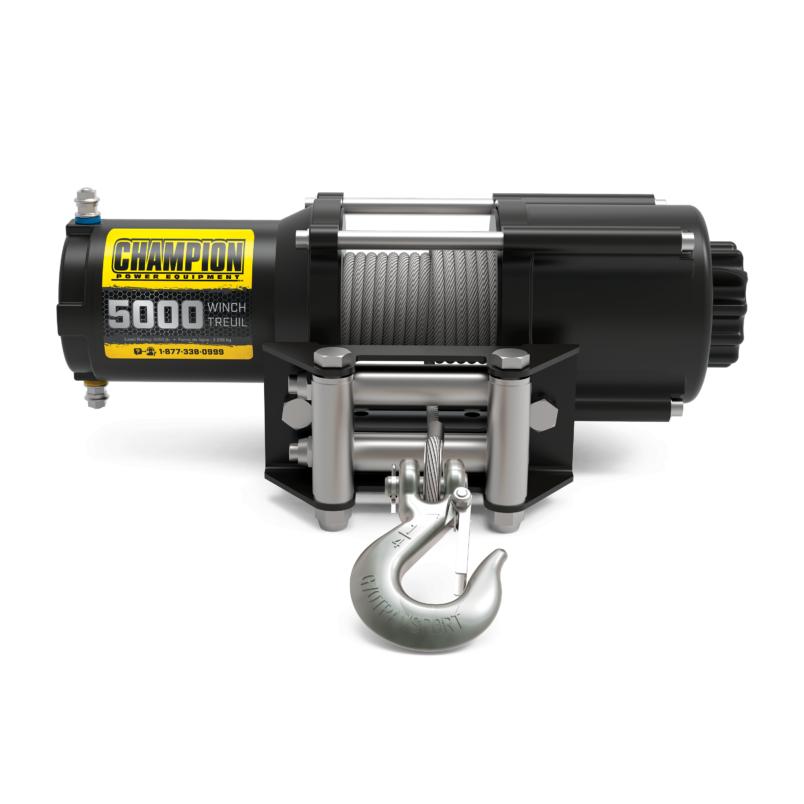

The Champion Power Equipment 100335 5000-lb. ATV/UTV Winch Kit includes everything you need to start winching, including a mounting channel, a roller fairlead, remote control and a 1.25-inch hitch adapter.

With a rated line pull of 5000 pounds, quickly and easily install this winch to the hitch on your ATV or side by side with the mounting channel and 1.25-inch hitch adapter to quickly harness the strength of its 1.6-horsepower (12-volt) DC permanent magnet motor.

The 38-foot by 15/64-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 2 by 3.2-inch drum through the reliable roller fairlead to maximize the life of the cable.

The three-stage planetary gear system along with the free-spooling clutch and handlebar-mounted remote control offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.

With a gear reduction ratio of 166:1, the winch boasts a line speed of 3.3 feet per minute with a full load, and 12.8 feet per minute with no load.

Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 5000-lb. Winch Kit is a necessary tool for any situation you might encounter.

Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

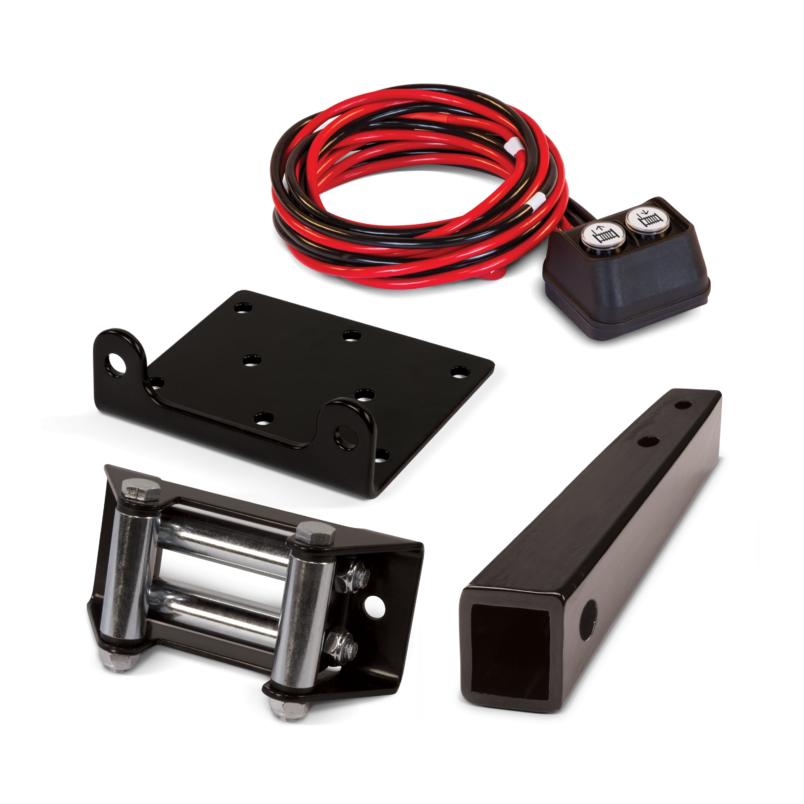

What’s included

  • Clevis Hook
  • Hook Strap
  • Mounting Channel
  • Roller Fairlead
  • Remote Control
  • 1.25 in. Hitch Adapter

Specifications

Line Pull 5000 lb.
Remote Length 10.3 ft.
Gear Ratio 166:1
Gear System Three-Stage Planetary
Full Load Line Speed 3.3 ft/min
No-Load Line Speed 12.8 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Galvanized Steel
Rope Length 38 ft.
Rope Diameter 15/64 in.
Fairlead Type 4-Way Roller
Drum Size 2 x 3.2 in.
Bolt Pattern 4.9 x 4 in.
Hitch Adapter Size 1.25 in.
Motor Type 12V DC (Permanent Magnet)
Horsepower 1.6 hp
Max Current at Full Load 290A
Duty Cycle Intermittent

Dimensions

Length 14.6 in.
Width 4.6 in.
Height 5 in.
Weight 32 lb.
