Champion Power Equipment

Model #100380

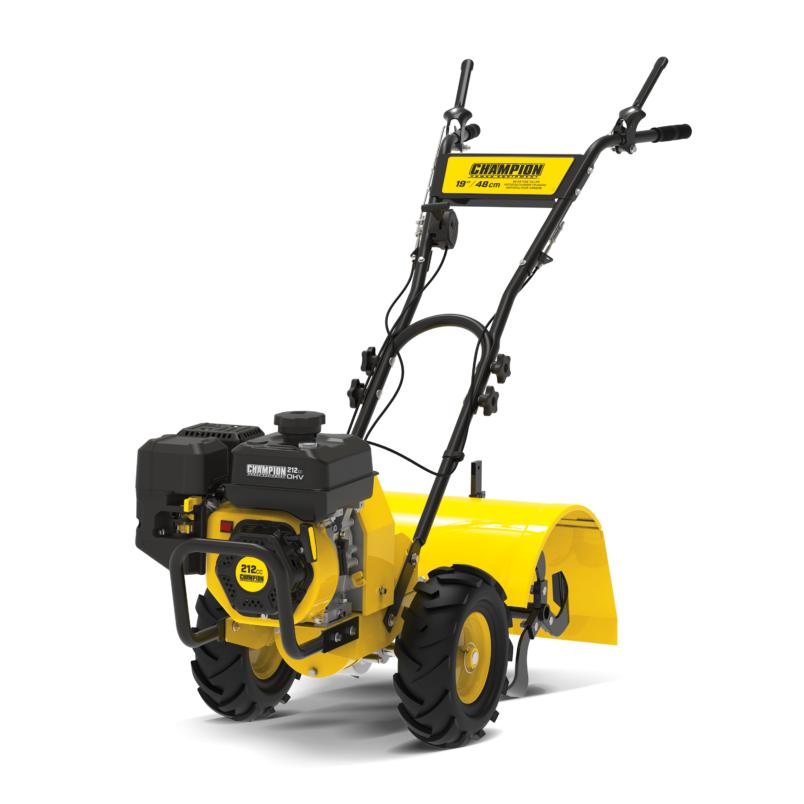

19-Inch Rear Tine Tiller

Champion’s 19-Inch Rear Tine Tiller tackles tough ground with ease. The 212cc engine powers a gear-driven transmission that’s housed in a heavy-duty cast-iron case, while the counter-rotating tines and 13-inch self-propelled agricultural tires will make breaking new ground as easy as weeding.

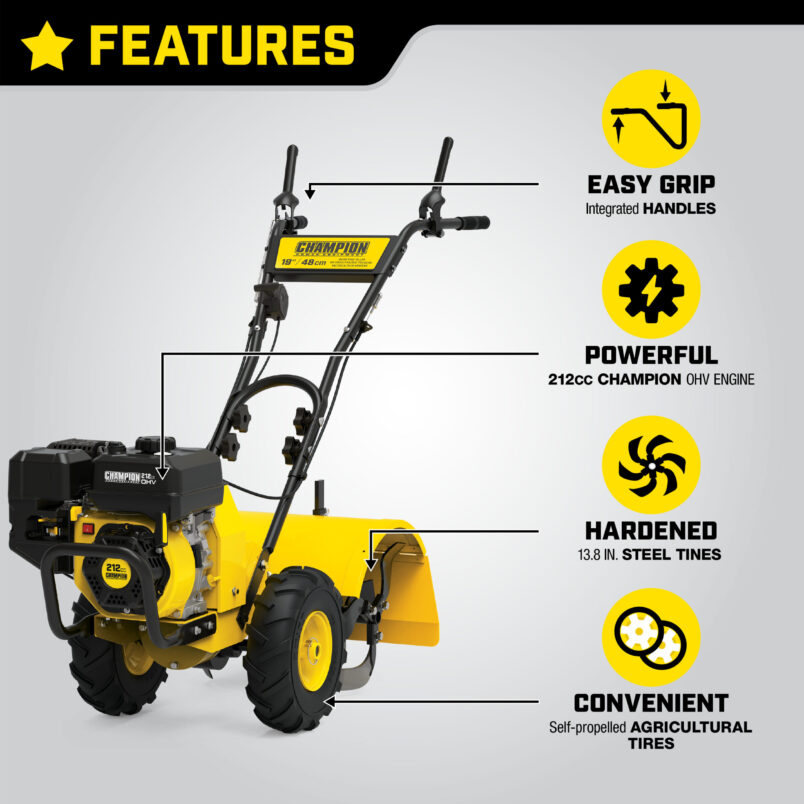

Features

Versatile

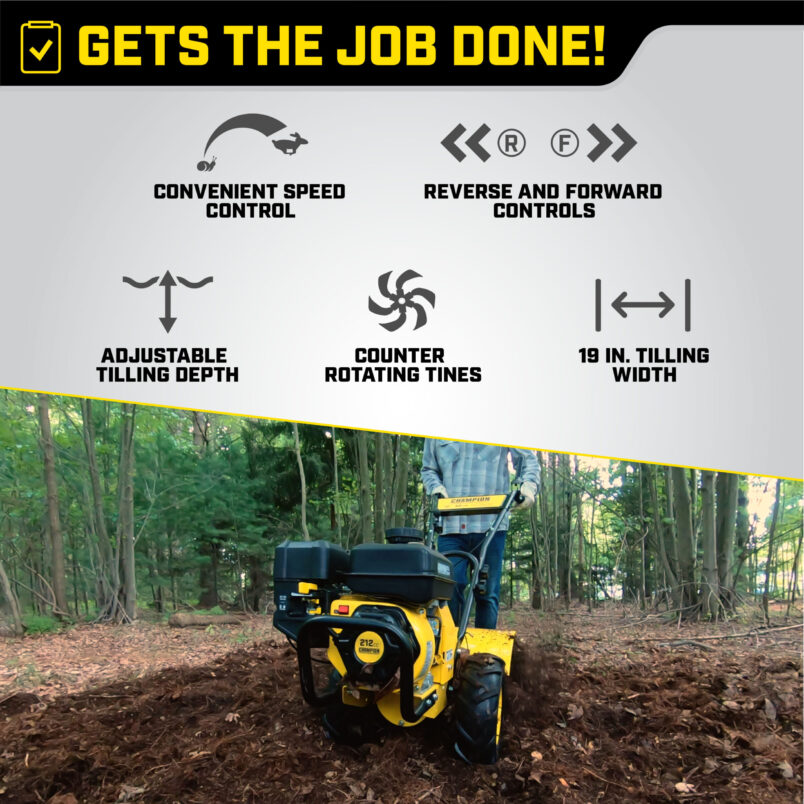

With a 19-inch tilling width and an 8-inch tilling depth, this tiller features counter-rotation tilling, allowing a quick switch from forward to reverse for more flexibility in the garden

Powerful

The cast iron, gear-driven transmission is housed in a heavy-duty cast-iron case and powered by a 212cc engine

Efficient

13-inch self-propelled agricultural tires power easily over uneven terrain, allowing you to accomplish more in less time

Dependable

Four heavy-duty 13.8-inch hardened steel tines with counter-rotation tilling are designed to tackle the toughest soil conditions with the least amount of effort

Champion Support

Includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 100380 19-Inch Rear Tine Tiller is designed to be the workhorse behind your gardening passion. The perfect combination of power and performance, this machine will tame the toughest gardens for years to come.

The 212cc engine powers a cast iron, gear-driven transmission housed in a heavy-duty cast-iron case. The transfer of power from the engine to the wheels enables this tiller to perform perfectly while tackling your largest landscaping and gardening jobs.

This indispensable machine features convenient handle controls and counter-rotation tilling, offering you the ultimate in versatility and performance. Even the most challenging ground is no match for the four 13.8-inch hardened steel tines and their efficient bidirectional shredding design.

The 19-inch tilling width and up to 8-inch tilling depth help you tackle large plots of ground with the least amount of effort, helping you move from tilling to planting as quickly as possible. In addition, the adjustable tilling width makes it easy to till narrow spaces or wide rows.

The large treads on the 13-inch self-propelled agricultural tires provide excellent traction, and since they are self-propelled, you only need to guide the tiller while it muscles through tough terrain.

The easy-adjust depth gauge runs behind the tiller, allowing you work at a consistent depth and providing additional balance in different conditions.

Our rear tine tiller is the perfect tool for the gardener who’s serious about long-term performance and durability.

Designed with a low oil shut-off sensor, this unit holds 0.9 gallons of gasoline and has a 0.6-quart oil capacity (recommended 10W-30).

This tiller is EPA certified and CARB compliant. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

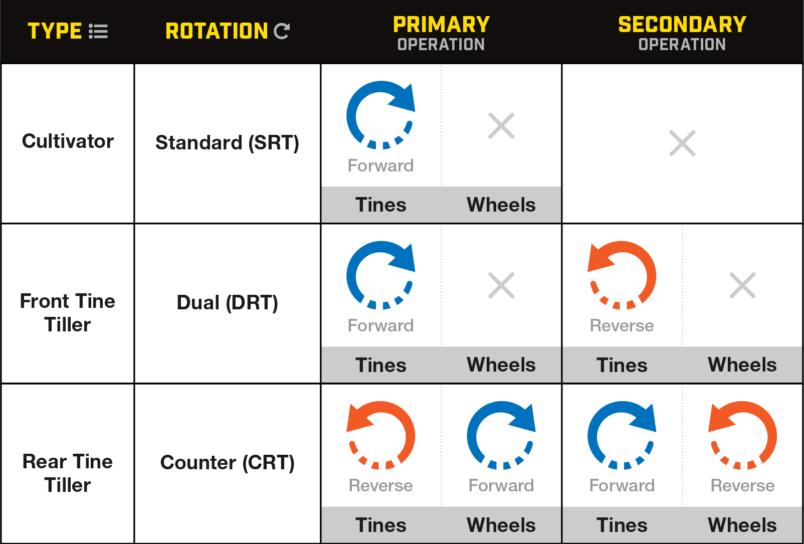

How to Choose

Standard Rotating Tines (SRT)

Standard rotating tine tillers see the tines rotate forward "pulling" the tiller forward. This feature can be used with or without self-propelled wheels.

Dual Rotating Tines (DRT)

Dual rotating tine tillers very widely depending upon the specific type of tiller being discussed, the Champion DRT tiller see the tines rotate forward under standard operation but can also rotate in reverse for short periods of non-tilling activity (e.g. moving the tiller out of a difficult location).

Counter Rotating Tines (CRT)

Counter rotating tine tillers see the tines rotate "counter" or opposite the direction the self-propelled wheels are turning. If the wheels are moving forward the tines are rotating backward, if the wheels are moving backward the tines are rotating forward.

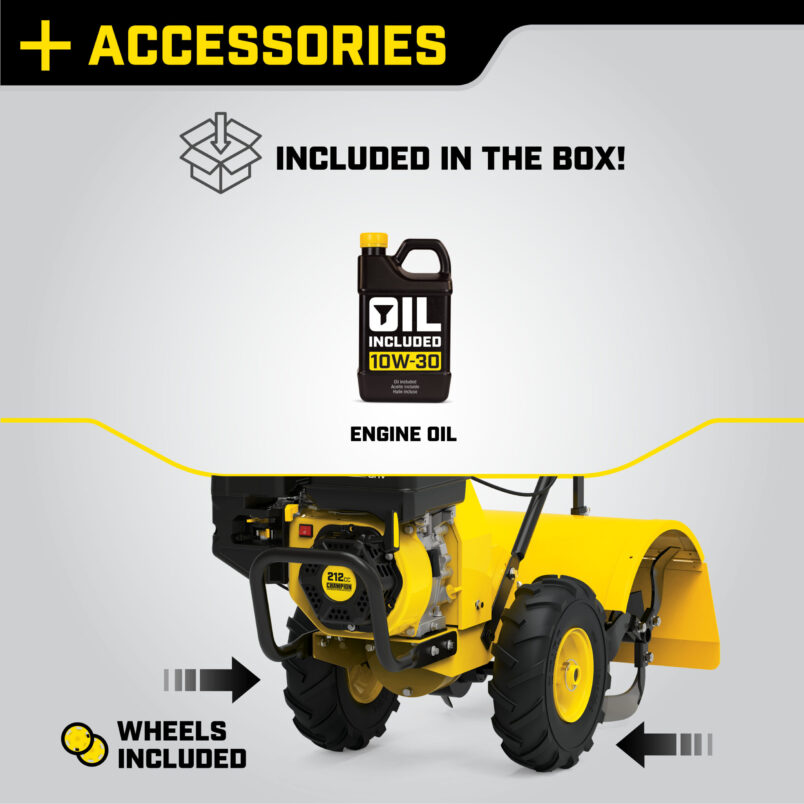

What’s included

  • Engine Oil
  • Oil Funnel
  • Wrenches

Specifications

Maximum Width 19 in.
Maximum Depth 8.0 in.
Depth Gauge Yes
Number of Tines 4
Tine Size 13.8 in.
Tine Material Hardened Steel
Tine Position Rear
Tine Rotation Direction Counter
Forward Tine Speeds 1
Counter Tine Speeds 1
Power Type Gasoline
Self Propelled Yes
Forward Drive Speeds 1
Reverse Drive Speeds 1
Start Type Recoil
Engine Brand Champion
Engine Size 212cc
Engine Type 4-stroke
Gasoline Capacity 0.9 gal.
Engine Oil Type 10W-30
Engine Oil Capacity 0.6 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Pneumatic
Wheel Diameter 13.0 in.
Adjustable Wheel Height No
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 58.7 in.
Width 20.9 in.
Height 22.0 in.
Weight 160.9 lb.
