Champion Power Equipment

Model #100427

12,000-lb. Synthetic Winch Kit

Champion’s Truck/SUV synthetic rope winch kit with cover has a 12,000-lb. rated line pull, a gear reduction ratio of 216:1, plus a Speed Mount hitch adapter to make your experience with this winch even easier. With a tough 6.0-horsepower (12-volt) DC motor, this is your perfect heavy-duty tool.

Features

Powerful

12,000-lb. rated line pull powered by a 6.0-horsepower (12-volt) DC series wound motor

Efficient

Line speed of 2.3 feet per minute with a full load, and 15.7 feet per minute with no load

Convenient

Speed Mount 2-inch hitch adapter, included hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience

Hassle-Free

The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats

Reliable

Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

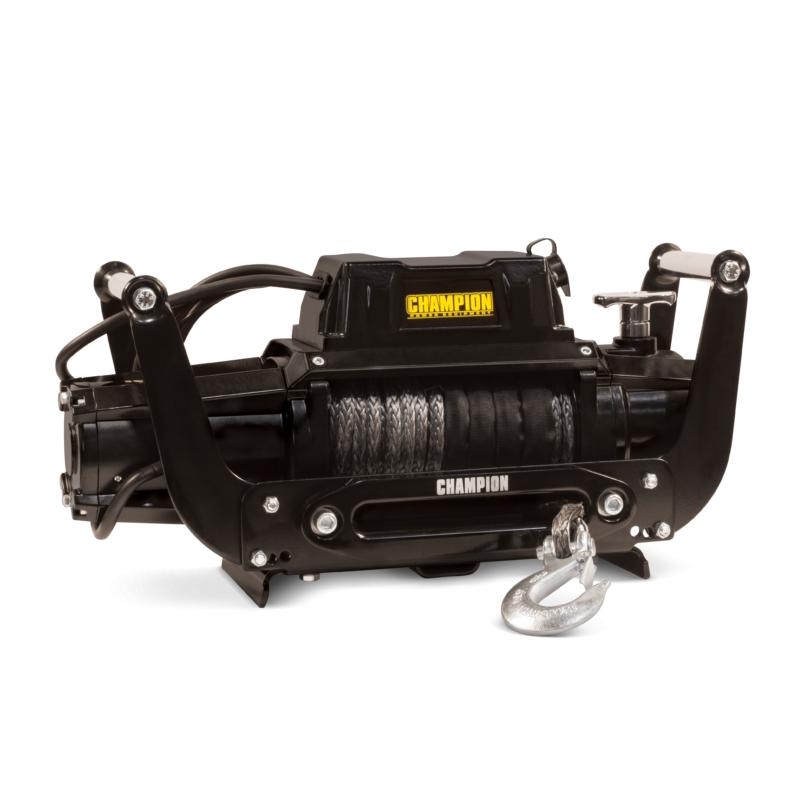

The Champion Power Equipment 100427 12,000-lb. Truck/SUV Synthetic Rope Winch Kit is designed for powerful and reliable winching with your truck or SUV.

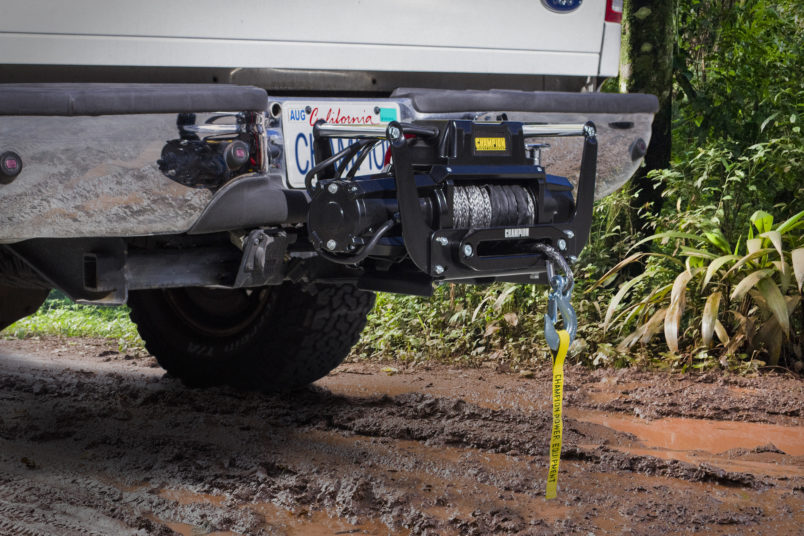

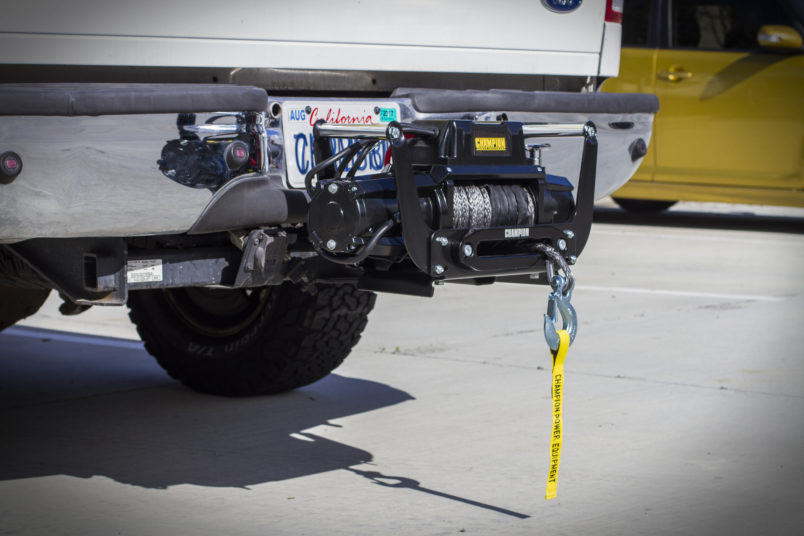

With a rated line pull of 12,000 pounds, this winch installs quickly with our Speed Mount 2-inch hitch adapter, which is designed for quick and easy mounting, transportation and storage. Mount this winch on your truck or SUV with the included mounting adapter to quickly harness the strength of its 6.0HP (12V DC) series wound motor.

The convenient handles are 3-position adjustable, plus they serve as side guards to protect your winch. With a gear reduction ratio of 216:1, the winch boasts a line speed of 2.3 feet per minute with a full load, and 15.7 feet per minute with no load.

Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl. It also stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats. Since it’s free of wire splinters or burrs, there’s less chance of injury.

Designed with a stainless steel thimble and protective sleeve, the 85-foot by 11/32-inch synthetic winch rope has a minimum break strength of 15,000 pounds and is guided onto the 2.5 by 8.8-inch drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the rope.

The efficient three-stage planetary gear, braking system and free spooling clutch along with the hand-held quick-connect remote control and 12-foot cable offer excellent control while winching. The included snatch block can be used to increase winching power or to aid in angled pulls.

In the box, you’ll also receive a handy strap, 6-foot battery lead cables and a fitted weather-resistant neoprene cover.

Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

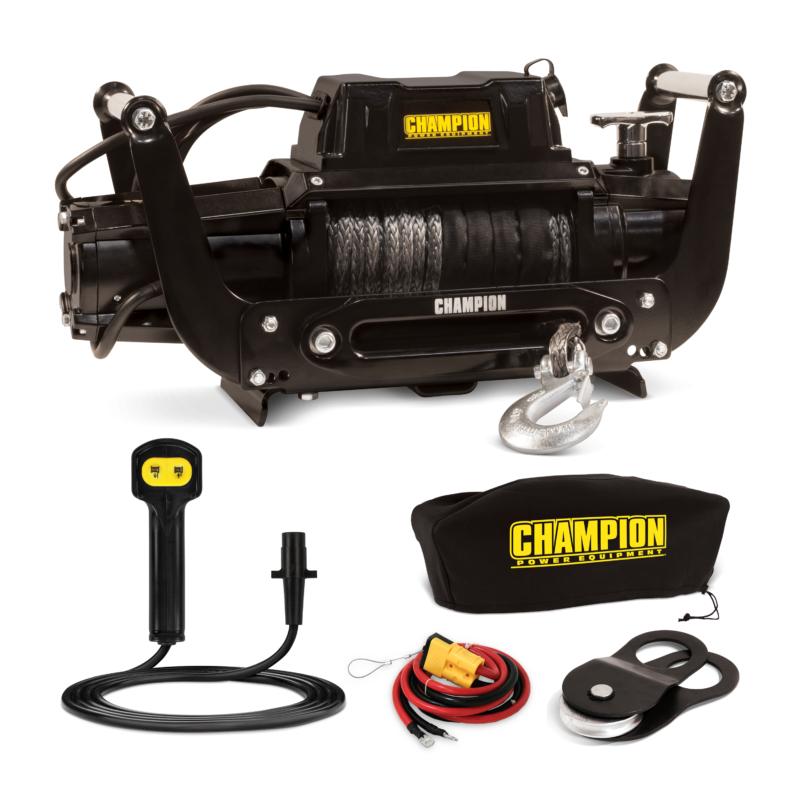

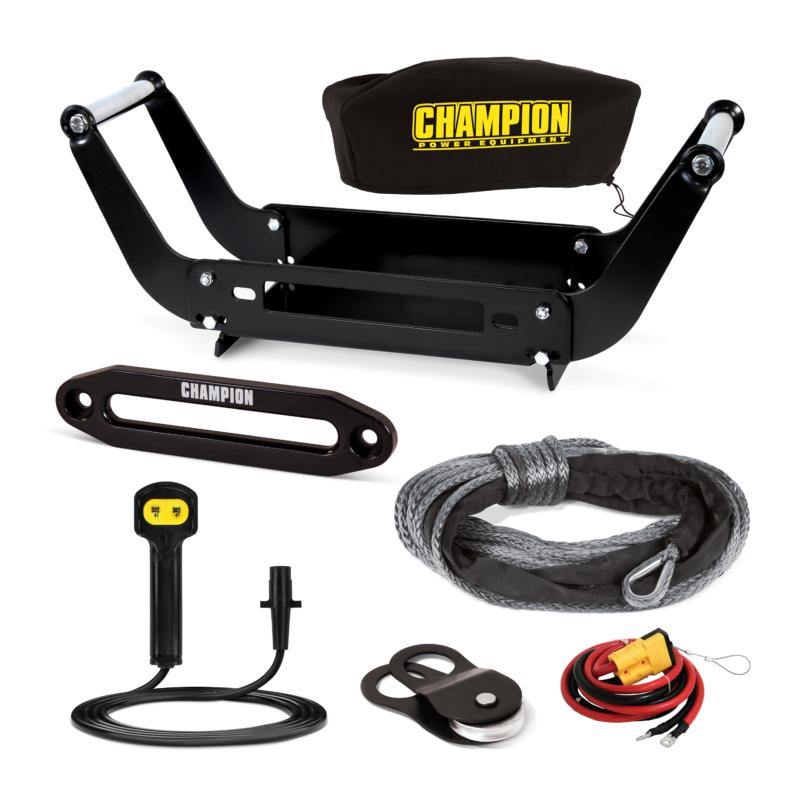

What’s included

  • Clevis Hook
  • Hook Strap
  • Speed Mount Hitch Adapter (2 in.)
  • Hawse Fairlead
  • Remote Control
  • Snatch Block
  • Battery Leads
  • Winch Cover

Specifications

Line Pull 12000 lb.
Remote Length 12 ft.
Gear Ratio 216:1
Gear System Three-Stage Planetary
Full Load Line Speed 2.3 ft/min
No-Load Line Speed 15.7 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Synthetic Rope
Rope Length 85 ft.
Rope Diameter 11/32 in.
Fairlead Type Hawse
Drum Size 2.5 x 8.8 in.
Bolt Pattern 10 x 4.5 in.
Mounting Channel Speed Mount
Hitch Adapter Size 2 in.
Motor Type 12V DC (Series Wound)
Horsepower 6 hp
Max Current at Full Load 480A
Duty Cycle Intermittent

Dimensions

Length 22.3 in.
Width 5.9 in.
Height 10.1 in.
Weight 95.9 lb.
