Champion Power Equipment
Champion’s Truck/SUV winch kit with cover has a 10,000-lb. rated line pull, a gear reduction ratio of 216:1, and a remote control to make your experience with this winch even easier. With a tough 3.6-horsepower (12-volt) DC motor, this is your perfect heavy-duty tool.
Features
Powerful
10,000-lb. rated line pull powered by a 3.6-horsepower (12-volt) DC series wound motor
Efficient
Line speed of 3.9 feet per minute with a full load, and 15.7 feet per minute with no load
Convenient
The hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience
Hassle-Free
The roller fairlead creates a safe and smooth pull with the 85-foot galvanized, super-duty aircraft cable
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

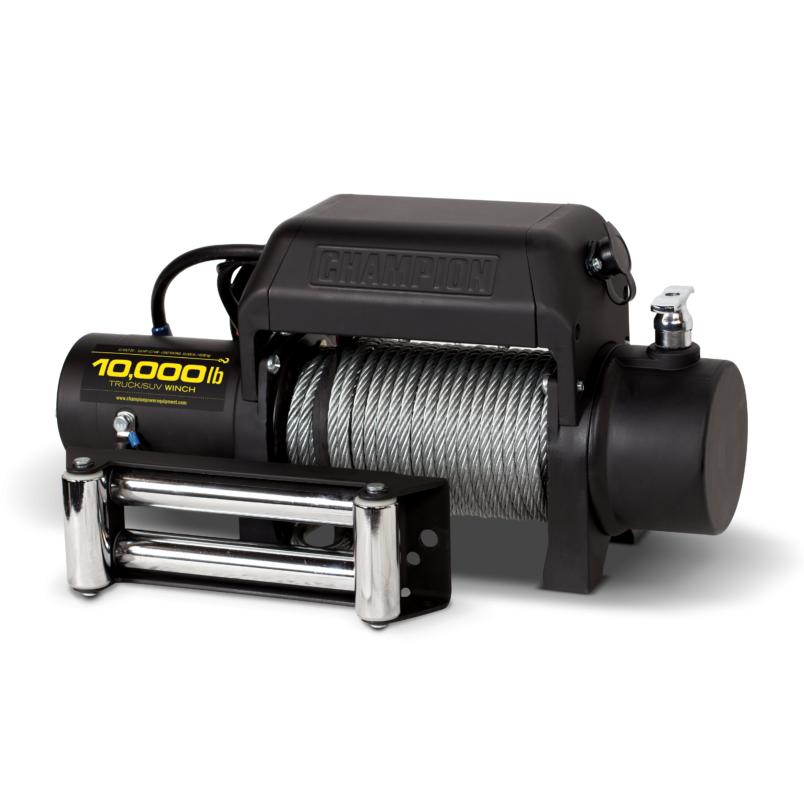

The Champion Power Equipment 11008 10,000-lb. Truck/SUV Winch Kit is designed for powerful and reliable winching with your truck or SUV.
With a rated line pull of 10,000 pounds, the strong 3.6HP (12V DC) series wound motor will help make sure you get the job done. With a gear reduction ratio of 216:1, the winch boasts a line speed of 3.9 feet per minute with a full load, and 15.7 feet per minute with no load.
The 85-foot by ⅜ -inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 2.5 by 8.8-inch drum through the reliable roller fairlead to maximize the life of the cable.

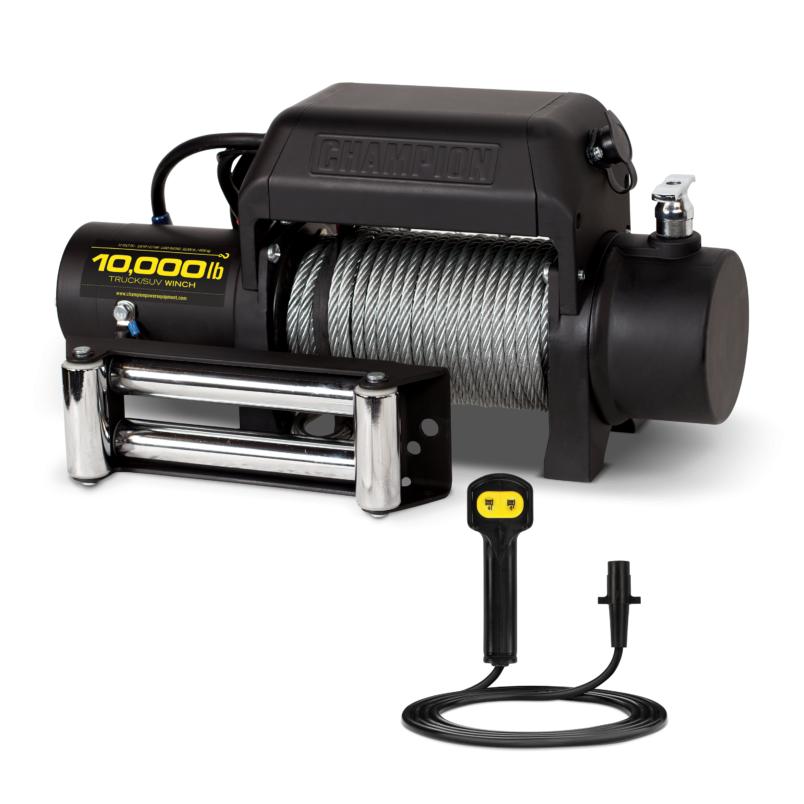

The efficient three-stage planetary gear system, dynamic braking system and free spooling clutch along with the hand-held quick-connect remote control and 12-foot cable offer excellent control while winching.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

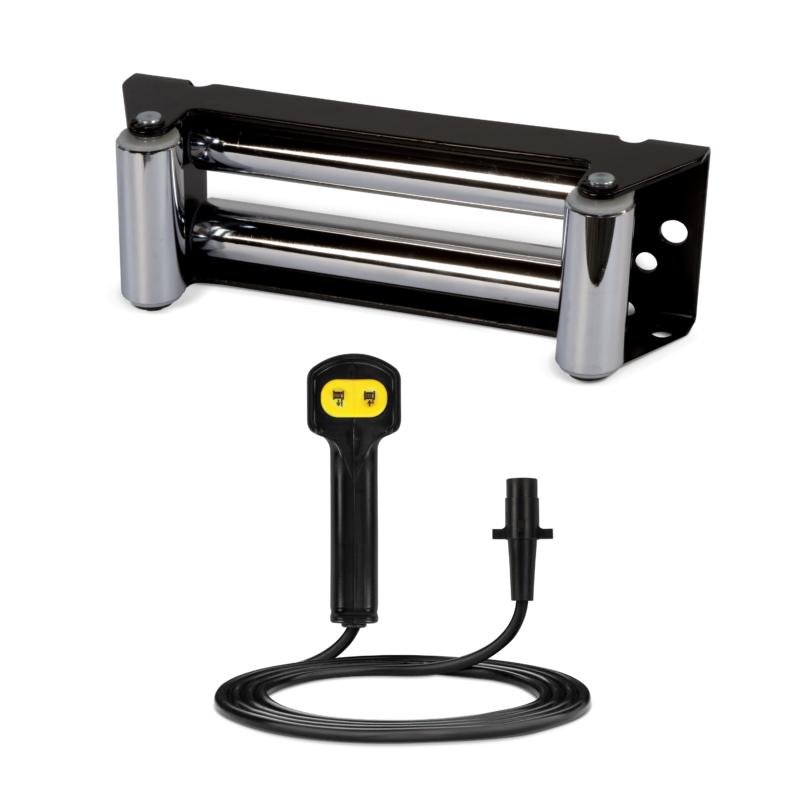

What’s included
- Clevis Hook
- Hook Strap
- Roller Fairlead
- Remote Control
Specifications
| Line Pull | 10000 lb. |
|---|---|
| Remote Length | 12 ft. |
| Gear Ratio | 216:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 3.9 ft/min |
| No-Load Line Speed | 15.7 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 85 ft. |
| Rope Diameter | 3/8 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 2.5 x 8.8 in. |
| Bolt Pattern | 10 x 4.5 in. |
| Mounting Channel | No |
| Motor Type | 12V DC (Series Wound) |
| Horsepower | 3.6 hp |
| Max Current at Full Load | 400A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 21.9 in. |
|---|---|
| Width | 5.6 in. |
| Height | 10.5 in. |
| Weight | 85 lb. |
