Champion Power Equipment

Model #200970

3650-Watt Dual Fuel Generator with CO Shield®

Champion’s powerful 3650-watt generator meets ANSI/PGMA G300-2018 requirements and features CO Shield®, the carbon monoxide auto shutoff system. Featuring Dual Fuel, allowing the 224cc engine to run on either gasoline or propane, it provides up to 14 hours of run time on gasoline or 10.5 hours on propane.

Features

Dual Fuel

Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus the unit holds 0.6-quarts of oil (included) and has a low oil shut-off switch

Covered outlets

120V 30A (TT-30R) RV outlet, a 120V 30A outlet (L5-30R), and a 120V 20A household duplex outlet (5-20R).

Intelligauge

Keep track of voltage, frequency, session run time, and total runtime hours to easily monitor output and track maintenance intervals, plus features CO Shield® carbon monoxide auto shutoff system

Powerful

At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe.

Champion Support

Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 4650-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.

Champion’s EZ Start Dial makes getting started quick and easy. This unit features Cold Start Technology, Extended Run Time, and an easy to read fuel gauge.

With a 0.5-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61dBA from 23 feet, which is about as loud as normal speech.

The no tool access panel and oil drain tube allow for easy maintenance.

Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

Operate your Dual Fuel generator right out of the box on gasoline or propane, and easily switch fuels with the EZ Start dial. When the 2.3-gallon tank of gasoline is full, the 212cc Champion engine produces 4650 starting watts and 3650 running watts and will run for up to 14 hours at 25% load. When using a 20-pound propane tank, it produces 4650 starting watts and 3285 running watts and will run for up to 21 hours at 25% load.

The covered outlets in this RV Ready inverter include a 120V 30A RV (TT-30R), a 120V 20A household duplex outlet (5-20R), and a 12V automotive-style outlet.

The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, allows you to increase output by connecting up to two inverters. The never flat tires and fold-down handle make transport a cinch.

Buy this EPA certified and CARB compliant generator with confidence –Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

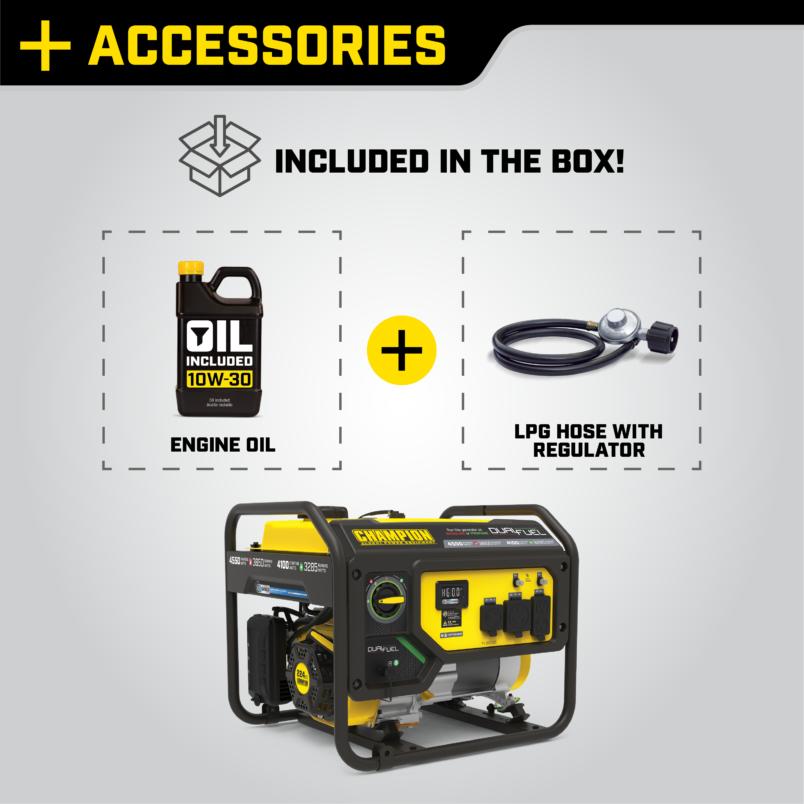

What’s included

  • Propane (LPG) Hose
  • Engine Oil
  • Oil Funnel

Specifications

Portable Generator Technology Dual Fuel, CO Shield®
Gasoline Starting Watts 4550W
Gasoline Running Watts 3650W
Propane Starting Watts 4100W
Propane Running Watts 3285W
Gasoline Starting Amps at 120V 37.9A
Gasoline Running Amps at 120V 30.4A
Propane Starting Amps at 120V 34.2A
Propane Running Amps at 120V 27.4A
Volts 120
Frequency 60Hz
Outlets 120V 20A Duplex (5-20R), 120V 30A (TT-30R), 120V 30A Locking (L5-30R)
GFCI Outlets No
Covered Outlets Yes
Covered Circuit Breakers Yes
Gasoline Run Time at 1/2 Load 14 h.
Propane Run Time at 1/2 Load 10.5 h.
Noise Level 68 dBA
Parallel Capability No
DC Operation No
Voltmeter Intelligauge
Automatic Voltage Regulation Yes
Battery No
Start Type Recoil
Engine Brand Champion
Engine Size 224cc
Engine Type 4-stroke
Engine Speed 3600
Fuel Type Gasoline, Propane (LPG)
Fuel Gauge Yes
Gasoline Capacity 4.7 gal.
Gasoline Tank Material Steel
Engine Oil Type 10W-30
Engine Oil Capacity 0.6 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels No
PGMA G300-2018 Compliant Yes
EPA Certified Yes
CARB Compliant Yes

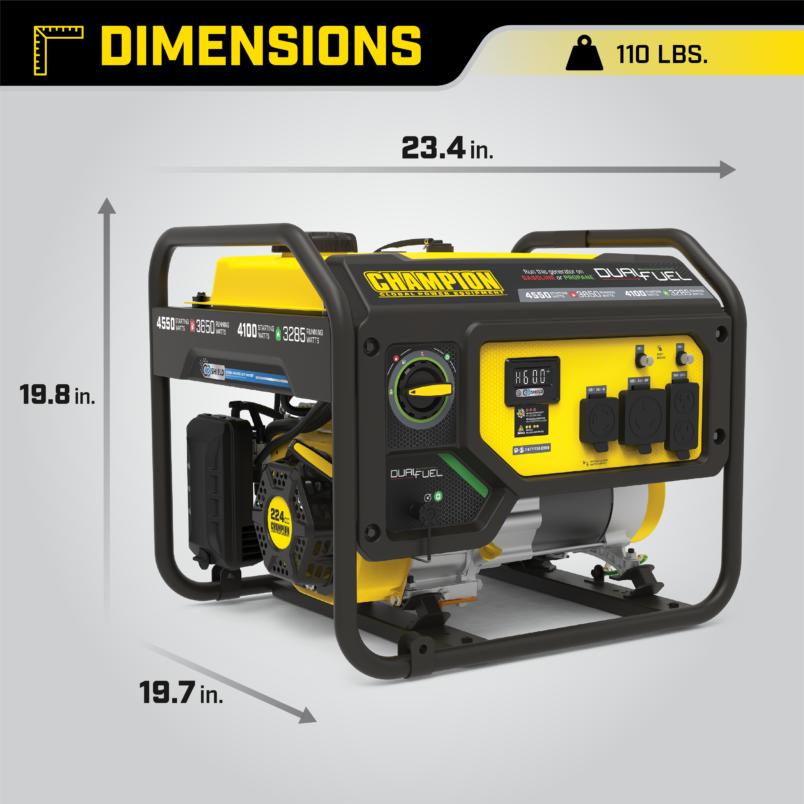

Dimensions

Length 23.4 in.
Width 19.7 in.
Height 19.8 in.
Weight 110 lb.
