Champion’s RV Ready Open Frame Inverter features CO Shield® carbon monoxide auto shutoff system and is 50% quieter and 20% lighter than a traditional 5250-watt generator. Our advanced feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power.

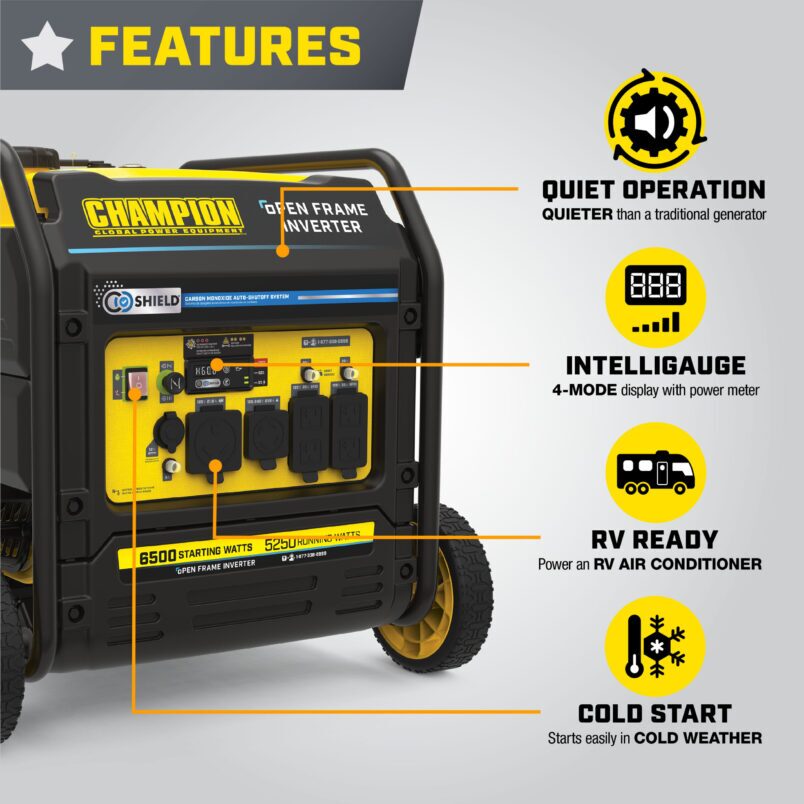

Features
Advanced Design
50% quieter and 20% lighter than a traditional 5250-watt generator, plus features CO Shield® carbon monoxide auto shutoff system, Economy Mode saves fuel and extends engine life
Quiet Technology and Extended Run Time

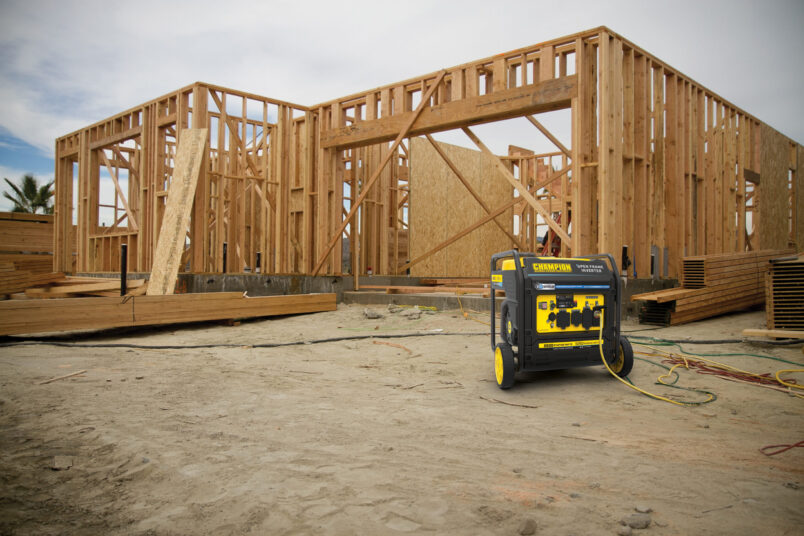

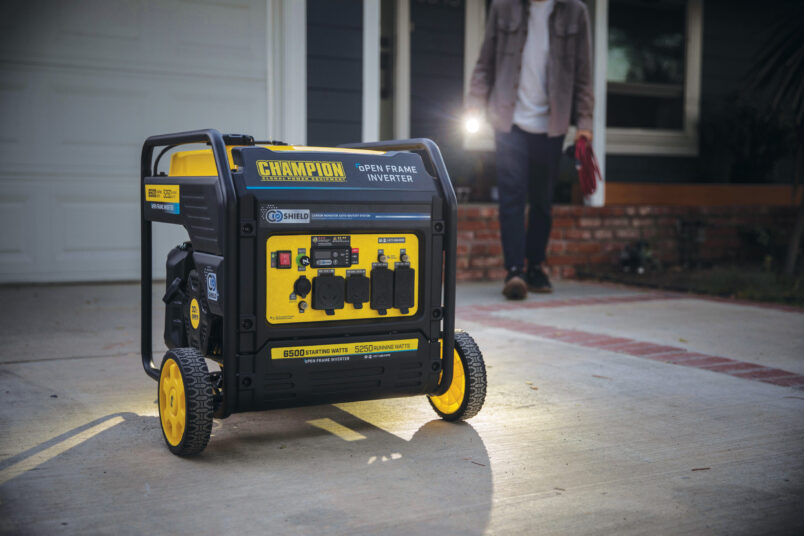

69 dBA is great for RVs, tailgating, your next project or home backup, with 6500 starting watts and 5250 running watts for up to 13.5 hours run time on gasoline
Clean electricity for sensitive electronics
RV Ready with a 120V 21.9A RV, a 120/240V 21.9A locking outlet, two GFCI 120V 20A duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter
Intelligauge with Power Meter
Monitors voltage, frequency and operating hours
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 6500-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life.
First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER!
Champion’s recoil start features Cold Start Technology, plus the reliable 301cc Champion engine produces 6500 starting watts and 5250 running watts, and runs for 13.5 hours at 25% load when the 4.3-gallon fuel tank is full.
With a 1.2-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at 69 dBA from 23 feet, which is a bit louder than normal speech.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

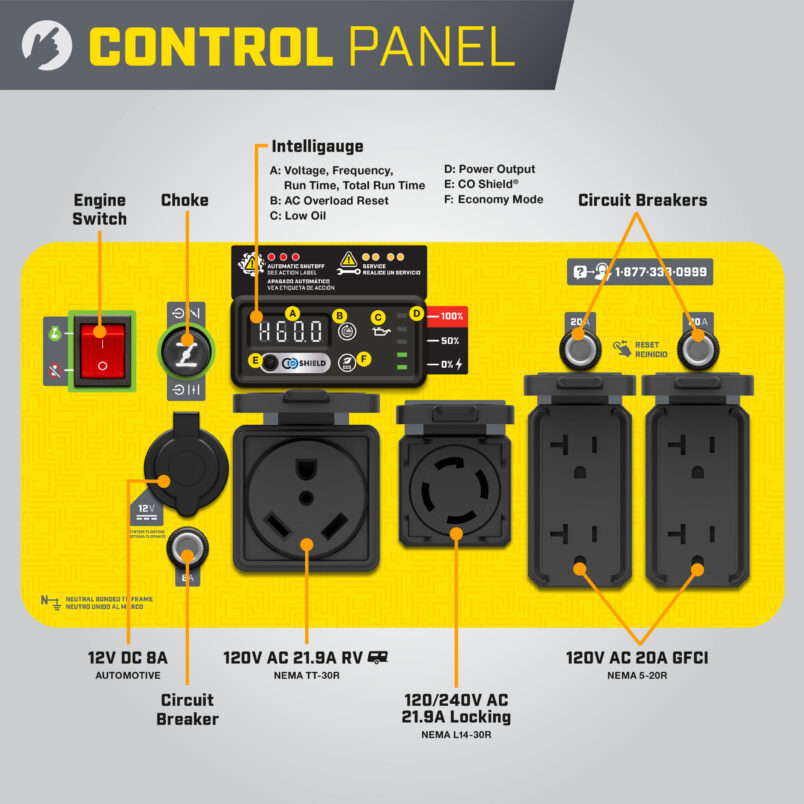

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this RV Ready inverter include a 120V 21.9A RV (TT-30R), a 120/240V 21.9A locking (L14-30), two GFCI 120V 20A household duplex outlets (5-20R) plus a 12V automotive-style outlet, and a handy dual port USB adapter you can use to power your phone, laptop, or similar device.
Buy this fully assembled EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

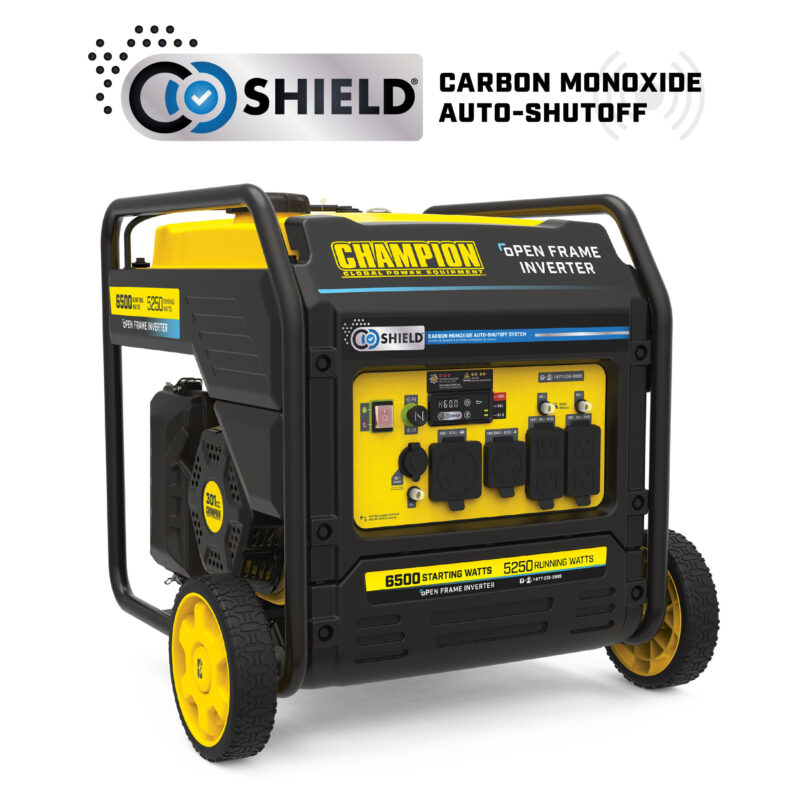

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- USB Adapter
- Engine Oil
- Oil Funnel
- Wheel Kit
- Handle
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 6500W |
| Gasoline Running Watts | 5250W |
| Gasoline Starting Amps at 120V | 54.2A |
| Gasoline Starting Amps at 240V | 27.1A |
| Gasoline Running Amps at 120V | 43.8A |
| Gasoline Running Amps at 240V | 21.9A |
| Volts | 120/240 |
| Frequency | 60Hz |
| AC Receptacles | (1) 120/240V 30A Locking (L14-30R), (1) 120V 21.9A (TT-30R), (2) 120V 20A GFCI Duplex (5-20R) |
| DC Operation | Yes |
| GFCI Receptacles | Yes |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 13.5 h. |
| Noise Level | 69 dBA |
| Inverter | Open Frame |
| Parallel Capability | No |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | Yes |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 301cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.3 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.1 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
| CARB Compliant | Yes |

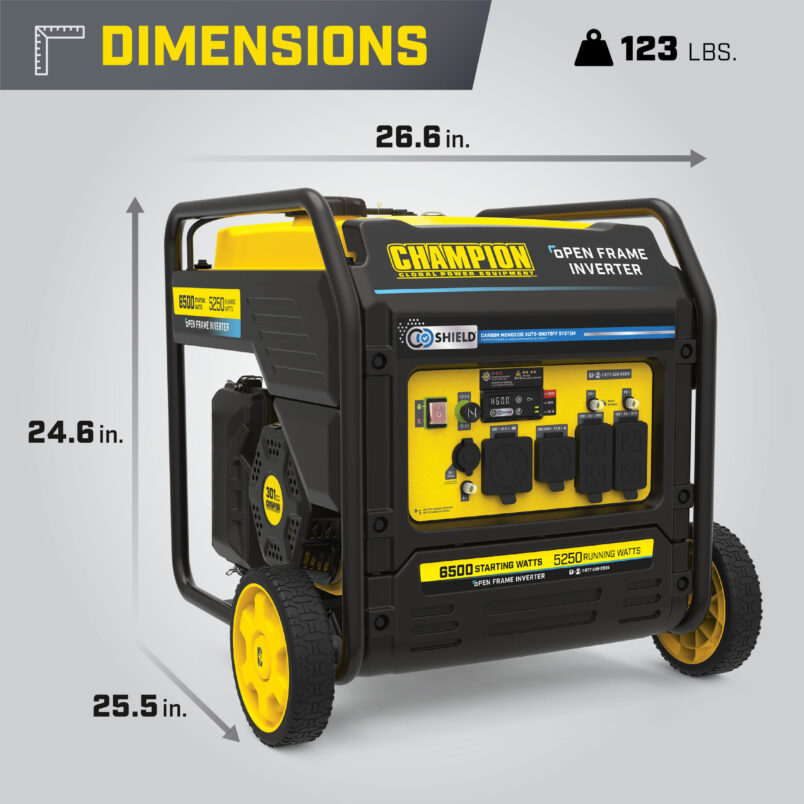

Dimensions
| Length | 26.6 in. |
|---|---|
| Width | 25.5 in. |
| Height | 24.6 in. |
| Weight | 123 lb. |
