Champion Power Equipment

Model #201067

9000-Watt Open Frame Inverter with CO Shield®

Champion’s Open Frame Inverter with CO Shield® is 50% quieter and 20% lighter than a traditional 7250-watt generator. Our advanced feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power.

Features

Electric Start

Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, a built-in Cold Start Technology for easy starts in cold weather, plus features CO Shield® carbon monoxide auto shutoff system

Advanced Design

50% quieter and 20% lighter than a traditional 7250-watt generator, plus Economy Mode saves fuel and extends engine life, and Intelligauge with Power Meter monitors voltage, frequency and operating hours

Quiet Technology and Extended Run Time

72 dBA is great for RVs, tailgating, your next project or home backup, with 9000 starting watts and 7250 running watts for up to 10.5 hours run time on gasoline

Clean electricity for sensitive electronics

A 120/240V 50A outlet (14-50R), a 120/240V 30A locking outlet, two 120V 20A household duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter

Champion Support

Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 9000-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life.

First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER!
Champion’s got convenience covered. You’ll appreciate the handy electric start with included battery, plus Cold Start Technology ensures a quick start in cold weather. The reliable 420cc Champion engine produces 9000 starting watts and 7250 running watts, and runs for 10.5 hours at 25% load when the 4.3-gallon fuel tank is full.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.
All the outlets have covers for protection and include two 120V 20A GFCI protected household duplex outlets (5-20R), a 120/240V 30A locking outlet (L14-30R), a 120/240V 50A outlet (14-50R), plus a 12V automotive-style outlet, and a handy dual port USB adapter you can use to power your phone, laptop, or similar device.
Buy this fully assembled EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

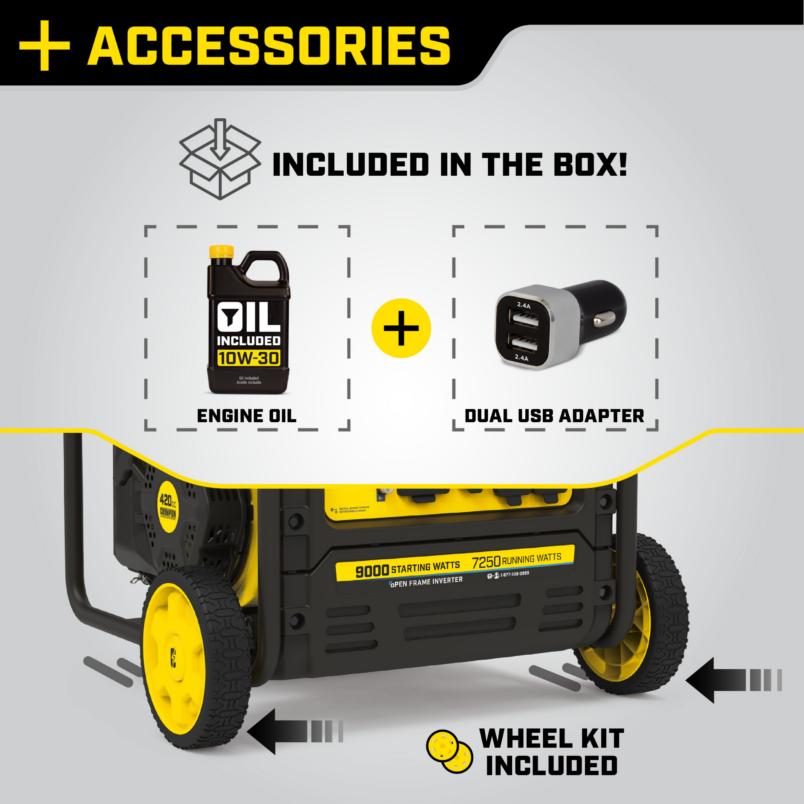

What’s included

  • Wheel Kit
  • Handle
  • USB Adapter
  • Engine Oil
  • Oil Funnel

Specifications

Portable Generator Technology CO Shield®
Gasoline Starting Watts 9000W
Gasoline Running Watts 7250W
Gasoline Starting Amps at 120V 75A
Gasoline Starting Amps at 240V 37.5A
Gasoline Running Amps at 120V 60.4A
Gasoline Running Amps at 240V 30.2A
Volts 120/240
Frequency 60Hz
Outlets 120/240V 50A (14-50R), 120/240V 30A (L14-30R), GFCI 120V 20A Duplex (5-20R) (2), 12V DC Automotive
GFCI Outlets Yes
Covered Outlets Yes
Covered Circuit Breakers Yes
Gasoline Run Time at 1/4 Load 10.5 h.
Noise Level 72 dBA
Inverter Open Frame
Parallel Capability No
DC Operation Yes
Voltmeter Intelligauge with Power Meter
Automatic Voltage Regulation No
Battery Yes
Start Type Recoil, Electric
Engine Brand Champion
Engine Size 420cc
Engine Type 4-stroke
Engine Speed Variable
Fuel Type Gasoline
Fuel Gauge Yes
Gasoline Capacity 4.3 gal.
Gasoline Tank Material Steel
Engine Oil Type 10W-30
Engine Oil Capacity 1.1 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Solid
Wheel Diameter 8 in.
PGMA G300-2018 Compliant Yes
EPA Certified Yes
CARB Compliant Yes

Dimensions

Length 26.6 in.
Width 25.5 in.
Height 24.6 in.
Weight 152.2 lb.
