Champion Power Equipment

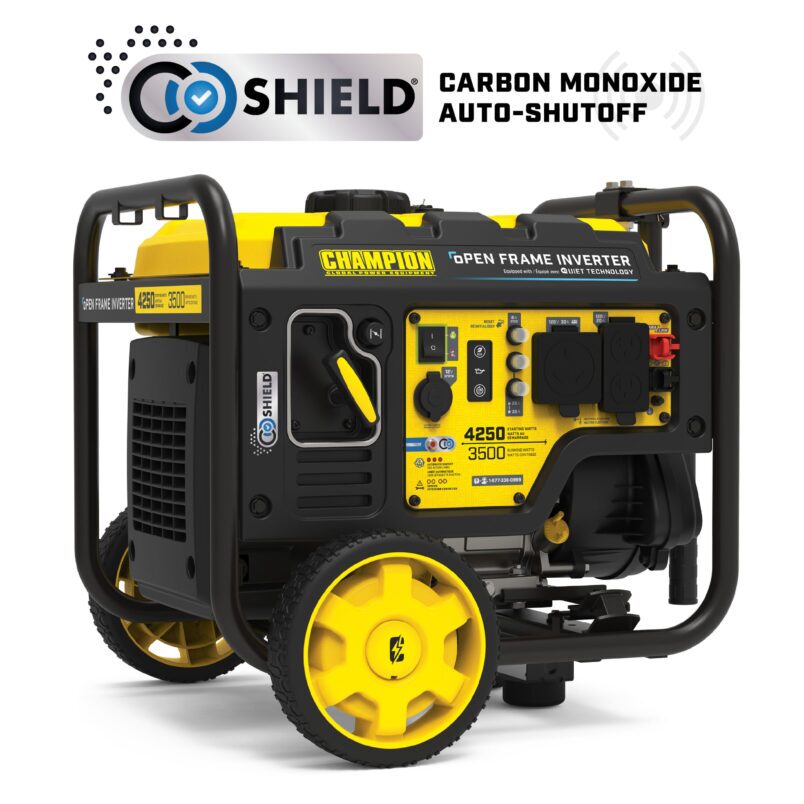

Champion’s 4250-Watt Open Frame Inverter features CO Shield® carbon monoxide auto shutoff system. It’s 50% quieter and 20% lighter than a traditional 3500-watt generator plus the optional Parallel Kit allows you to increase your power.

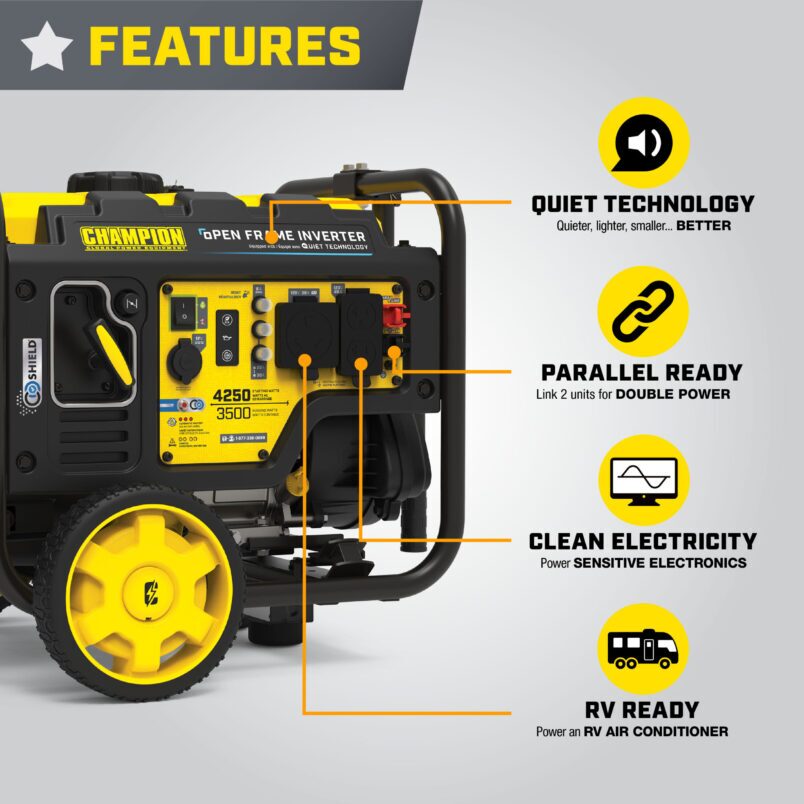

Features
Advanced Open Frame Inverter Design

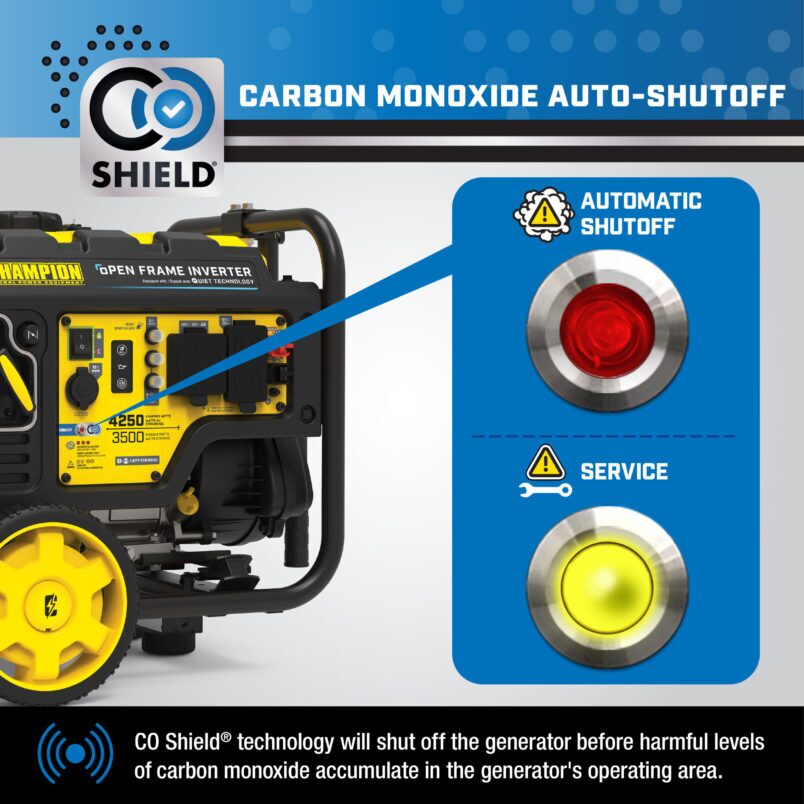

50% quieter and 20% lighter than a traditional Champion 3500-watt generator, plus features CO Shield® carbon monoxide auto shutoff system
Quiet Technology and Extended Run Time

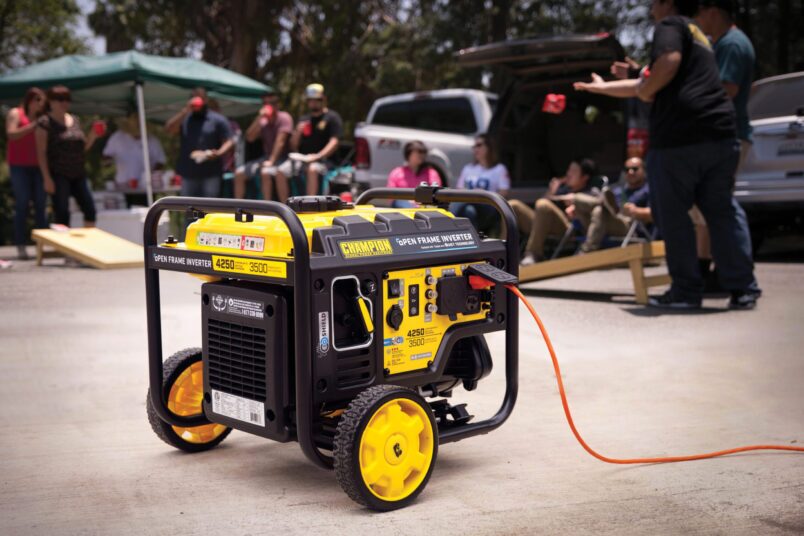

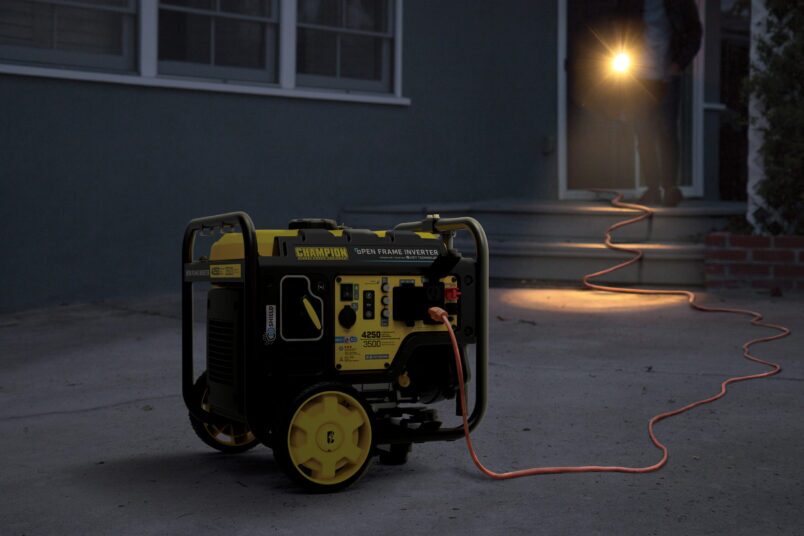

64 dBA is great for RVing, tailgating, home backup, or your next project. Run up to 17 hours with 4250 starting and 3500 running watts on gasoline.
Clean electricity for sensitive electronics
RV Ready with a 120V 30A RV, plus a 120V 20A duplex household outlet with clean power (less than 3% THD) and a 12V DC regulated automotive-style outlet.
Parallel Ready
Increase your power output by connecting up to two 2800-watt or higher inverter or digital hybrid with the optional Parallel Kit
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 201226 4250-Watt Open Frame Inverter Generator is one of the most advanced products on the market.
Champion’s Open Frame Inverter integrates Quiet Technology digital inverter components plus an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this inverter is smaller, quieter, lighter…BETTER!
Champion’s recoil start features Cold Start Technology with a reliable 224cc Champion engine that produces 4250 starting watts, 3500 running watts, and runs for 17 hours at 25% load when the 2.9-gallon fuel tank is full.
With a 0.6-quart oil capacity (recommended 5W-30 and funnel included) and a low oil shut-off switch, this inverter operates at 64 dBA from 23 feet, which is a bit louder than normal speech.
Confidently connect your sensitive electronics with this inverter’s pure Clean Power (less than 3% THD). The foldaway easy-grip handle and included wheel kit with never-flat tires make it a cinch to move your power where you need it.

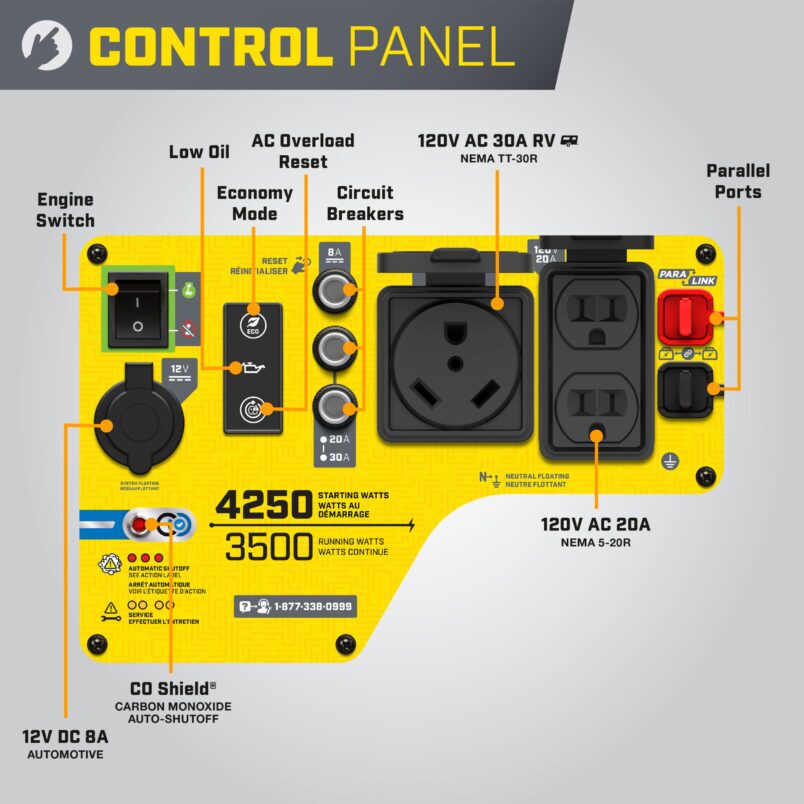

Our Quick Touch Panel offers fast access to controls, while Economy Mode monitors power consumption in real time to extend your run time. With Economy Mode on, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this RV Ready inverter include a120V 30A RV (TT-30R), a 120V 20A duplex household outlet (5-20R) and a 12V DC regulated automotive-style outlet with battery-charging cables.

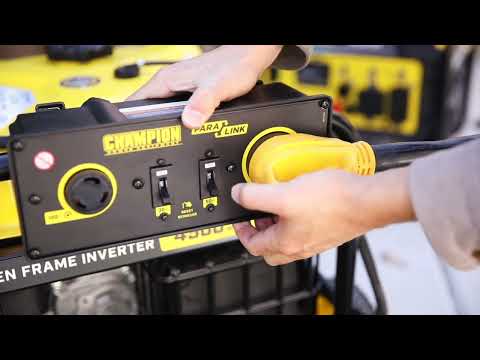

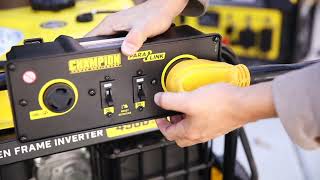

The optional Parallel Kit, with included standard 50-amp RV outlet, provides a clip-on connection which allows you to increase output by connecting up to two 2800-watt or higher inverters or digital hybrids.
This inverter is EPA certified. Buy with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
What’s included
- Engine Oil
- Oil Funnel
- Battery Charging Cables
- Wheel Kit
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 4250W |
| Gasoline Running Watts | 3500W |
| Gasoline Starting Amps at 120V | 35.4A |
| Gasoline Running Amps at 120V | 29.2A |
| Volts | 120 |
| Frequency | 60Hz |
| Outlets | 120V (TT-30R), 120V Duplex (5-20R), 12V DC Automotive |
| GFCI Outlets | No |
| Covered Outlets | Yes |
| Gasoline Run Time at 1/4 Load | 17 h. |
| Noise Level | 64 dBA |
| Inverter | Open Frame |
| Parallel Capability | Yes |
| DC Operation | Yes |
| Voltmeter | No |
| Automatic Voltage Regulation | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | No |
| Gasoline Capacity | 2.9 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 5W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| ETL Listing | cETL |
| EPA Certified | Yes |
Dimensions
| Length | 23.5 in. |
|---|---|
| Width | 23.7 in. |
| Height | 20.5 in. |
| Weight | 84.4 lb. |
