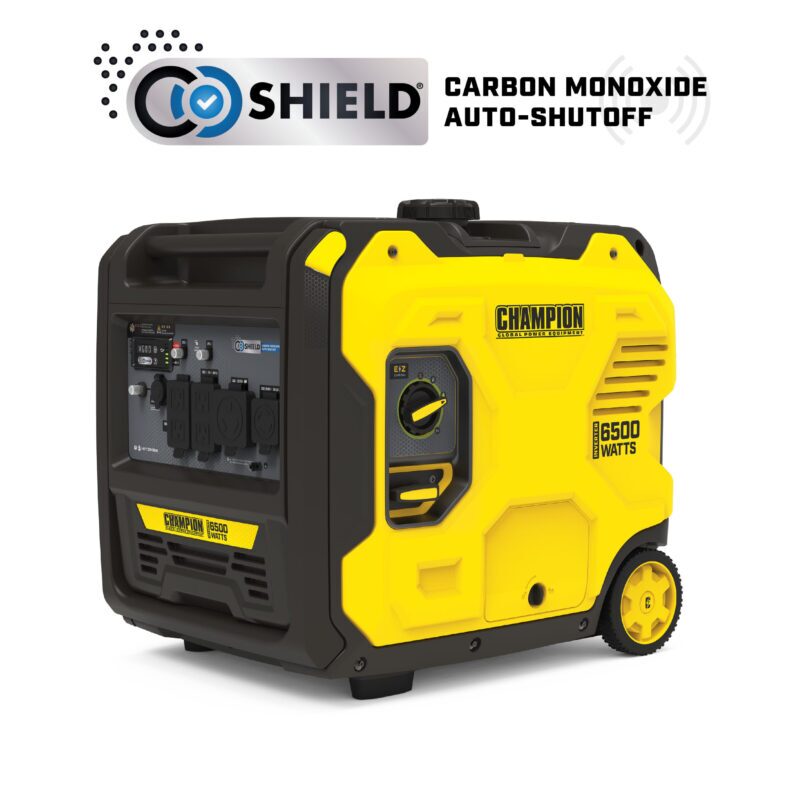

Champion's 6500-watt inverter generator features CO Shield® carbon monoxide auto shutoff system. The advanced technology and design will improve the way you power your life. Our feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode, and Clean Power.
Features
Quiet Technology and Extended Run Time
64 dBA is great for RVs, tailgating, or camping with 6500 starting watts and 5000 running watts and up to 15 hours run time on only 3.95 gallons of gasoline

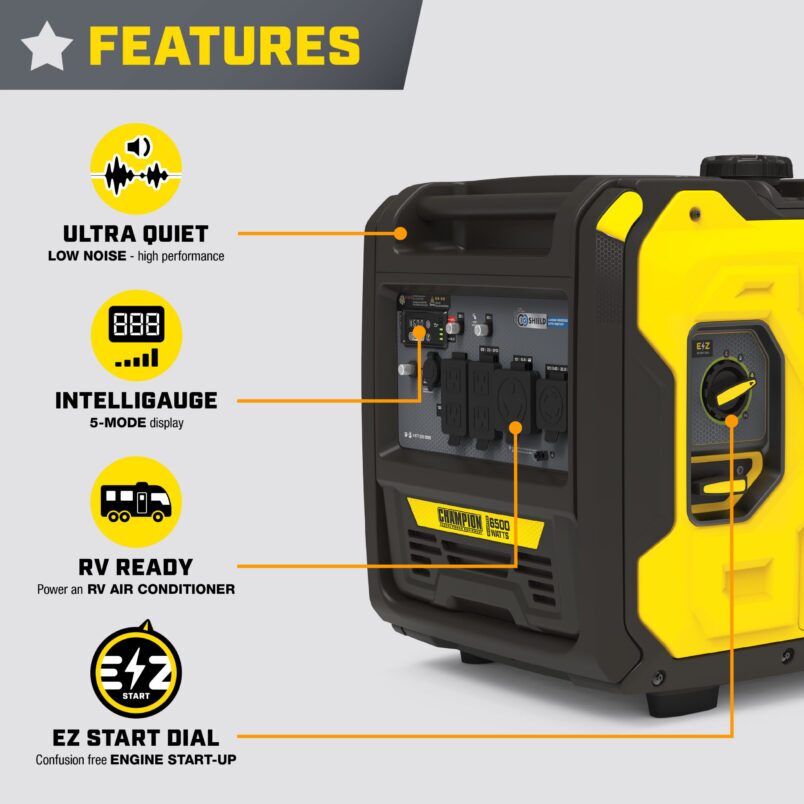

Intelligauge with Power Meter
Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system, and the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real time
Clean Power for Sensitive Electronics
120V 20.8A RV outlet, a 120/240V 20.8A L14-30 locking outlet, two 120V 20A GFCI household duplex outlets with clean power (less than 3% THD), and a 12V regulated automotive-style outlet
Designed for Safety
Includes a low oil shut-off switch and holds 0.7-quarts of oil (recommended 10W-30)
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

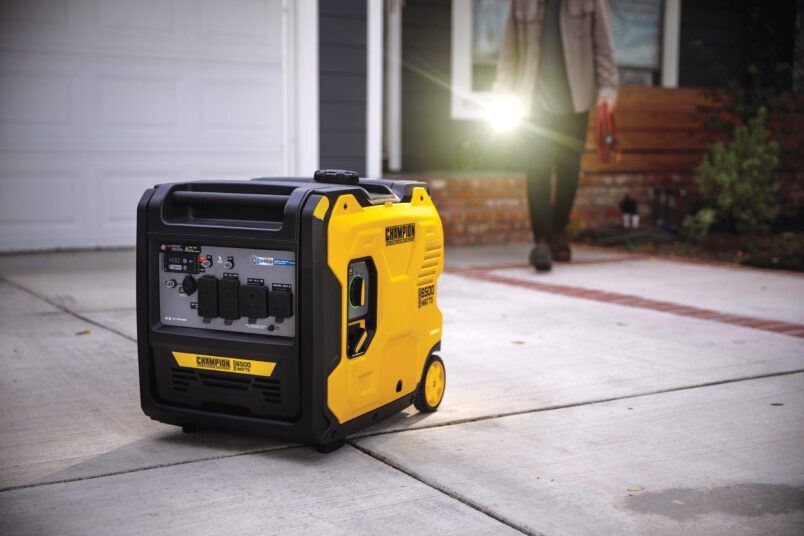

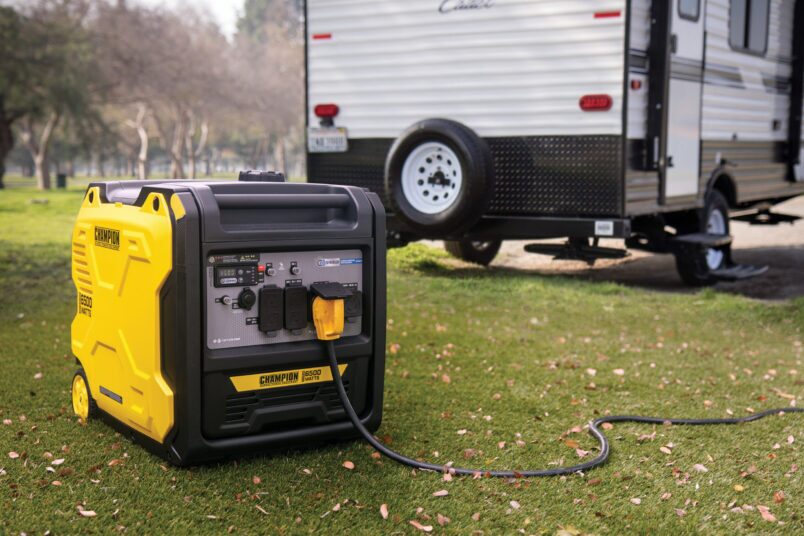

The Champion Power Equipment 6500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, Extended Run Time, and an easy to read fuel gauge, the reliable 223cc Champion engine produces 6500 starting watts and 5000 running watts, and runs for 15 hours at 25% load when the 3.95-gallon fuel tank is full.
With a 0.7-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 64 dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

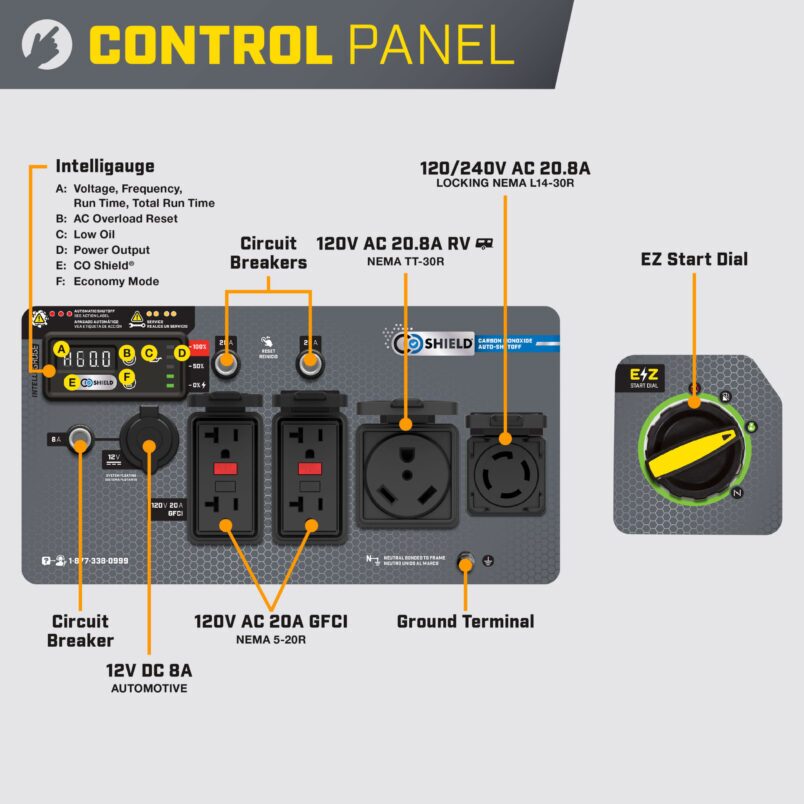

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear and tear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.

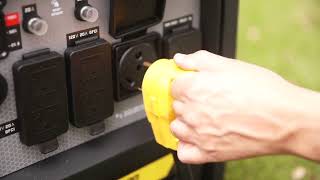

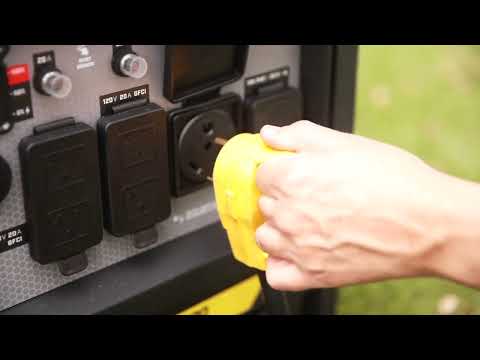

The covered outlets included are a 120V 20.8 RV outlet (TT-30R), 120/240V 20.8A locking outlet (L14-30R), two 120V 20A GFCI household duplex outlets (5-20R), and a 12V automotive-style outlet.
Buy this EPA certified inverter generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

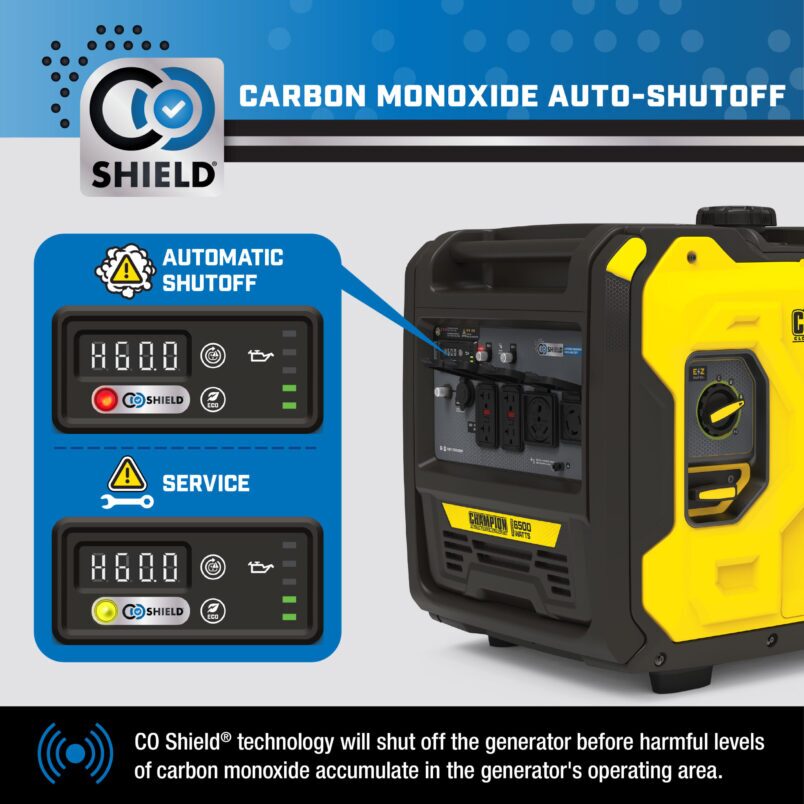

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Oil Funnel
- Spark Plug Wrench
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 6500W |
| Gasoline Running Watts | 5000W |
| Gasoline Starting Amps at 120V | 54.2A |
| Gasoline Starting Amps at 240V | 27.1A |
| Gasoline Running Amps at 120V | 41.7A |
| Gasoline Running Amps at 240V | 20.8A |
| Volts | 120 |
| Frequency | 60Hz |
| AC Receptacles | (2) 120V 20A GFCI Duplex (5-20R), (1) 120V 20.8A (TT-30R), (1) 120/240V 20.8 Locking (L14-30R) |
| DC Operation | Yes |
| DC Receptacles | (1) 12V 8A Automotive (Regulated) |
| GFCI Receptacles | Yes |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 15 h. |
| Noise Level | 64 dBA |
| Inverter | Traditional |
| Parallel Capability | No |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 223cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | Analog |
| Gasoline Capacity | 3.95 gal. |
| Gasoline Tank Material | Plastic |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.7 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |

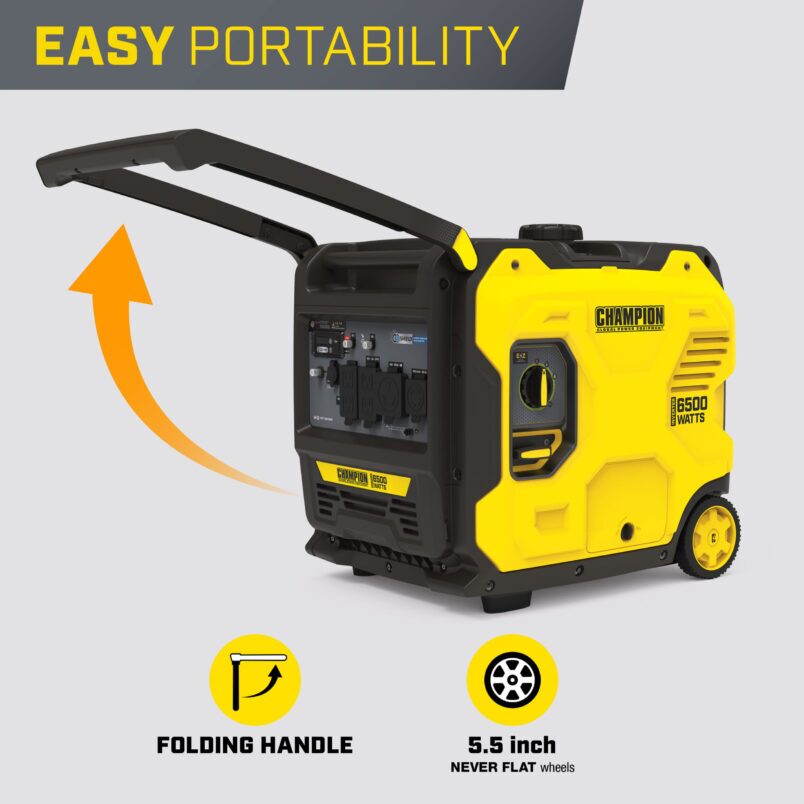

| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 5.5 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
Dimensions
| Length | 25 in. |
|---|---|
| Width | 19.5 in. |
| Height | 23.2 in. |
| Weight | 101.4 lb. |
