Our 5500-watt inverter’s advanced technology features CO Shield® carbon monoxide auto shutoff system. The Dual Fuel feature allows the 224cc engine to run on gasoline or propane. Enjoy the quiet 61 dBA for up to 20 hours on gasoline or up to 15 hours with a 20-lb propane tank and increase your power with the optional Parallel Kit.
Features
Dual Fuel
Operate your 5500-watt portable generator right out of the box on either gasoline or propane
Parallel Ready
The optional parallel kit (sold separately) enables this inverter to connect with another 5500-watt or similar Champion inverter to double your output power
Intelligauge with Power Meter
Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system
Clean Power for Sensitive Electronics
Ready with a 120V 30A L5-30R locking outlet, two 120V 20A household duplex outlets with clean power (less than 3% THD), and a 12V regulated automotive-style outlet.
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 5500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology and Extended Run Time, the reliable 224cc Champion engine produces 5500 starting watts and 4000 running watts, and runs for 20 hours at 25% load when the 3.7-gallon fuel tank is full. With a full 20lb propane tank it produces 5500 starting watts and 3600 running watts, and runs for 15 hours at 25% load.
Refueling in the dark is a cinch thanks to Fuel Fill Assist LED, a flip-up LED to illuminate the gasoline fill area.
With a 0.6-quart oil capacity (included 5W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61 dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

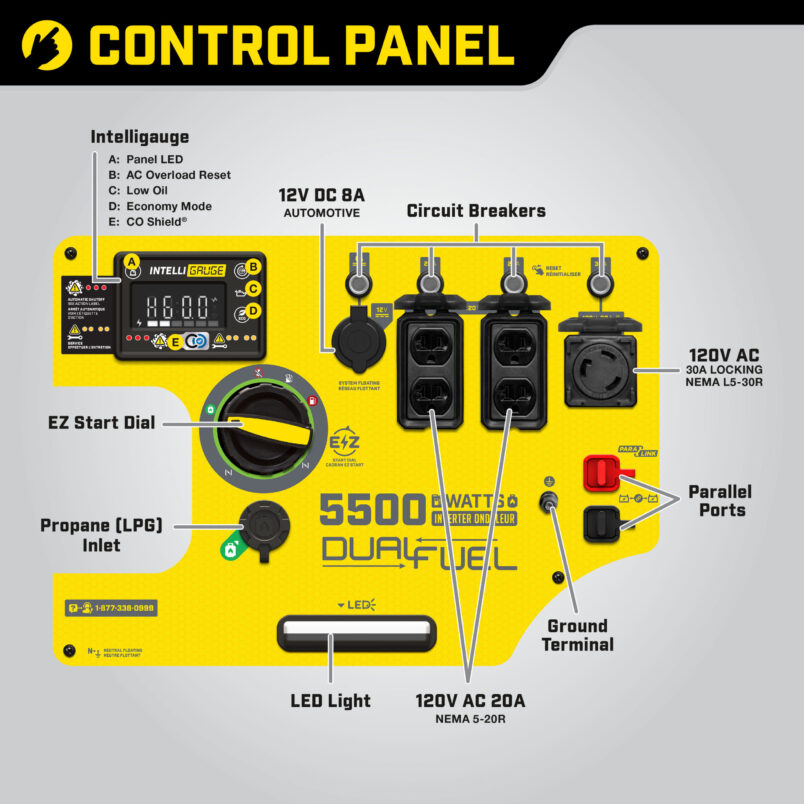

Our Quick Touch Panel offers fast access to all your controls, plus the built-in LED lights make it easy to use in the dark. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear and tear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this RV Ready inverter include a 120V 30A L5-30R locking outlet with an RV adapter plug (TT-30R), two 120V 20A household duplex outlets (5-20R), and a 12V automotive-style outlet.
The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, allows you to increase output by connecting up to two 5500-watt or similar inverters. The never flat tires and new telescoping handle make transport a cinch.
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Propane (LPG) Hose
- Engine Oil
- Oil Funnel
- Socket
- RV Adapter Plug
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 5500W |
| Gasoline Running Watts | 4000W |
| Propane Starting Watts | 5500W |
| Propane Running Watts | 3600W |
| Gasoline Starting Amps at 120V | 45.8A |
| Gasoline Running Amps at 120V | 33.3A |
| Propane Starting Amps at 120V | 45.8A |
| Propane Running Amps at 120V | 30A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 12V DC Automotive, 120V Locking (L5-30R), 120V Duplex (5-20R) (2) |
| DC Operation | Yes |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 20 h. |
| Propane Run Time at 1/4 Load | 15 h. |
| Noise Level | 63 dBA |
| Inverter | Traditional |
| Parallel Capability | Yes |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | No |
| Gasoline Capacity | 3.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 5W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 5.5 in. |
| PGMA G300-2018 Compliant | Yes |
| ETL Listing | cETL |
| EPA Certified | Yes |
Dimensions
| Length | 24.6 in. |
|---|---|
| Width | 19 in. |
| Height | 20.9 in. |
| Weight | 109.1 lb. |
