Champion’s yard-towable 20-ton log splitter features a low-profile design and toolless log catcher for easy loading. The 212cc engine powers through logs up to 24 in. long and 100 lb., while the 11-second cycle time, auto-return valve, and skewed wedge boost efficiency.
Features
High-Performance Engine

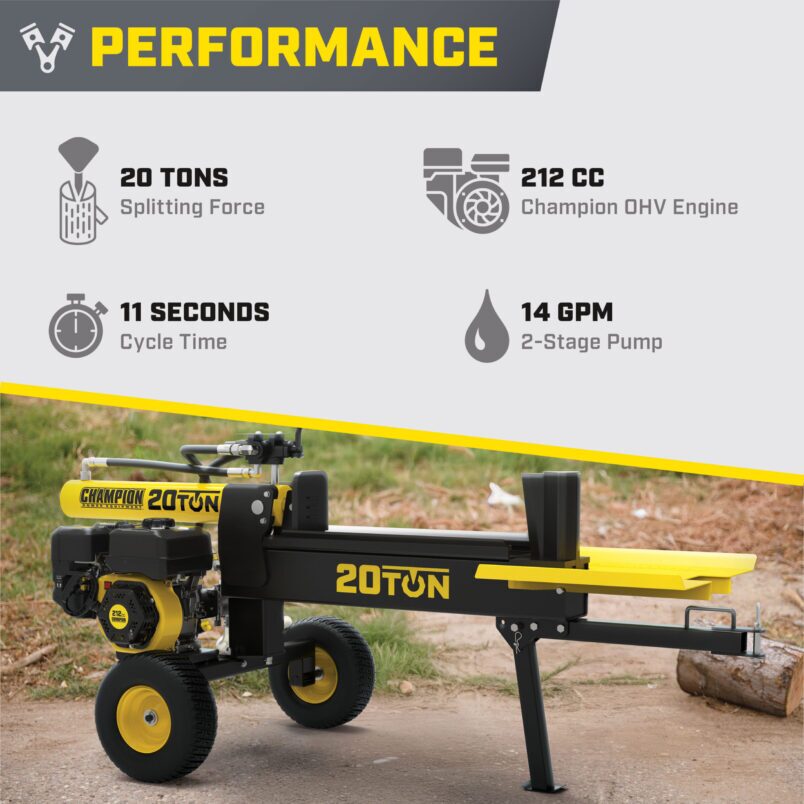

The 212cc engine delivers an 11-second cycle time, and the automatic return valve enables up to 320 splitting cycles per hour.

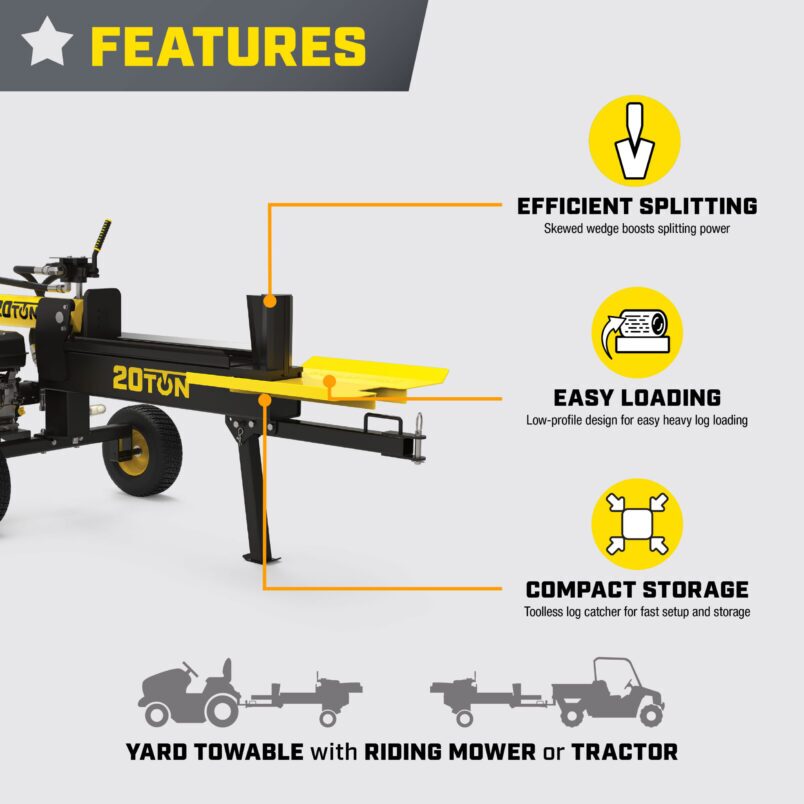

Easy Log Loading
The low-profile design simplifies loading heavy logs, and the integrated toolless log catcher keeps split logs off the ground.
Optimized Splitting
The skewed wedge maximizes splitting power, while the toolless log catcher allows for fast assembly and disassembly.
Easy Transport and Storage
The compact, yard-towable frame and 13-inch pneumatic tires provide convenient mobility and hassle-free storage.
Champion Support
Backed by a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country.
Description

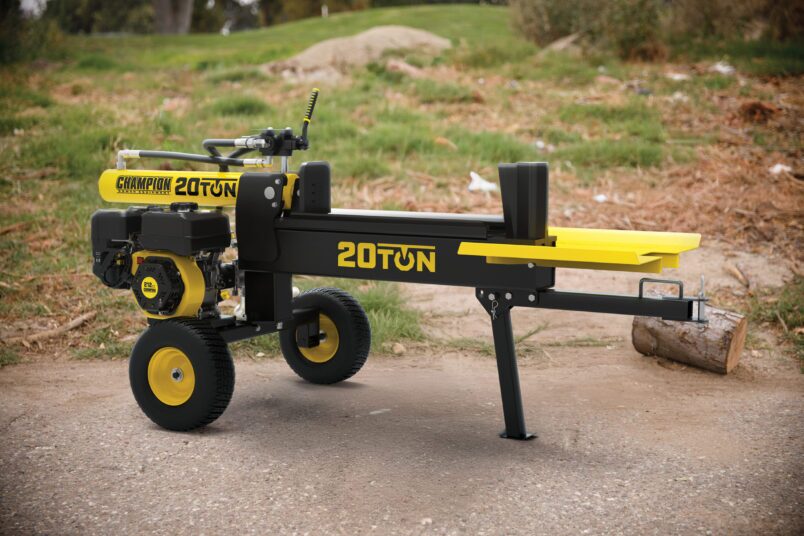

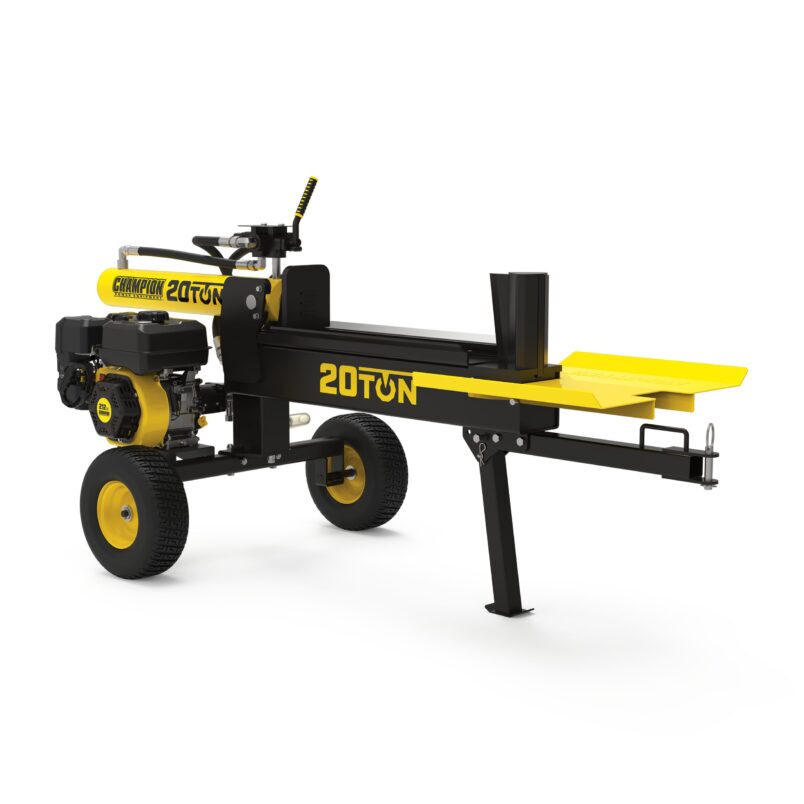

The Champion Power Equipment 201549 20-Ton Horizontal Gas Log Splitter is small on size but big on power. If you’re looking for a quick, dependable and yard towable solution for log splitting, this is the unit for you.
Depend on the reliable recoil start to start up the powerful Champion 212cc single-cylinder OHV engine, which features a cast-iron sleeve, a 3.1-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.
Never struggle to lift a large, heavy log onto your log splitter again. The low-profile design makes it easier to load a large log onto the splitting beam, and the integrated log cradle keeps the log safely in position. This mighty machine handles logs up to 24 inches long, weighing up to 100 pounds.

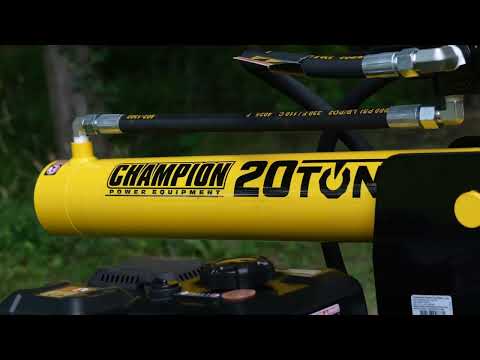

20 Tons of splitting capacity deliver the power you need for the job at hand. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 14 GPM to power through tough logs.
Champion designed this log splitter with a skewed wedge to increase splitting efficiency, plus it has an 11-second cycle time and dependable auto-return valve, which is capable of 320 cycles per hour. Toolless log catcher allows quick and easy assembly for use or disassembly for storage.
The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.
This log splitter is yard towable with your rider mower or similar with 5/8-in hitch pin with 2-in receiver bracket and 13-pneumatic tires.
Assembly and setup are hassle free with Champion’s clear directions and thoughtful packaging.
This log splitter is EPA certified. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Oil Funnel
- Spark Plug Socket/Wrench
- Engine Oil
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Ram Force | 20-ton |
|---|---|
| Operating Position | Horizontal |
| Cycle Time | 11 s. |
| Max Log Length | 24 in. |
| Max Log Weight | 100 lb. |
| Log Cradles | Yes |
| Log Catchers | Yes |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 4 in. |
| Cylinder Rod Diameter | 1.6 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 14 GPM |
| Hydraulic Oil System Capacity | 4.5 gal. |
| Hydraulic Oil Tank Capacity | 3.4 gal. |
| Hydraulic Oil Type | ISO 32, AW 32, Automatic Transmission Fluid |
| Hydraulic Filter | Internal |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 212cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 0.82 gal. |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Pneumatic |
| Wheel Diameter | 13 in. |
| Towable | Yes |
| Hitch Type | 5/8 in. Clevis Pin Hitch |
| Fenders | No |
| EPA Certified | Yes |

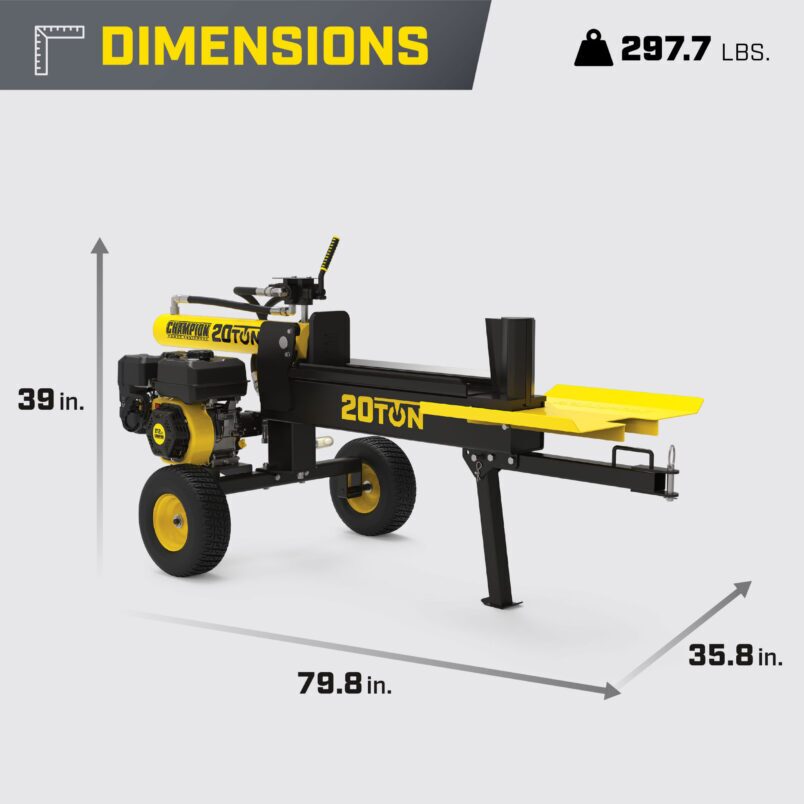

Measurements
| Length | 79.8 in. |
|---|---|
| Width | 35.8 in. |
| Height | 39 in. |
| Weight | 297.7 lb. |
