Champion Power Equipment

Model #100868

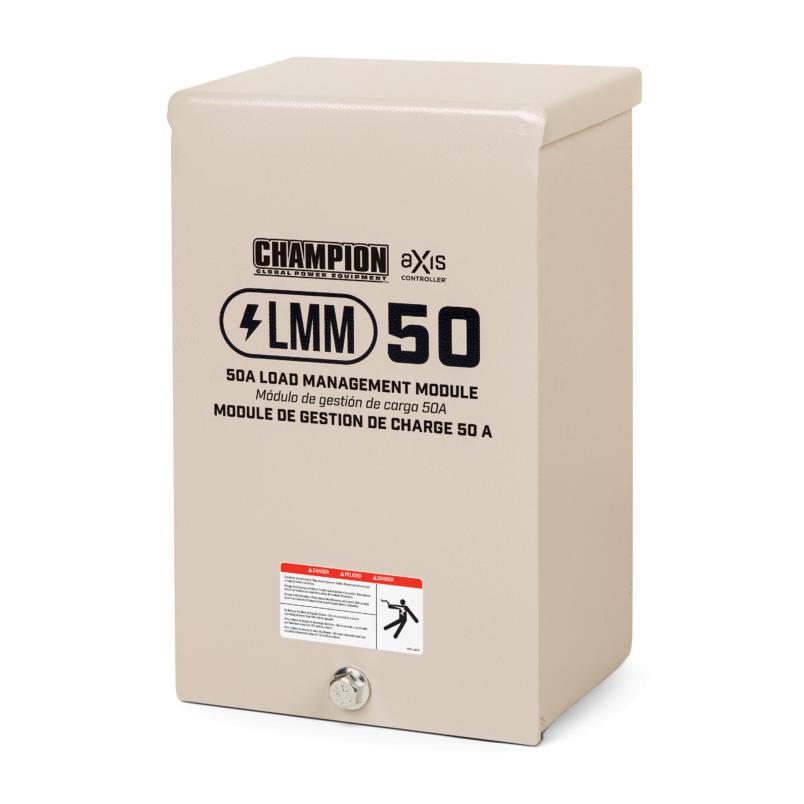

50A aXis Load Management Module

Depend on Champion’s cost-effective load management module (LMM) to manage your high-demand appliances so you can power your home worry-free. Featuring aXis Home Standby Technology, this customizable 50-amp module will prevent overloads to your electrical system and make sure your lights stay on.



Provides peace of mind that your high-demand appliances are being managed to prevent an overload of your electrical system


aXis load management allows you to use a smaller generator to manage larger residential homes

Outdoor Rated

The enclosure is NEMA 3R rated for outdoor installation


Champion’s new aXis platform uses Power Line Carrier (PLC) technology. This technology saves you money by eliminating the need to run communication wires between the LMM, ATS, or standby generator


ETL listed to comply with UL and CSA standards for the US and Canada, and capable of controlling loads up to 50 amps, 120/240V Single Phase


The Champion 100868 Load Management Module features aXis Home Standby Technology and allows you to use your home standby generator to power high-demand appliances (usually 240 volt) in the home without being concerned about system overload. At times, using a generator to power appliances such as ranges, cooktops, dryers, and water heaters can overload your electrical system and leave you in the dark.

Champion’s aXis Load Management Module (LMM) uses Power Line Carrier (PLC) technology which helps reduce costs and increase efficiency by eliminating the need for communication wiring from your generator to your load management module and automatic transfer switch, saving you time and money. The LMM receives communication from the Automatic Transfer Switch (ATS) by measuring load (Amps) and determines automatically when to open or close the LMM for a particular appliance based on the priority settings you choose.

Champion aXis load management also allows you to use a smaller generator to manage larger residential homes.

Using aXis load management modules, loads can be assigned priority levels (1-4) allowing for customization on how the home's appliances are managed. Large electric loads can also be locked out entirely while under standby power.

Here’s how it works:

  1. Install a Champion Load Management Module (LMM) anywhere inline between your appliance and the circuit breaker.
  2. Choose from four priority levels for each appliance from ”from lowest to higher priority, meaning “nice to have” to “must have.”
  3. Use your home’s existing power lines to monitor your generator output and allow your high demand appliance to operate only when there is enough generator power available.
  4. Never worry again that you’ll accidentally overload your HSB system since aXis monitors your generator output and only allows operation of your high demand appliance when there’s enough generator power available.

Featuring a NEMA 3R enclosure for outdoor or indoor installation, the module is ETL listed to comply with UL and CSA standards for the US and Canada.

Buy with confidence - Champion will back up your purchase with a 2-year limited warranty including FREE lifetime technical support from dedicated experts.


Accessory Category Home Standby
ETL Listing cETLus


Length 5.2 in.
Width 3.8 in.
Height 8.2 in.
Weight 2.2 lb.
