Champion Power Equipment

Model #201066

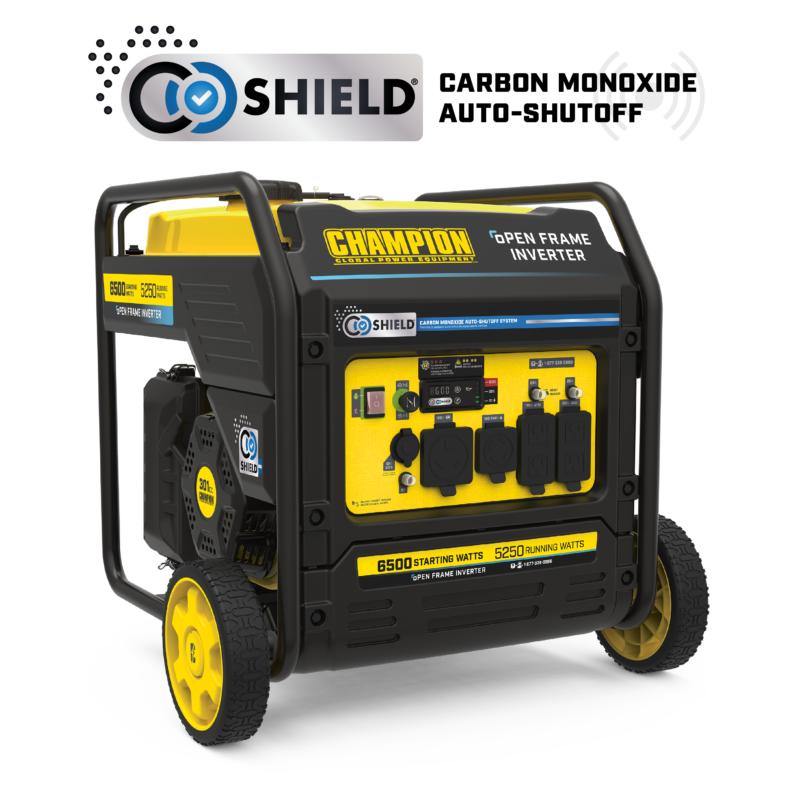

6500W Open Frame Inverter with CO Shield®

Champion’s RV Ready Open Frame Inverter features CO Shield® carbon monoxide auto shutoff system and is 50% quieter and 20% lighter than a traditional 5250-watt generator. Our advanced feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power.

Features

Advanced Design

50% quieter and 20% lighter than a traditional 5250-watt generator, plus features CO Shield® carbon monoxide auto shutoff system, Economy Mode saves fuel and extends engine life

Quiet Technology and Extended Run Time

69 dBA is great for RVs, tailgating, your next project or home backup, with 6500 starting watts and 5250 running watts for up to 13.5 hours run time on gasoline

Clean electricity for sensitive electronics

RV Ready with a 120V 30A RV, a 120/240V 30A locking outlet, two GFCI 120V 20A duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter

Intelligauge with Power Meter

Monitors voltage, frequency and operating hours

Champion Support

Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 6500-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life.

First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER!

Champion’s recoil start features Cold Start Technology, plus the reliable 301cc Champion engine produces 6500 starting watts and 5250 running watts, and runs for 13.5 hours at 25% load when the 4.3-gallon fuel tank is full.

With a 1.2-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at 69 dBA from 23 feet, which is a bit louder than normal speech.

Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

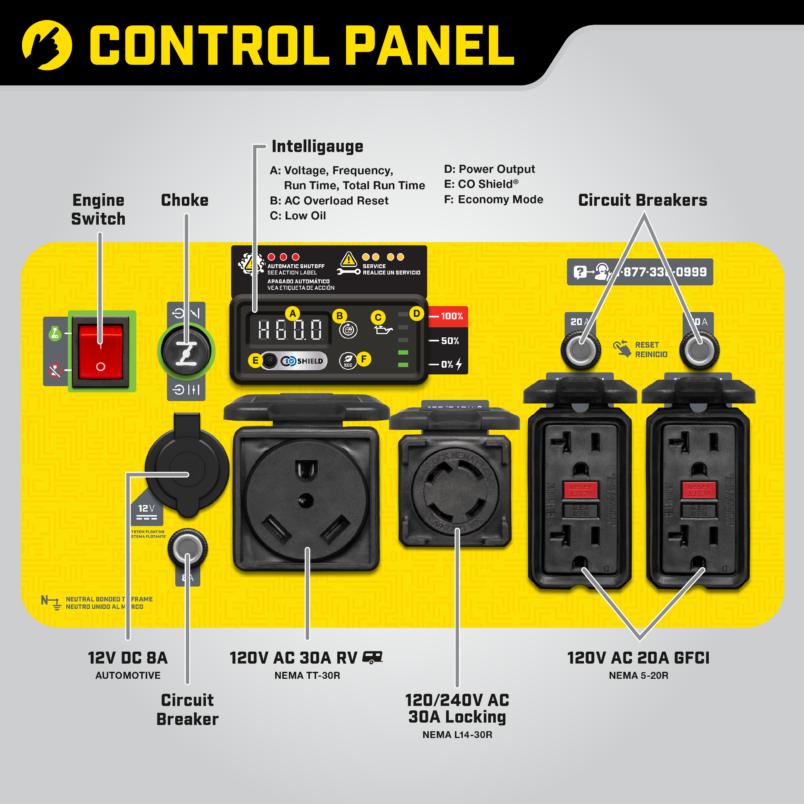

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.

The covered outlets in this RV Ready inverter include a 120V 30A RV (TT-30R), a 120/240V 30A locking (L14-30), two GFCI 120V 20A household duplex outlets (5-20R) plus a 12V automotive-style outlet, and a handy dual port USB adapter you can use to power your phone, laptop, or similar device.

Buy this fully assembled EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

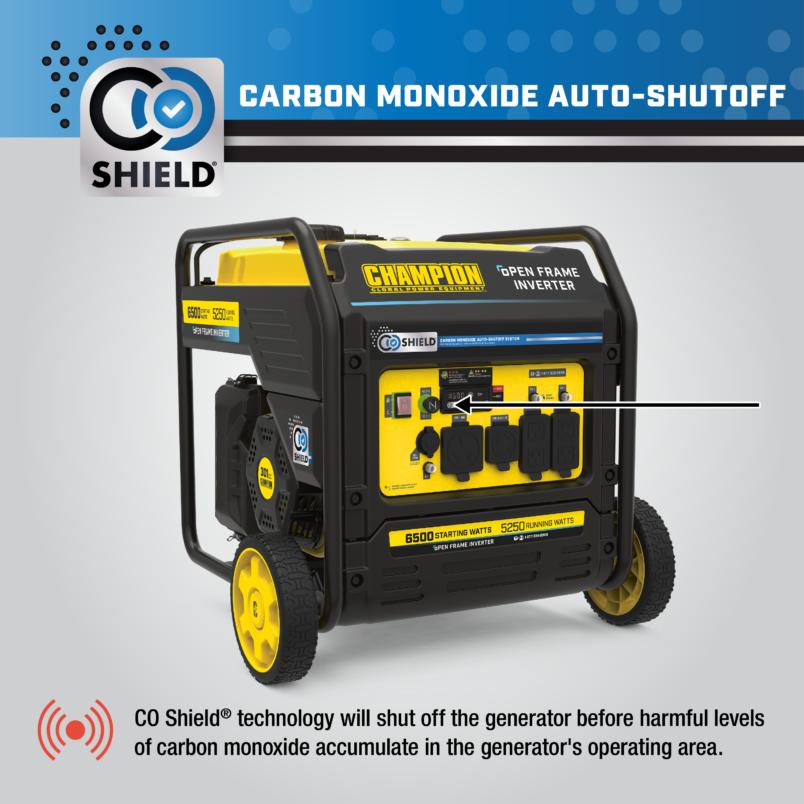

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

What’s included

  • USB Adapter
  • Engine Oil
  • Oil Funnel
  • Wheel Kit
  • Handle

Specifications

Portable Generator Technology CO Shield®
Gasoline Starting Watts 6500W
Gasoline Running Watts 5250W
Gasoline Starting Amps at 120V 54.2A
Gasoline Starting Amps at 240V 27.1A
Gasoline Running Amps at 120V 43.8A
Gasoline Running Amps at 240V 21.9A
Volts 120/240
Frequency 60Hz
Outlets GFCI 120V 20A Duplex (5-20R) (2), 120/240V 30A (L14-30R), 120V 30A (TT-30R), 12V DC Automotive
GFCI Outlets Yes
Covered Outlets Yes
Gasoline Run Time at 1/4 Load 13.5 h.
Noise Level 69 dBA
Inverter Open Frame
Parallel Capability No
DC Operation Yes
Voltmeter Intelligauge with Power Meter
Automatic Voltage Regulation Yes
Battery No
Start Type Recoil
Engine Brand Champion
Engine Size 301cc
Engine Type 4-stroke
Engine Speed Variable
Fuel Type Gasoline
Fuel Gauge Yes
Gasoline Capacity 4.3 gal.
Gasoline Tank Material Steel
Engine Oil Type 10W-30
Engine Oil Capacity 1.1 qt.
Engine Oil Included Yes
Low Oil Shut-Off Yes
Wheels Yes
Wheel Type Solid
Wheel Diameter 8 in.
PGMA G300-2018 Compliant Yes
EPA Certified Yes
CARB Compliant Yes

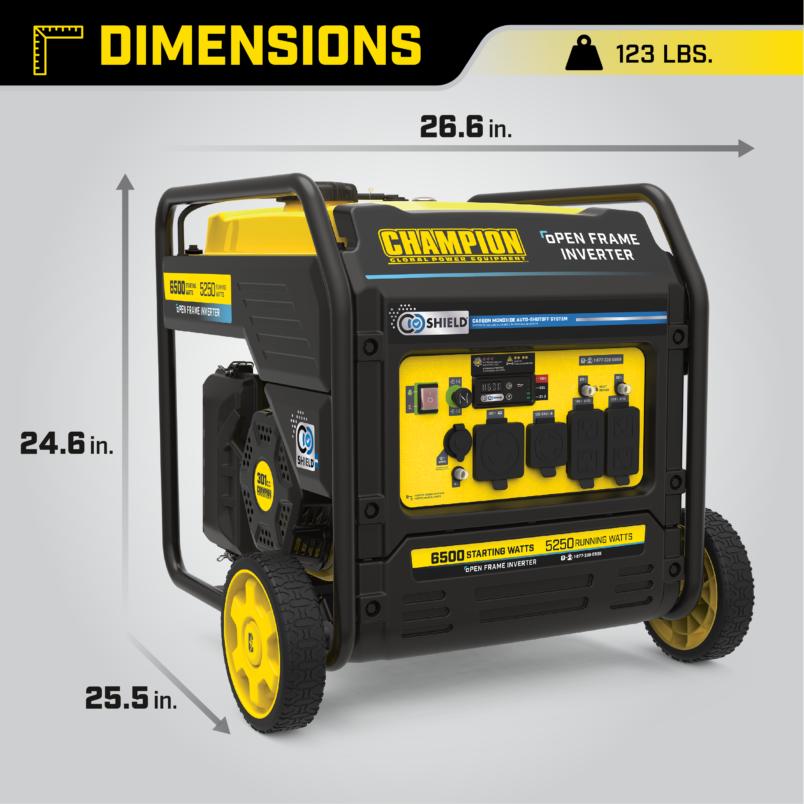

Dimensions

Length 26.6 in.
Width 25.5 in.
Height 24.6 in.
Weight 123 lb.
