Champion’s Dual Fuel Open Frame Inverter with CO Shield® is 50% quieter and 20% lighter than a traditional 7250-watt generator. Our advanced power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power.

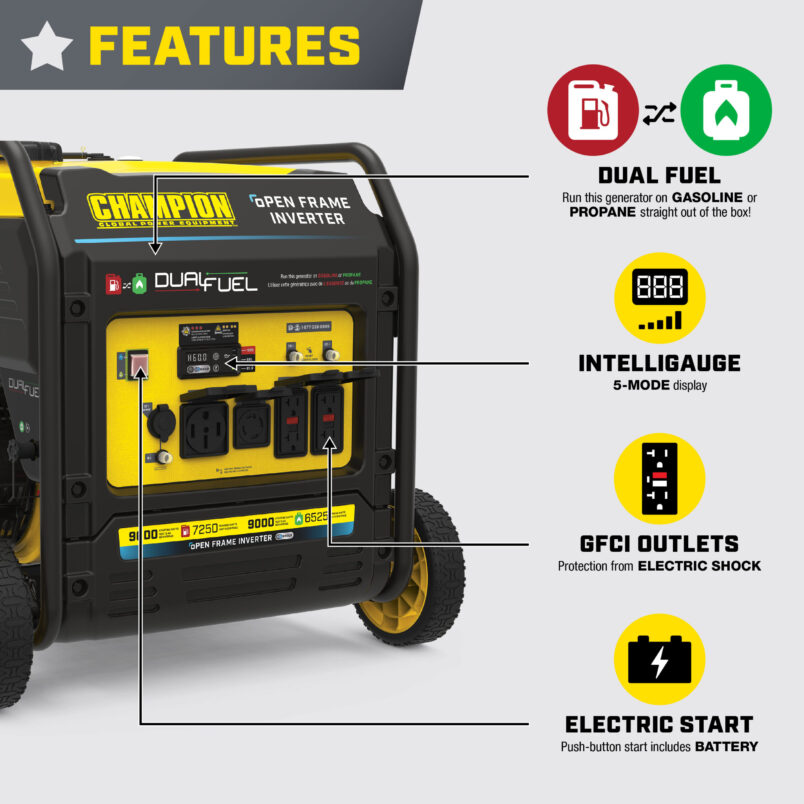

Features
Electric Start
Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, a built-in Cold Start Technology for easy starts in cold weather, plus features CO Shield® carbon monoxide auto shutoff system
Advanced Design
50% quieter (72 dBA) and 20% lighter than a traditional 7250-watt generator, plus fuel-saving Economy Mode, and Intelligauge to monitor voltage, frequency and operating hours
Extended Run Time
Produces 9000 starting watts and 7250running watts on gasoline with a 14-hour run time and 9000starting watts and 6525running watts on propane with a run time of 12hours
Clean electricity for sensitive electronics
A 120/240V 30.2A outlet (14-50R), a 120/240V 30A locking outlet(14-30R), two 120V 20A GFCI household duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 9000-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. A feature-packed addition to your RV and a cost-effective power solution, this inverter is smaller, quieter, and BETTER!
First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters, then we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent.
Operate your Dual-Fuel generator on gasoline or propane and safely switch fuels with our patented fuel selector dial.
Using gasoline, the 420cc Champion engine produces 9000 starting watts and 7250 running watts, and will run for 14 hours at 25% load when the 4.3-gallon fuel tank is full. It produces 9000 starting watts and 6525 running watts, and will run for 12 hours at 25% load when using a 20-pound propane tank. A 6-foot propane hose with a built-in regulator is included.
Cold Start Technology ensures reliable starts, Intelligauge monitors voltage, frequency and operating hours, while smart Economy Mode monitors the electrical load to reduce engine speed, noise, and fuel consumption.
With a 1.1-quart oil capacity (included 5W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 64 dBA from 23 feet, which is a bit louder than normal speech.

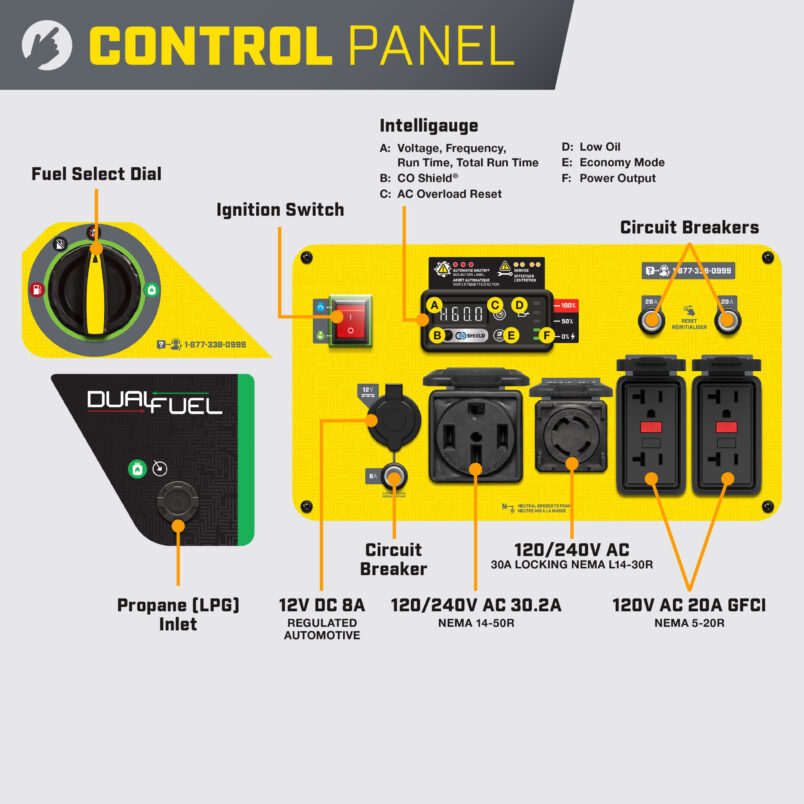

All the outlets have covers for protection and include two 120V 20A GFCI protected household duplex outlets (5-20R), a 120/240V 30A locking outlet (L14-30R), a 120/240V 30.2A outlet (14-50R), plus a 12V automotive-style outlet, and a handy dual port USB adapter you can use to power your phone, laptop, or similar device.
Buy this EPA certified compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

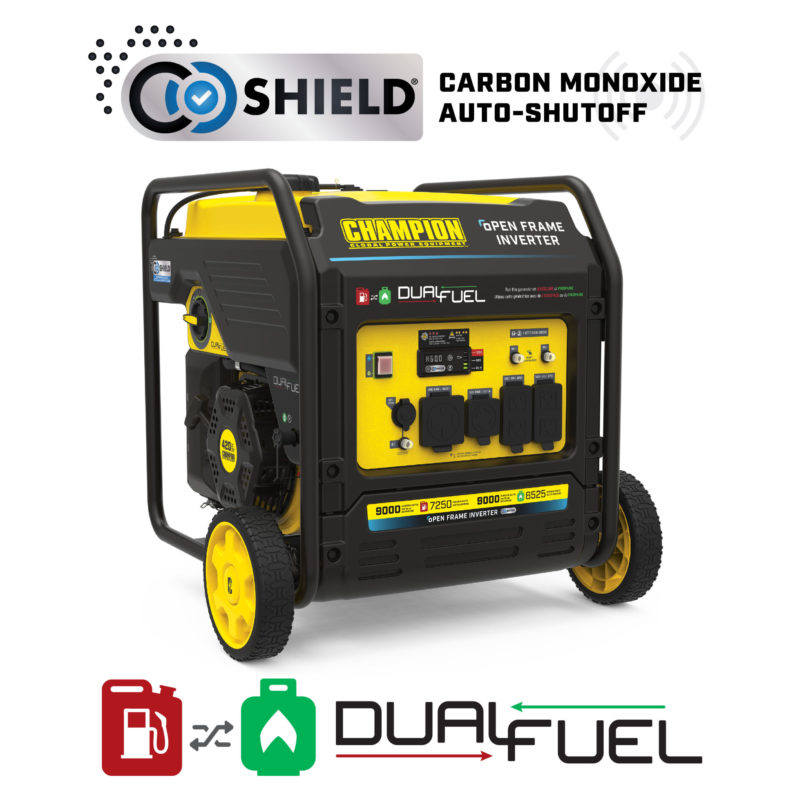

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Flexible Oil Funnel
- Propane (LPG) Hose
- USB Adapter
- Battery
- Wheel Kit
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 9000W |
| Gasoline Running Watts | 7250W |
| Propane Starting Watts | 9000W |
| Propane Running Watts | 6525W |
| Gasoline Starting Amps at 120V | 75A |
| Gasoline Starting Amps at 240V | 37.5A |
| Gasoline Running Amps at 120V | 60.4A |
| Gasoline Running Amps at 240V | 30.2A |
| Propane Starting Amps at 120V | 75A |
| Propane Starting Amps at 240V | 37.5A |
| Propane Running Amps at 120V | 54.4A |
| Propane Running Amps at 240V | 27.2A |
| Volts | 120/240 |
| Frequency | 60Hz |
| AC Receptacles | (2) GFCI 120V 20A Duplex (5-20R), (1) 120/240V 30A Locking (L14-30R), (1) 120/240V 30.2A (14-50R) |
| DC Operation | Yes |
| DC Receptacles | (1) 12VDC Automotive |
| GFCI Receptacles | Yes |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 14 h. |
| Propane Run Time at 1/4 Load | 12 h. |
| Noise Level | 72 dBA |
| Inverter | Open Frame |
| Parallel Capability | No |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | Yes |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 420cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.3 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 5W-30 |
| Engine Oil Capacity | 1.1 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| ETL Listing | cETL |
| EPA Certified | Yes |

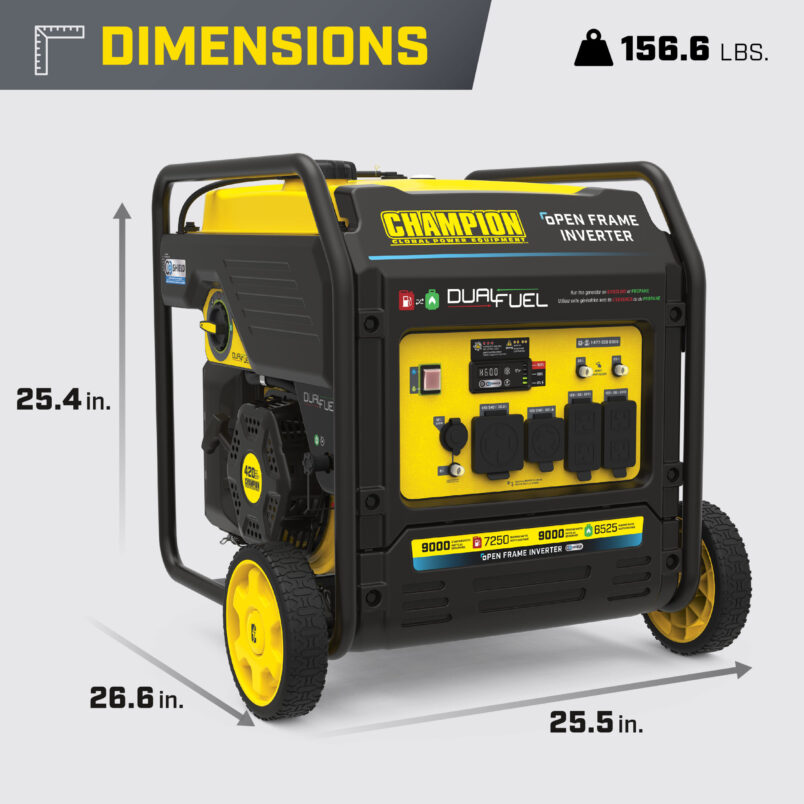

Dimensions
| Length | 26.6 in. |
|---|---|
| Width | 25.5 in. |
| Height | 25.4 in. |
| Weight | 156.6 lb. |
