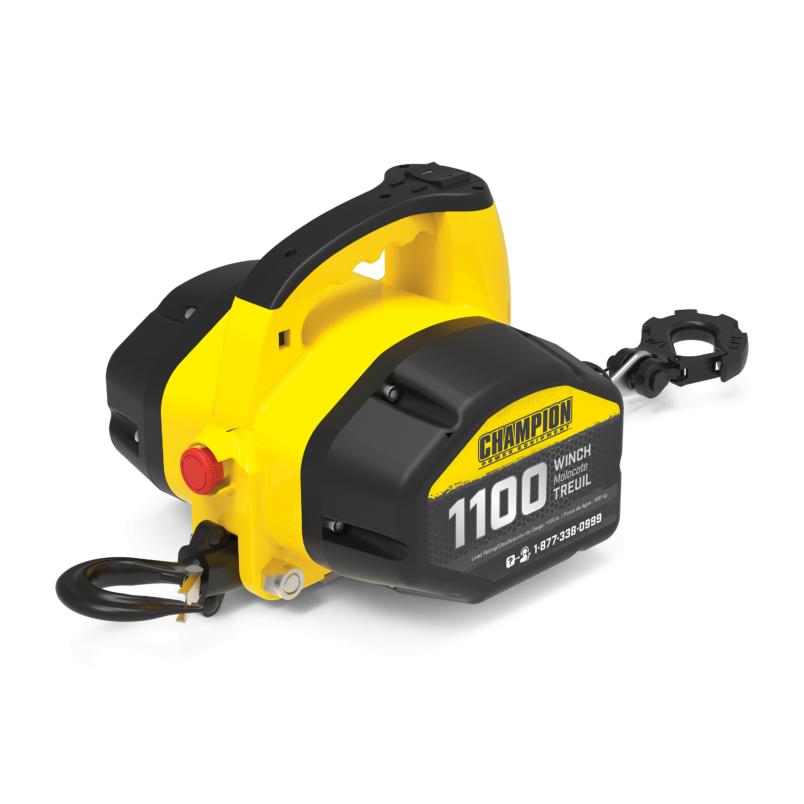

Champion’s Portable Winch Kit has a 1100 lb. rated line pull powered by a 1 hp (120V) AC motor. This kit includes carrying case, cable hook stopper, two D-shackles, two clevis hooks, two tree savers, hand saver/strap, and a pair of utility gloves - everything you need to start pulling or lifting.

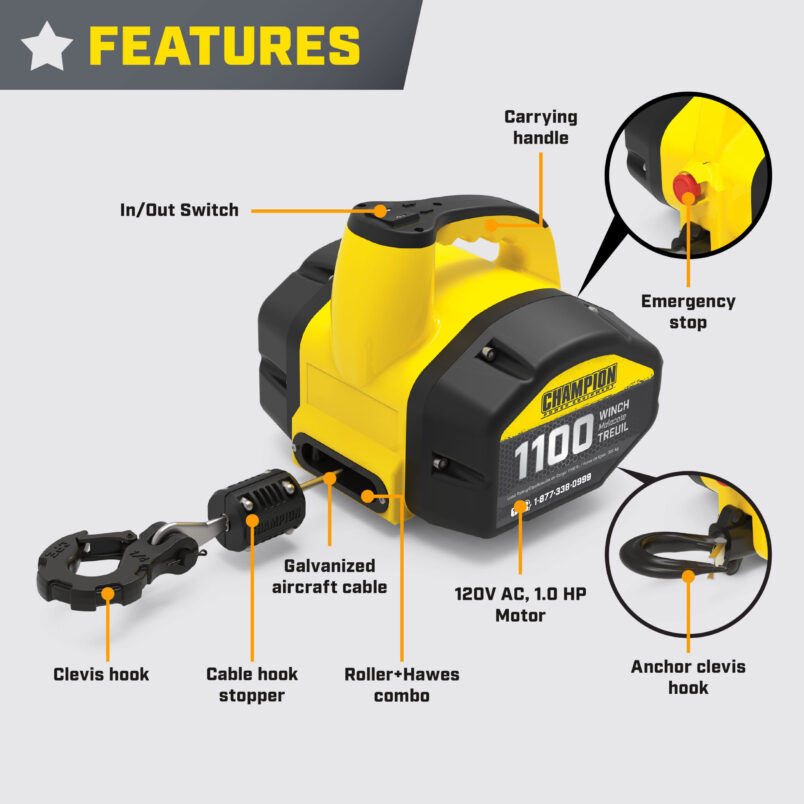

Features
Convenient
1100 lb. rated line pull and 15 ft. cable powered by a 1hp AC motor with 3.3 ft. (1 m) 120V electric plug with GFCI protection
Versatile
Pulling or lifting capacity for heavy-duty jobs — works both horizontally and vertically
Power-In/Power-Out
Retract or extend the cable provides added convenience
Tough
1 HP (120V) motor provides quiet, dependable, high torque operation as well as A380 aluminum housing to protect from impacts
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 1100 lb. Portable Winch Kit includes everything you need to start winching, including carrying case, cable hook stopper, two (2) D-shackles, two (2) clevis hooks, two (2) treesavers, hand saver/strap, and a pair of utility gloves. This winch kit is the perfect combination of power and performance to use with your vehicles – ATV, trailer, boat, snowmobile – construction, maintenance, machine shops, home improvement, hunting, camping and more. When you need pulling or lifting capacity for heavy-duty jobs this portable winch is the perfect solution – works both horizontally and vertically.
The winch with ergonomic operating handle comes equipped with a rated line pull of 1100 pounds. Attach this winch on your ATV, trailer, side-by-side or suitable structure with the swivel anchor clevis hook to quickly harness the strength of its 1-horsepower AC motor with 3.3 ft. (1 m) 120V electric plug with GFCI protection.

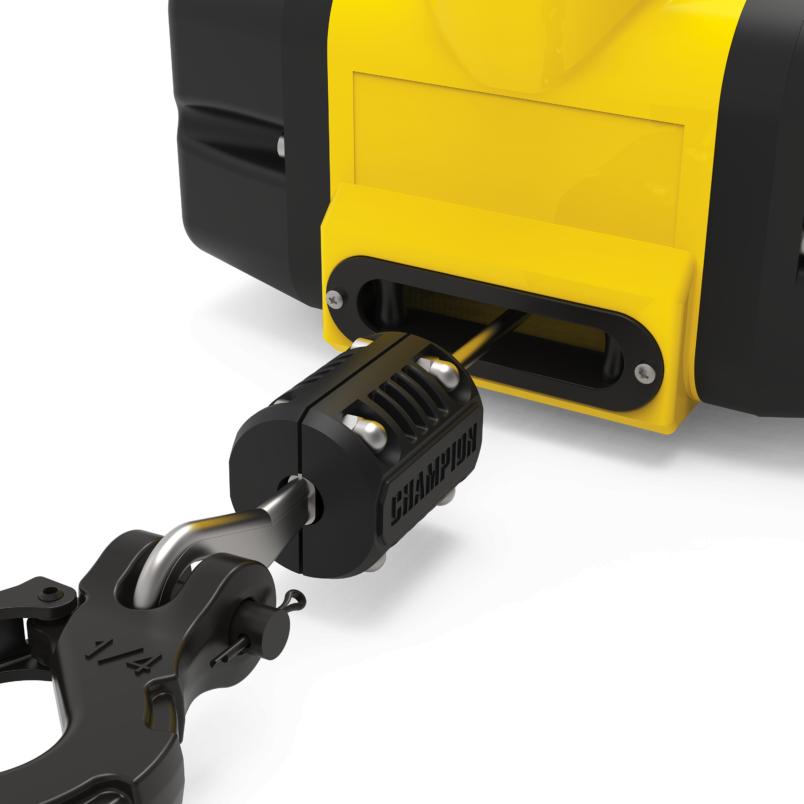

The 15 ft. by 3/16 in. galvanized, super-duty aircraft cable constructed from galvanized steel is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 3.1 x 3.2 in. drum through the unique combo roller hawse to maximize the life of the cable. The power-in/power-out cable provides added convenience and gets you working quickly.
Accompanied by the heavy-duty forged clevis hook and swivel anchor clevis hook, this compact and lightweight winch is anything but lightweight when it comes to power. Offering much more than a motor and a spool of cable, the Champion 1100 lb. portable electric winch kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

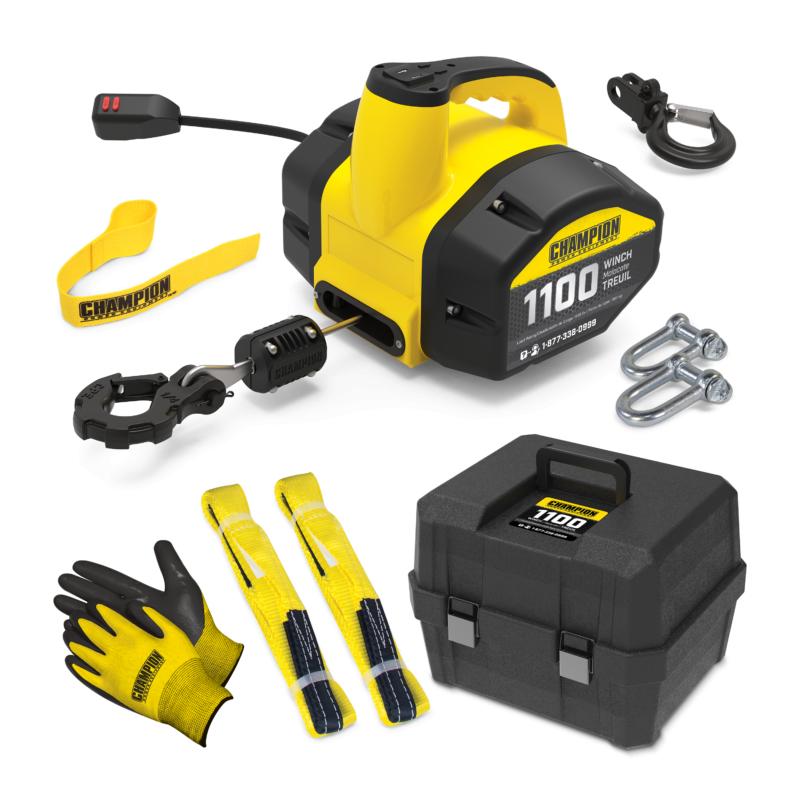

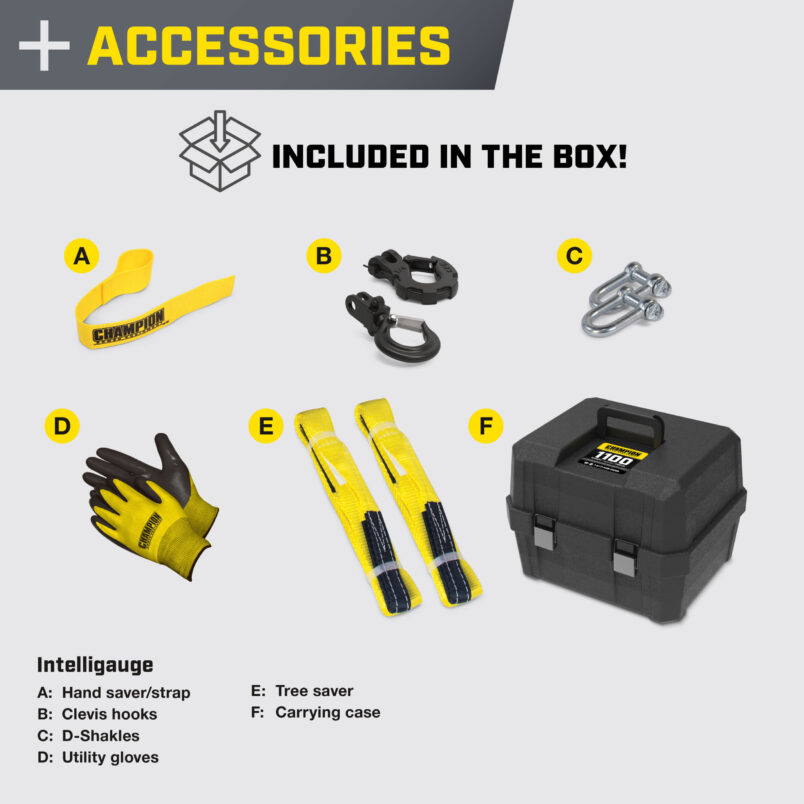

What’s included
- (2) D-Shackles
- Clevis Hook
- Hook Strap
- (2) Tree Savers
- Utility Gloves

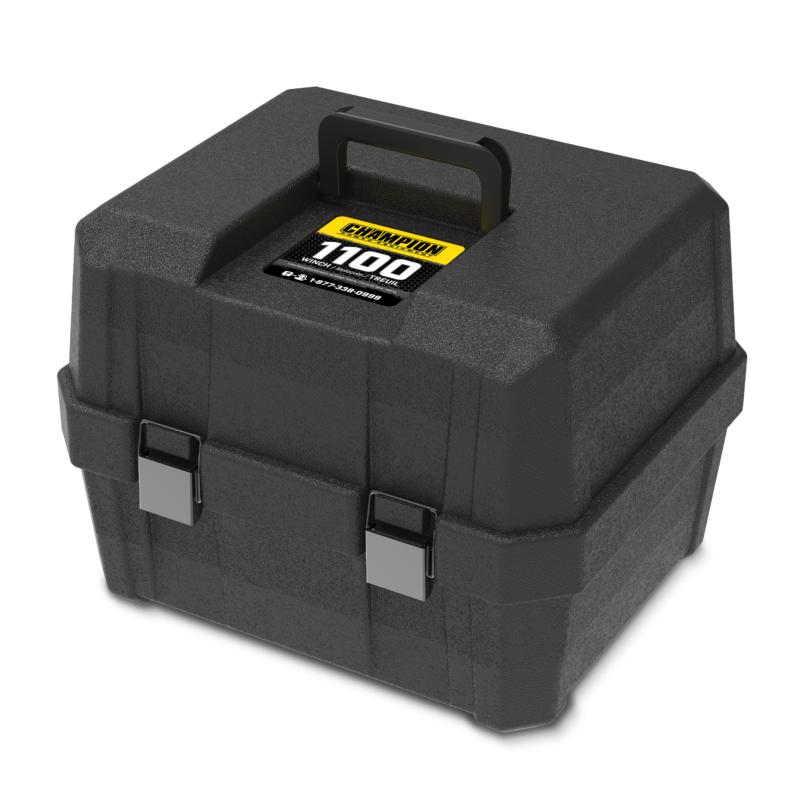

- Carrying Case
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
Winch Type | Utility |
---|---|
Line Pull | 1100 lb. |
Gear Ratio | 1636:1 |
Full Load Line Speed | 6.6 ft/min |
No-Load Line Speed | 6.6 ft/min |
Clutch Type | None |
Brake System | Dynamic |
Rope Material | Galvanized Steel |
Rope Length | 15 ft. |
Rope Diameter | 3/16 in. |
Drum Size | 3.9 x 3.1 in. |
Mounting Channel | No |
Motor Type | 12V DC (Series Wound) |
Horsepower | 1 hp |
Max Current at Full Load | 7.5A |
Duty Cycle | Short duty |
Dimensions
Length | 9.4 in. |
---|---|
Width | 8.1 in. |
Height | 8.3 in. |
Weight | 34.4 lb. |
