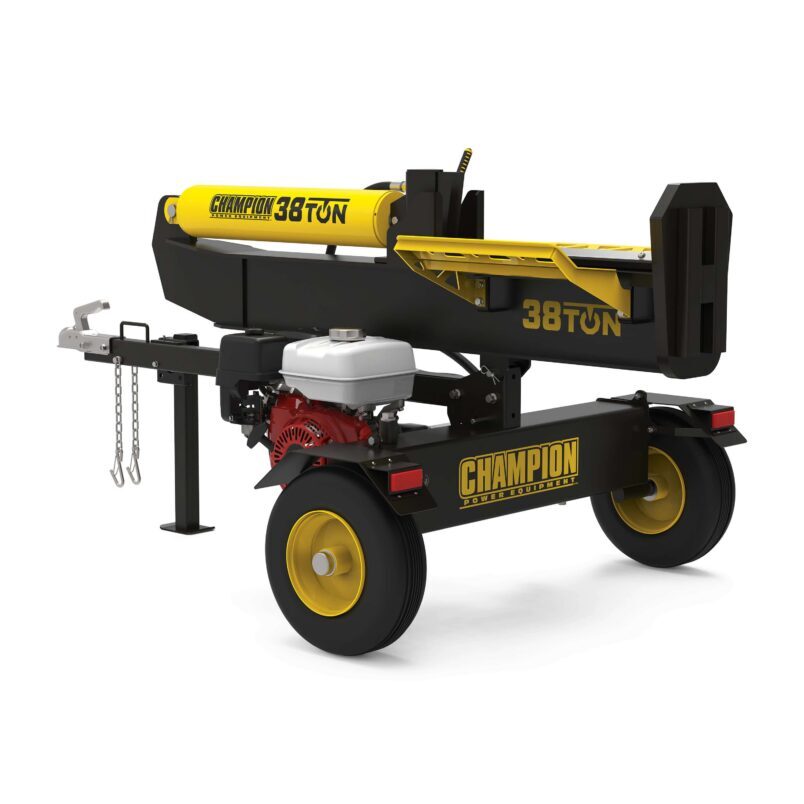

Champion’s towable 38-ton log splitter with Honda GX270 engine easily powers through tough logs. The fast 17-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Features
Powerful

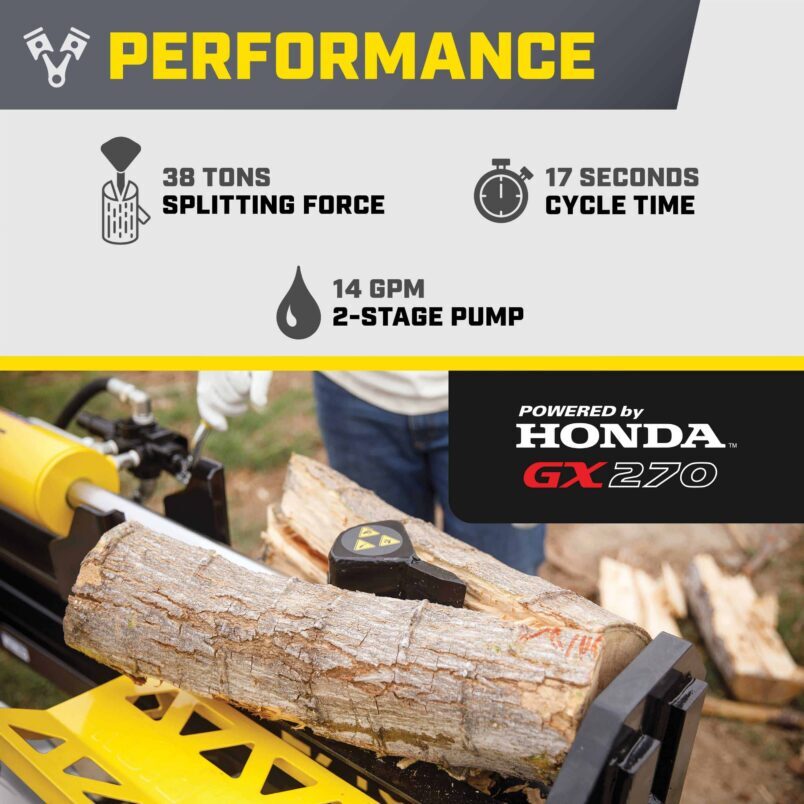

38 tons of splitting capacity powered by the reliable 270cc Honda engine.
Versatile
Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease.
Efficient
17-second cycle time, expanded operator area and dependable auto-return valve capable of over 211 cycles per hour.
Portable

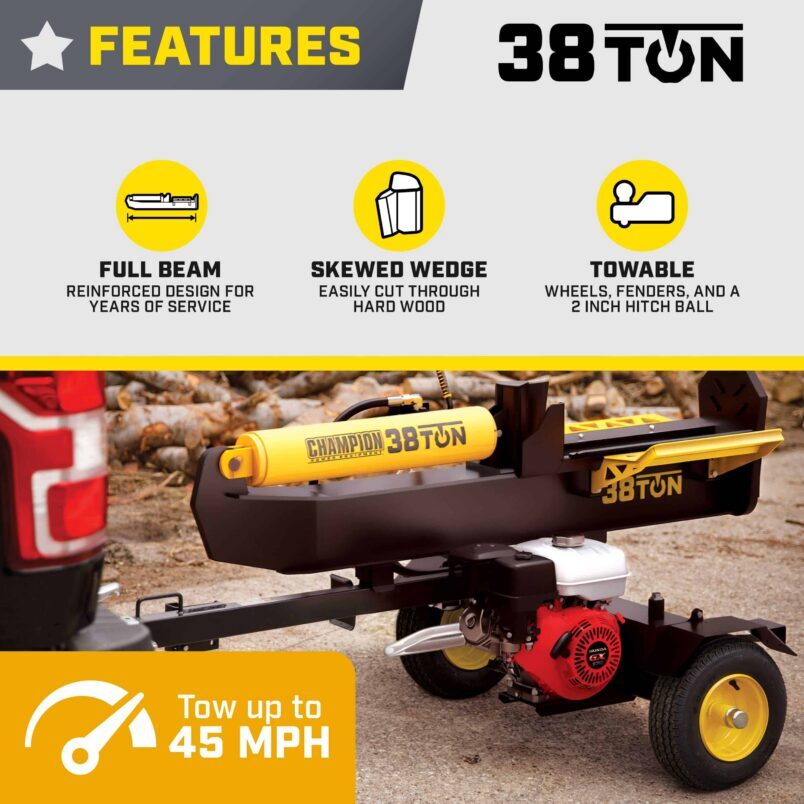

Towable up to 45 mph and fits most truck and ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires.
Champion Support
Backed by a 2 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country.
Description
The Champion Power Equipment 201628 38-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.
Depend on the reliable recoil start to start up the powerful 270cc Honda GX270 engine, which features a 1.4-gallon fuel tank and a 1.2-quart oil capacity.

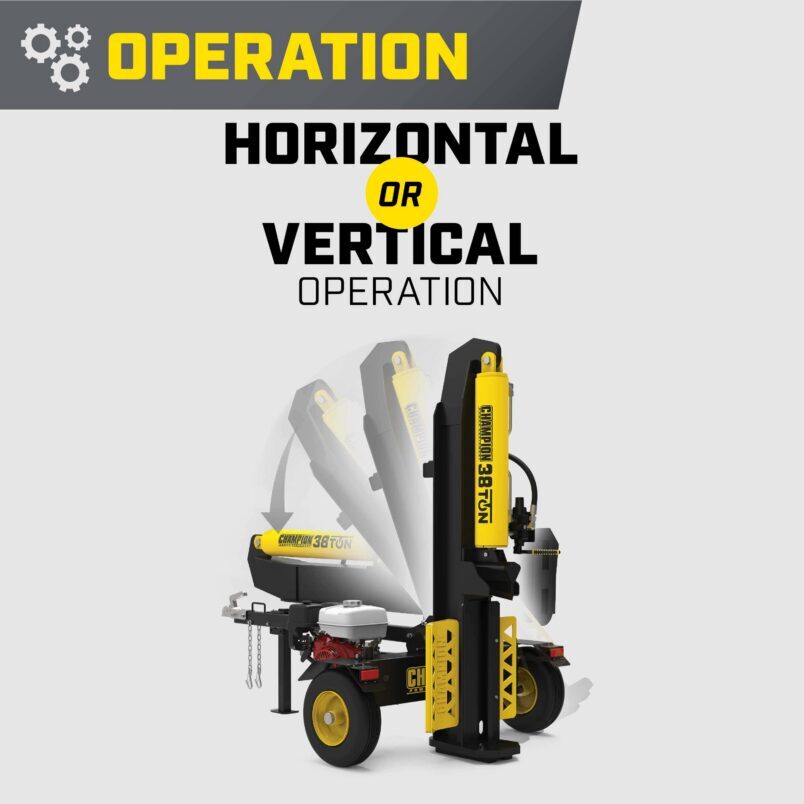

Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds.
Thirty-eight tons of splitting capacity deliver the power you need. The hydraulic oil system has a 6.0-gallon oil capacity and operates at 14 gpm to power through tough logs.
Champion’s efficient design has a fast 17-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 211 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.
The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

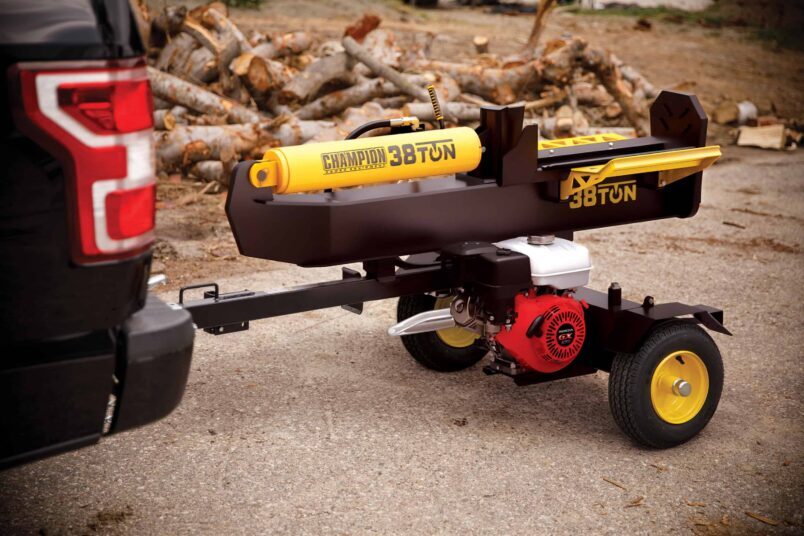

This log splitter will fit in most truck beds, plus it’s easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV and truck towing applications.
EPA-certified, this model comes with a 2-year limited warranty, FREE lifetime technical support, and access to nationwide service centers—giving you peace of mind with your purchase.
What’s included
- Oil Funnel
- Spark Plug Socket/Wrench
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Ram Force | 38-ton |
|---|---|
| Operating Position | Horizontal, Vertical |
| Cycle Time | 17 s. |
| Max Log Length | 24 in. |
| Max Log Weight | 100 lb. |
| Log Cradles | Yes |
| Log Catchers | Yes |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 5 in. |
| Cylinder Rod Diameter | 1.8 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 14 GPM |
| Hydraulic Oil System Capacity | 6 gal. |
| Hydraulic Oil Tank Capacity | 5 gal. |
| Hydraulic Oil Type | ISO 32, AW 32, Automatic Transmission Fluid |
| Hydraulic Filter | Internal/External |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Honda |
| Engine Size | 270cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 6 gal. |
| Engine Oil Capacity | 1.2 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Pneumatic |
| Wheel Diameter | 16 in. |
| Towable | Yes |
| Hitch Type | 2 in. Ball Hitch |
| Fenders | Yes |
| Max Tow Speed | 45 MPH |
| Max Tire Pressure | 3900 PSI |
| EPA Certified | Yes |

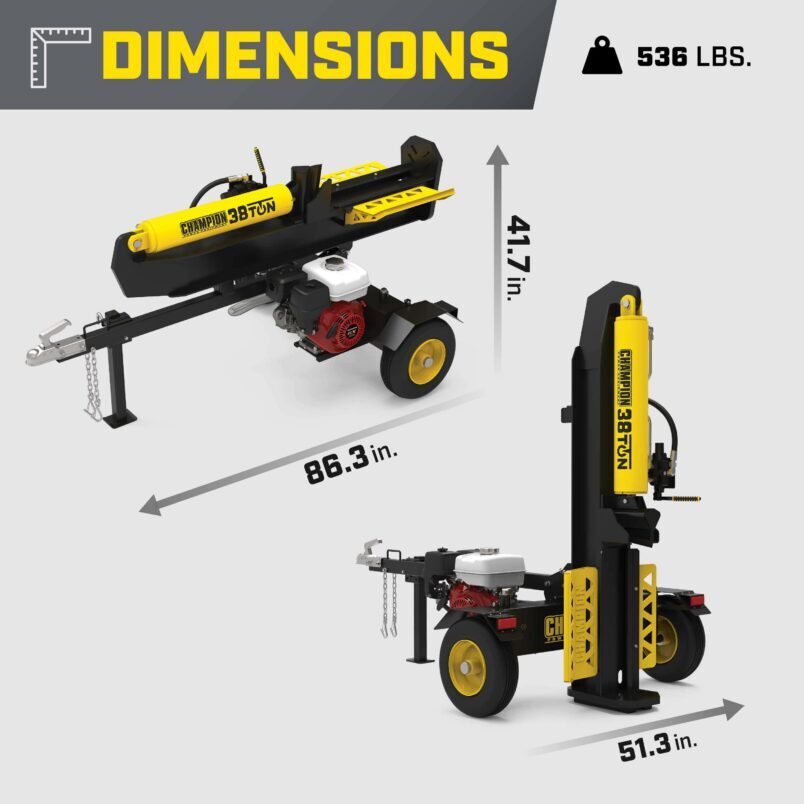

Measurements
| Length | 86.3 in. |
|---|---|
| Width | 51.3 in. |
| Height | 41.7 in. |
| Weight | 536 lb. |
