Champion Power Equipment
Convenient and versatile power is yours with the Champion 3500-watt RV Ready portable generator. Rely on the Champion 208cc engine and enjoy up to 12 hours of run time at 50% load with a dBA of 68. Featuring Intelligauge, this generator is your perfect portable power solution.
Features
Designed for Safety
Includes a low oil shut-off sensor and holds 0.6-quarts of oil (recommended 10W-30)
Reliable and Powerful
At 4375 starting watts and 3500 running watts, enjoy up to XX hours of run time on a full tank of gasoline with a noise level of 68 dBA from 23 feet
Covered Outlets
120V 30A locking, 120V 30A RV and two 120V 20A outlets - Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe
Intelligauge
Monitor voltage, frequency and operating hours with ease
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 100555 3500-Watt RV Ready Portable Generator is the perfect combination of versatility and convenience. A powerful companion for your next camping trip or weekend project, this generator can also provide plenty of backup power for your essentials during an outage. For your RV, you’ll enjoy enough power to start and run a 15,000 BTU RV air conditioner.
Power up with Champion’s reliable recoil start, plus Cold Start Technology ensures a quick start in cold weather. Champion also makes it easy to monitor voltage, frequency and operating hours with Intelligauge.
Designed for safety with convenient push-to-reset circuit breakers, a low oil shut-off sensor plus an included oil funnel for easy changes, this unit has a 0.6-quart oil capacity (recommended 10W-30).
The reliable 208cc single-cylinder OHV Champion engine produces 4375 starting watts and 3500 running watts, and will run for up to 12 hours at 50% load when the 4.8-gallon tank of gasoline is full.
With a noise level of 68 dBA from 23 feet, which is about as loud as a vacuum cleaner, this machine can handle most essentials in an outage, plus the Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe from spikes in voltage.

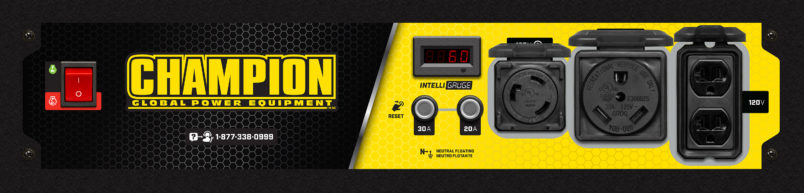

All the outlets have covers for protection and include a 120V 30A (TT-30R) RV outlet as well as a 120V 30A locking outlet (L5-30R) and two 120V 20A household outlets (5-20R).
Champion’s thoughtful packaging and clear directions make setup hassle free.
Buy this EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
What’s included
- Oil Funnel
Specifications
| Gasoline Starting Watts | 4375W |
|---|---|
| Gasoline Running Watts | 3500W |
| Gasoline Starting Amps at 120V | 36.5A |
| Gasoline Running Amps at 120V | 29.2A |
| Volts | 120 |
| Frequency | 60Hz |
| Outlets | 120V 30A Locking (L5-30R), 120V 30A (TT-30R), 120V 20A Duplex (5-20R) |
| GFCI Outlets | No |
| Covered Outlets | Yes |
| Gasoline Run Time at 1/2 Load | 12 h. |
| Noise Level | 68 dBA |
| Parallel Capability | No |
| DC Operation | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 208cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline |
| Fuel Gauge | No |
| Gasoline Capacity | 4.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA G300-2018 Compliant | No |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 23.2 in. |
|---|---|
| Width | 18.3 in. |
| Height | 19.9 in. |
| Weight | 103.4 lb. |
Downloads
Operator's Manual
Parts Information
| Serial Range | Download |
|---|---|
| 1701001000000–2006008000000 | |
| 2006009300001+ |
