Champion Power Equipment

Model #100722

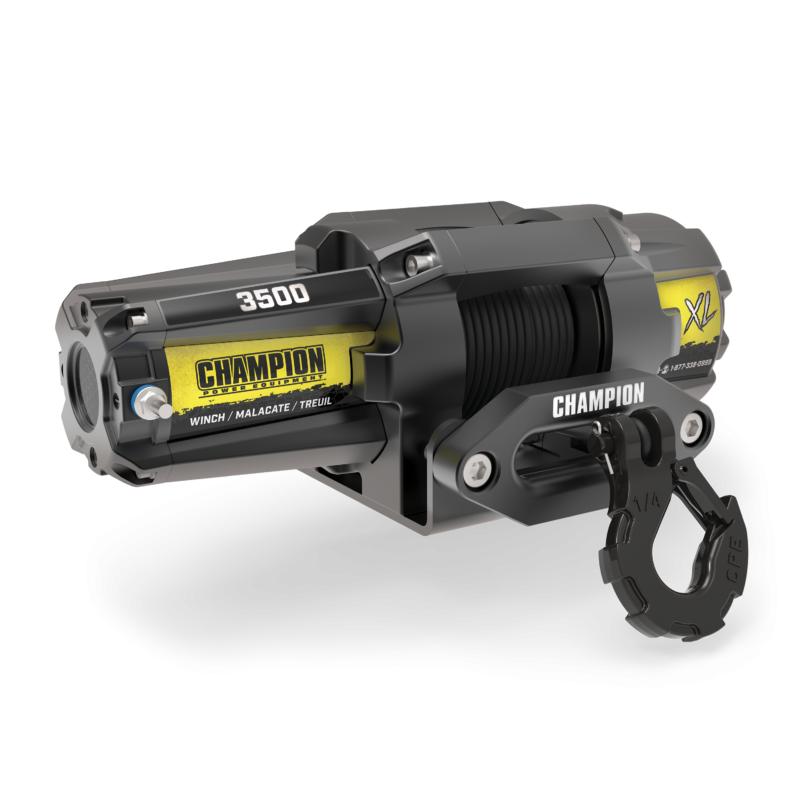

3500-lb. XL Winch Kit

The Champion XL ATV/UTV winch has a 3500-lb. rated line pull, a gear reduction ratio of 180:1, plus a rocker switch and free-spooling clutch to make your experience with this winch even easier. With a tough 1.2-horsepower (12-volt) DC motor, this winch is your perfect heavy-duty tool.

Features

Powerful

3500-lb. rated line pull powered by a 1.2-horsepower (12-volt) DC motor

Efficient

Line speed of 4.5 feet per minute with a full load, and 12.7 feet per minute with no load

Convenient

Included remote control and free-spooling clutch create an easier than ever winching experience

Hassle-Free

The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats. The circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull.

Reliable

IP68 Water and Dust Proof Rated, Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts

Description

The Champion Power Equipment 100722 3500-lb. ATV/UTV Winch includes everything you need to start winching.

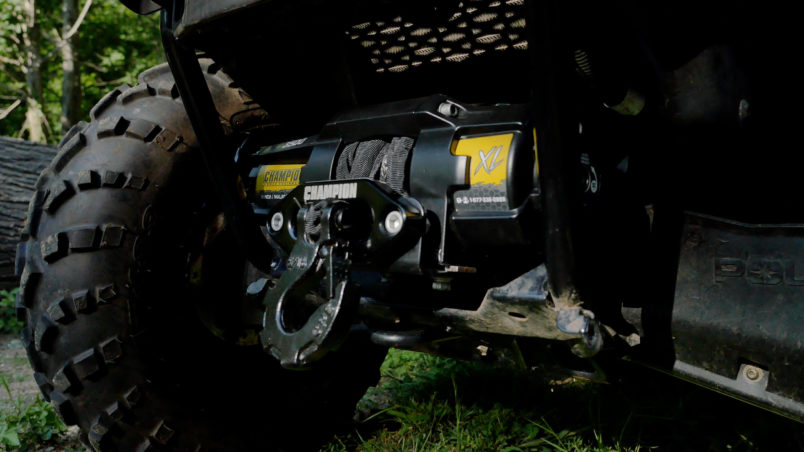

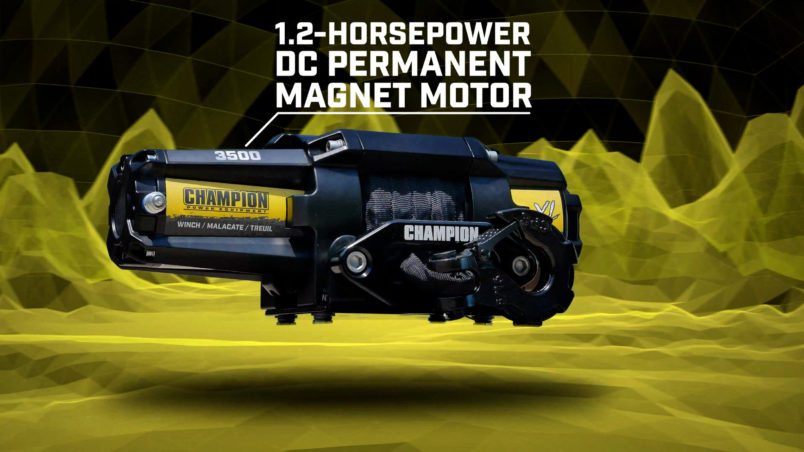

With a rated line pull of 3500 pounds, mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1.2-horsepower (12-volt) DC permanent magnet motor.

Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl.

Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it’s free of wire splinters or burrs often found in steel rope, there’s less chance of injury.

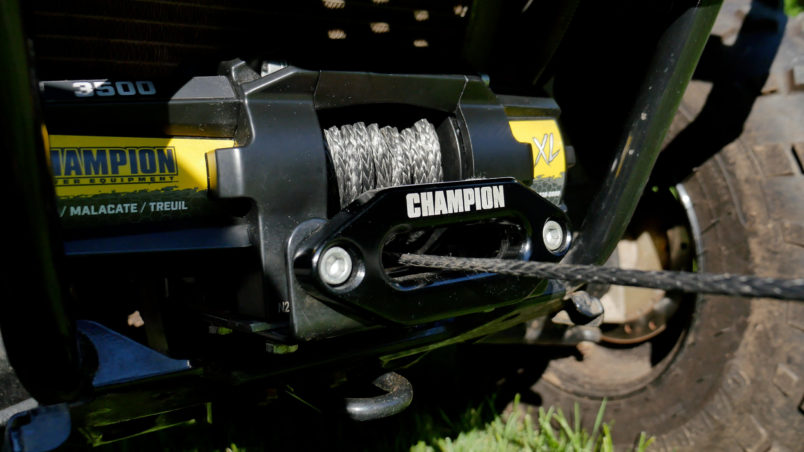

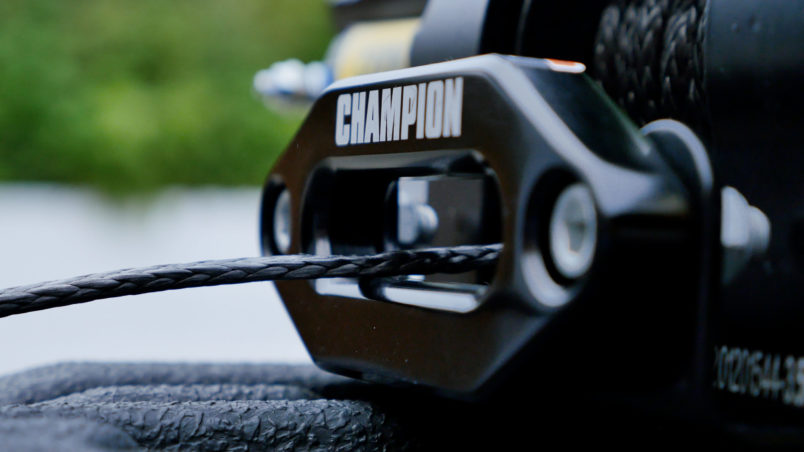

Designed with a stainless-steel thimble and protective sleeve, the 50-feet by 3/16-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope.

Features a positive battery cable with a built-in, self-resetting circuit breaker designed to protect the winch motor from an overweight pull or long full weight pull failures.

The three-stage planetary gear system along with the handlebar-mounted remote control and free-spooling clutch offer excellent control while winching.

With a gear reduction ratio of 180:1, the winch boasts a line speed of 4.9 feet per minute with a full load, and 12.1 feet per minute with no load.

The drum measures 1.7 by 3.2 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power.

Offering much more than a motor and a spool of rope, the Champion 3500-lb. winch kit is a necessary tool for any situation you might encounter.

IP68 Water and Dust Proof Rated, Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

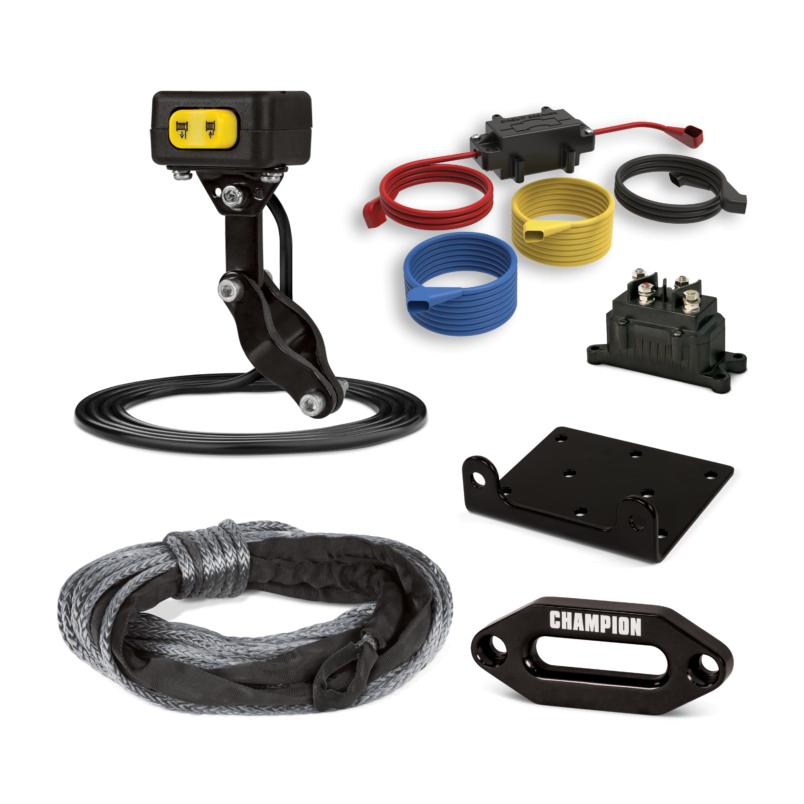

What’s included

  • Synthetic Rope
  • Mini-Rocker Switch
  • Hawse Fairlead
  • Mounting Plate
  • Clevis Hook
  • Battery Cables and Hardware
  • Contactor

Specifications

Line Pull 3500 lb.
Remote Length 6 ft.
Gear Ratio 180:1
Gear System Three-Stage Planetary
Full Load Line Speed 4.5 ft/min
No-Load Line Speed 12.7 ft/min
Clutch Type Free Spooling
Brake System Dynamic
Rope Material Synthetic Rope
Rope Length 50 ft.
Rope Diameter 3/16 in.
Fairlead Type Hawse
Drum Size 1.7 x 3.2 in.
Bolt Pattern 3.0 x 4.9 in.
Mounting Channel Standard
Motor Type 12V DC (Permanent Magnet)
Horsepower 1.2 hp
Max Current at Full Load 180A
Duty Cycle Intermittent

Dimensions

Length 13.8 in.
Width 4.8 in.
Height 5 in.
Weight 24 lb.
