Champion’s Dual Fuel Open Frame Inverter with CO Shield® is 50% quieter and 20% lighter than a traditional 4500-watt generator. Our advanced power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power, plus you can increase your power with the optional Parallel Kit.

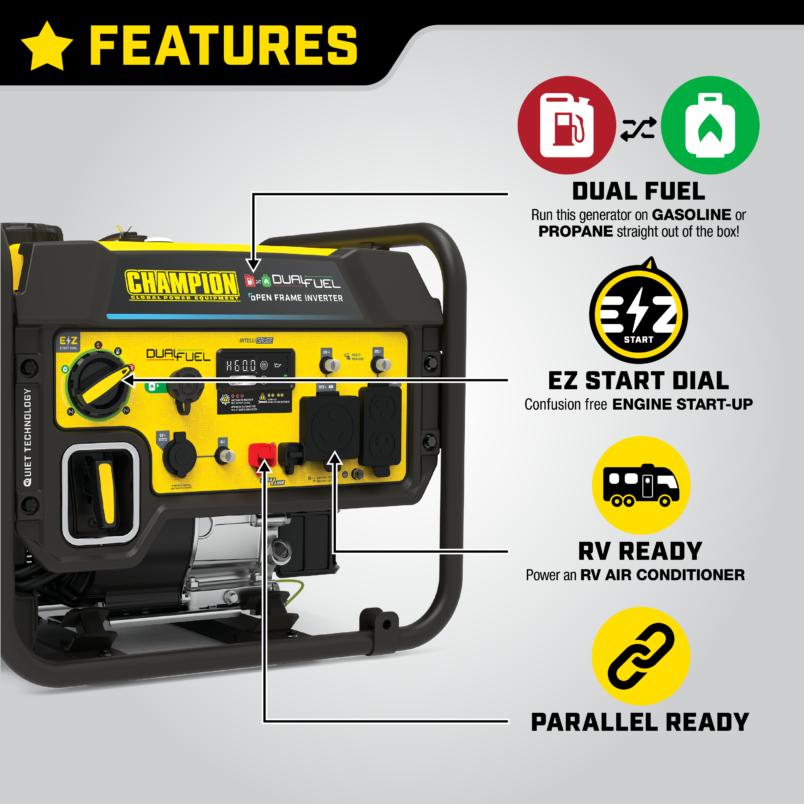

Features
CO Shield® Technology
The UL-recognized sensor in CO Shield® will alert and shut off the generator automatically before harmful levels of carbon monoxide can accumulate, keeping you safe
Advanced Design
50% quieter and 20% lighter than a traditional 4500-watt generator plus Intelligauge monitors voltage, frequency and operating hours while Economy Mode monitors power consumption
Extended Run Time
Produces 4500 starting watts and 3650 running watts on gasoline with a 17-hour run time and 4500 starting watts and 3285 running watts on propane with a run time of 21 hours
EZ Start Dial
The innovative EZ Start Dial takes the confusion out of starting an engine with easy access to all the controls you need
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

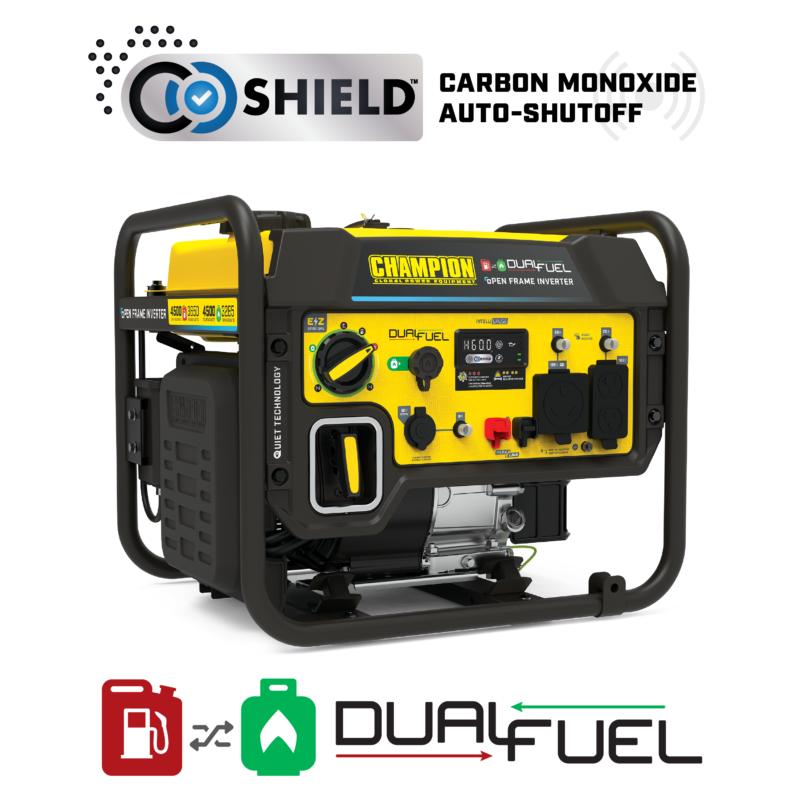

The Champion Power Equipment 4500-Watt features CO Shield® carbon monoxide auto shutoff system. This Open Frame Inverter Generator is smaller, quieter, and BETTER!
Quiet Technology digital components cut the noise level in half, and the efficient mechanical design decreases the overall footprint and weight by 20 percent.
Operate your Dual-Fuel generator on gasoline or propane and safely switch fuels with our patented fuel selector switch.
Using gasoline, the 224cc Champion engine produces 4500 starting watts and 3650 running watts, and will run for 17 hours at 25% load when the 2.9-gallon fuel tank is full. It produces 4500 starting watts and 3285 running watts, and will run for 21 hours at 25% load when using a 20-pound propane tank. A 6-foot propane hose with a built-in regulator is included.
Cold Start Technology ensures reliable starts, Intelligauge with power meter monitors voltage, frequency and operating hours, while Economy Mode monitors power consumption in real time to reduce electrical load.
With a 0.6-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 64 dBA from 23 feet, which is a bit louder than normal speech.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

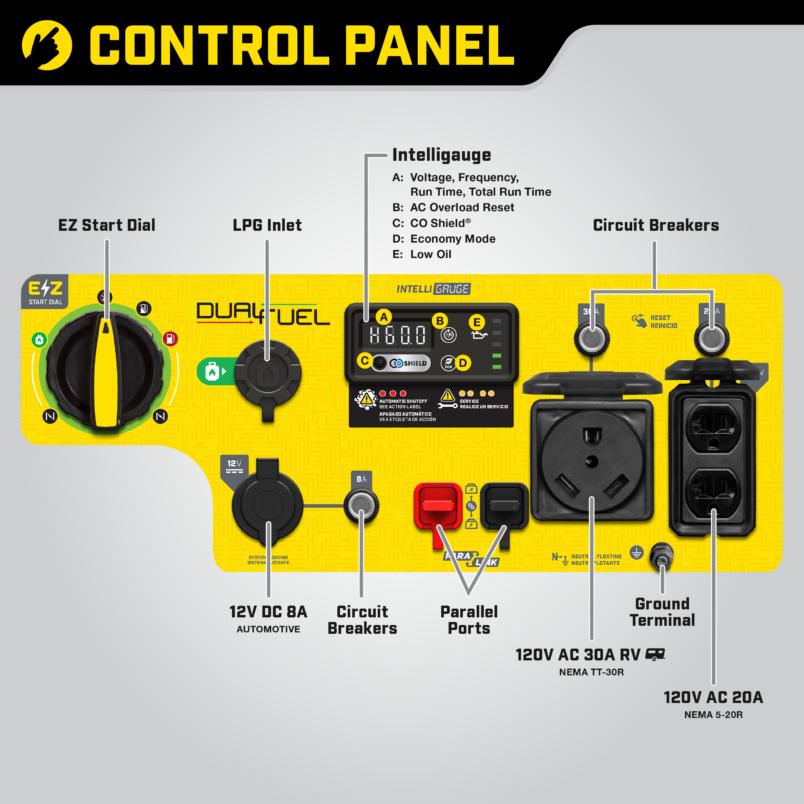

Covered outlets include a 120V 30A RV (TT-30R), two 120V 20A household outlets (5-20R) and a 12V DC automotive-style outlet with a dual USB adapter.
The optional Parallel Kit is sold separately and allows you to increase output by connecting up to two 2800-watt or higher inverters.
Buy this EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

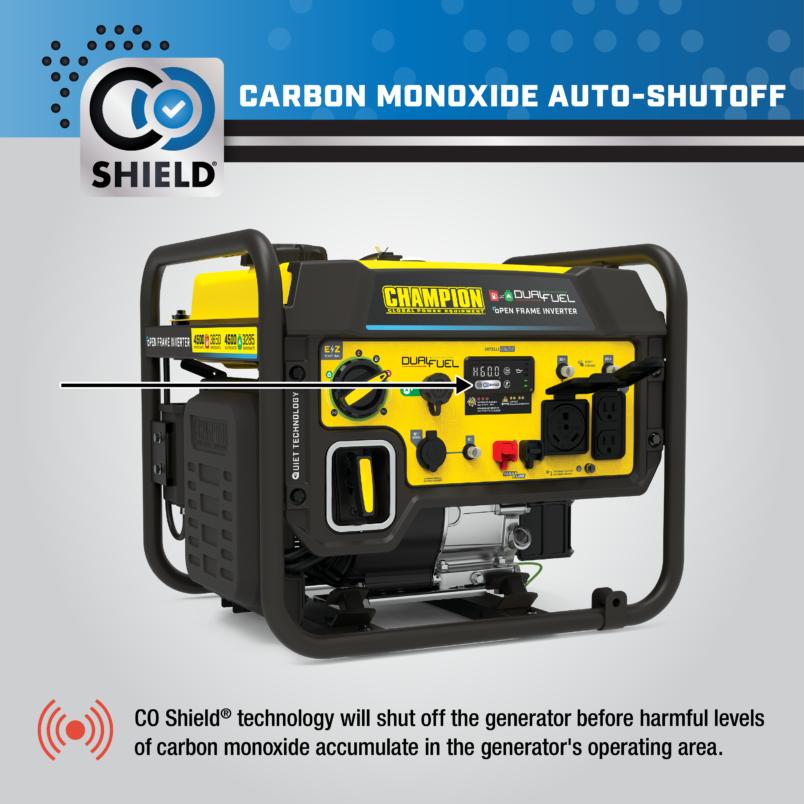

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Propane (LPG) Hose
- Spark Plug Wrench
- USB Adapter
- Engine Oil
- Oil Funnel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | Dual Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 4500W |
| Gasoline Running Watts | 3650W |
| Propane Starting Watts | 4500W |
| Propane Running Watts | 3285W |
| Gasoline Starting Amps at 120V | 37.5A |
| Gasoline Running Amps at 120V | 30.4A |
| Propane Starting Amps at 120V | 37.5A |
| Propane Running Amps at 120V | 27.4A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 120V 30A (TT-30R), 120V 20A Duplex (5-20R), 12V DC Automotive, Parallel |
| DC Operation | Yes |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 17 h. |
| Propane Run Time at 1/4 Load | 21 h. |
| Noise Level | 64 dBA |
| Inverter | Open Frame |
| Parallel Capability | Yes |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline, Propane (LPG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 2.9 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 21.3 in. |
|---|---|
| Width | 18.1 in. |
| Height | 18.1 in. |
| Weight | 76 lb. |
