Champion’s 9-ton log splitter with hitch adapter for easy transport has an integrated log cradle, low profile, and efficient skewed wedge. The 80cc engine powers through logs up to 19 inches in length and 50 lb. in weight, while the 20-second cycle time and auto-return valve reduce your work time.
Features
Dependable
The 80cc engine powers a 20-second cycle time and dependable auto-return valve, making this log splitter capable of 180 cycles per hour
Portable
The included hitch adapter makes transport a cinch, while the compact design, comfortable handle and never-flat tires make this log splitter easy to move and easy to store
Low-Profile
Smart low-profile design makes it easier to load heavier logs, while the integrated log cradle keeps them in place
Efficient
The skewed wedge improves splitting efficiency
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

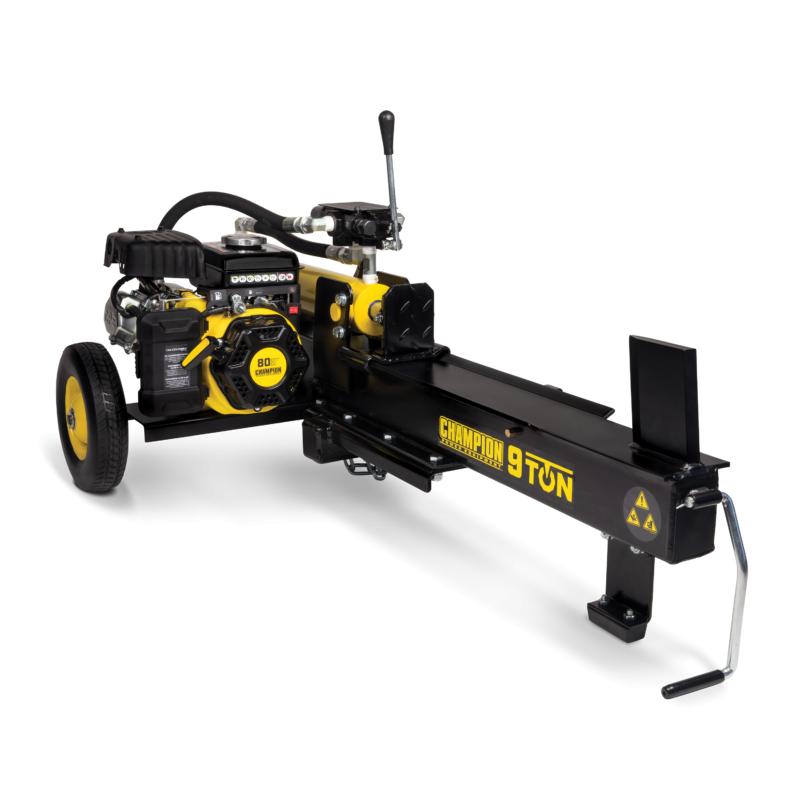

The Champion Power Equipment 201124 9-Ton Horizontal Gas Log Splitter is small on size but big on power. If you’re looking for a quick, dependable and portable solution for log splitting, this is the unit for you.
Transporting your log splitter has never been easier with the integrated hitch adapter for hassle-free transport from one work site to another. The comfortable handle and 10-inch never-flat tires make it easy to move and easy to store.
Depend on the reliable recoil start to start up the powerful Champion 80cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.4-gallon fuel tank, 0.4-quart oil capacity (recommended 5W-30) and a low-oil shutoff for safety.
Never struggle to lift a large, heavy log onto your log splitter again. The low-profile design makes it much easier to load a large log onto the splitting beam, and the integrated log cradle keeps the log safely in position. This small but mighty machine handles logs up to 19 inches long, weighing up to 50 pounds.
Seven tons of splitting capacity deliver the power you need for the job at hand. The hydraulic oil system has a 1-gallon oil capacity and operates at 3 gpm to power through tough logs.
Champion designed this log splitter with a skewed wedge to increase splitting efficiency, plus it has a 20-second cycle time and dependable auto-return valve, which is capable of 180 cycles per hour.
The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.
Champion’s clear directions and thoughtful packaging simplify assembly and setup so your new log splitter will be ready when you are.
This log splitter is EPA certified. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Oil Funnel
Specifications
Ram Force | 9T |
---|---|
Operating Position | Horizontal |
Cycle Time | 20 s. |
Max Log Length | 19.3 in. |
Max Log Weight | 50 lb. |
Log Cradles | No |
Log Catchers | No |
Auto Return | Yes |
Wedge Type | Single |
Wedge Material | Hardened Steel |
Cylinder Diameter | 3 in. |
Cylinder Rod Size | 1.2 in. |
Hydraulic Pump | 2-Stage |
Hydraulic Flow Rate | 3 gal/min |
Hydraulic Oil System Capacity | 1.5 gal. |
Hydraulic Oil Tank Capacity | 1 gal. |
Hydraulic Oil Type | AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid |
Hydraulic Filter | No |
Hydraulic Oil Included | No |
Power Type | Gasoline |
Start Type | Recoil |
Engine Brand | Champion |
Engine Size | 80cc |
Engine Type | 4-stroke |
Gasoline Capacity | 0.4 gal. |
Engine Oil Type | 5W-30 |
Engine Oil Capacity | 0.4 qt. |
Engine Oil Included | No |
Low Oil Shut-Off | Yes |
Wheels | Yes |
Wheel Type | Solid |
Wheel Diameter | 10 in. |
Towable | Yes |
Hitch Type | 2 in. Ball Hitch |
Fenders | No |
EPA Certified | Yes |
CARB Compliant | Yes |
Dimensions
Length | 53.1 in. |
---|---|
Width | 33.5 in. |
Height | 18.1 in. |
Weight | 183.2 lb. |
