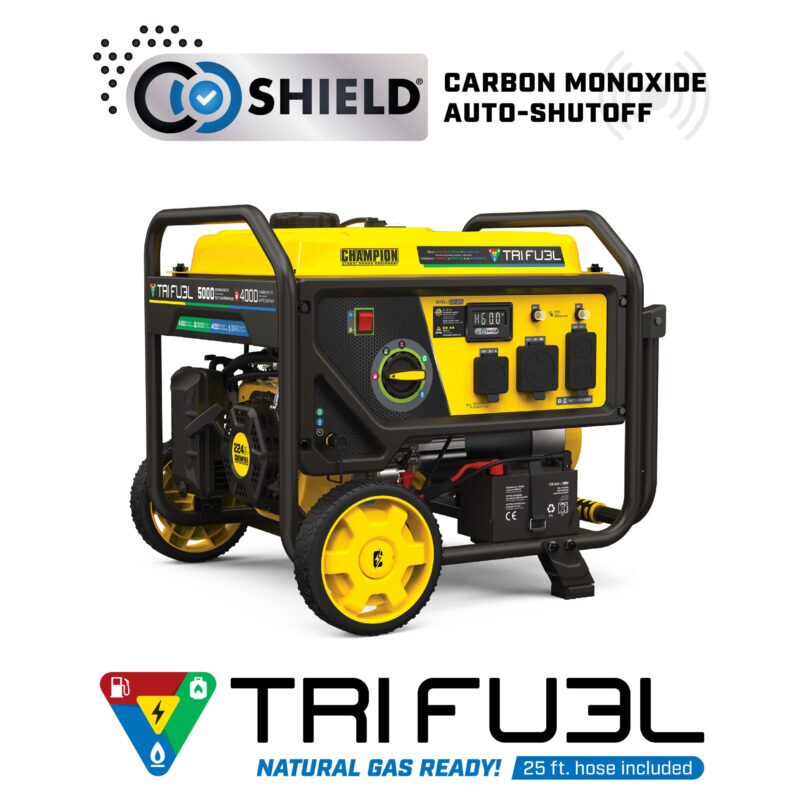

Champion’s 4000-watt natural gas ready generator features CO Shield® carbon monoxide auto shutoff system. It also uses Tri Fuel technology, allowing it to run on natural gas, gasoline, or propane. This unit meets ANSI/PGMA G300-2018 requirements and includes a 25-foot natural gas hose kit.

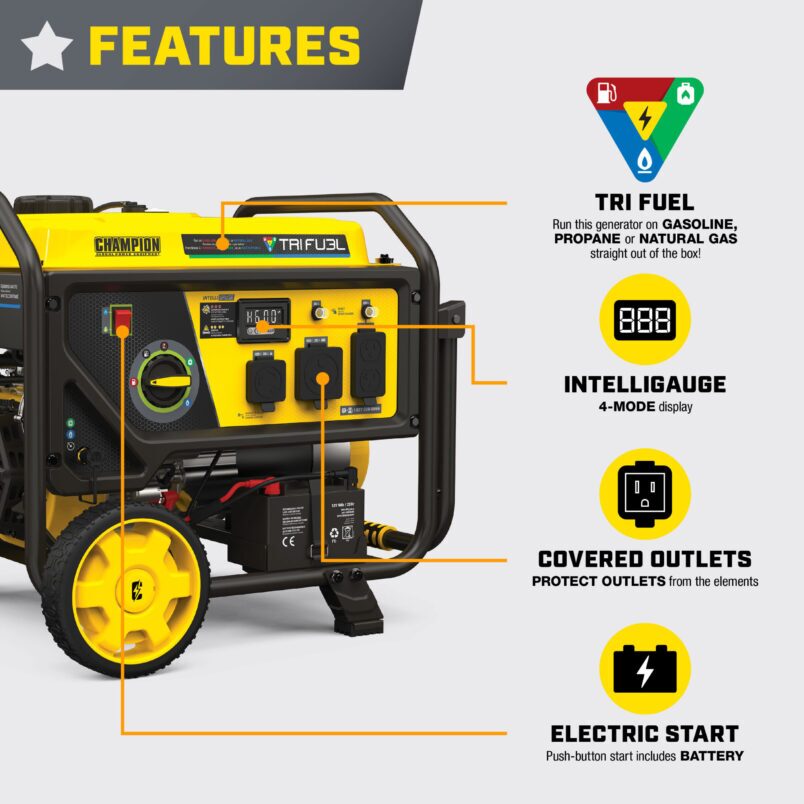

Features
Tri Fuel

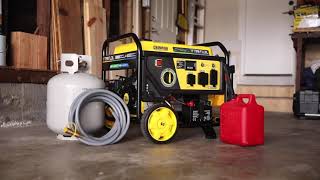

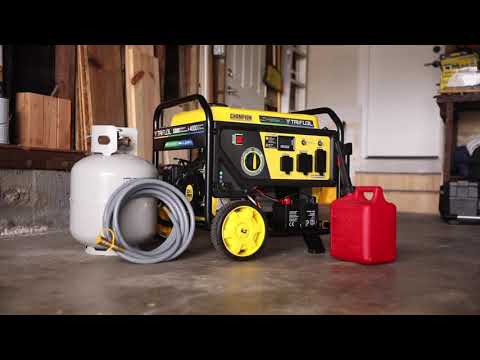

Your 4000-watt portable generator operates on natural gas, propane, or gasoline, plus natural gas and propane hoses are included so the unit is ready to run on any fuel right out of the box
Electric Start
Power up the 224cc Champion engine with the handy rocker switch, battery included
Intelligauge with CO Shield®
Track voltage, frequency, session run time, and total run time, plus the UL-recognized sensor uses an LED to indicate CO shutoff or fault
Powerful
Gasoline: 5000 starting watts and 4000 running watts, propane: 4500 starting watts and 3600 running watts, natural gas: 4050 starting watts and 3240 running watts and engine oil is included
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 201223 4000-Watt Tri Fuel Portable Natural Gas Ready Generator with CO Shield® is a reliable source of power with the flexibility you need. When you are not running your generator on natural gas, you also have the option of operating it on gasoline or propane. The ability to operate your generator on three types of fuel out of the box makes this one of the most versatile generators on the market.
The Fuel Select dial allows you to safely select gasoline, propane (LPG), or natural gas (NG) as your fuel source.

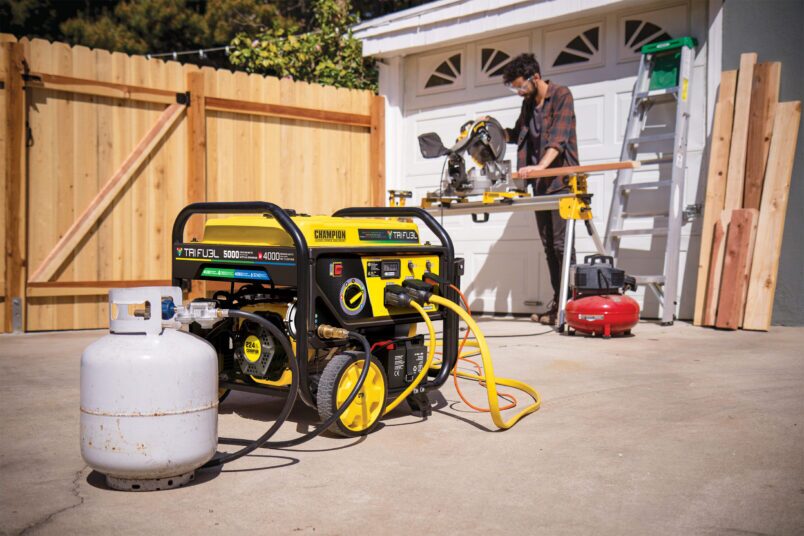

Using gasoline, the 224cc Champion engine produces 5000 starting watts and 4000 running watts, and will run for 14 hours at 50% load when the 5-gallon fuel tank is full. When using a 20-pound propane tank, it produces 4500 starting watts and 3600 running watts, and will run for 10.5 hours at 50% load.
Using natural gas, the engine produces 4050 starting watts and 3240 running watts. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.
The electric start includes a battery, plus Cold Start Technology ensures quick cold-weather starts. With a 0.6-quart oil capacity, this unit has a low oil shut-off sensor and includes engine oil – all you need is fuel!
Easily monitor power output and track maintenance intervals with Intelligauge, which allows you to keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals.
This generator has a noise level of 68 dBA from 23 feet, which is a bit louder than a vacuum.

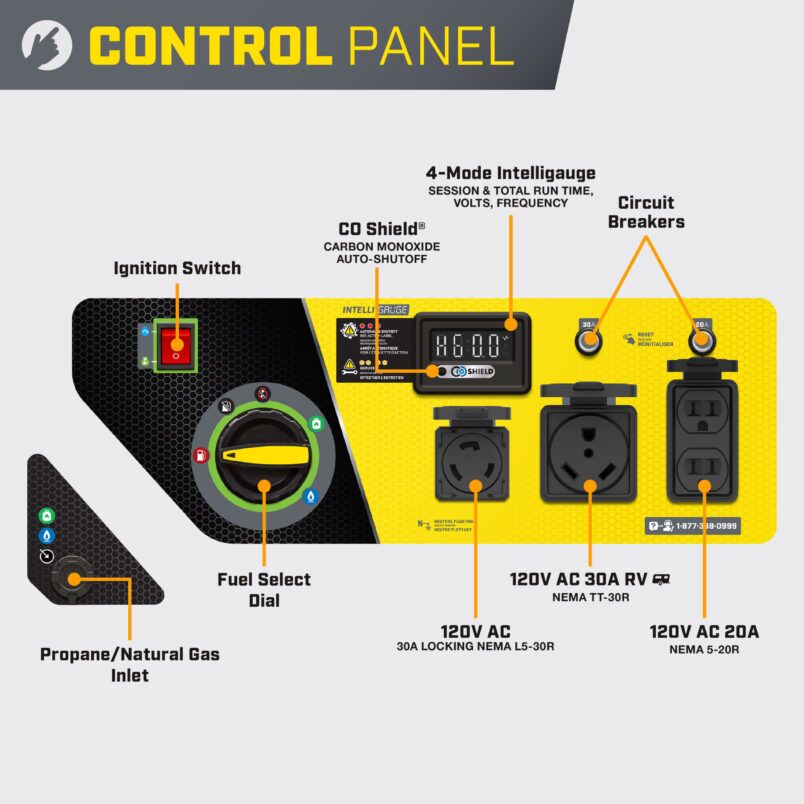

The covered outlets include a 120V 30A locking outlet (L5-30R), a 120V 30A RV outlet (TT-30R) and a 120V 20A duplex household outlet (5-20R).
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

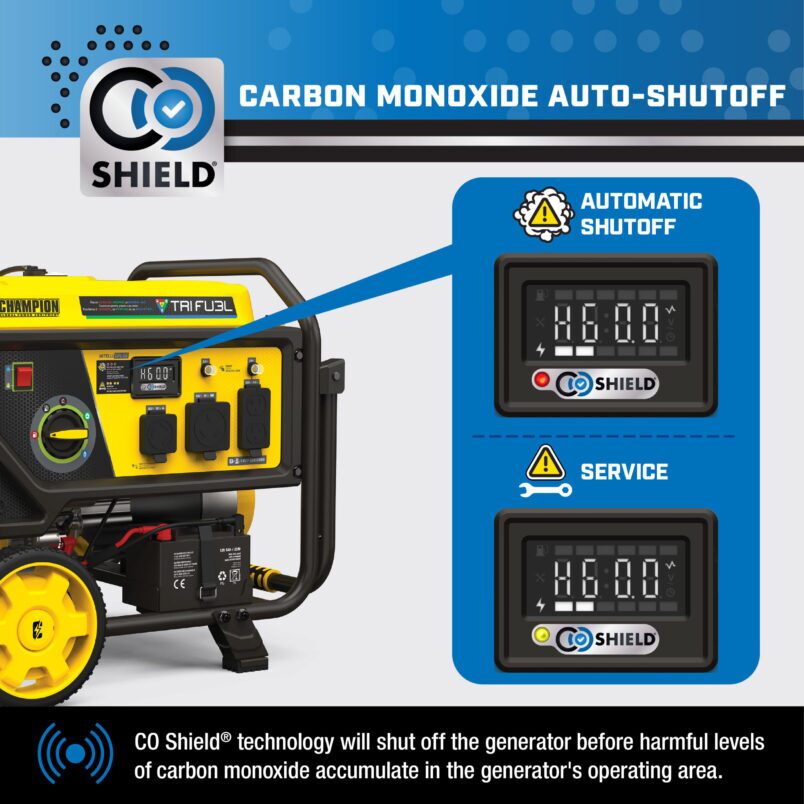

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Natural Gas Hose with NPT Adapter
- Propane (LPG) Hose
- Oil Funnel
- Wheel Kit
- Battery
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | Tri Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 5000W |
| Gasoline Running Watts | 4000W |
| Propane Starting Watts | 4500W |
| Propane Running Watts | 3600W |
| Natural Gas Starting Watts | 4050W |
| Natural Gas Running Watts | 3240W |
| Gasoline Starting Amps at 120V | 41.7A |
| Gasoline Running Amps at 120V | 33.3A |
| Propane Starting Amps at 120V | 37.5A |
| Propane Running Amps at 120V | 30A |
| Natural Gas Starting Amps at 120V | 33.8A |
| Natural Gas Running Amps at 120V | 27A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 120V Duplex (5-20R), 120V Locking (L5-30R), 120V (TT-30R) |
| DC Operation | No |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/2 Load | 14 h. |
| Propane Run Time at 1/2 Load | 10.5 h. |
| Noise Level | 68 dBA |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG), Natural Gas (NG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 5 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 5W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
Dimensions
| Length | 24.6 in. |
|---|---|
| Width | 25 in. |
| Height | 22.2 in. |
| Weight | 135 lb. |
