Model #201612

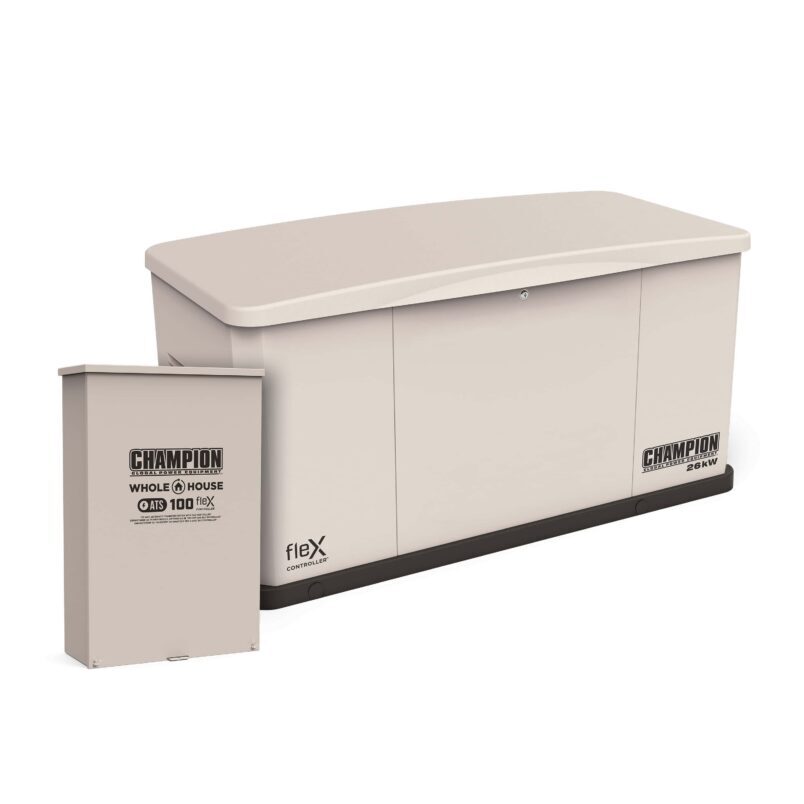

26 kW Whole House Home Standby Generator and 100A Switch with fleX Technology
Champion’s 26 kW Home Standby Generator System delivers fully automatic whole-house backup power with a 100A service entrance transfer switch. Featuring the programmable fleX controller, Power Line Carrier technology, and a durable all-aluminum enclosure, it’s built for reliable home protection.
Features
Fully Automatic Backup Power
Automatically powers your home during an outage—no refueling, extension cords, or manual operation required, with seamless transfer through the included 100A ATS
fleX Programmable Control System
Customize load priorities (1–4), manage large appliances, and optimize power usage so you can run a smaller generator efficiently in larger homes
Power Line Carrier Technology
Uses your home’s existing wiring for communication, reducing installation time, minimizing extra wiring, and helping lower overall install costs
All-Aluminum Enclosure & Cold-Weather Ready
Corrosion-resistant aluminum housing provides long-lasting, weatherproof protection, while the 24V starting system operates in temperatures down to -22 °F
Champion Support
Generator backed by a 10-year limited warranty, transfer switch covered by a 2-year limited warranty, plus FREE lifetime technical support from dedicated experts
Description
When the power goes out, your home doesn’t have to.
The Champion 26 kW Automatic Home Standby Generator System with 100A Service Entrance Automatic Transfer Switch delivers whole-house backup power without refueling, extension cords, or manual startup. It automatically detects outages and restores power within seconds.
At the heart of the system is Champion’s programmable fleX controller. It gives you control over how backup power is used. With load management modules, you can assign appliance priority levels (1–4), manage large electric loads, or lock out select circuits while on standby power—helping you use available capacity more efficiently.
Power Line Carrier technology simplifies installation by using your home’s existing wiring for communication, reducing the need for additional control wiring and helping lower installation time and cost.
The 999cc V-Twin engine delivers up to 23.4 kW on natural gas and 26 kW on propane, providing strong capacity for larger homes. The 24V starting system is engineered to operate in temperatures down to -22 °F for reliable cold-weather performance. At a residential-friendly 67 dB(A)*, it operates at a sound level comparable to normal conversation.
A corrosion-resistant all-aluminum enclosure provides long-lasting, weatherproof protection, while advanced airflow design supports cooler operating temperatures for extended engine life.

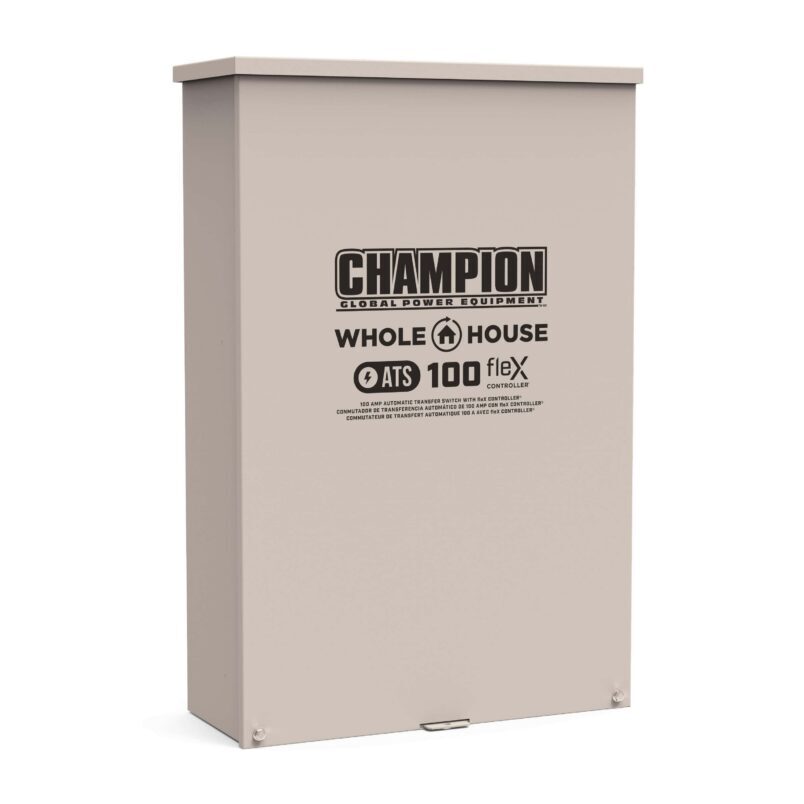

The included 100A service entrance automatic transfer switch features Wi-Fi Direct setup, digital controls, and a NEMA 3R aluminum enclosure for secure outdoor installation.
With fully automatic 24/7 operation and efficient performance at average loads, this system is built to help protect your home and daily routine during unexpected outages.
The generator is backed by a 10-year limited warranty, and the included transfer switch is covered by a 2-year limited warranty.
*Measurement is approximate and for reference purposes only. Sound measured at 23 ft. (7 m). Installation site conditions may vary.
What’s included
- Gas Inlet Flex Hose
- LPG Main Metering Jet
- Battery Jump Wire
- Keys for Door Lock
- Manual Operation Switch Handle
- 4mm Hex Key
- 5 mm Hex Key
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Propane Rated Watts | 26000W |
|---|---|
| Natural Gas Rated Watts | 23400W |
| Propane Rated Amps at 120V | 216.6A |
| Propane Rated Amps at 240V | 108.3A |
| Natural Gas Rated Amps at 120V | 195A |
| Natural Gas Rated Amps at 240V | 97.5A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 2.39gal/h |
| Propane Fuel Consumption at Full load | 3.95 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 197.8 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 321.1 ft3/h |
| Main Line Circuit Breaker | 120A |
| Starting System | Automatic 24V |
| Operational Volume | 68 dB(A) |
| Cooling System | Air Cooled |
| Generator Enclosure | Aluminum |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 999cc |
| Engine Speed | 3600 |
| Engine Type | 4-stroke V-Twin |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | 0W-40 Full Synthetic |
| Engine Oil Capacity | 3.4 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| ETL Listing | cETLus |
| EPA Certified | Yes |
| Switch Operation | Automatic |
| Switch Application | Whole House |
| Switch Configuration | Service Entrance |
| Switch Amps | 100A |
| Switch Volts | 120/240 |
| Response Time | Adjustable (2.5-240 sec.) |
| Load Management | Yes |
| Switch Enclosure Rating | NEMA 3R |
Measurements
| Length | 89.5 in. |
|---|---|
| Width | 52.3 in. |
| Height | 42.3 in. |
| Weight | 644.7 lb. |
