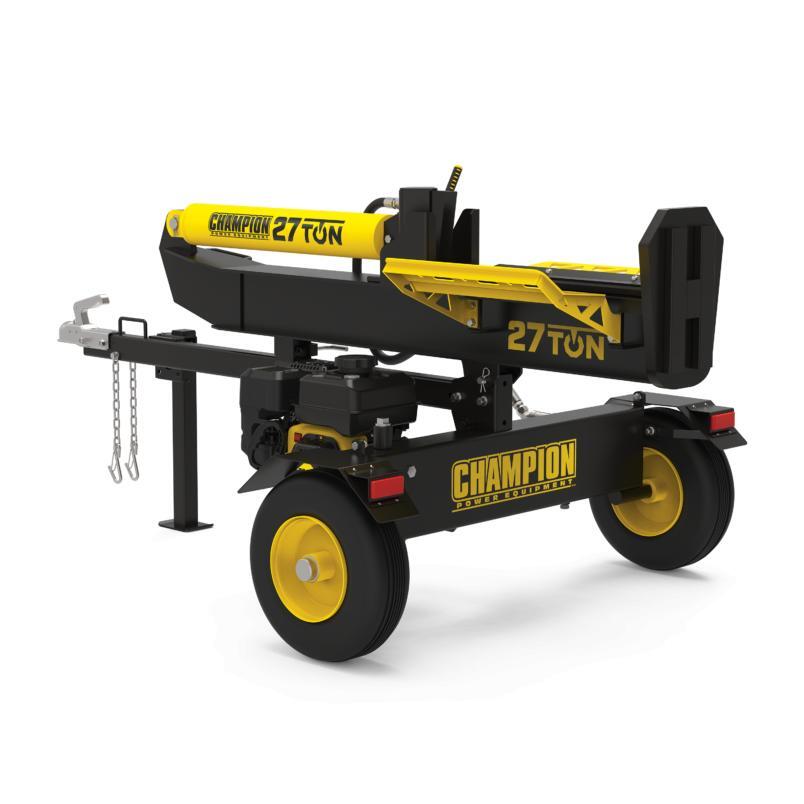

Champion’s towable 27-ton log splitter with its 224cc engine easily powers through the toughest logs. The fast 11-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Features
Powerful
27 tons of splitting capacity with a large 224cc Champion single-cylinder OHV engine
Versatile
Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
Efficient
11-second cycle time, expanded operator area and dependable auto-return valve capable of over 300 cycles per hour
Portable
Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 100424 27-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks.
Depend on the reliable recoil start to start up the powerful Champion 224cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.8-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

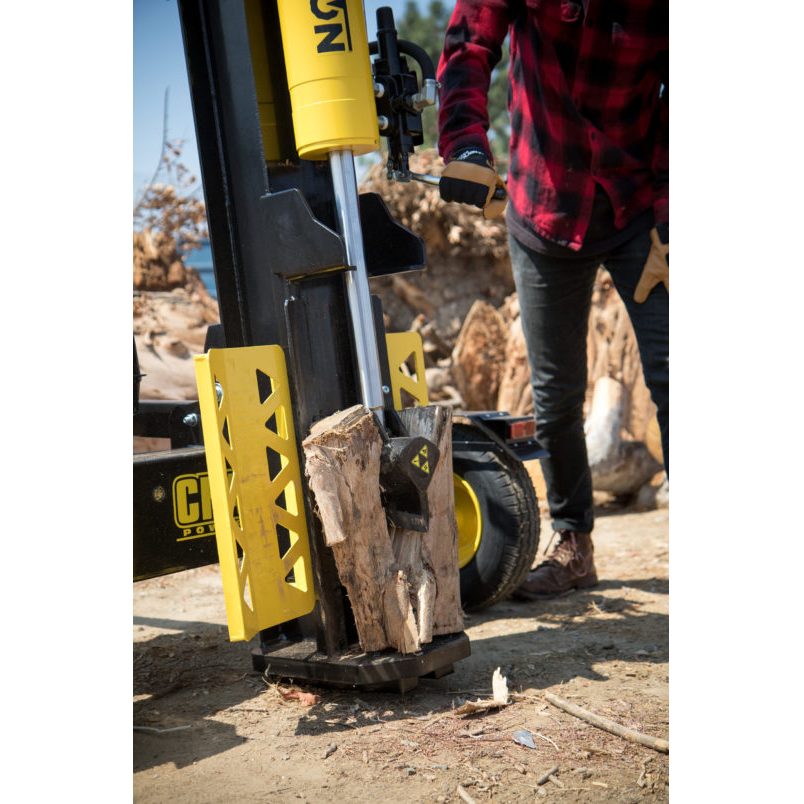

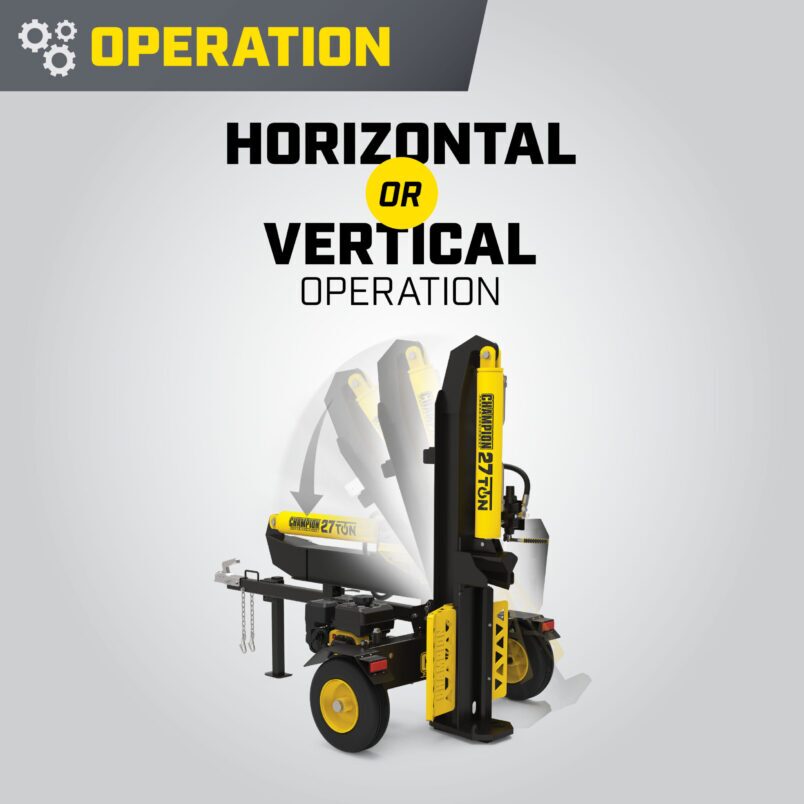

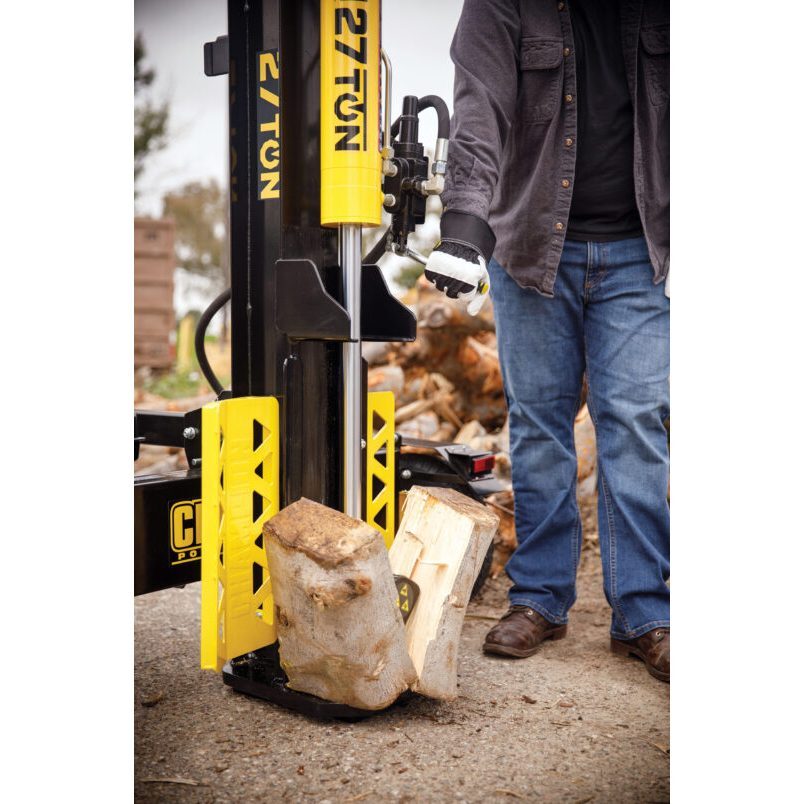

Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24 inches long, weighing up to 100 pounds.

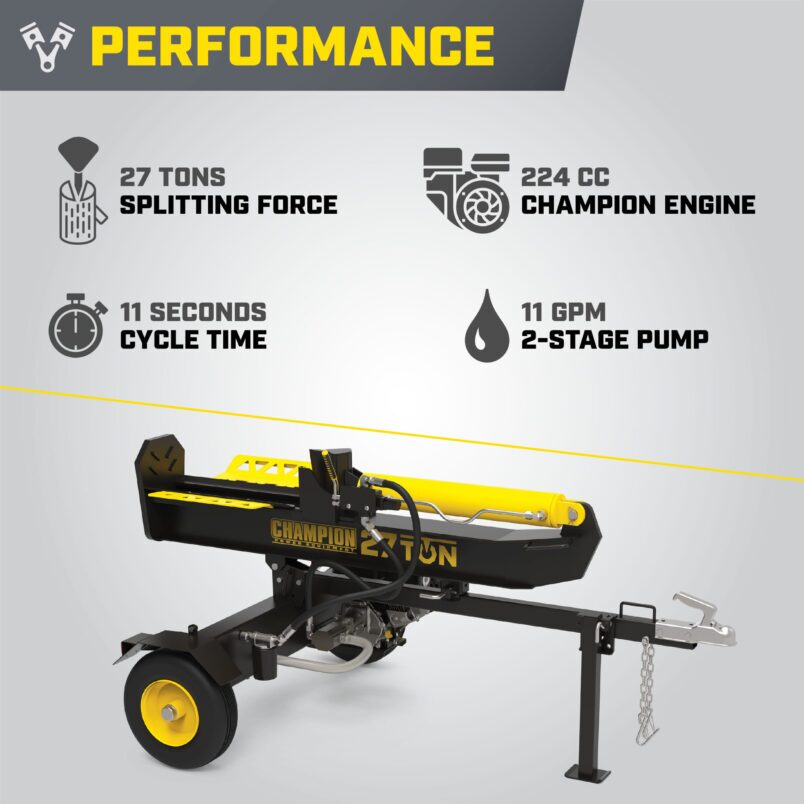

Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 11 gpm to power through tough logs.

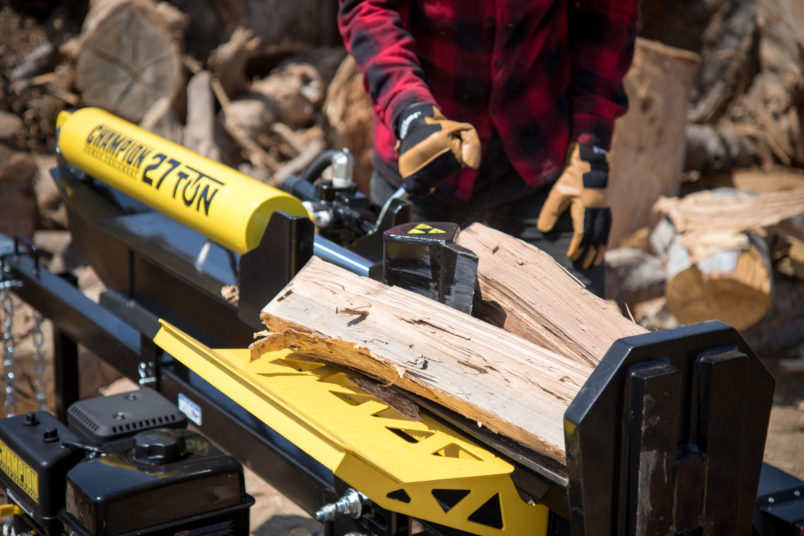

Champion designed this log splitter for efficiency with the fast 11-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 300 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach.
The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.

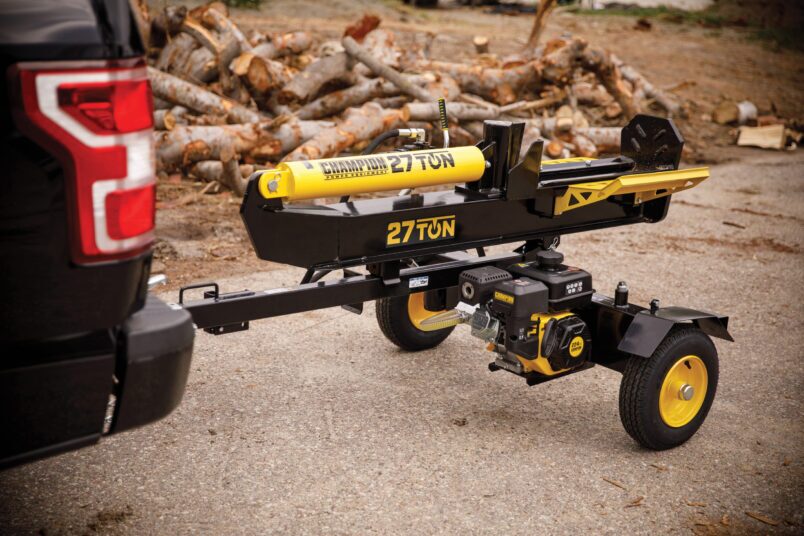

This log splitter will fit in most truck beds, plus it’s easily towable with DOT-approved wheels for up to 45 mph, a 2-inch ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications.
Hassle free with included oil funnel, 10W-30 engine oil and hydraulic oil. (Note: unit comes assembled when purchased in-store; units ordered online come unassembled even if picked up in-store).
This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Oil Funnel
- Log Catchers
- Engine Oil
- Hydraulic Oil
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Ram Force | 27-ton |
|---|---|
| Operating Position | Horizontal, Vertical |
| Cycle Time | 11 s. |
| Max Log Length | 24 in. |
| Max Log Weight | 100 lb. |
| Log Cradles | Yes |
| Log Catchers | Yes |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 3.9 in. |
| Cylinder Rod Size | 1.6 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 11 gal/min |
| Hydraulic Oil System Capacity | 4.5 gal. |
| Hydraulic Oil Tank Capacity | 4 gal. |
| Hydraulic Oil Type | ISO 32, AW 32, Automatic Transmission Fluid |
| Hydraulic Filter | Internal/External |
| Hydraulic Oil Included | Yes |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 0.8 gal. |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Pneumatic |
| Wheel Diameter | 16 in. |
| Towable | Yes |
| Hitch Type | 2 in. Ball Hitch |
| Fenders | Yes |
| Max Tow Speed | 45 mph |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 85.9 in. |
|---|---|
| Width | 51.3 in. |
| Height | 39.8 in. |
| Weight | 434.3 lb. |
Downloads
Operator's Manual
Parts Information
| Serial Range | Download |
|---|---|
| F2207023472 | |
| NF2302050000+ |
