Champion Power Equipment

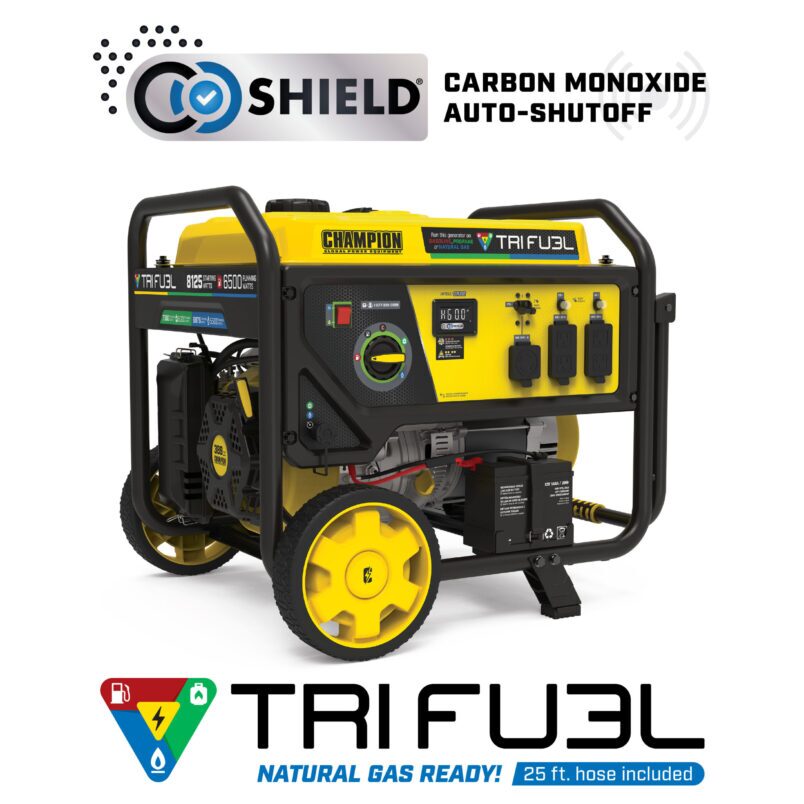

Champion’s 6500-watt natural gas ready generator features CO Shield® carbon monoxide auto shutoff system. Also operating on Tri-Fuel technology, allowing it to run on natural gas, gasoline, or propane. This unit meets ANSI/PGMA G300-2018 requirements and includes a 25-foot natural gas hose kit.

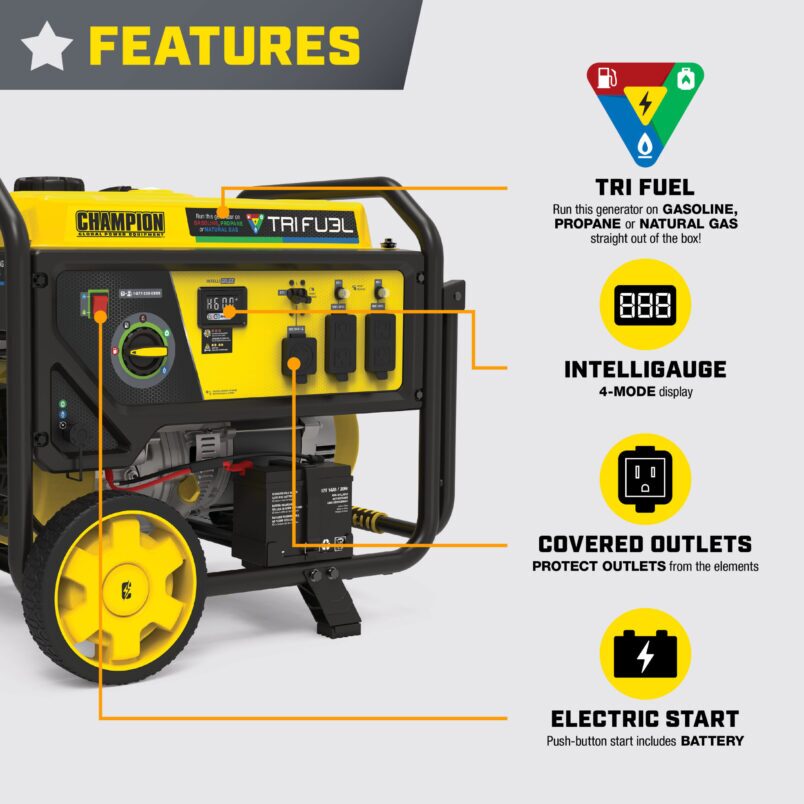

Features
Tri-Fuel
Your 6500-watt portable generator operates on natural gas, propane, or gasoline, plus natural gas and propane hoses are included so the unit is ready to run on any fuel right out of the box
Electric Start
Power up the 389cc Champion engine with the handy rocker switch, battery included
Intelligauge with CO Shield®
Track voltage, frequency, session run time, and total run time to monitor output and track maintenance intervals, plus features CO Shield® carbon monoxide auto shutoff system
Powerful
Gasoline: 8125 starting watts and 6500 running watts, propane: 7500 starting watts and 6000 running watts, natural gas: 6875 starting watts and 5500 running watts and engine oil is included
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

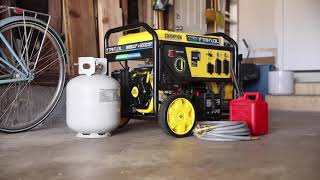

The Champion Power Equipment 201169 6500-Watt Tri-Fuel Portable Natural Gas Ready Generator with CO Shield® is a reliable source of power with the flexibility you need. When you are not running your generator on natural gas, you also have the option of operating it on gasoline or propane. The ability to operate your generator on three types of fuel out of the box makes this one of the most versatile generators on the market.
The Fuel Select dial allows you to safely select gasoline, propane (LPG), or natural gas (NG) as your fuel source.
Using natural gas, the generator produces 6875 starting watts and 5500 running watts. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.
Using gasoline, the generator produces 8125 starting watts and 6500 running watts, and will run for 12 hours at 50% load when the 8.5-gallon fuel tank is full.
When using a 20-pound propane tank, it produces 7500 starting watts and 6000 running watts, and will run for 6.5 hours at 50% load. A 6-foot propane hose with a built-in regulator is included.
The electric start includes a battery, plus Cold Start Technology ensures quick cold-weather starts. With a 1.2-quart oil capacity, this unit has a low oil shut-off switch and includes engine oil – all you need is fuel!
Easily monitor power output and track maintenance intervals with Intelligauge, which allows you to keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals.
This generator has a noise level of 74 dBA from 23 feet, which is a bit louder than a vacuum.

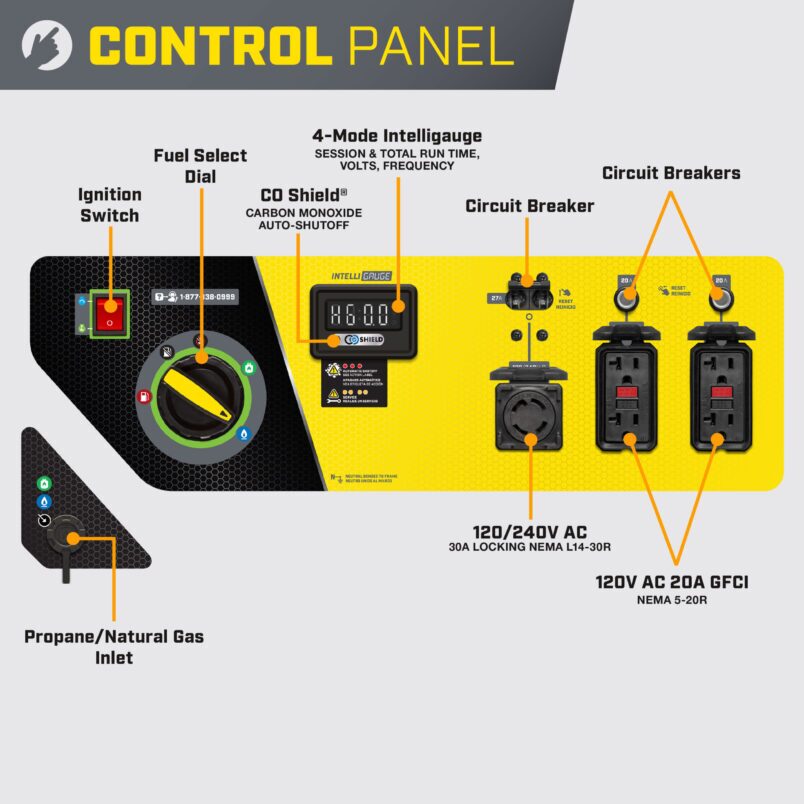

The covered outlets include a 120/240V 27A locking outlet (L14-30R) and two 120V 20A GFCI protected household duplex outlets (5-20R).
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

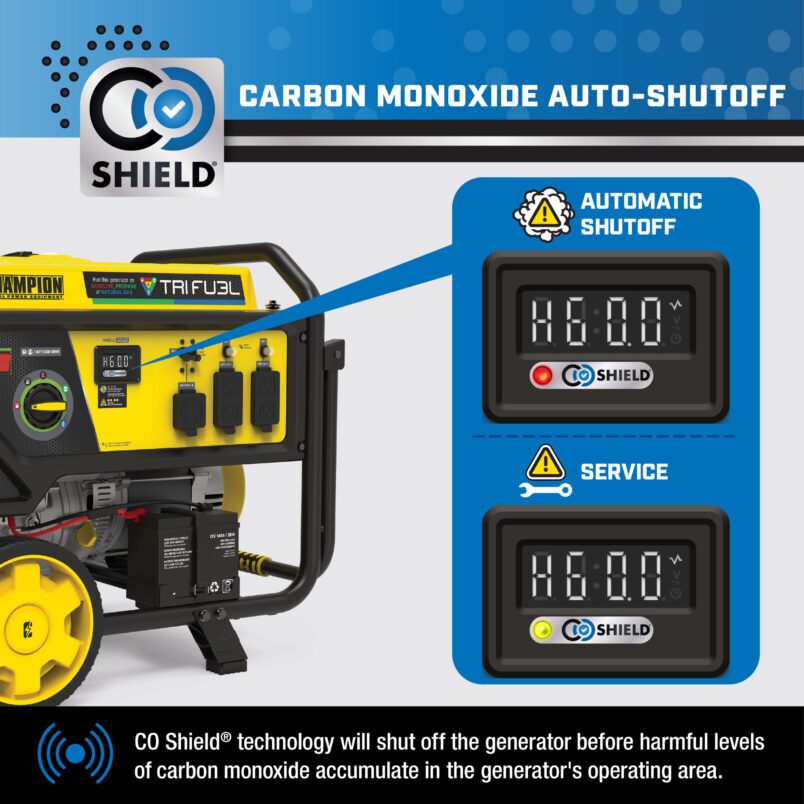

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings.
What’s included
- Engine Oil
- Oil Funnel
- Propane (LPG) Hose
- Natural Gas Hose with NPT Adapter
- Wheel Kit
- Battery
Specifications
| Portable Generator Technology | Tri Fuel, CO Shield® |
|---|---|
| Gasoline Starting Watts | 8125W |
| Gasoline Running Watts | 6500W |
| Propane Starting Watts | 7500W |
| Propane Running Watts | 6000W |
| Natural Gas Starting Watts | 6875W |
| Natural Gas Running Watts | 5500W |
| Gasoline Starting Amps at 120V | 67.7A |
| Gasoline Starting Amps at 240V | 34A |
| Gasoline Running Amps at 120V | 54.2A |
| Gasoline Running Amps at 240V | 27.1A |
| Propane Starting Amps at 120V | 62.5A |
| Propane Starting Amps at 240V | 31.25A |
| Propane Running Amps at 120V | 50A |
| Propane Running Amps at 240V | 25A |
| Natural Gas Starting Amps at 120V | 57.3A |
| Natural Gas Starting Amps at 240V | 28.6A |
| Natural Gas Running Amps at 120V | 45.8A |
| Natural Gas Running Amps at 240V | 23A |
| Volts | 120/240 |
| Frequency | 60Hz |
| Outlets | 120/240V Locking (L14-30R), GFCI 120V Duplex (5-20R) (2) |
| GFCI Outlets | Yes |
| Covered Outlets | Yes |
| Gasoline Run Time at 1/2 Load | 12 h. |
| Propane Run Time at 1/2 Load | 6.5 h. |
| Noise Level | 74 dBA |
| Parallel Capability | No |
| DC Operation | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 389cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline, Propane (LPG), Natural Gas (NG) |
| Fuel Gauge | Yes |
| Gasoline Capacity | 8.5 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.2 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 9.5 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
Dimensions
| Length | 28.7 in. |
|---|---|
| Width | 27.5 in. |
| Height | 26.1 in. |
| Weight | 197 lb. |
